User Manual for Sennheiser MZD 8000 Digital Microphone Module Click to enlarge the picture
Contents of the user manual for the Sennheiser MZD 8000 Digital Microphone Module
- Product category: Modular Microphone Components Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Modular Microphone Components
 |
User manual for the Sennheiser MZD 8000 Digital Microphone Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

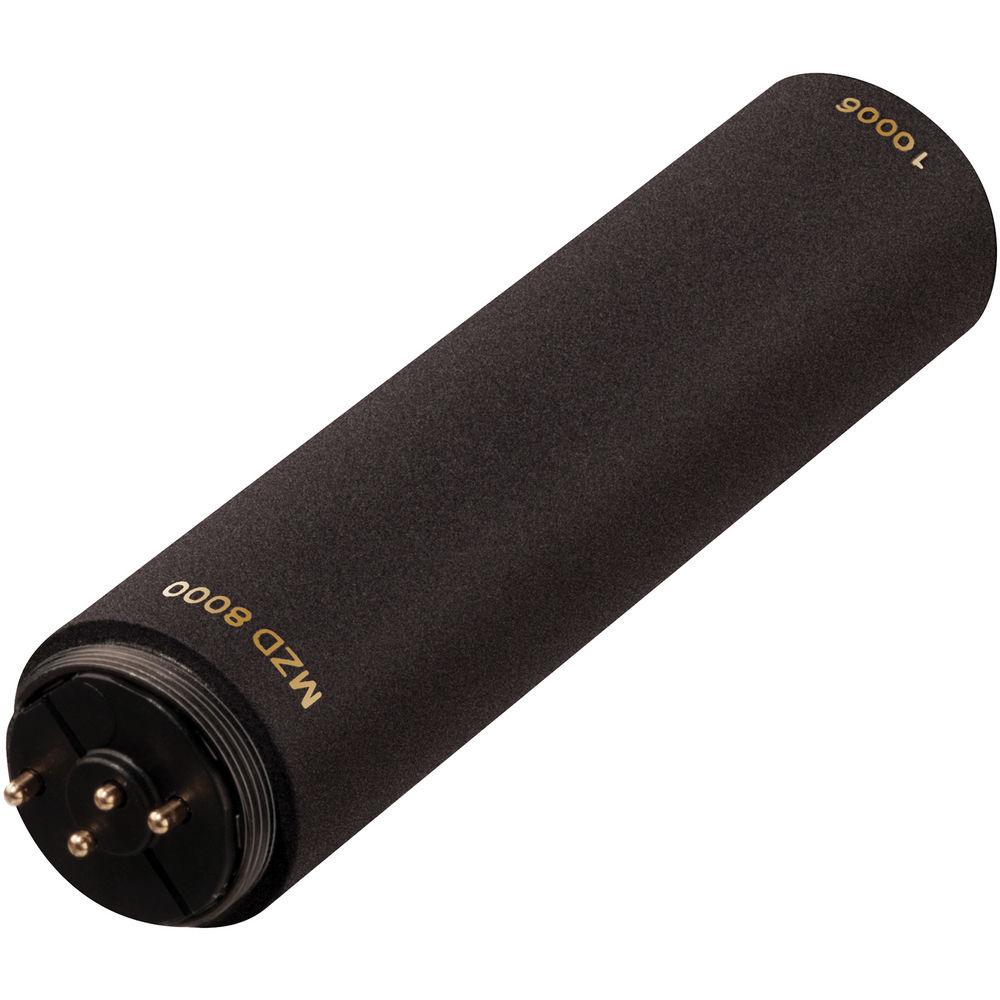

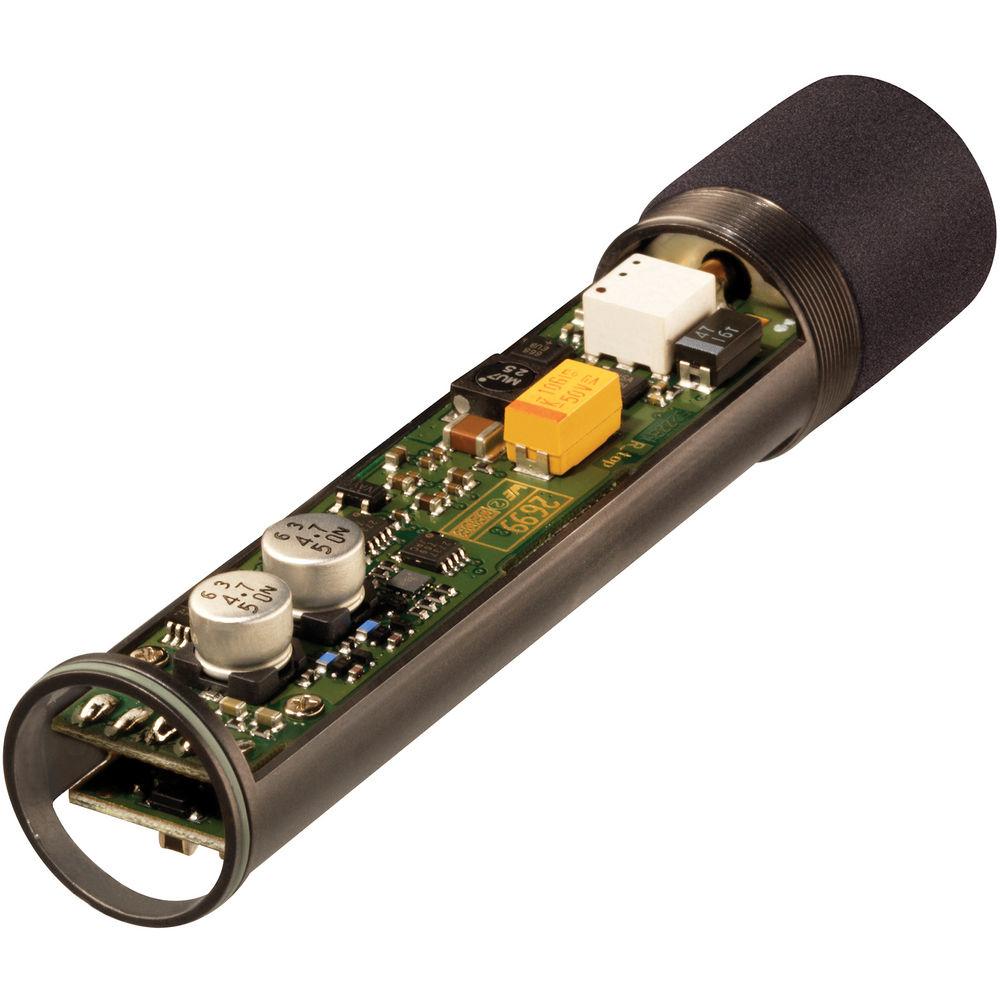

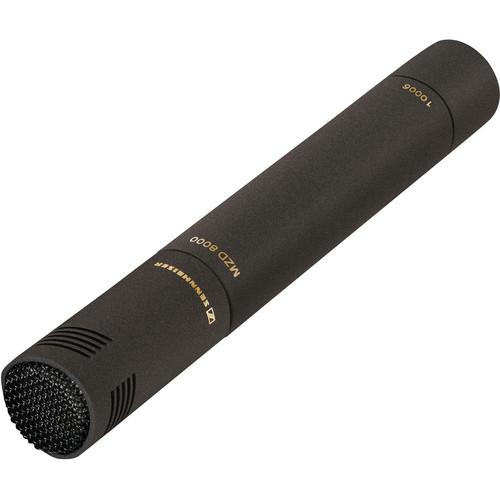

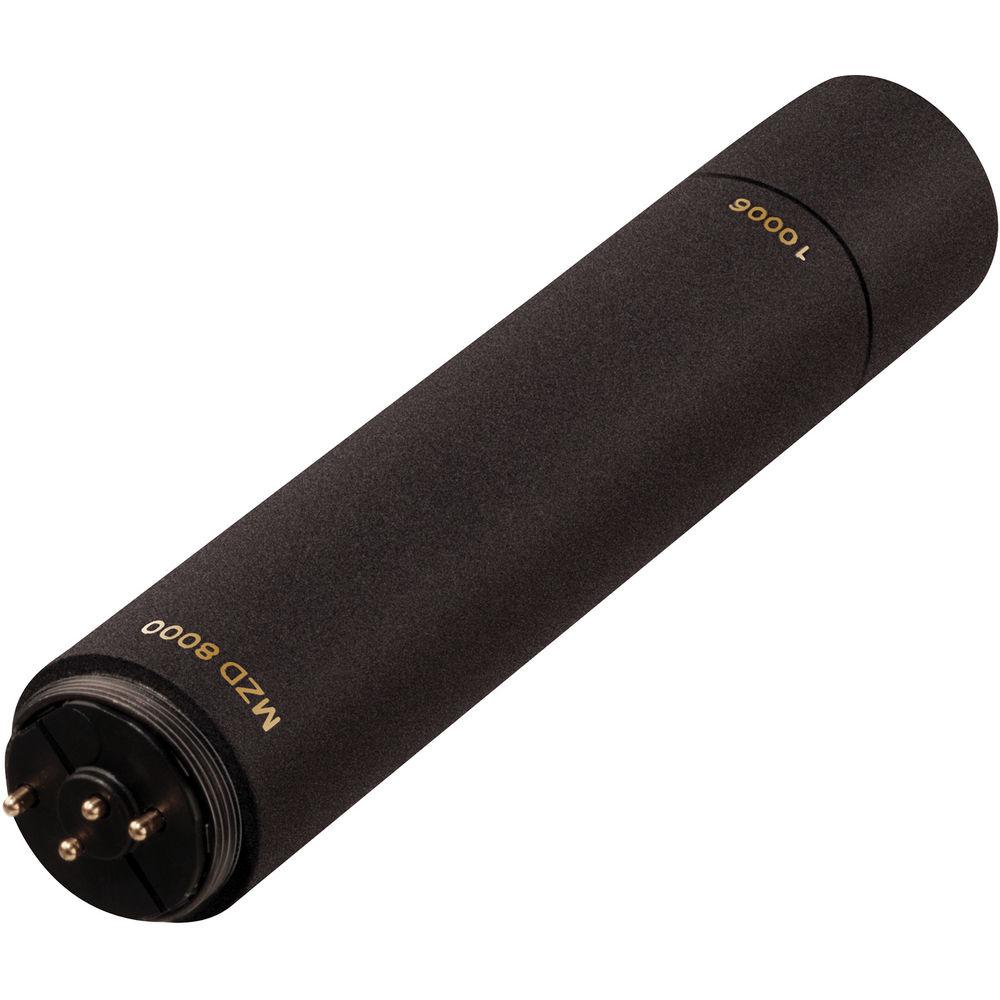

Product description The MZD 8000 Digital Microphone Module by Sennheiser converts the audio signal of the MKH 8000 series microphones from analog to digital. The matching module simply screws onto the head of the MKH 8020, MKH 8040 or MKH 8050 converting the analog XLR output to digital AES 42. In addition to high quality 24-bit, 192 kHz conversion, it also contains an integrated DSP unit. Using PC controlled software and an AES 42 interface, the microphone allows settings such as the low-cut filter and attenuation to be controlled remotely. - Two channel 24 Bit-AD-converter with a 115 dB dynamic range
- Studio grade preamp and converter with sampling rates from 44.1 to 192 kHz
- Remote controlled DSP functions such as low cut filter and attenuation
- Digital output in AES 42 format plus external sync via AES 42, Mode 2
- Black, matte finish to match the MKH 8000 series microphones
UPC: 615104131507 In the Box Sennheiser MZD 8000 Digital Microphone Module Limited 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MZD 8000 Digital Microphone Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MZD 8000 Specs | Frequency Response | 10 Hz to 80 kHz | | AD Conversion | 24 Bit/ 44.1 to 192 kHz delta-sigma | | Sensitivity | -31 dBFS (incl. MKH 8020) | | Total Harmonic Distortion | < -100 dBFS (at -1 dBFS) | | Self Noise | < -120 dBFS (mono mode, 40 Ohm) | | Group Delay Time | 22/ 19/ 15 samples (single/ double/ quad speed) | | Power Supply | 10V DPP (AES 42-phantom power) | | Current Consumption | < 160mA | | Operating Voltage | 7V to 10.5V | | Operating Temperature | -10 to 60°C | | Dimensions | Diameter 19mm, length 96mm | | Weight | 2.29 oz (65 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.0 x 4.3 x 1.6" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
