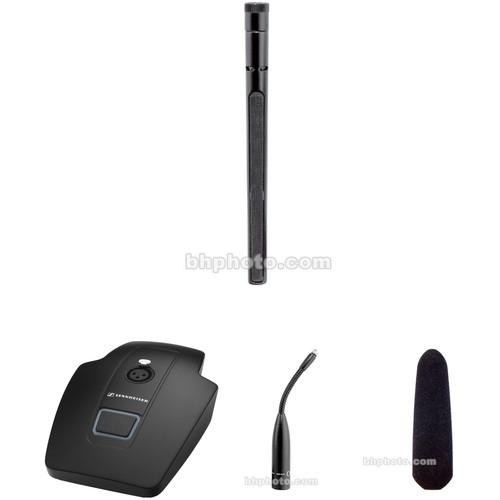

User Manual for Sennheiser MZH 36 Shotgun Microphone Capsule, Desktop Stand, and Short Gooseneck Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser MZH 36 Shotgun Microphone Capsule,
- Product category: Shotgun Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Shotgun Microphones
|
User manual for the Sennheiser MZH 36 Shotgun Microphone Capsule, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser MZH 36 Shotgun Microphone Capsule, Desktop Stand, and Short Gooseneck Kit from includes the Sennheiser black ME36 MZH shotgun microphone capsule, a MZH3015 5.9" short gooseneck mount for ME34, ME35, and ME36 mic capsules, a black MAT 133-S table stand with programmable mic button, a foam windscreen, and a MZW-36 velour windscreen. This kit can be used to capture audio in various environments such as boardrooms, meeting rooms, conferences, lectures, and more. - Sennheiser MAT 133-S Table Stand with Programmable Mic Button (Black) The black MAT 133-S Table Stand with Programmable Mic Button is for connecting and operating XLR gooseneck microphones. It is used in audio applications such as in lectures, boardrooms meeting rooms, and more. The MAT 133-S is built rugged and provides a XLR-3F microphone input and a XLR-3M microphone output. It features a bi-color LED for status indication and programmable button for On, On/Off, PTT, and PTM modes. This table stand uses 24 to 48V phantom power. The MAT 133-S stand is compatible with the MEG and MZH series goosenecks microphones. UPC: 615104230644
- Sennheiser MZH3015 Short Gooseneck Mount The Sennheiser MZH3015 is a short gooseneck mount that provides flexible, accurate microphone placement for the ME34, ME35 and ME36 Microphone Capsules. The gooseneck measures approximately 5.9" (15cm) in length. The mount is terminated with a standard 3-pin XLR male type connection that will connect directly to microphone inputs and mounting flanges. UPC: 615104050747
- Sennheiser ME36 MZH Shotgun Microphone Capsule (Black) The Sennheiser MZH series capsules are modular and designed for mounting to the MZH series goosenecks and other available accessories.The ME36 is a mini-shotgun capsule with a super-cardioid / lobar pick up pattern and wide frequency response. The ME36 is designed to maximize focus by minimizing residual off-axis noise, ambiance and feedback. The microphone's wide frequency response results in transparent, detailed audio reproduction at full range. The ME36 excels in applications where proximity is an issue and the microphone is called on to pick up a signal at long distances.
- Focused Polar Pattern
- The ME36 features a super-cardioid / lobar pick up pattern. The result is maximum rejection of noise and detail at long range.
- Low Self Noise
- The ME36 boasts an unprecedented low self-noise (23dB A-weighted), resulting in rich detail with a low noise floor.
- Pristine Signal Reproduction
- Overall the ME36 provides a rich, detailed signal response and wide, natural frequency response.
UPC: 615104050655 - Sennheiser MZW-36 Velour Windscreen The Sennheiser MZW-36 Velour Windscreen is designed to fit the Sennheiser ME36 miniature shotgun capsule. The MZW-36 provides a snug fit and the velour material effectively minimizes noise caused by wind, plosives, sibilance, etc. UPC: 615104050693
In the Box - MAT 133-S Table Stand with Programmable Mic Button (Black) xtvfuayyufcawwcy
- Limited 2-Year Warranty
- MZH3015 Short Gooseneck Mount for ME34, ME35 and ME36 Microphone Capsules (5.9") (15cm)
- ME36 MZH Shotgun Microphone Capsule (Black)
- MZW-36 Velour Windscreen for the ME36 Miniature Shotgun Microphone Capsule
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MZH 36 Shotgun Microphone Capsule, Desktop Stand, and Short Gooseneck Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser MAT 133-S Table Stand with Programmable Mic Button (Black)
| Connector | Mic In: XLR-3F
Mic Out: XLR-3M
Logic: Clip Contact for Logic, Pin Assignment:
Trigger Signal at Logic Connector: Logic in (external LED control), ground, logic out (switch signal) | | Phantom Power Requirement | P 24 to P 48 | | Operating Temperature | 14 to 122° F (-10 to 50° C) | | Current Consumption | 3.7 mA | | Output Voltage | Logic out: High level output voltage > 2.4 V, low level output voltage < 0.4 V
Logic in: High level input voltage > 2.0 V, low level input voltage < 0.8 V | | LED Status Indicator | Light Ring: Red / Green | | Dimensions (W x D x H) | 4.72 x 6.69 x 1.69" (11.99 x 16.99 x 4.29 cm) | | Weight | 2.67 lb (1211.09 g) | | | | Box Dimensions (LxWxH) | 10.0 x 8.9 x 3.8" | - Sennheiser MZH3015 Short Gooseneck Mount
| | | Box Dimensions (LxWxH) | 7.3 x 1.7 x 1.7" | - Sennheiser ME36 MZH Shotgun Microphone Capsule (Black)
| Transducer | Pressure Gradient/Interference Tube Condenser | | Polar Pattern | Super-Cardioid / Lobar | | Frequency Response | 40Hz to 20kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | 23dB (A) | | Maximum Input Sound Level | not specified by manufacturer | | Power Requirements | 12 - 48V Phantom Power | | Output Impedance | 50 ohms | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 3.78 x .32" (96 x 8.2mm) (Length x Diameter) | | Weight | 6 oz (170 g) | | | | Box Dimensions (LxWxH) | 6.0 x 4.4 x 1.4" | - Sennheiser MZW-36 Velour Windscreen
| | | Box Dimensions (LxWxH) | 5.3 x 1.7 x 1.5" |
