User Manual for Sennheiser RS 185 Digital Wireless Headphone System Click to enlarge the picture
Contents of the user manual for the Sennheiser RS 185 Digital Wireless Headphone
- Product category: TV Headphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser TV Headphones
 |
User manual for the Sennheiser RS 185 Digital Wireless Headphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

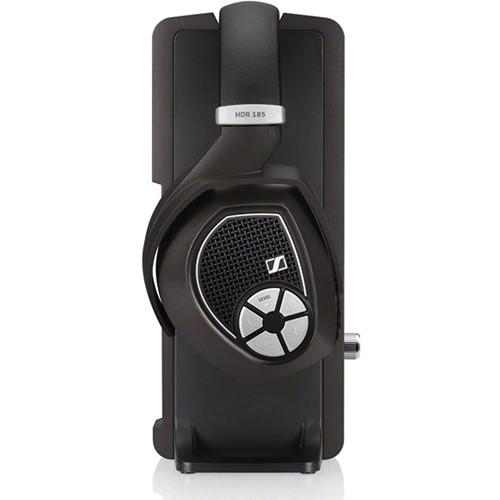

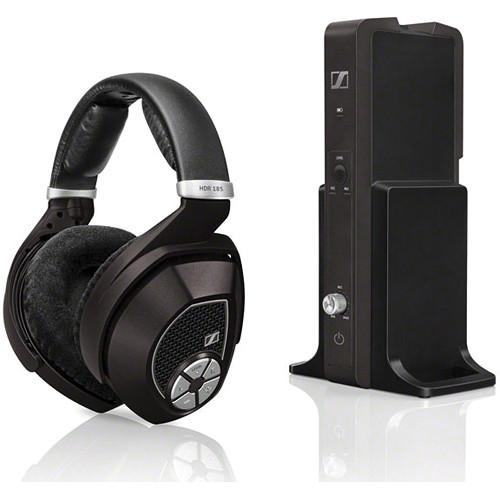

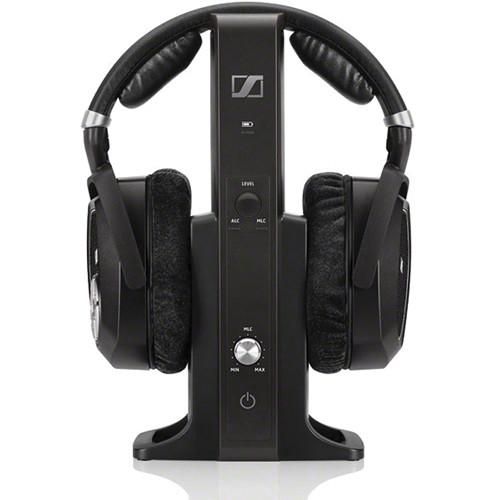

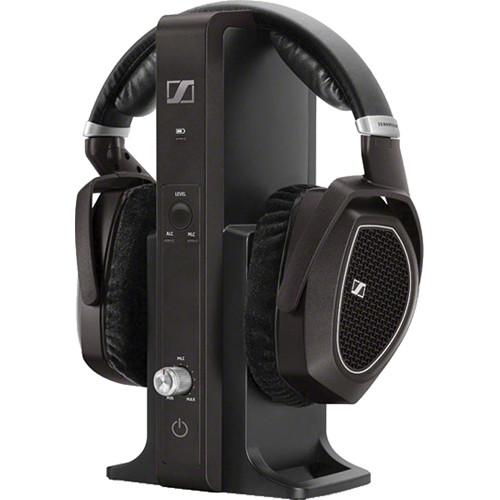

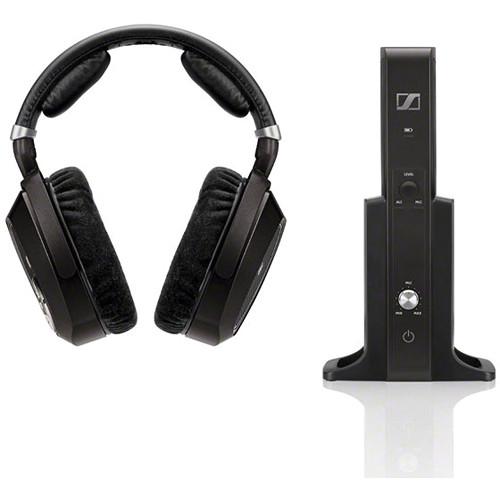

Product description Providing uncompressed digital audio transmission within up to a 328' range, the RS 185 Digital Wireless Headphone System from Sennheiser consists of a pair of HDR 185 headphones and a TR 185 transmitter that doubles as a cradle and charging station for the headphones. The system supports both analog and digital optical inputs, and gives you the option of automatic or manual level control. The headphone's lightweight and ergonomic design allow them to be worn comfortably during extended listening sessions. A pair of rechargeable batteries, analog and optical cables, and a power supply are included. - Wireless, open, circumaural headphones with uncompressed digital audio transmission
- Exceptional digital audio clarity and transmission range of up to 328' (100 m), line of sight
- Sennheiser transducers for precise sound
- Control the sensitivity of your analog input: choose between Automatic Level Control (ALC) mode to even out volume differences automatically or Manual Level Control (MLC) mode to manually adjust the sensitivity
- Supports analog and digital audio inputs and allows toggling between the inputs
- Balance control located on the headset for adjustments
- Multi-purpose transmitter - also functions as 'easy-charge' cradle and docking station
- Multi-receiver transmission: transmitter supports up to two pairs of headphones simultaneously
UPC: 615104228405 In the Box Sennheiser RS 185 Digital Wireless Headphone System HDR 185 Headset for RS 185 System fafeqvbb TR 185 Transmitter RCA Audio Cable Power Supply 4 x Adapters (EU, UK, US, AU) 2 x AAA NiMH Rechargeable Batteries Limited 2-Year Warranty User Manual PDF 12.3mb More info from Sennheiser Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser RS 185 Digital Wireless Headphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser RS185 Specs | | | Frequency Response | 17 Hz to 22 kHz | | Maximum SPL | 106 dB at 1 kHz, 3% THD | | THD | <0.5 % at 1 kHz, 100 dB SPL | | Transducer Principle | Dynamic, open | | Operating Time | Up to 18 hours | | Weight | 10.9 oz (310 g), including batteries | | | | Audio Input | 1x Stereo RCA analog input
1x Optical digital input | | Power Consumption | ≤ 0.3 W (standby) | | | | Range | Up to 328' (100 m) | | Signal to Noise Ratio | Analog Input: ALC typical, 85 dBA at 1 Vrms, MLC ≥ 90 dBA
Digital Input: > 90 dBA | | Modulation | 8-FSK Digital | | Carrier Frequency | 2.4 to 2.48 GHz | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 10.2 x 9.5 x 6.0" |
