User Manual for Sennheiser RS 5000 Wireless Digital TV Listening System Click to enlarge the picture
Contents of the user manual for the Sennheiser RS 5000 Wireless Digital TV
- Product category: TV Headphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser TV Headphones
|
User manual for the Sennheiser RS 5000 Wireless Digital TV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

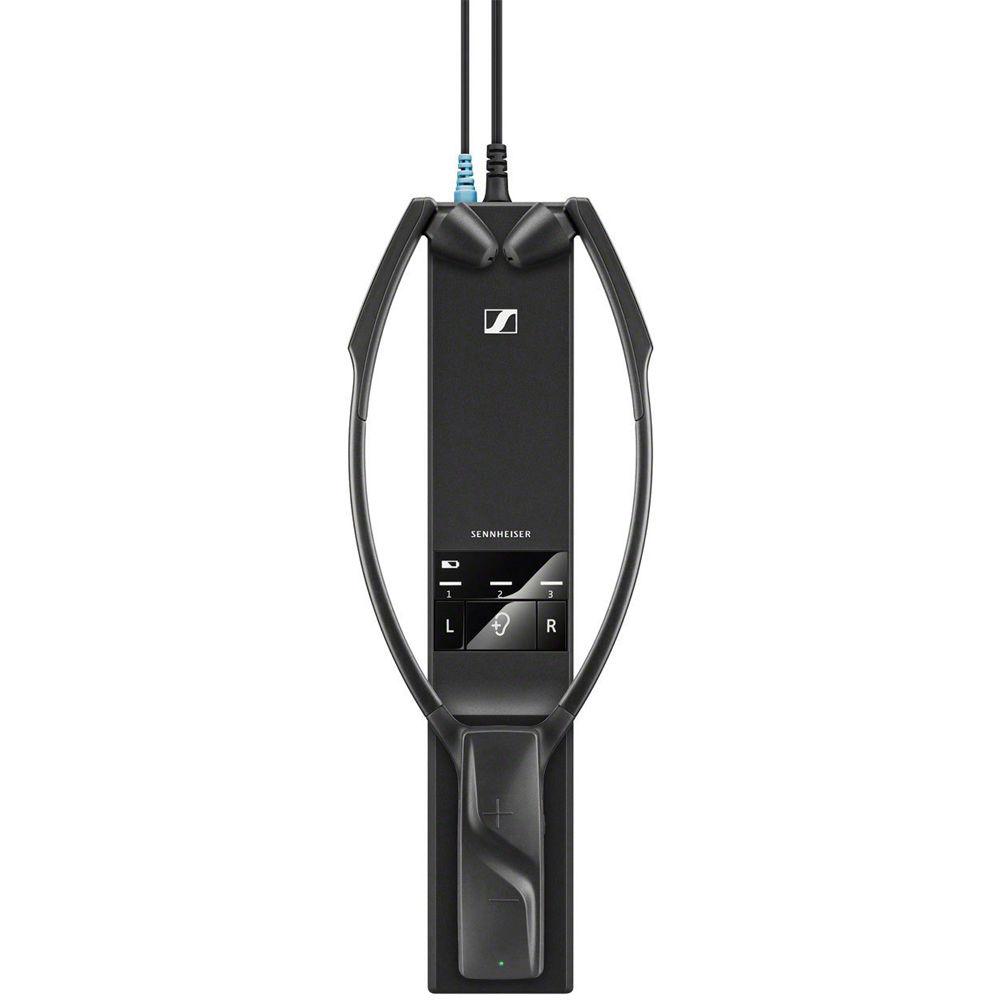

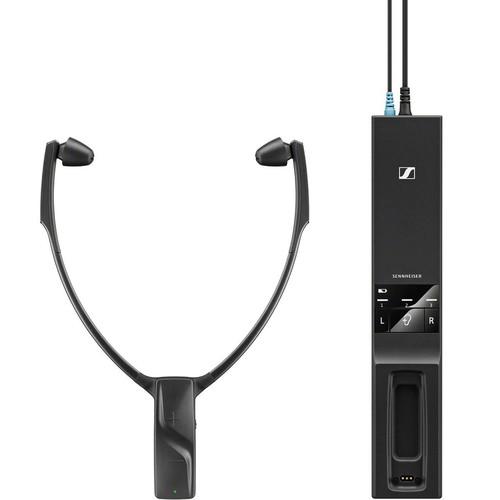

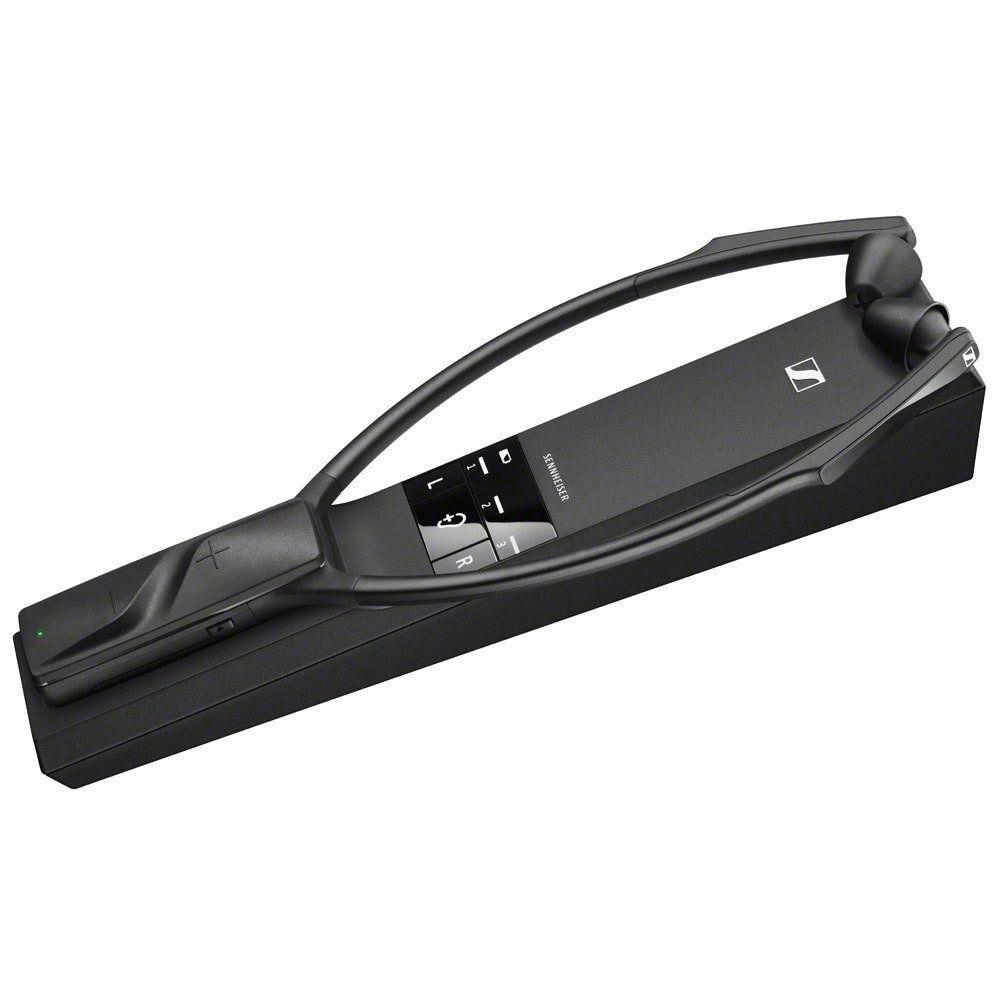

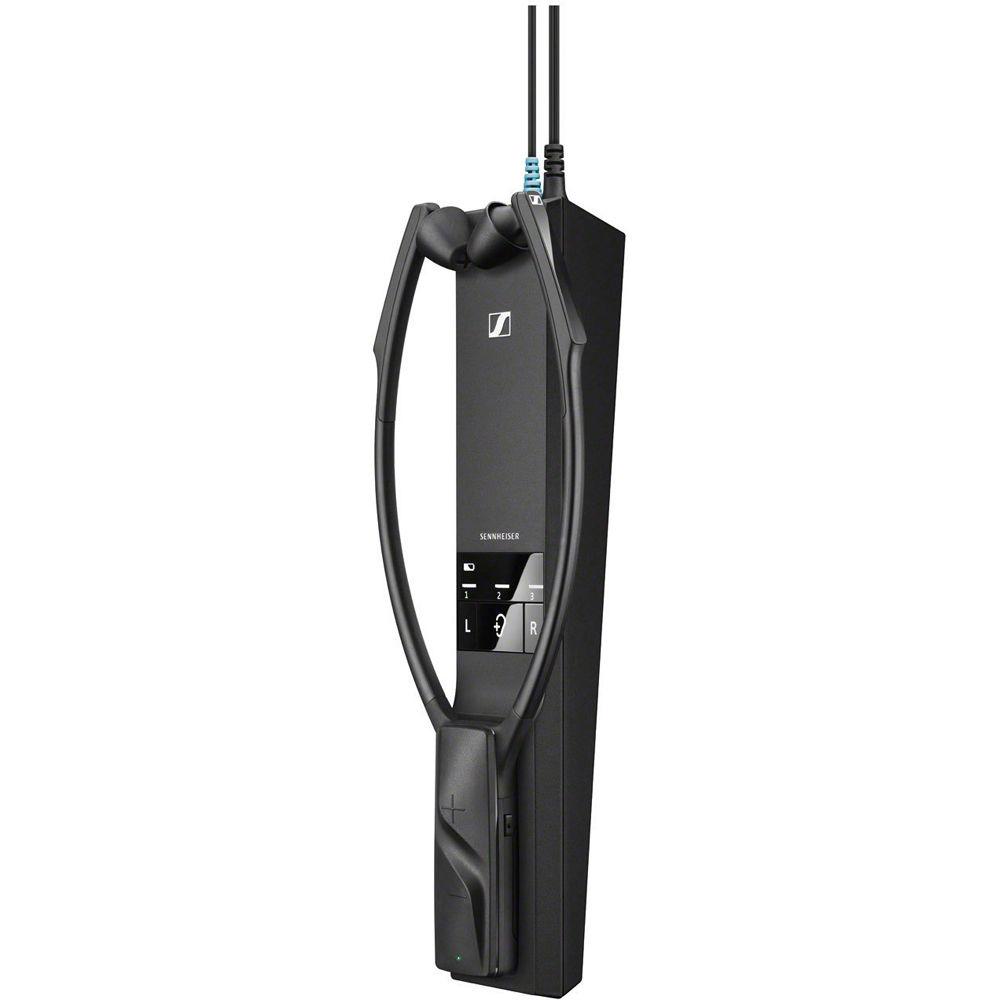

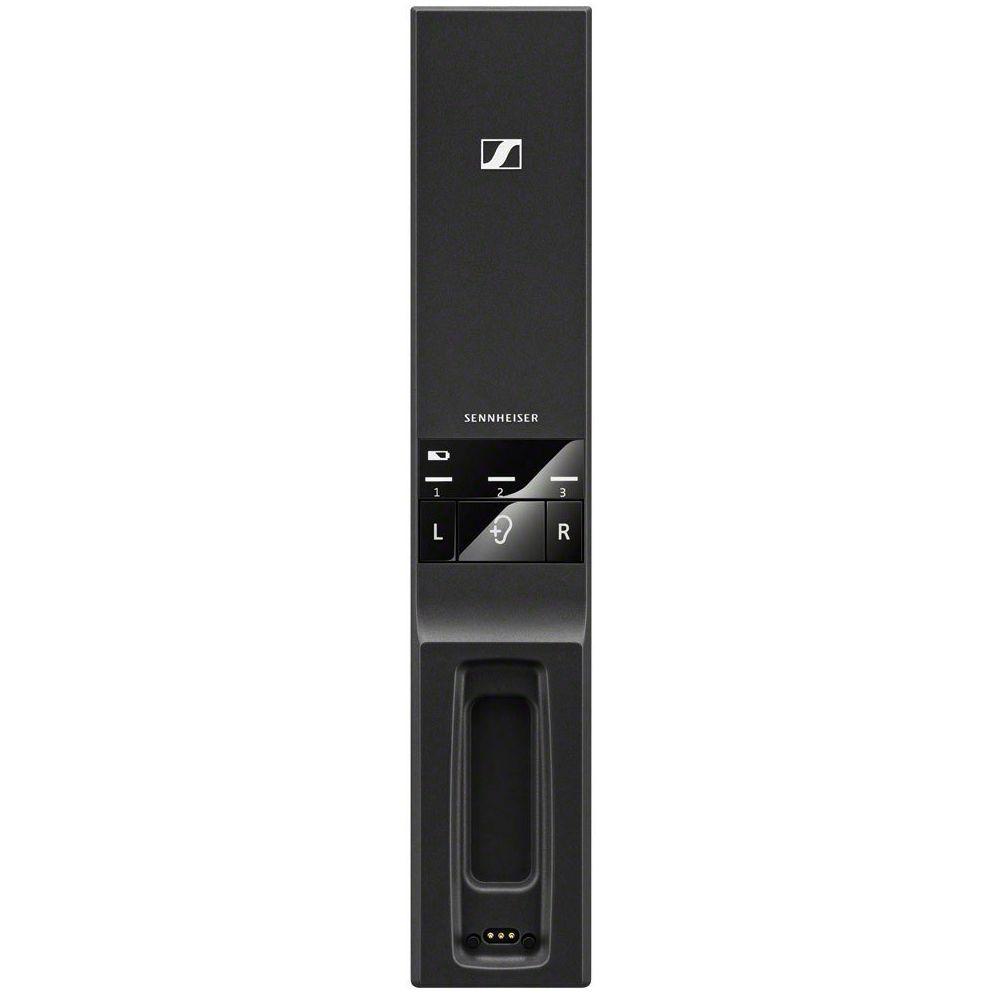

Product description The Sennheiser RS 5000 allows you to comfortably listen to TV audio from up to 200' away. The main components of the RS 5000 are the headset receiver and transmitter, which also functions as a docking station. The system features 3 different listening profiles and lets you tailor the volume, sound profile, and speech intelligibility to your specific needs and preferences.
The headset receiver component is designed for long-lasting comfort. It's lightweight, so there's no pull on your head or neck, and it won't put pressure on your ears and temples. Plus, it's wireless, so you're free to move around untethered by wires or cables. It features a built-in rechargeable battery that lasts up to 12 hours and can be recharged using the transmitter dock. UPC: 615104270411 In the Box Sennheiser RS 5000 Wireless Digital TV Listening System Headset Receiver Docking Station Transmitter Ear Pads Power Supply 4 x Country Adapters 3.5mm Audio Out Cable Digital Optical Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser RS 5000 Wireless Digital TV Listening System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser RS 5000 Specs Frequency Response | 15 Hz to 16 kHz | Maximum Sound Pressure Level (SPL) | 125 dB (at 1 kHz) | Total Harmonic Distortion (THD) | <0.5% at 1 kHz, 100 dB SPL | Signal to Noise Ratio | Analog Input: 85 dBA at 1 Vrms Digital Input: > 90 dBA | Contact Pressure | Approximately 0.8 N | Ear Coupling | Silicon rubber (2 sizes) | Transducer Principle | Receiver: Dynamic, neodymium magnets | Transmission Range | Up to 200' (70 m) | Power Consumption | Operation: 1 W Standby: ≤0.5 W (without charging) | RF Output Power | 10 dBm Class 1 (max) | Battery | Built-in rechargeable battery BAP 800 | Battery Chemistry | Lithium-ion polymer | Battery Capacity | 350 mAh | Battery Life | Up to 12 hours | Charging Time | Up to 3 hours | Dimensions | Receiver: 4 x 10.4 x 0.9" (102 x 265 x 23 mm) Transmitter: 1.97 x 1.65 x 10.6" (50 x 42 x 270 mm) | Weight | Receiver: 61 g (2.2 oz) Transmitter: 232 g (8.2 oz) | | Package Weight | 2.4 lb | Box Dimensions (LxWxH) | 11.9 x 6.7 x 3.4" |
