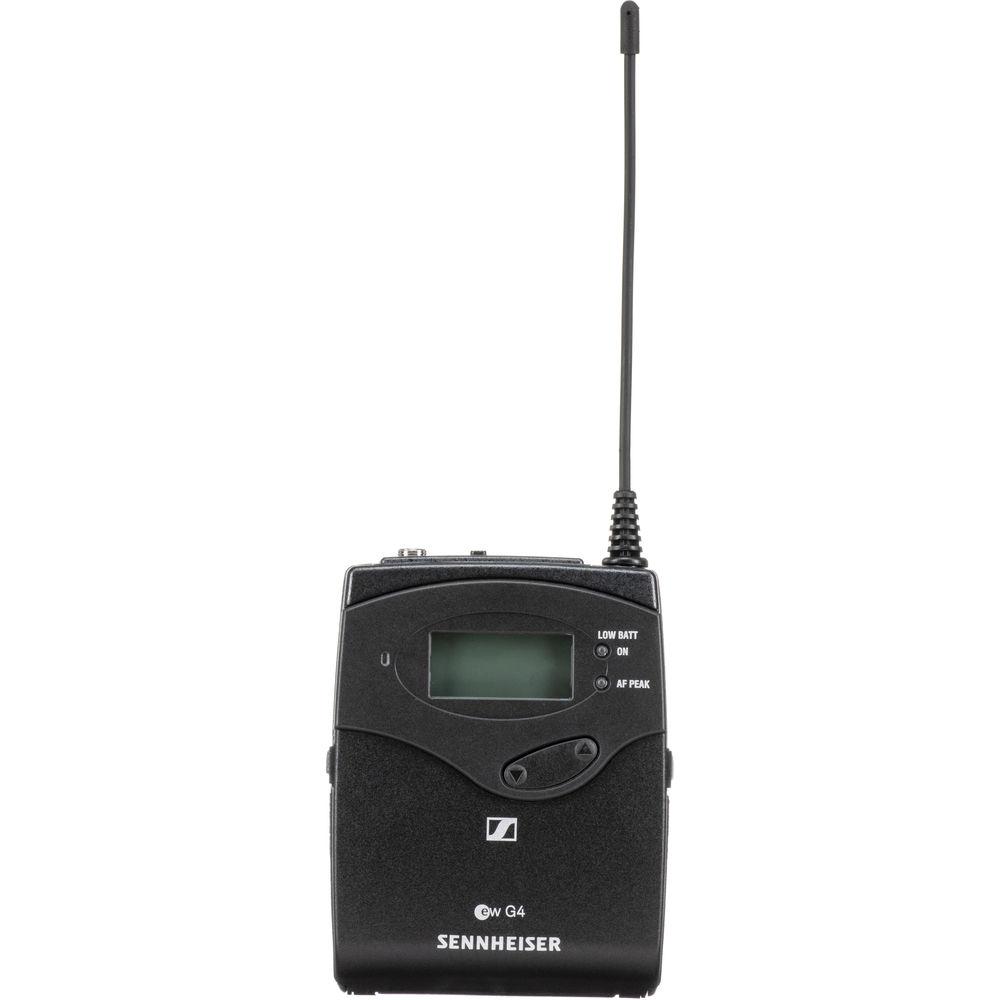

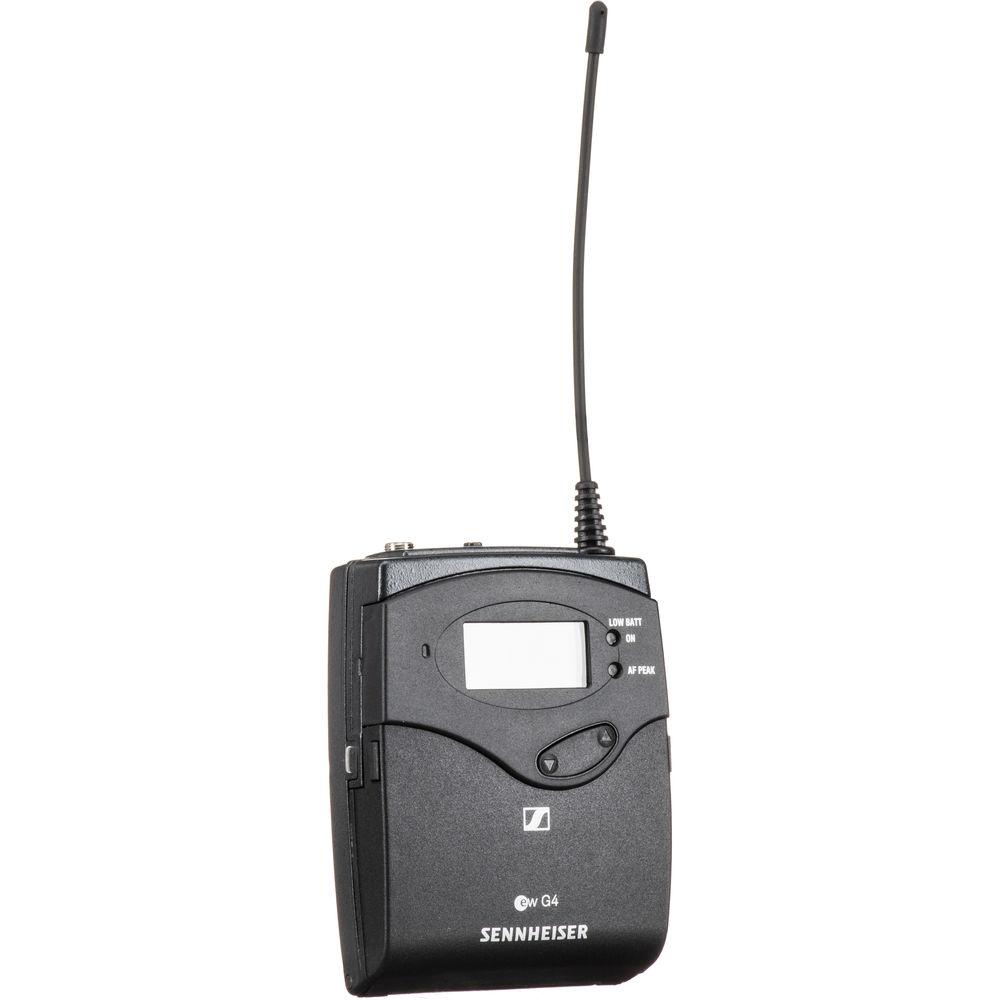

User Manual for Sennheiser SK 100 G4 Wireless Bodypack Transmitter A: Click to enlarge the picture
Contents of the user manual for the Sennheiser SK 100 G4 Wireless Bodypack
- Product category: Wireless Transmitters Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Transmitters
 |
User manual for the Sennheiser SK 100 G4 Wireless Bodypack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

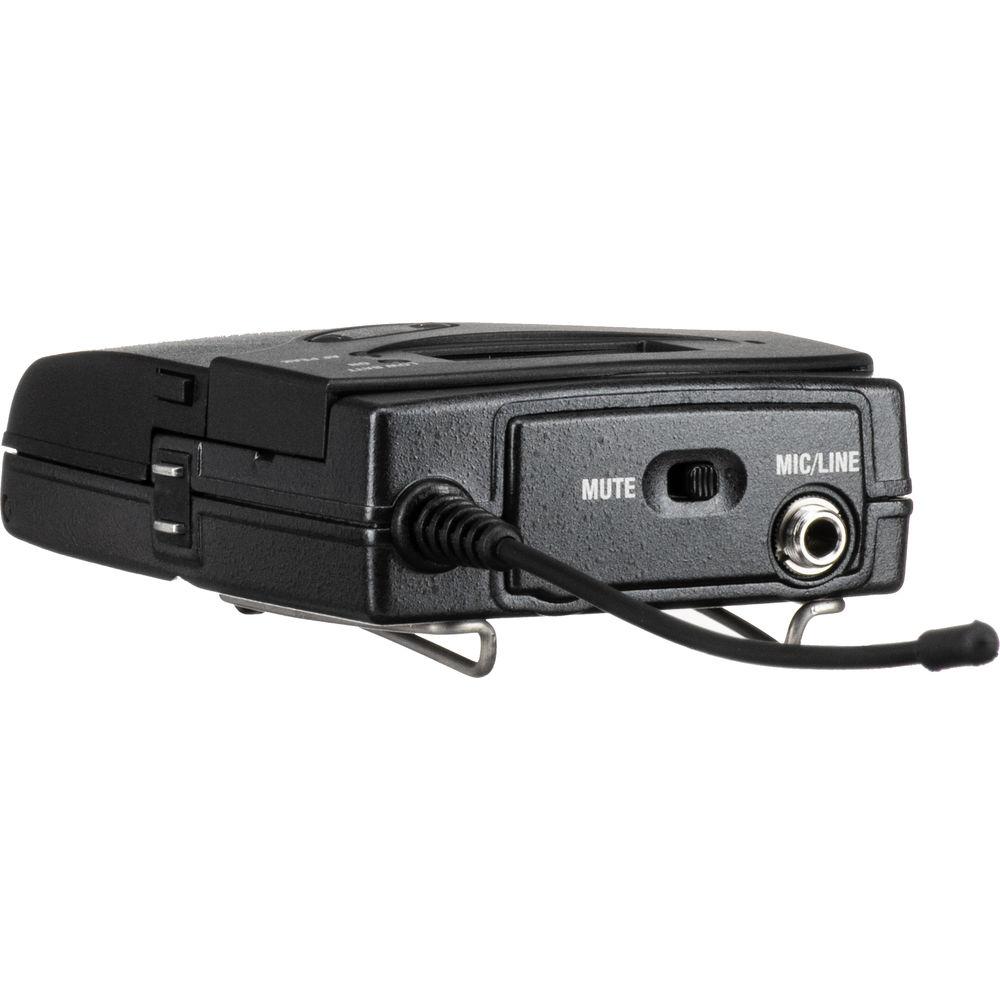

Product description The SK 100 G4 Wireless Bodypack Transmitter from Sennheiser is the latest addition to their evolution family of wireless microphones. It features true diversity technology and can be used when paired with a companion receiver and microphone, as part of a wireless RF transmission system for live stage, theater, presentation, and rehearsal applications. The transmitter features 1680 frequencies tunable in 25 kHz steps with 20 fixed frequency banks and up to 12 compatible frequency presets. There is 1 user bank with up to 12 user programmable frequencies. The transmitter's menu-driven backlit display shows current frequency, frequency band and channel number, metering of AF level, transmission status, battery status, and more. Furthermore, the transmitter is equipped with a mute switch and is powered by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. It is built with a rugged metal housing. The SK 100 G4 transmitter will operate about 8 hours and is equipped with a 1/8" line/mic input jack. With 25 Hz to 18 kHz AF frequency response, the SK 100 G4 is designed to deliver a natural audio quality. - Robust bodypack transmitter for daily use on stage.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared.
- Fast frequency allocation for up to 12 receivers via updated linking functionality.
- Up to 20 compatible channels.
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.
- Transmission Range: up to 100 meters / 300'
- High RF output power (up to 30 mW) depending on country regulations.
UPC: 615104309166 In the Box Sennheiser SK 100 G4 Wireless Bodypack Transmitter A: (516 to 558 MHz) 2 x AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SK 100 G4 Wireless Bodypack Transmitter A: in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SK 100 G4 Specs | Modulation | Wideband FM | | Frequency Range | A: (516 to 558 MHz) | | Transmission Frequencies | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels | | Switching Bandwidth | Up to 42 MHz | | Nominal/Peak Deviation | ±24 kHz / ±48 kHz | | Frequency Stability | ≤
