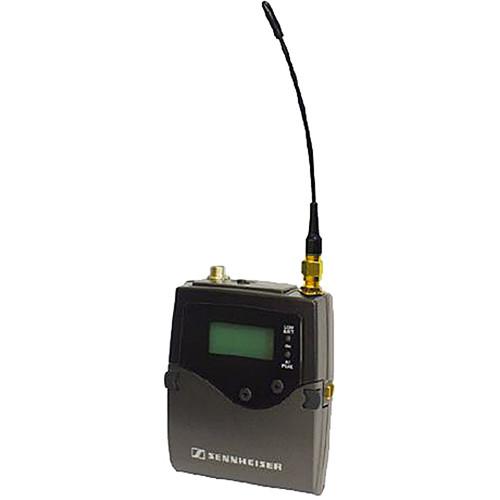

User Manual for Sennheiser SK 2250 AW High-Power Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Sennheiser SK 2250 AW High-Power Bodypack
- Product category: Wireless Transmitters Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Transmitters
|
User manual for the Sennheiser SK 2250 AW High-Power Bodypack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description Optimized for broadcast applications, the Sennheiser SK 2250 AW High-Power Bodypack Transmitter is the high-power version of the SK 2000 transmitter. It features an RF output power of 250mW and a detachable antenna with SMA connector for use with a remote antenna, which together ensure a reliable performance over increased distance. The SK 2250 AW delivers a wide 25 Hz to 18 kHz audio frequency response that enhances the bass range for optimum transmission from bass guitars. It offers twenty fixed-frequency banks with up to sixty-four compatible presets, and six user banks. Easy to set up, the SK 2250 AW can be synchronized with its receiver at the touch of a button using the infrared interface. Lightweight (at 5.8 oz) and with a sturdy, metal construction, it is powered with two AA batteries or via the BA 2015 rechargeable battery pack (available separately), for up to 2.5 hours of continuous operation. In addition, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy. - Key Features
-
- Optimized for professional broadcast applications
- 250mW RF output power for reliable performance over greater range
- Detachable antenna with SMA connector for use with remote antenna
- Frequency Range: Aw: 494 - 558 MHz
- Sturdy, all-metal housing
- 3-Pin LEMO-type audio connector
- Up to 75 MHz switching bandwidth
- 20 fixed frequency banks with up to 64 compatible presets
- 6 user banks
- Frequency setting in 25 kHz steps
- External charging contacts for recharging BA 2015 rechargeable battery pack (available separately)
- Enhanced audio frequency response in the bass range for optimum transmission from bass guitars
- Input sensitivity range of 60 dB can be adjusted in 3 dB steps
- Easy receiver-transmitter synchronization at the push of a button using infrared interface
- Includes hard plastic storage case
- Compatible with Sennheiser Control Cockpit Software (download)
UPC: 615104300248 In the Box Sennheiser SK 2250 AW High-Power Bodypack Transmitter (Aw: 494 - 558 MHz) Hard Plastic Storage Case 2 x AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SK 2250 AW High-Power Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SK2000 Specs | Type of Transmitter | Bodypack | | RF Frequency Range | Aw: 494 - 558 MHz | | Audio Input Connectors | 1 x 3-pin LEMO-type | | Compander | HDX | | Preset Channels | 20 fixed frequency banks with up to 64 compatible presets
6 user banks | | Switching Bandwidth | Up to 75 MHz
Tuneable in 25 kHz steps | | Frequency Response | 25 Hz to 18 kHz | | RF Output Power | 250 mW | | Antenna | Detachable, with SMA connector | | Power | Batteries: 2 x AA, 1.5 V
BA 2015 rechargeable pack (available separately)
Battery Life: 2.5 hours (approximately) | | Power Consumption | At Nominal Voltage: 400 mA, typically
With Switched-Off Transmitter: ≤ 25 μA | | Housing | All-metal | | Dimensions | 3.23 x 2.52 x 0.94" (82.00 x 64.00 x 24.00 mm) | | Weight | 5.8 oz (165.0 g), with batteries |
