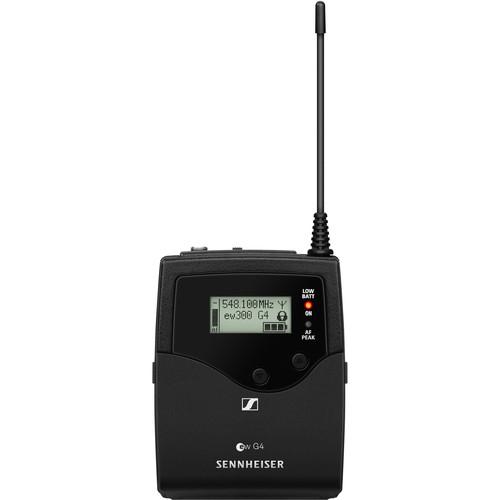

User Manual for Sennheiser SK 300 G4-RC Bodypack Transmitter GW1: Click to enlarge the picture
Contents of the user manual for the Sennheiser SK 300 G4-RC Bodypack Transmitter
- Product category: Wireless Transmitters Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Transmitters
|
User manual for the Sennheiser SK 300 G4-RC Bodypack Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The SK 300 G4-RC Bodypack Transmitter from Sennheiser features 2000 UHF frequencies in 25 MHz steps and is built with 20 fixed frequency banks, 32 frequency presets, and 6 user banks with up to 32 user programmable frequencies. It can be used to capture audio when paired with a companion receiver and microphone in various environments for broadcast TV, ENG, and field applications. The transmitter is menu-driven with a backlit LCD display showing the current frequency, frequency bank, channel number, metering of output level, transmission status, battery status, and more. An auto-lock feature prevents settings from being accidentally altered. The transmitter can be synchronized via an integrated infrared interface and is programmable in the bodypack transmitter menu. Power is supplied by two 1.5V AA batteries or by a Sennheiser BA 2015 rechargeable accupack. The unit is enclosed in a rugged metal housing and is equipped with a 2.5mm jack to connect a remote mute switch. A 3.5mm jack socket is featured for the mic/line inputs. In addition, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy. - Robust bodypack transmitter for use with any Sennheiser headmic or lavalier microphone
- Easy to use, fast setup time
- Integrated network port allows control, monitoring, and setup via Sennheiser Control Cockpit and WSM software
- Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
- Up to 50 MHz bandwidth, up to 32 channels
- Increased RF output power: 10/30/50mW
- Transmission Range: up to 330 feet
- RC (remote control) switch available for the bodypack transmitter
- Compatible with Control Cockpit Software
UPC: 615104316331 In the Box Sennheiser SK 300 G4-RC Bodypack Transmitter GW1: (558 to 608 MHz) 2 x AA Batteries Carry Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SK 300 G4-RC Bodypack Transmitter GW1: in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SK 300 G4-RC Specs | Modulation | Wideband FM | | Frequency Range | GW1: (558 to 608 MHz) | | Transmission Frequencies | 2000 frequencies adjustable in 25 MHz steps
20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
6 frequency banks with up to 32 programmable channels | | Switching Bandwidth | Up to 88 MHz | | Peak Deviation | Nominal: ±24 kHz / ±48 kHz | | Frequency Stability | ≤
