User Manual for Sennheiser SK 500 G4 Wireless Bodypack Transmitter AW : Click to enlarge the picture
Contents of the user manual for the Sennheiser SK 500 G4 Wireless Bodypack
- Product category: Wireless Transmitters Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Transmitters
 |
User manual for the Sennheiser SK 500 G4 Wireless Bodypack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

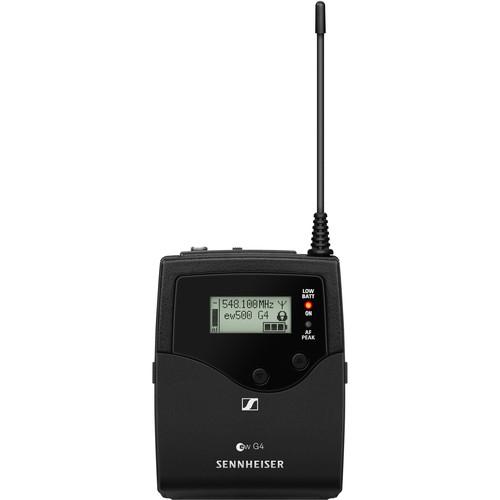

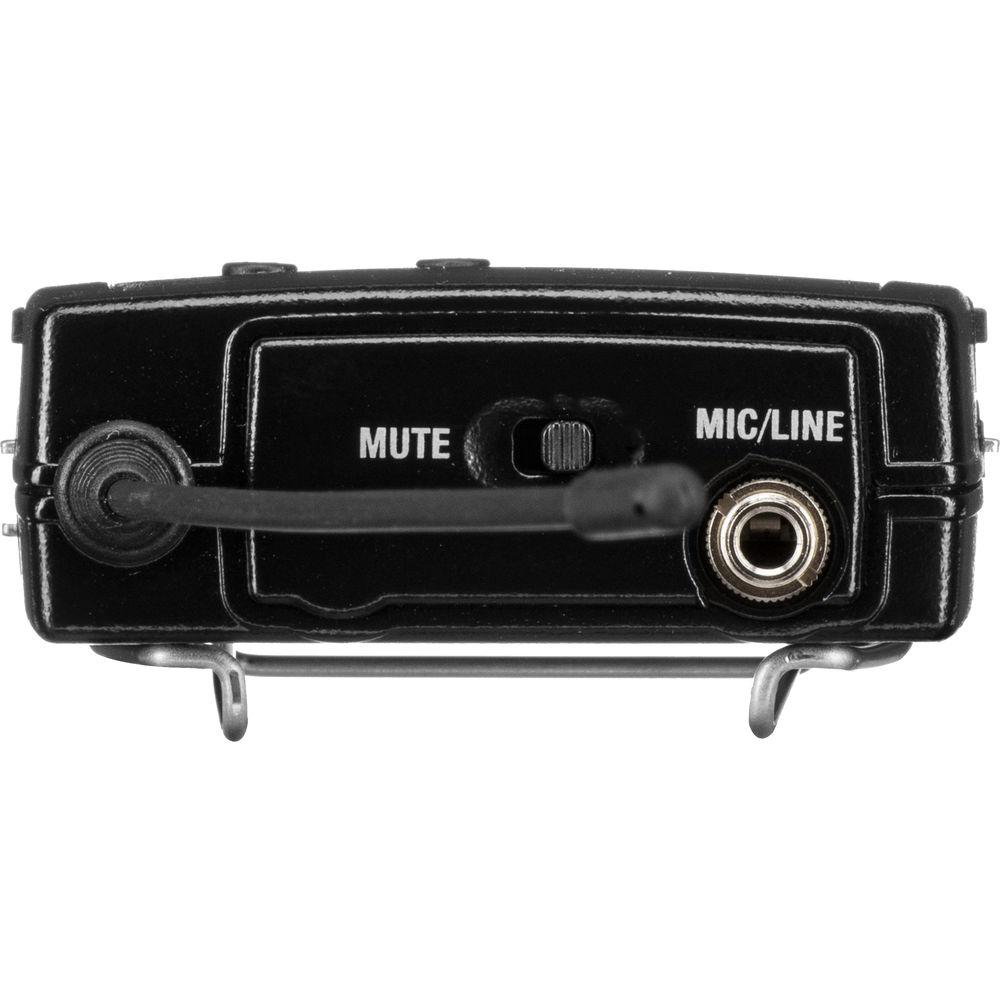

Product description The SK 500 G4 Wireless Bodypack Transmitter from Sennheiser is the latest addition to their evolution series of wireless transmitters. It operates in the UHF frequency range and can be used with a companion receiver (sold separately), as part of a wireless RF transmission system for live stage, theater, film, and presentation applications. The bodypack transmitter features 3250 frequencies that are tunable in 25 kHz steps, 20 fixed frequency banks, 32 compatible frequency presets, and 6 user banks with up to 32 user programmable frequencies. The transmitter's menu-driven backlit LCD display shows the current frequency, frequency bank and channel number, metering of AF level, lock status, transmission status, muting function, battery status, and more. In addition, the operating range is about 330'. This transmitter incorporates a Sennheiser HDX compander system, a defeatable pilot tone squelch, and is equipped with a frequency range from 80 Hz to 18 kHz. Power is supplied by the two included 1.5V AA sized batteries, or by one optional Sennheiser BA 2015 rechargeable accupack. A travel pouch is also included. Finally, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy. - Updated bodypack transmitter with increased bandwidth and transmission power.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared.
- Up to 32 compatible channels.
- Up to 88 MHz bandwidth with 3250 selectable frequencies, fully tunable in a stable UHF range.
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups.
- High RF output power (up to 50mW, adjustable in three steps 10/30/50) depending on country regulations.
UPC: 615104316195 In the Box Sennheiser SK 500 G4 Wireless Bodypack Transmitter AW+: (470 to 558 MHz) 2 x AA Batteries Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SK 500 G4 Wireless Bodypack Transmitter AW : in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SK 500 G4 Specs | Modulation | Wideband FM stereo | | Frequency Band | AW+: (470 to 558 MHz) | | Transmission Frequency | Maximum 3250 frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
6 frequency banks with up to 32 programmable channels | | Switching Bandwidth | Up to 88 MHz | | Nominal/Peak Deviation | ±24 kHz / ±48 kHz | | Frequency Stability | ≤ ±15 ppm | | RF Output Power | At 50 Ohms Switchable:
Low: Typical 10 mW
Standard: Typical 30 mW
High: Typical 50 mW | | Pilot Tone Squelch | Can be switched off | | Compander | Sennheiser HDX | | AF Frequency Response | Mic: 80 Hz to 18 kHz
Line: 25 Hz to 18 kHz | | Signal to Noise Ratio | Approximately ≥ 115 dBA (1 mV, peak deviation) | | Total Harmonic Distortion (THD) | ≤ 0.9% | | Maximum Input Voltage | Mic and Line: 3 V eff | | Input Impedance | Microphone: 68 kOhms, unbalanced
Line: 1 MOhms | | Input Capacitance | Switchable | | Input Sensitivity Range | 60 dB, adjustable in 3 dB steps | | Temperature Range | 14 to 131°F (-10 to 55°C) | | Power Supply | 2 x AA batteries, 1.5 V or BA 2015 accupack | | Nominal Voltage | 3 V battery / 2.4 V rechargeable battery | | Current Consumption | At Nominal Voltage: Typical 180 mA
With Transmitter Switched Off: ≤ 25 μA | | Operating Time | Typically 8 hours | | Dimensions (L x W x H) | 3.2 x 2.5 x 0.9" (82 x 64 x 24 mm) | | Weight | 5.6 oz (160 g) including batteries | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 13.9 x 3.3 x 2.9" |
