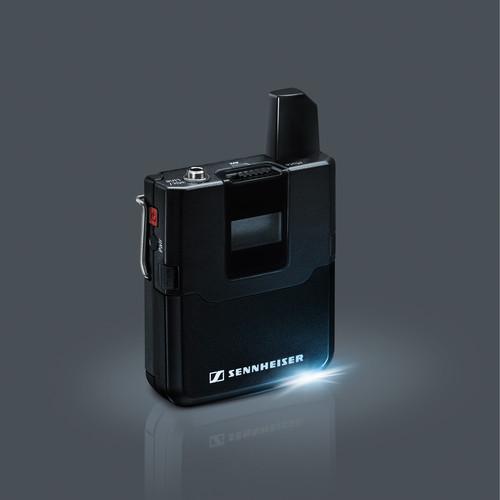

User Manual for Sennheiser SK AVX Digital Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Sennheiser SK AVX Digital Bodypack Transmitter
- Product category: Wireless Transmitters Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Transmitters
 |
User manual for the Sennheiser SK AVX Digital Bodypack Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

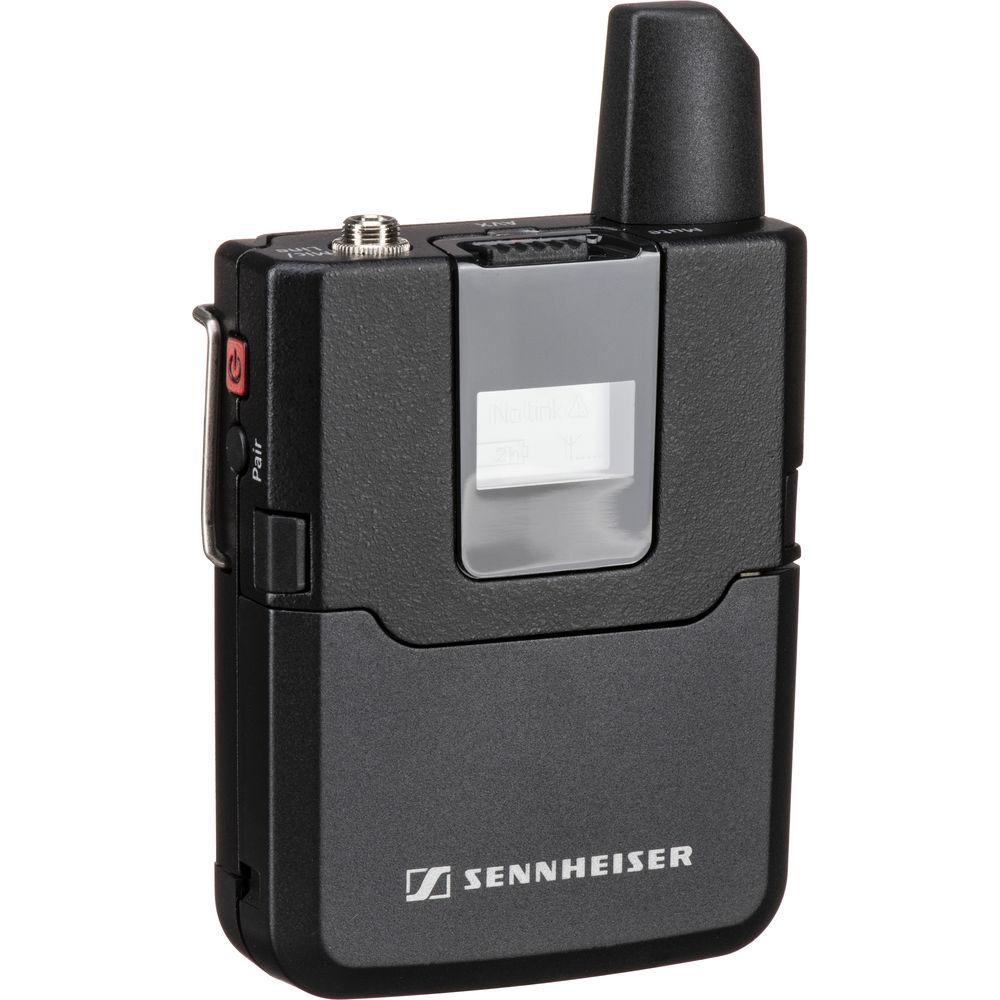

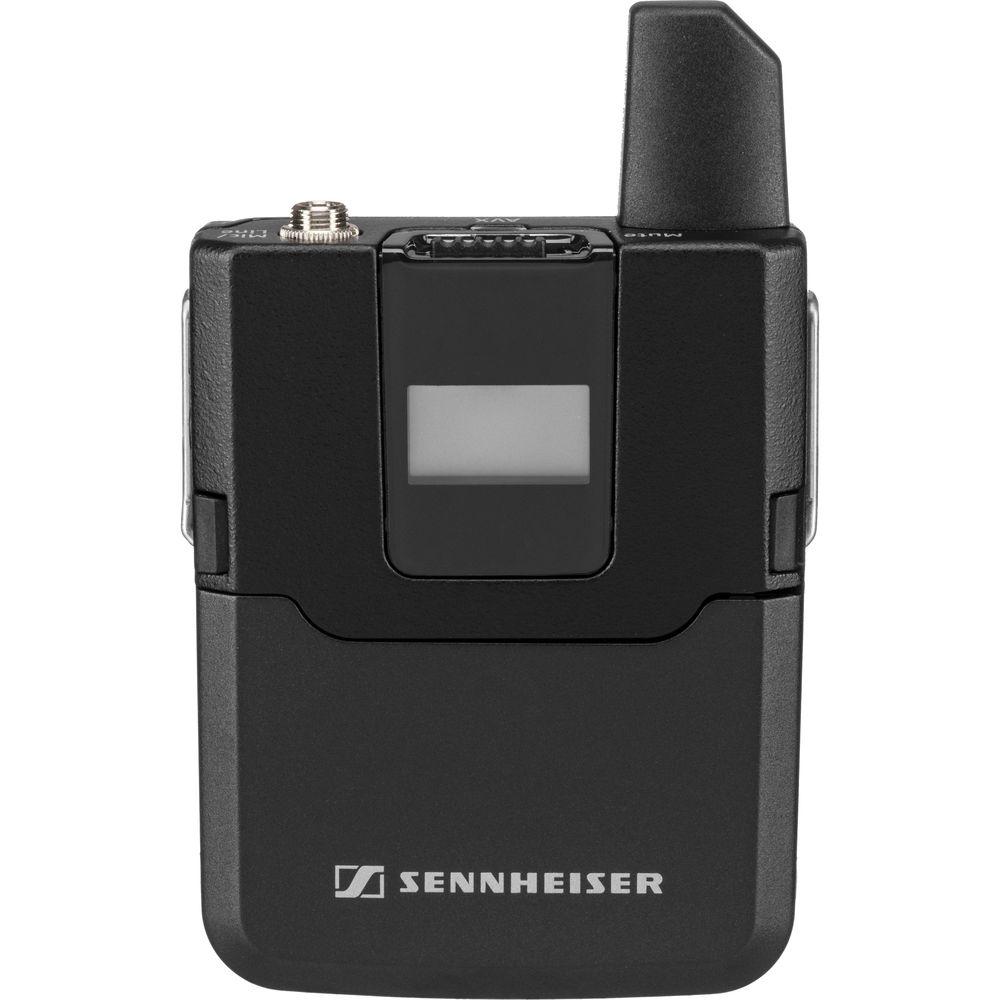

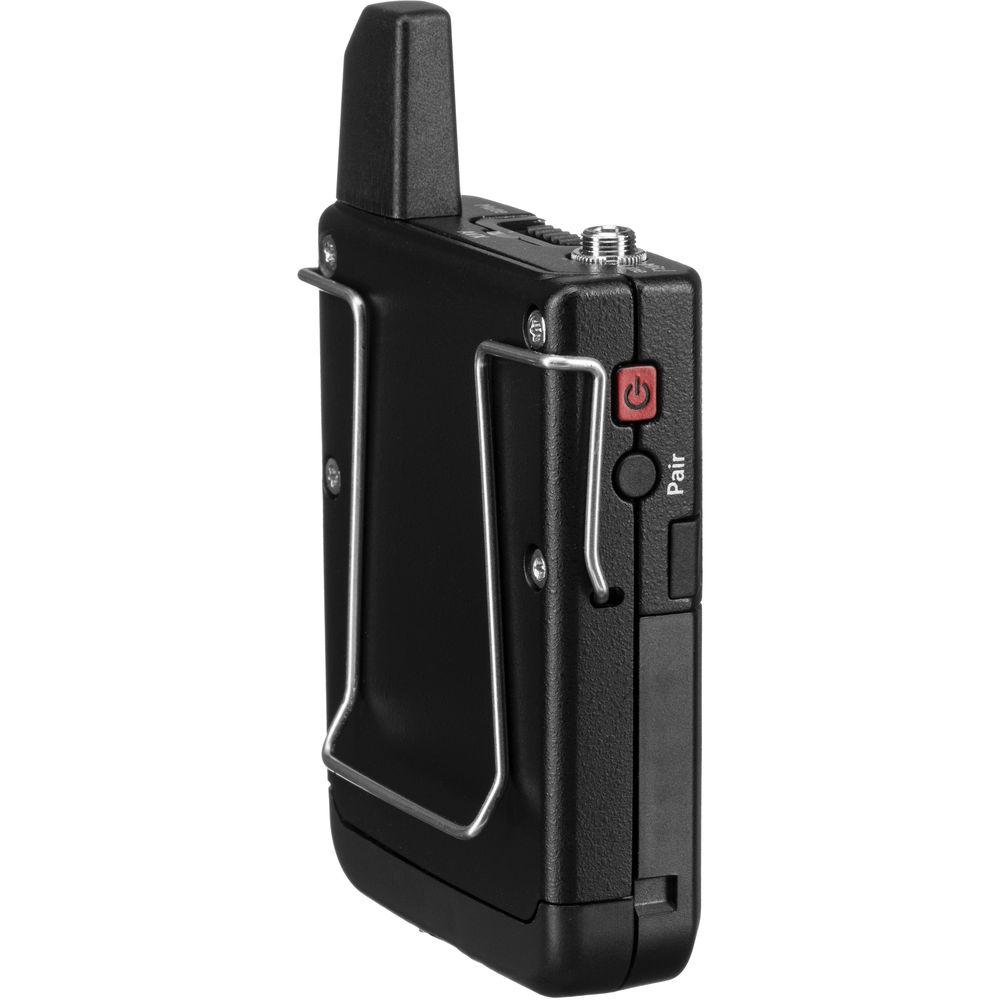

Product description Hands-On Review: Sennheiser AVX Camera-Mount Combo Wireless Set Read More Designed in collaboration with creative professionals for film and electronic news gathering (ENG) applications, the Sennheiser SK AVX Digital Bodypack Transmitter features an innovative design that is fully self-configuring which makes setup fast and easy. The system's link protection helps ensure reliable audio transmission and the AES 256 encryption helps protect your signal from unauthorized interception.

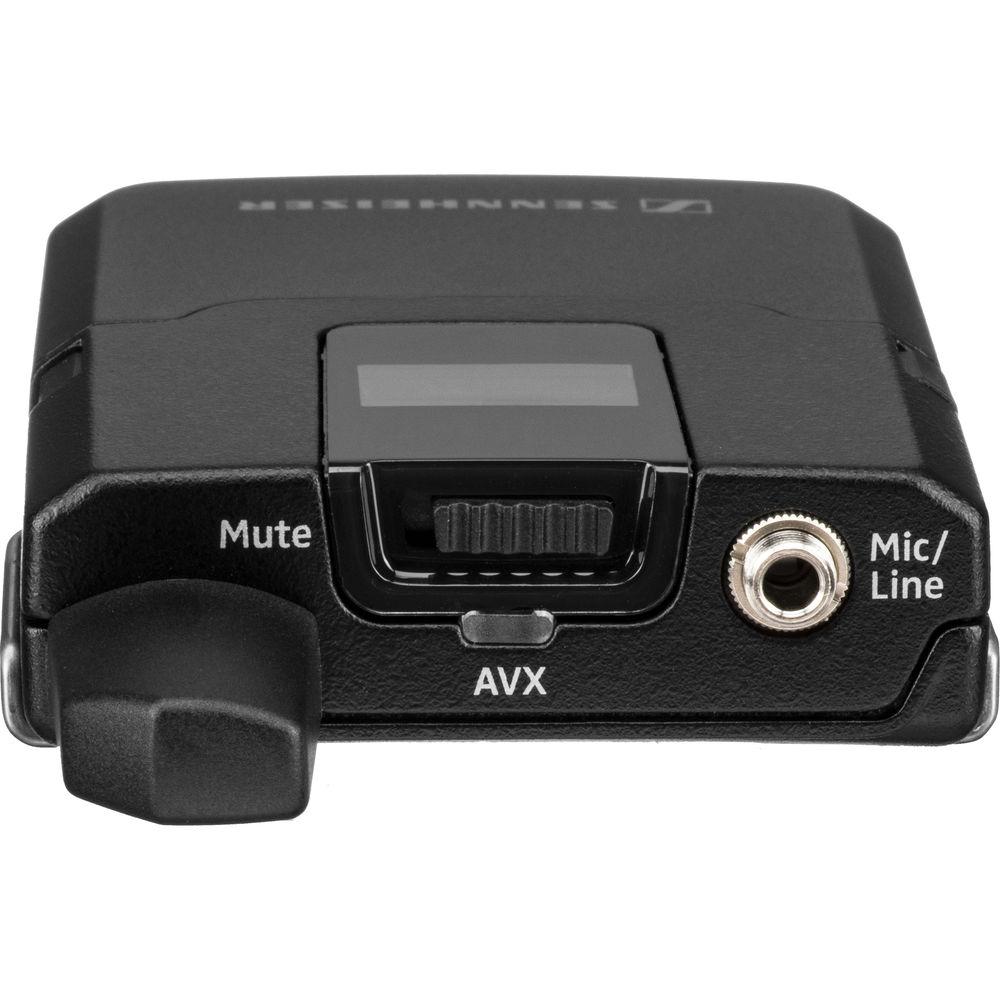

The bodypack transmitter features a 3.5mm jack and accepts either a microphone with a maximum input of 2.2V RMS (50 to 20,000 Hz response) or a line level source with a maximum input of 3.3V RMS (20 to 20,000 Hz response) for a wide variety of sources. The unit is powered by an optional Li-ion 3.7V battery and has an operating time of 15 hours. - Optimized Dynamic Range
- Manages overload and distortions
- Link Protection
- Maintains reliable transmission
- Auto Frequency Management
- Streamlines and simplifies the setup process
- AES 256 Encryption
- Protects the system from signal interception by unauthorized parties
- License Free Operation
- Provides a convenient wireless transmission solution
- Metal Housing
- Enables daily use for professional applications
UPC: 615104243118 In the Box Sennheiser SK AVX Digital Bodypack Transmitter (1.9 GHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SK AVX Digital Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SK AVX Specs | | | Frequency Response | 20 to 20,000 Hz | | Dynamic Range | > 120 dB (A) | | THD | Typical 0.1% | | Audio Sampling | 24-bit at 48 kHz | | Signal to Noise Ratio | > 90 dB (A) | | RF Frequency Range | 1880 to 1930 MHz (country specific) | | Modulation | GFSK with return channel | | Diversity | TDMA fast switching antenna diversity | | Latency | 19 ms | | Temperature Range | Operation: 14 to 131° F (-10 to +55° C)
Storage: -4 to 158°F (-20 to +70°C) | | Simultaneous Operation of Units | Up to 8 units simultaneously under optimal conditions | | | | Transmission Power | 100 mW average (250 mW peak), country specific | | Frequency Response | Mic: 50 to 20,000 Hz
Line: 20 to 20,000 Hz | | Microphone Max Input Level | Mic: 2.2 V RMS | | Line Max Input Level | 3.3 V RMS | | Input Impedance | 1 MOhm | | Input Sensitivity | Automatic sensitivity adjustment | | Power Supply | Optional Battery: Li-ion 3.7 V | | Operating Time | Typical: 15 hour with Energy pack | | Input Connector | 1/8" (3.5 mm) jack | | Weight | 3.1 ounces (87.0 g) excluding energy pack | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 13.8 x 3.3 x 2.7" |
