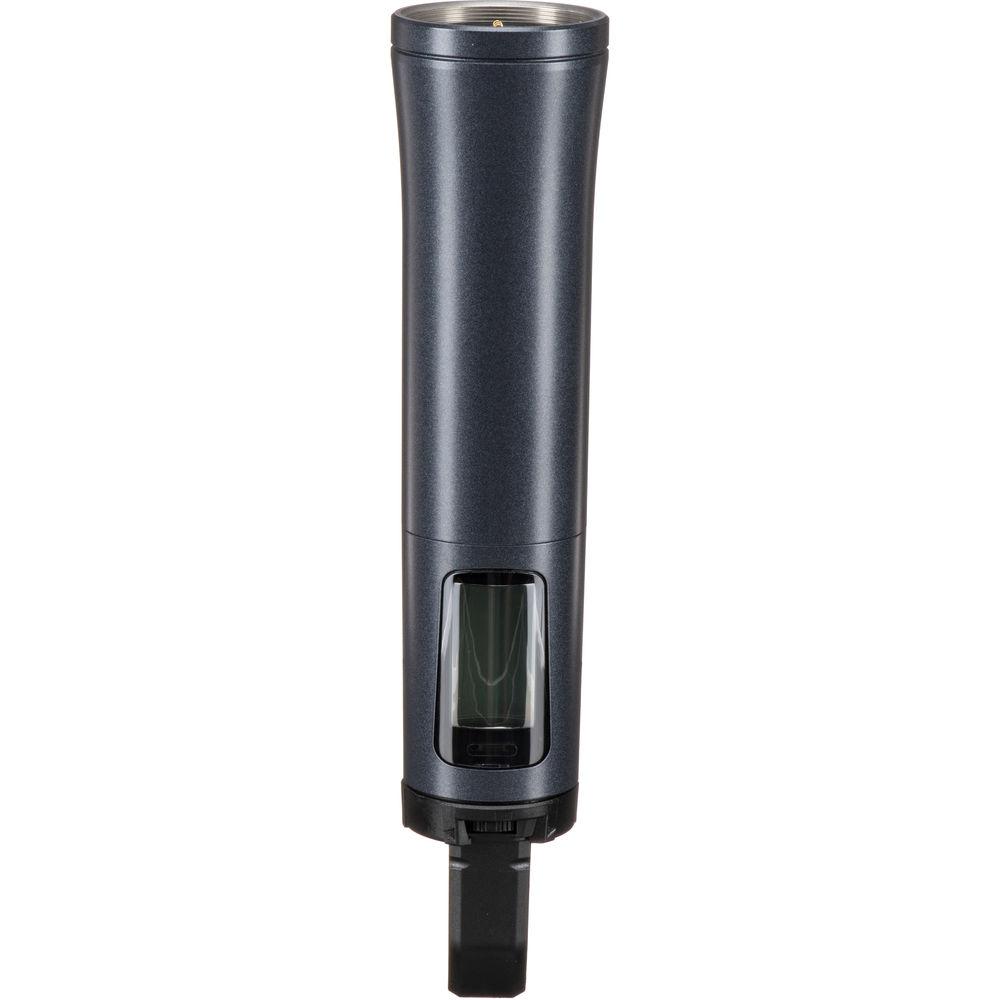

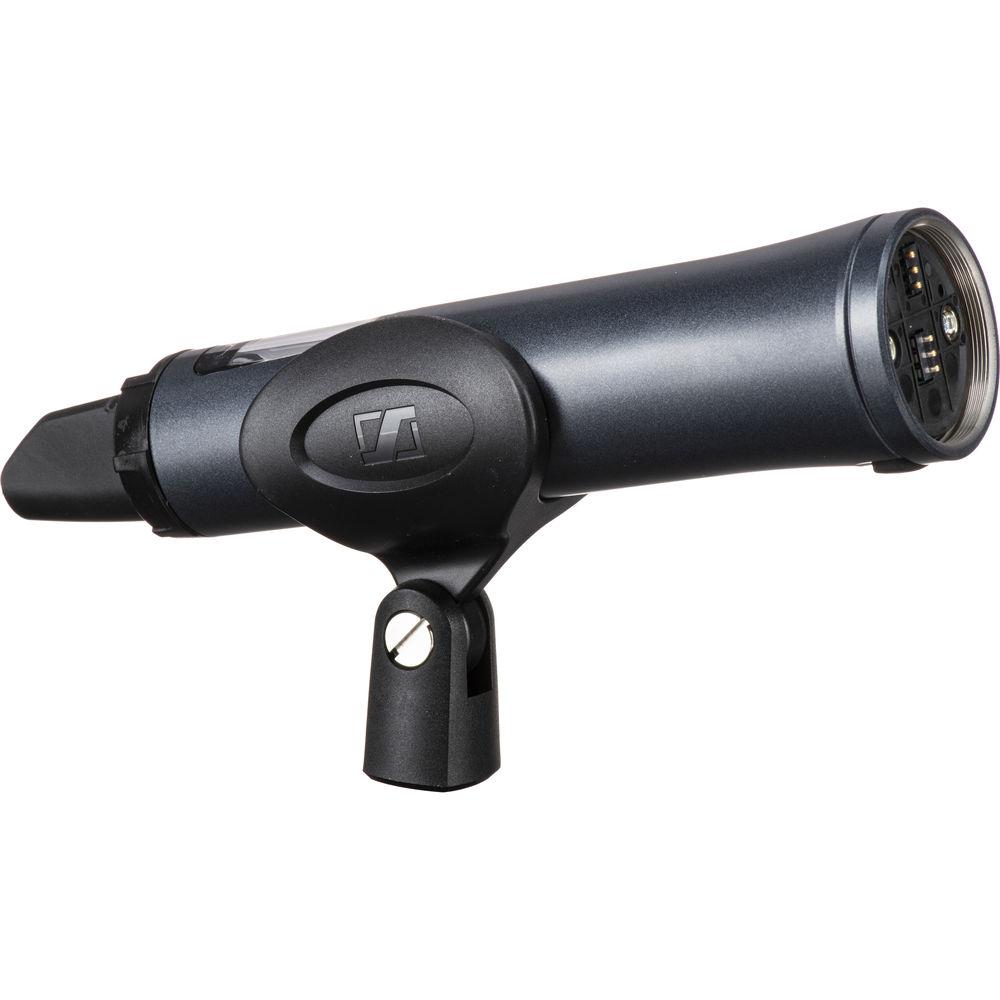

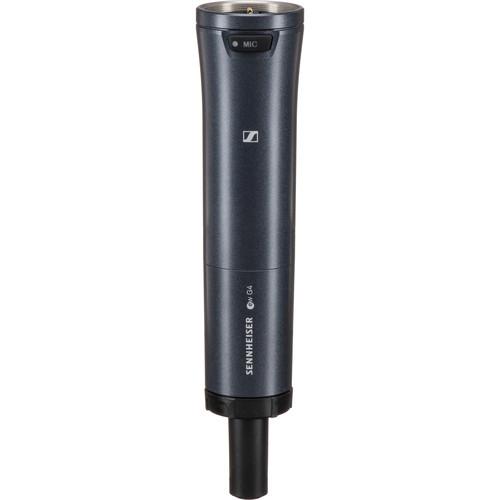

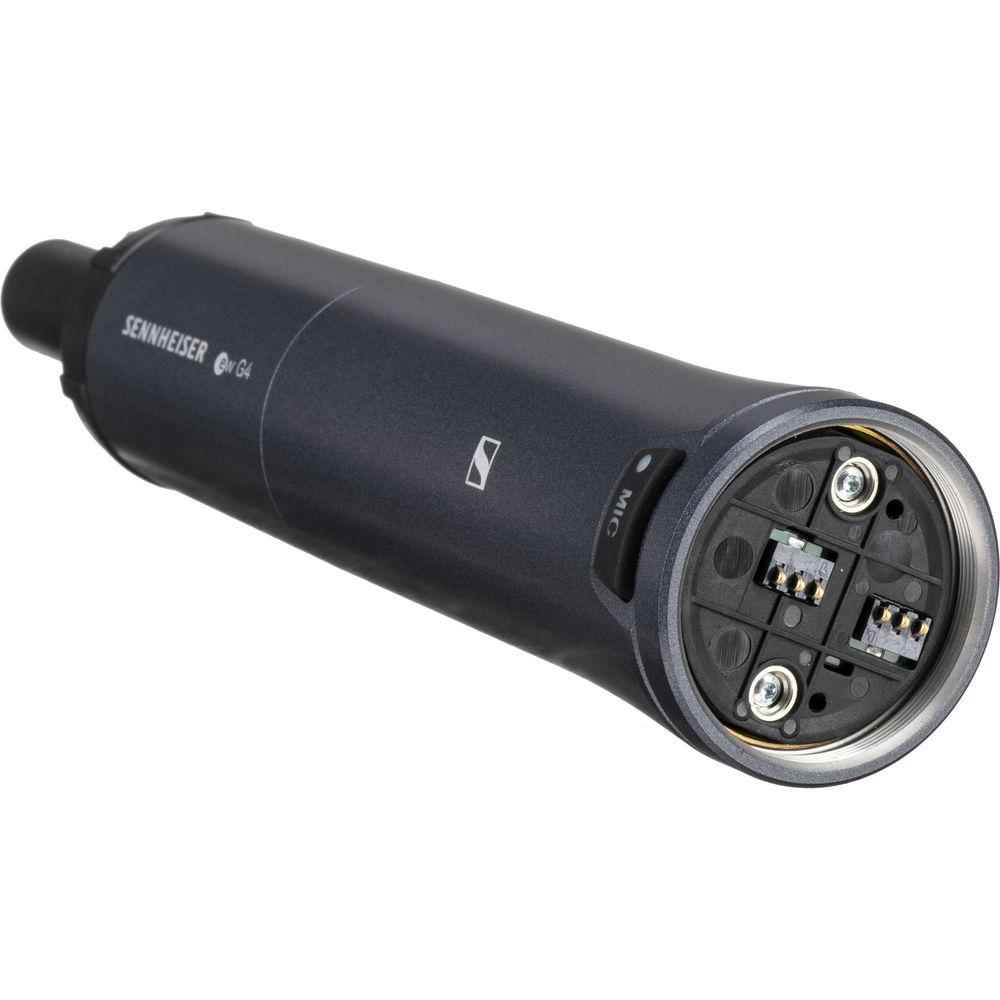

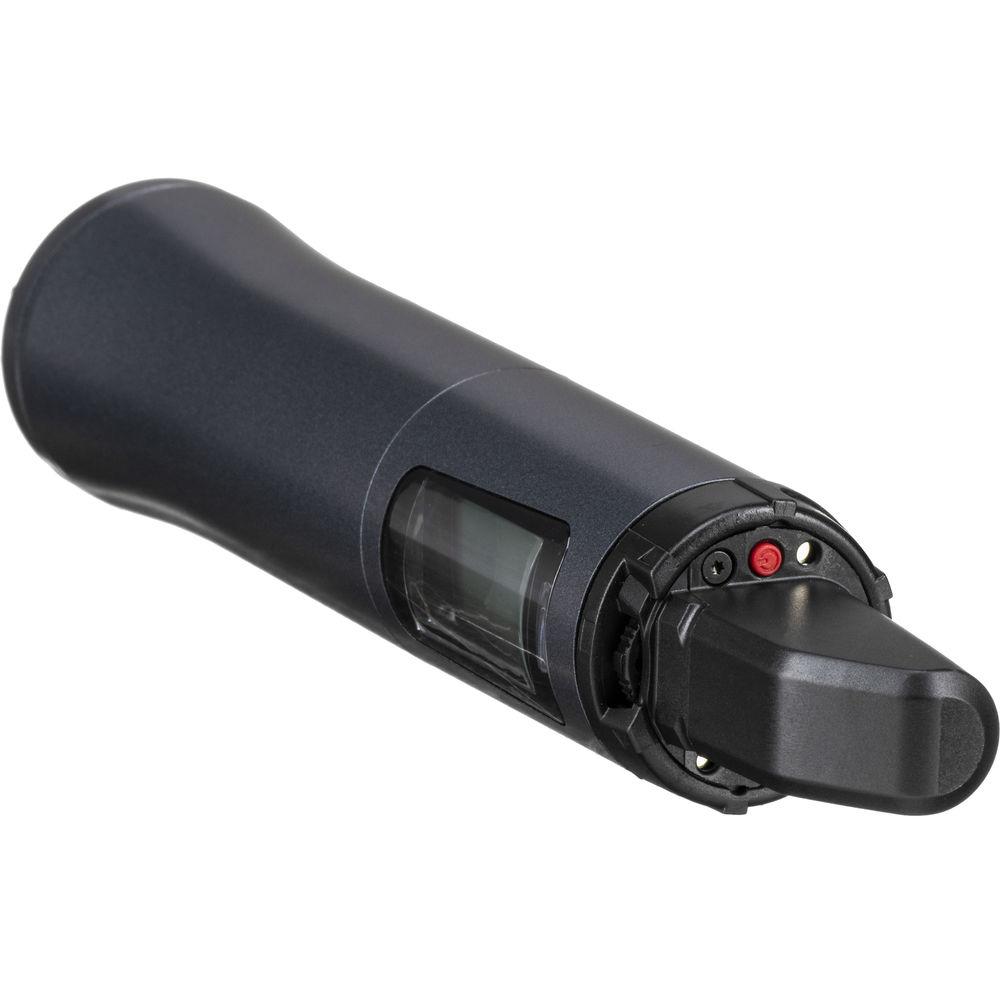

User Manual for Sennheiser SKM 100 G4-S Handheld Transmitter with Mute Switch, No Capsule A: Click to enlarge the picture
Contents of the user manual for the Sennheiser SKM 100 G4-S Handheld Transmitter
- Product category: Wireless Transmitters Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Transmitters
 |
User manual for the Sennheiser SKM 100 G4-S Handheld Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The SKM 100 G4-S Handheld Transmitter with Mute Switch, No Capsule from Sennheiser is intended for use with the G4 series of wireless receivers and a microphone capsule (available separately). The transmitter features infrared-sync, for quick and easy channel syncing between the transmitter and receiver. It is built with a lightweight and rugged aluminum housing and delivers pristine audio reproduction of both speech and performance vocals. Two AA batteries power the transmitter, and it is equipped with contacts for recharging the optional BA 2015 accupack battery, without having to remove it from the transmitter itself. - Sleek design and fully compatible with all previous series

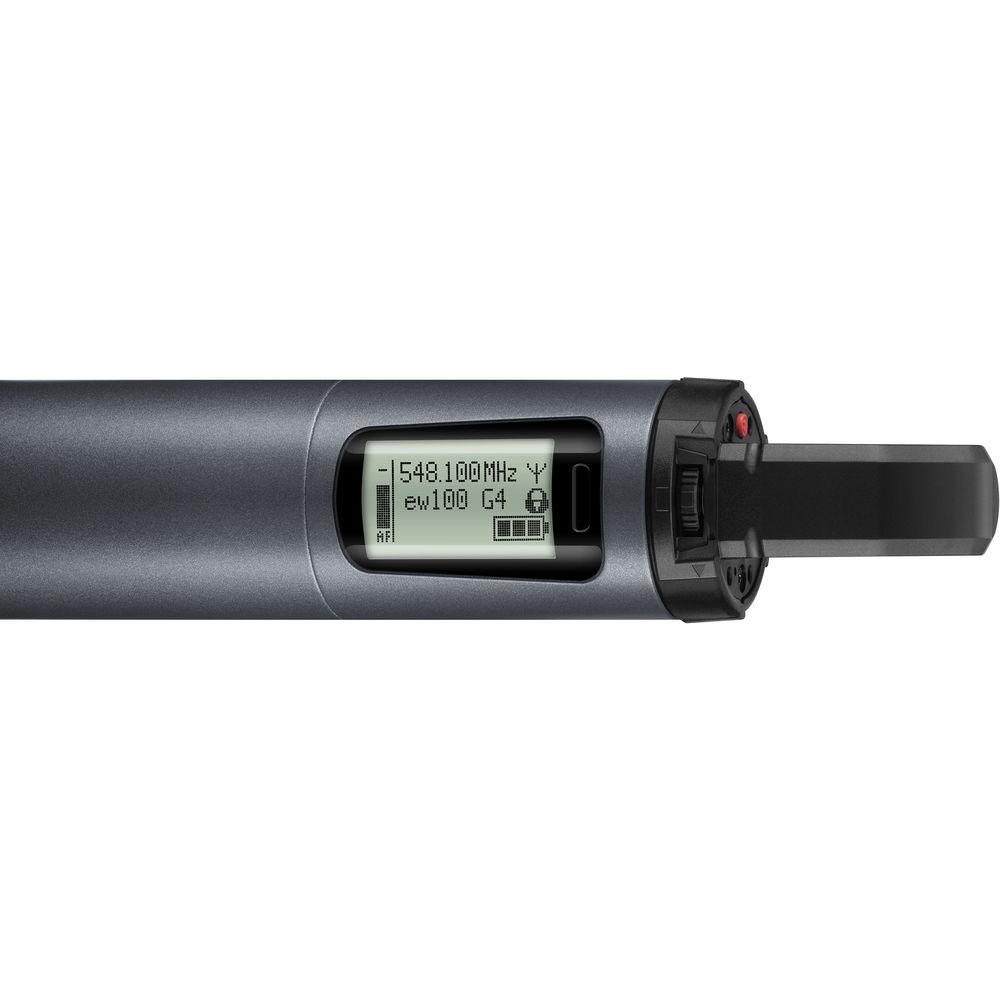

- Improved User Interface: High-contrast LCD display and a dedicated escape button
- Lightweight: Aluminum housing SKM handheld transmitter
- Added functionality: Programmable mute switch added to SKM handheld transmitter
- 1680 tunable frequencies within 1785-1800 MHz range for interference-free reception
- Enhanced frequency bank system with up to 12 compatible channels
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitter via infrared interface
- User-friendly menu operation with more control options
- High-contrast LCD display
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter features battery indication in 4 steps
- Handheld transmitter compatible with easy-exchangeable microphone capsules from evolution series
- Contacts for recharging BA 2015 accupack battery directly in the transmitter
- Wide range of accessories adapts the system to any requirement
UPC: 615104309241 In the Box Sennheiser SKM 100 G4-S Handheld Transmitter with Mute Switch, No Capsule A: (516 to 558 MHz) MZQ 1 Microphone Clip 2 x AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SKM 100 G4-S Handheld Transmitter with Mute Switch, No Capsule A: in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SKM 100 G4-S Specs | Modulation | Wideband FM | | Frequency Range | A: (516 to 558 MHz) | | Transmission Frequencies | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels | | Switching Bandwidth | Up to 42 MHz | | Nominal/Peak Deviation | ±24 kHz / ±48 kHz | | Frequency Stability | ≤
