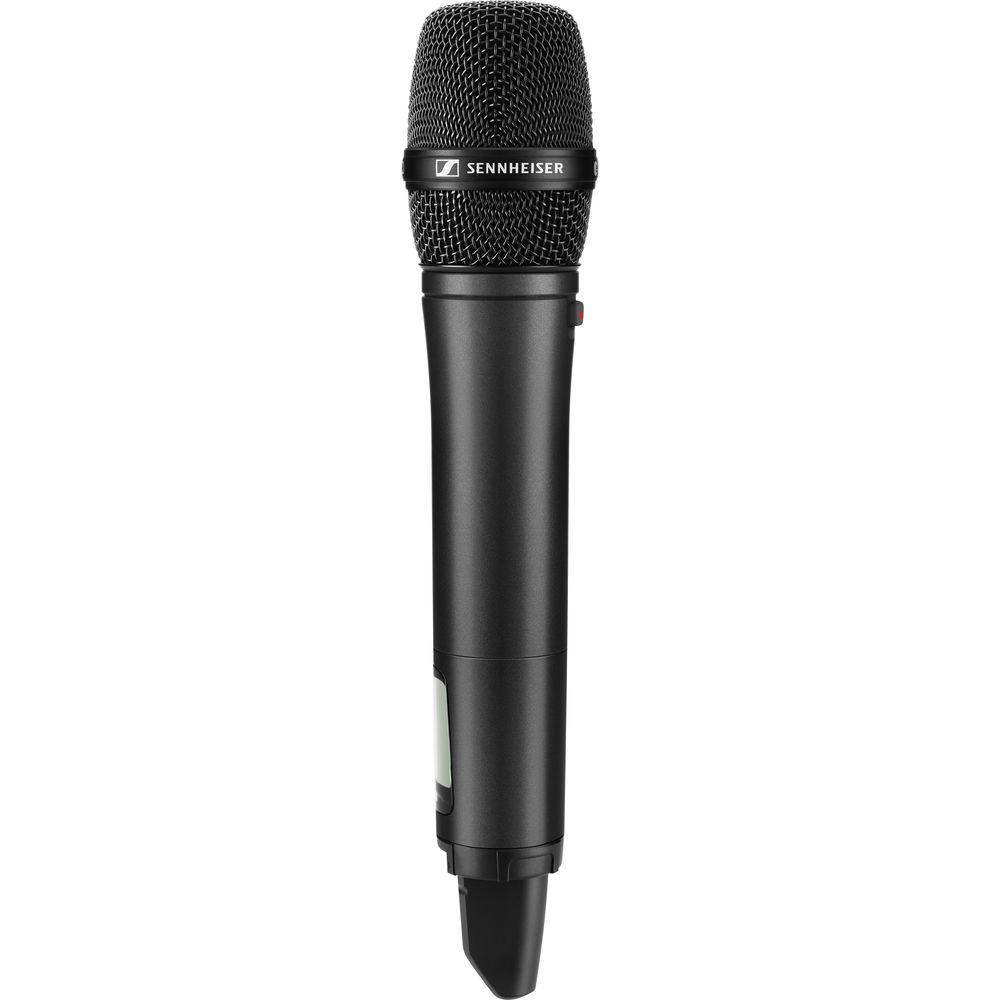

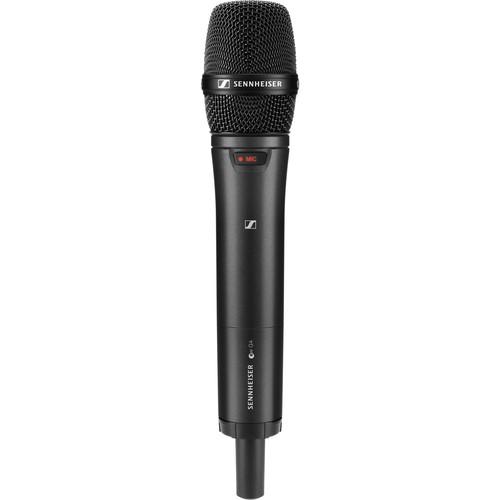

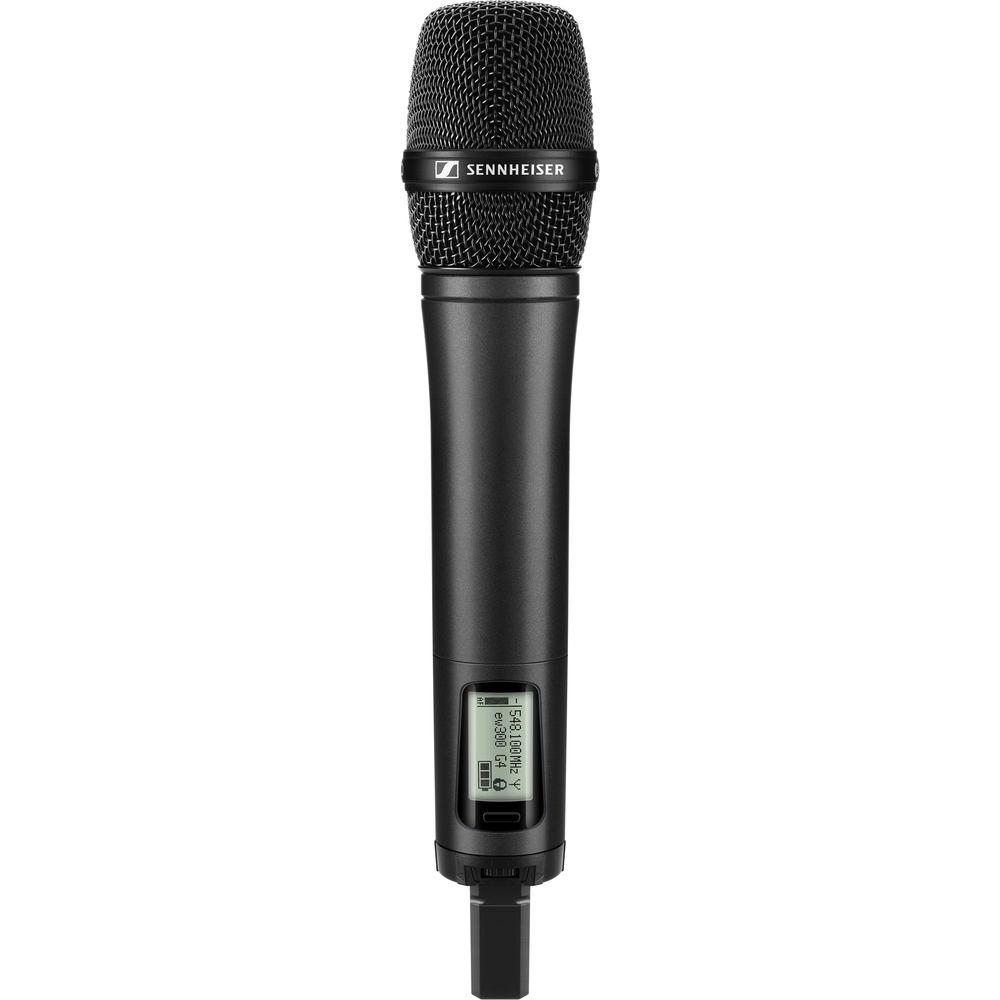

User Manual for Sennheiser SKM 300 G4-S Handheld Transmitter, No Capsule GW1: Click to enlarge the picture
Contents of the user manual for the Sennheiser SKM 300 G4-S Handheld Transmitter,
- Product category: Wireless Transmitters Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Transmitters
 |
User manual for the Sennheiser SKM 300 G4-S Handheld Transmitter, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

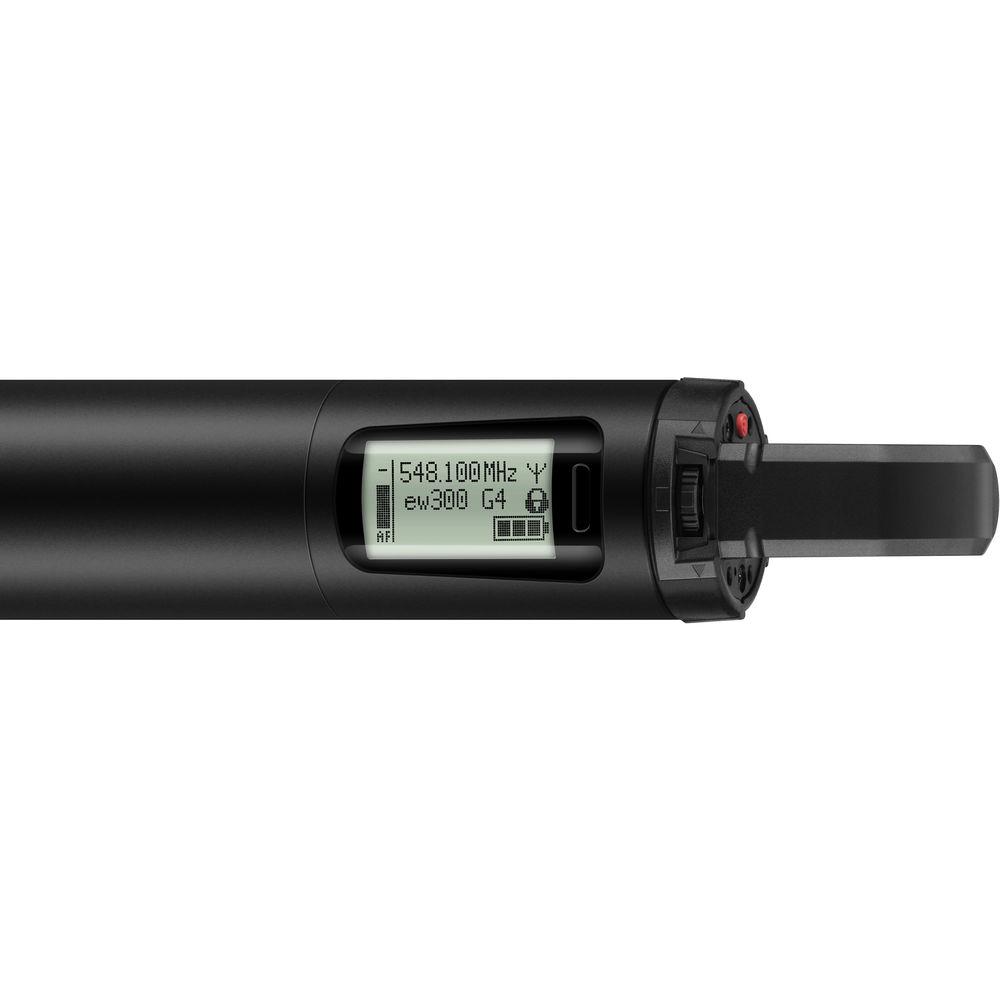

Product description The SKM 300 G4 Wireless Handheld Transmitter, No Capsule from Sennheiser is the latest addition to their evolution series of wireless transmitters. It operates in the UHF frequency range and can be used with a companion receiver and a microphone capsule (sold separately) as part of a wireless RF transmission system for live stage, theater, and presentation applications. It features 2000 frequencies that are tunable in 25 kHz steps and equipped with 20 fixed-frequency banks with up to 32 compatible frequency presets, and 6 user banks with up to 32 user-programmable frequencies. The transmitter's menu-driven backlit LCD display shows the current frequency, frequency bank and channel number, metering of AF level, transmission status, muting function, battery status, and more. Furthermore, the SKM 300 G4 handheld transmitter's frequency response ranges from 80 Hz to 18 kHz and power is supplied by two 1.5V AA size batteries, or by one Sennheiser BA 2015 rechargeable accupack. Also, an e 935, e 945, or e 965 microphone capsule is required (sold separately). Finally, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy. - Handheld transmitter features a lightweight aluminum housing for use with a microphone capsule (sold separately)
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Easy to use, fast setup time
- Integrated network port allows control, monitoring, and setup via Sennheiser Control Cockpit and WSM software.
- Up to 50 MHz bandwidth with 2000 selectable frequencies, fully tunable in a stable UHF range
- Increased RF output power (10/30/50 mW)
- Transmission range up to 330'
- Requires an e 935, e 945, or e 965 microphone capsule (sold separately)
UPC: 615104316348 In the Box Sennheiser SKM 300 G4-S Handheld Transmitter, No Capsule GW1: (558 to 608 MHz) MZQ1 Microphone Clamp 2 x AA Batteries Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SKM 300 G4-S Handheld Transmitter, No Capsule GW1: in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SKM 300 G4-S Specs | Modulation | Wideband FM | | Frequency Band | GW1: (558 to 608 MHz) | | Transmission Frequencies | Maximum 2000 frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
6 frequency banks with up to 32 programmable channels | | Switching Bandwidth | Up to 50 MHz | | Nominal/Peak Deviation | ±24 kHz / ±48 kHz | | Frequency Stability | ≤
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
