User Manual for Sennheiser SKM 835-XSW-A Handheld Transmitter with e835 Capsule

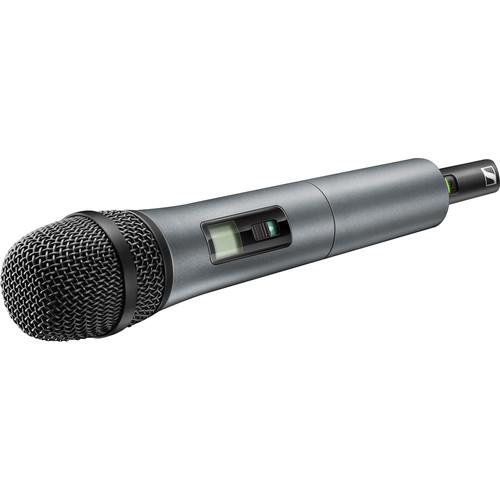

Click to enlarge the picture
Sennheiser SKM 835-XSW-A Handheld Transmitter with e835 Capsule Contents of the user manual for the Sennheiser SKM 835-XSW-A Handheld Transmitter with
  • Product category: Wireless Transmitters Sennheiser
  • Brand: Sennheiser
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sennheiser Wireless Transmitters

User manual for the Sennheiser SKM 835-XSW-A Handheld Transmitter with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sennheiser product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!



Product description

The SKM 835-XSW-A Handheld Transmitter from Sennheiser is a wireless microphone equipped with an e835 Dynamic Cardioid Capsule. It is designed to be paired with the EM-XSW 1 or EM-XSW 2 wireless receivers (sold separately) and can be used to capture audio for singers, presenters, and live sound applications. Featuring automatic frequency management, the transmitter offers up to 10 compatible channels in a stable UHF band. This transmitter is built to withstand even the toughest stress in everyday on-stage use and offers reliable transmission with an easy-to-use set up. No matter whether you're a band, a theater, or at a seminar, the SKM 835-XSW-A Handheld Transmitter lets you do your thing and not worry about channel selection.
    Great Performance and Price
  • The SKM XSW transmitter lets you concentrate on your talent—and not the equipment. Just switch it on and its automatic frequency management does the rest. You can operate up to 10 coordinated frequency preset wireless connections.
    Live Sound
  • The transmitter yields an open, natural sound. No lengthy set up—just go!
    Reliable Transmission
  • On stage, you must put up with a lot of things—so does your equipment. XS Wireless 1 is built to last: Transmitters are designed to withstand even the toughest stress in everyday on-stage use.
UPC: 615104282322 In the Box Sennheiser SKM 835-XSW-A Handheld Transmitter with e835 Capsule (A: 548 to 572 MHz)
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Sennheiser SKM 835-XSW-A Handheld Transmitter with e835 Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Sennheiser SKM 835-XSW-A Handheld Transmitter with e835 Capsule can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Sennheiser SKM 835-XSW-A Handheld Transmitter with e835 Capsule can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Sennheiser SKM 835-XSW-A Handheld Transmitter with e835 Capsule can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Sennheiser SKM 835-XSW-A Handheld Transmitter with e835 CapsuleDownload PDF User Manual - https://www.search-manual.com/ upload/ sennheiser-skm-835-xsw-a-handheld-transmitter-with-e835-capsule-247192-user-manual.pdf
    (PDF file, 0.72 MB)


    Technical parameters

    Sennheiser SKM-XSW Specs

    Modulation Wideband FM
    Frequency Range A: 548 to 572 MHz
    Switching Bandwidth Up to 24 MHz
    Signal to Noise Ratio ≥ 103 dBA
    Total Harmonic Distortion ≤ 0.9%
    Temperature Range Operation: 32 to 104°F (0 to +40°C)
    Storage -4 to 158°F (-20 to 70°C)
    Transmitter Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
    Output Power 10 mW
    Frequency Response 80 Hz to 16 kHz
    Power Supply 2 x AA batteries, 1.5 V
    Operating Time Approximately 10 hrs.
    Microphone Type Dynamic
    Polar Pattern Dynamic cardioid
    Input Sensitivity Capsule: 1.5 mV/Pa
    Adjustment Range Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
    Material of Construction Rugged ABS housing
    Dimensions (L x Diam) 10 x 2.0" (260 x 50 mm)
    Weight 8.6 oz (245 g)
    Package Weight 1.8 lb
    Box Dimensions (LxWxH) 11.0 x 9.9 x 3.3"
