User Manual for Sennheiser SKM AVX-835S Digital Handheld Microphone Transmitter Click to enlarge the picture
Contents of the user manual for the Sennheiser SKM AVX-835S Digital Handheld Microphone
- Product category: Wireless Transmitters Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Transmitters
 |
User manual for the Sennheiser SKM AVX-835S Digital Handheld Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

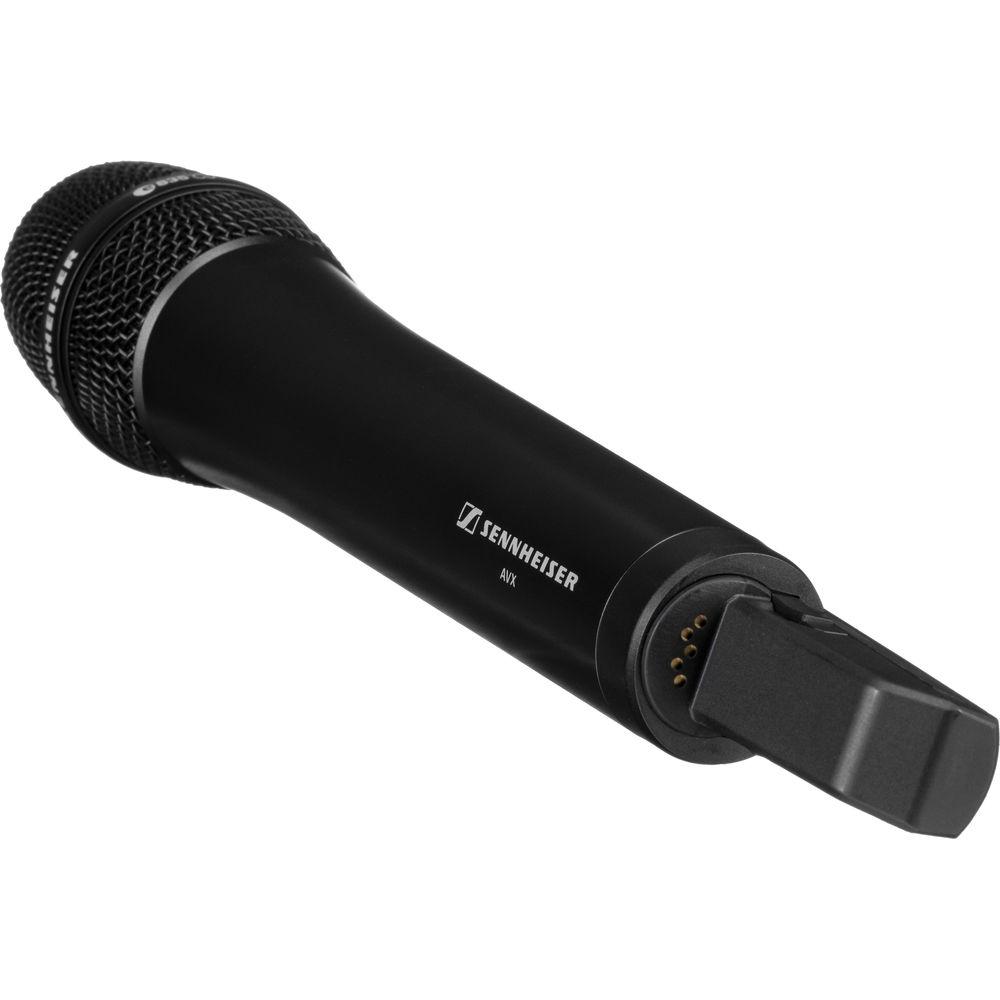

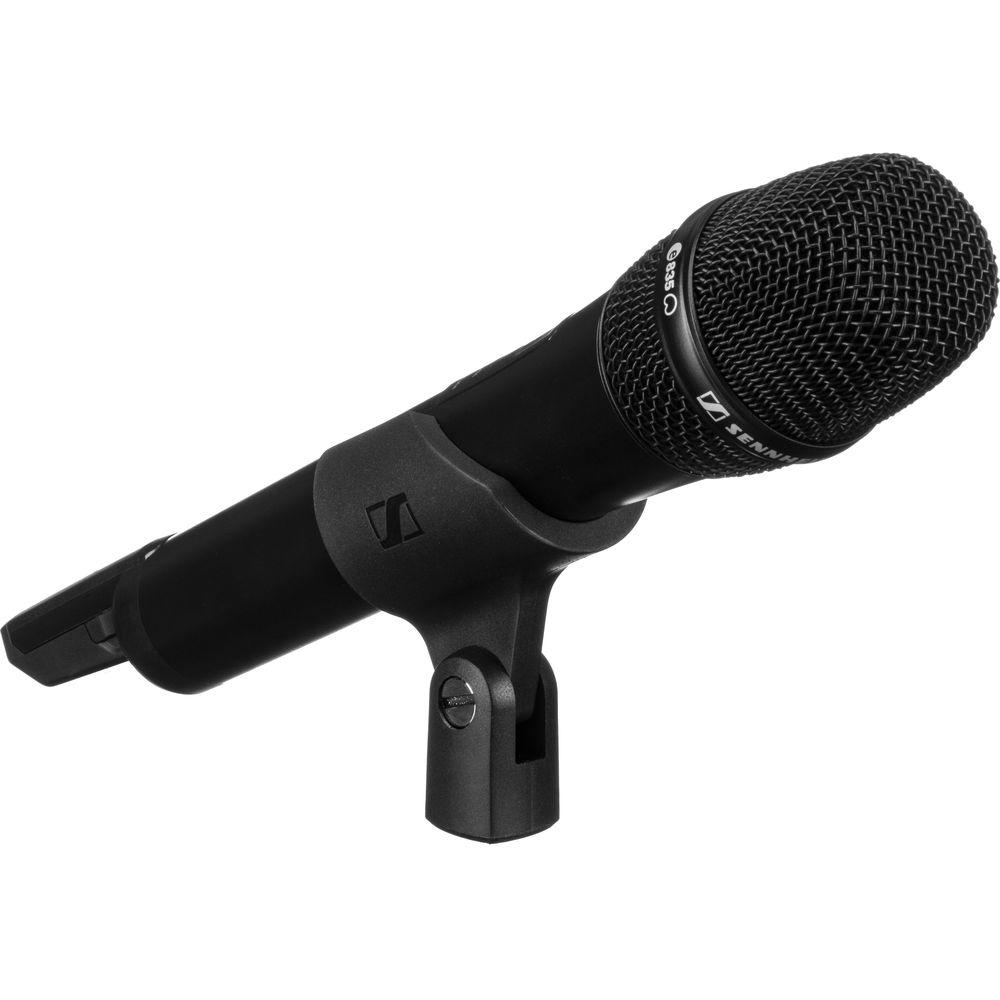

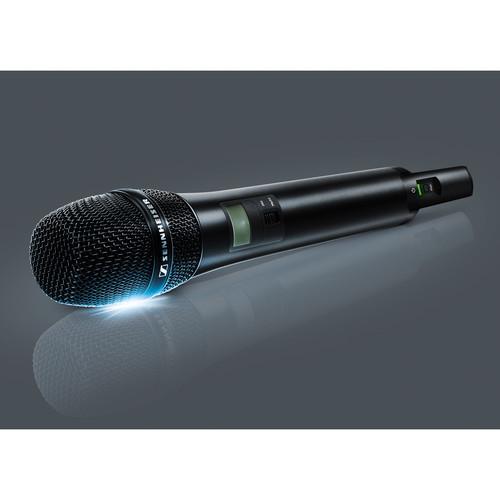

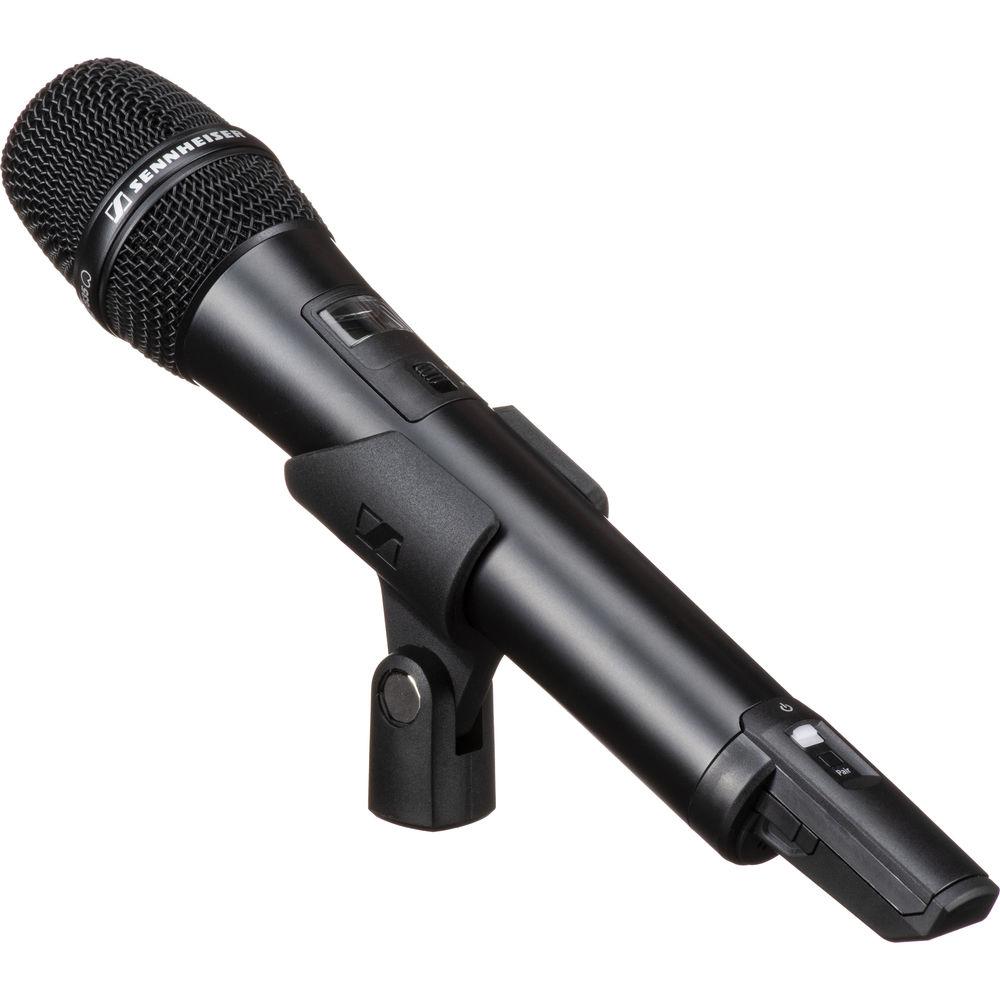

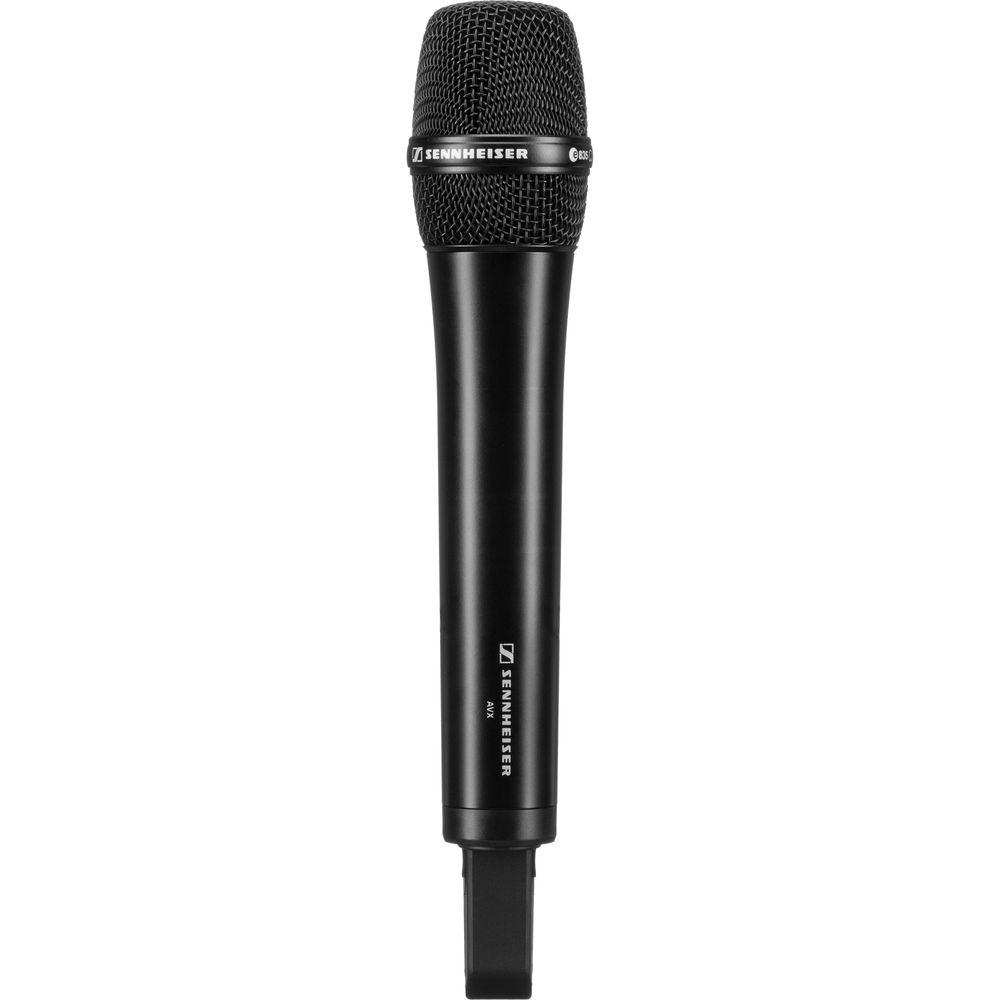

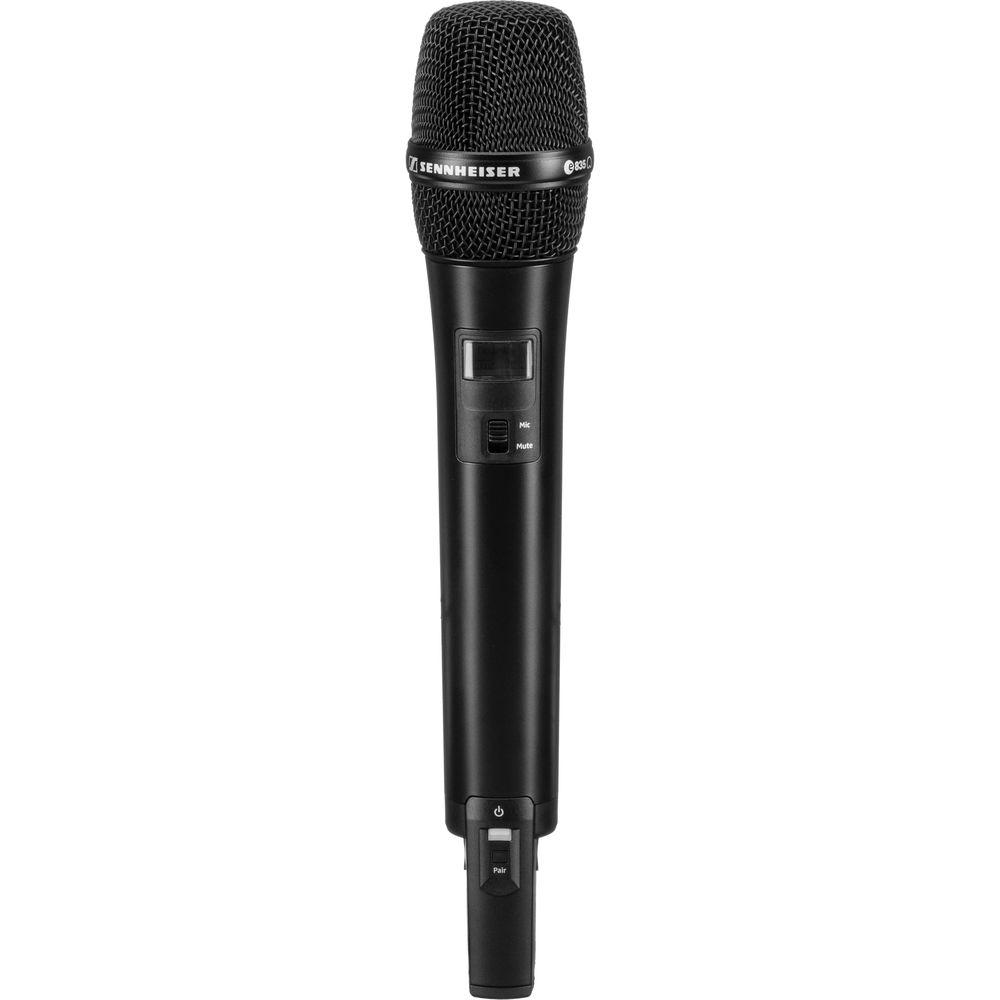

Product description Hands-On Review: Sennheiser AVX Camera-Mount Combo Wireless Set Read More sywcrscfaazxfurbdab Designed in collaboration with creative professionals for film and electronic news gathering (ENG) applications, the Sennheiser SKM AVX-835S Digital Handheld Microphone Transmitter features an innovative digital design that is fully self-configuring which makes setup fast and easy. The system's link protection helps ensure reliable audio transmission and the AES 256 encryption helps protect your signal from unauthorized interception.
The handheld transmitter comes with a dynamic microphone capsule with a sensitivity of 2.1 mV/Pa, a cardioid pickup pattern, and a maximum SPL of 154 dB. The mic also features a mute switch for your convenience
The unit is powered by either the BA 10 (Li-Ion 3.7V) energy pack and has an operating time of 15 hours using the battery packs. The transmitter comes with the BA 10 energy pack and a microphone clip. - Optimized Dynamic Range
- Manages overload and distortions
- Link Protection
- Maintains reliable transmission
- Auto Frequency Management
- Streamlines and simplifies the setup process
- AES 256 Encryption
- Protects the system from signal interception by unauthorized parties
- License Free Operation
- Provides a convenient wireless transmission solution
- Metal Housing
- Enables daily use for professional applications
UPC: 615104243125 In the Box Sennheiser SKM AVX-835S Digital Handheld Microphone Transmitter (1.9 GHz) BA 10 Energy Pack MMD 835 Microphone Head Microphone Clamp Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SKM AVX-835S Digital Handheld Microphone Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SKMAVX AVX-835 Specs | | | Frequency Response | 20 to 20,000 Hz | | Dynamic Range | > 120 dB (A) | | THD | Typical 0.1% | | Audio Sampling | 24-bit at 48 kHz | | Signal to Noise Ratio | > 90 dB (A) | | RF Frequency Range | 1880 to 1930 MHz (country specific) | | Modulation | GFSK with Return Channel | | Diversity | TDMA Fast Switching Antenna Diversity | | Latency | 19 ms | | Temperature Range | Operation: 14 to 131° F (-10 to +55° C)
Storage: -4 to 158°F (-20 to +70°C) | | | | Transmission Power | 100 mW Average (250 mW Peak), Country Specific | | Frequency Response | 50 to 20,000 Hz | | Input Sensitivity | Automatic Sensitivity Adjustment | | Power Supply | Energy Pack BA 10 (Li-Ion 3.7 V) | | Operating Time | Typical 15 Hours with Energy Pack | | Input | 3.5 mm Jack | | Weight | 9.9 oz / 280.0 grams Including Mic Head and Energy Pack | | | | Transducer Principle | Dynamic | | Sensitivity | 2.1 mV/Pa | | Directivity | Cardioid | | Max SPL Level | 154 dB | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 14.0 x 3.2 x 3.0" |
