User Manual for Sennheiser SKP 100 G4 Plug-On Transmitter for Dynamic Microphones G: Click to enlarge the picture
Contents of the user manual for the Sennheiser SKP 100 G4 Plug-On Transmitter
- Product category: Wireless Transmitters Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Transmitters
 |
User manual for the Sennheiser SKP 100 G4 Plug-On Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

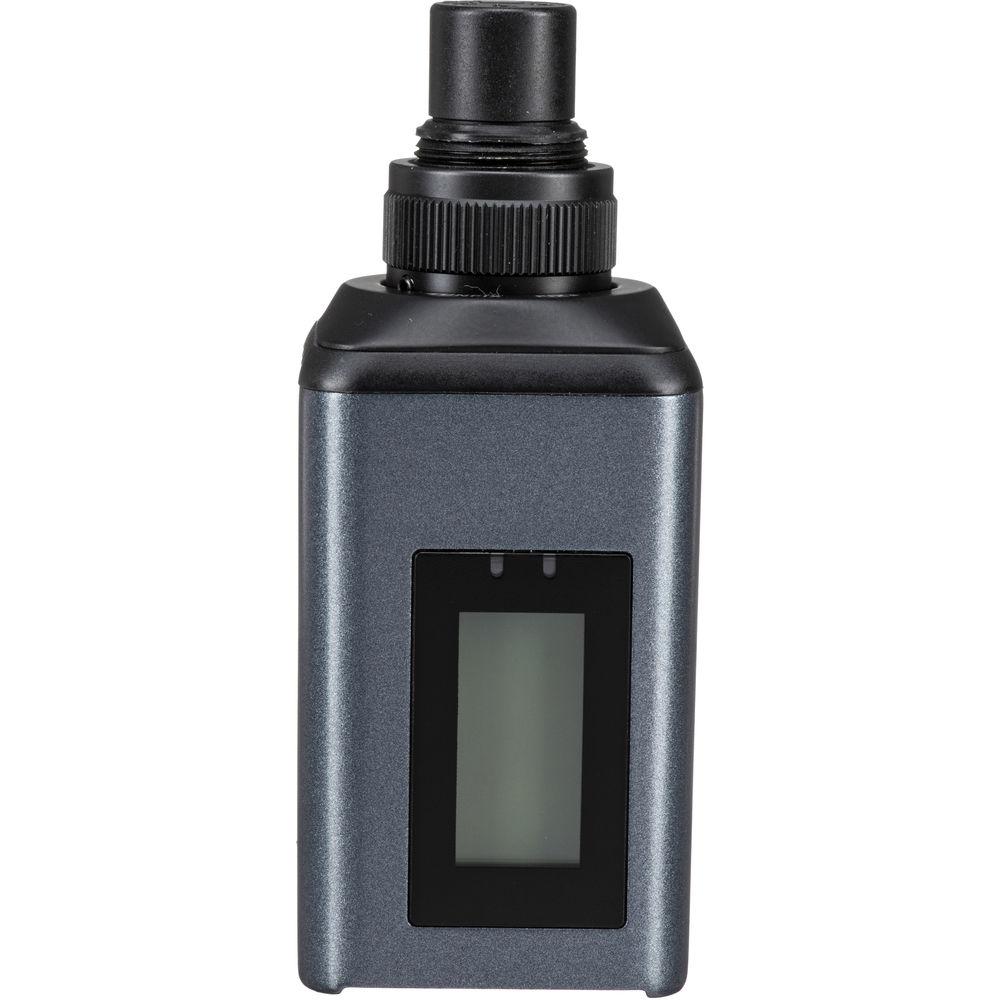

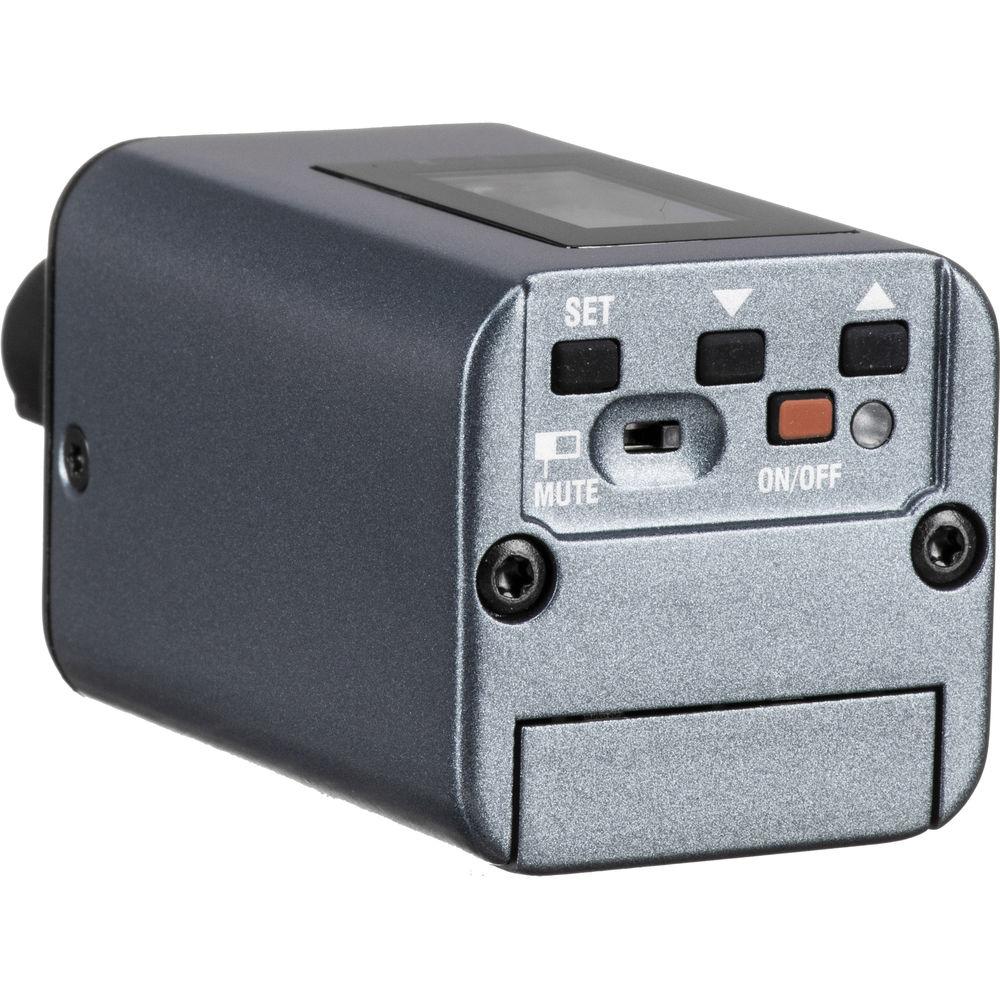

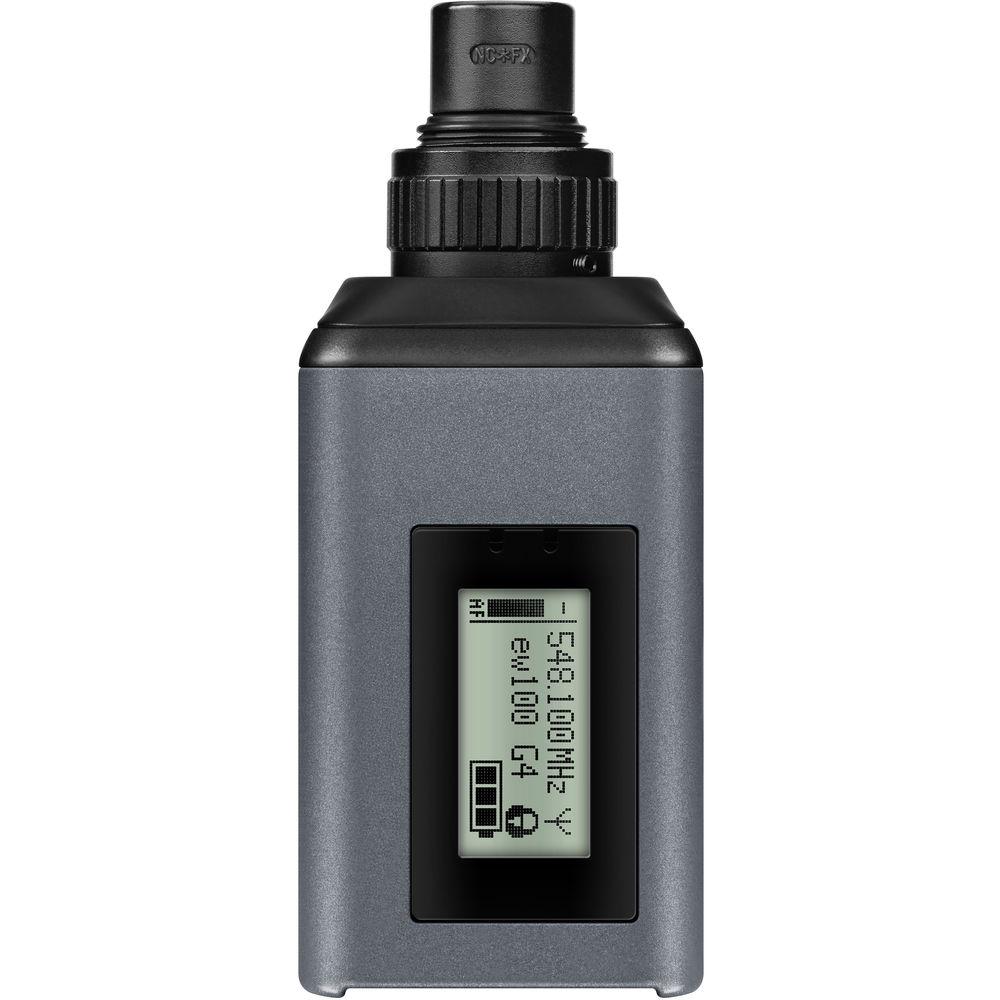

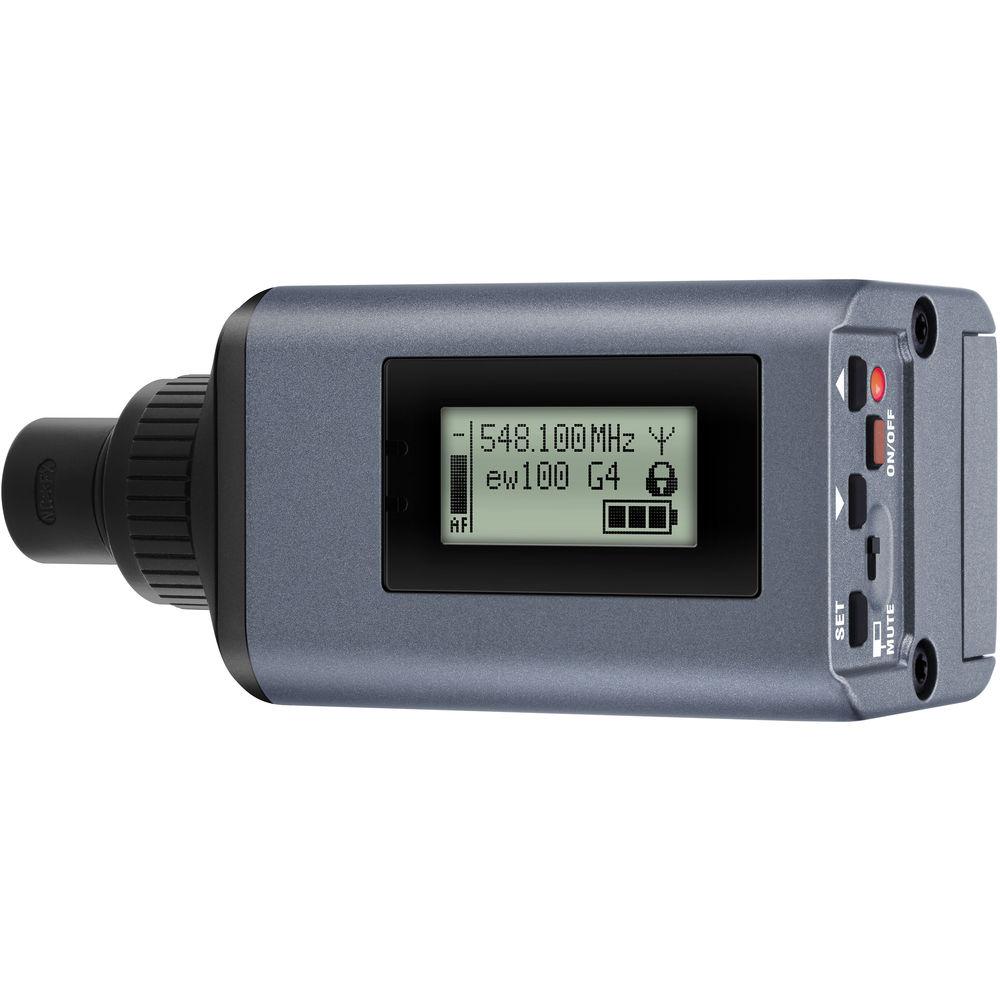

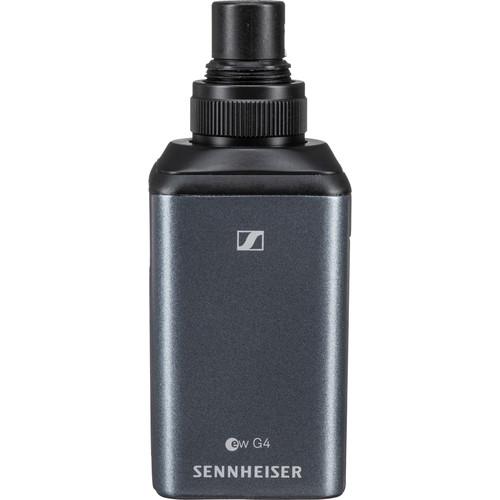

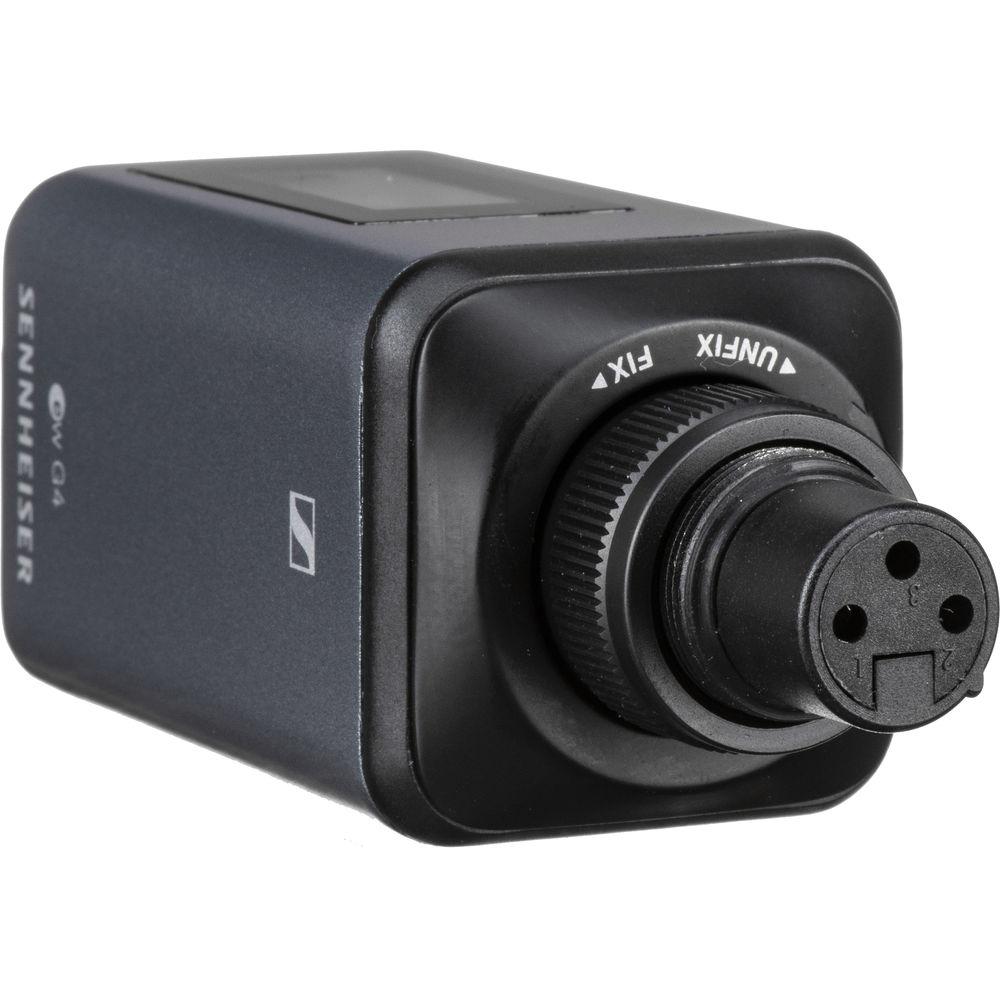

Product description The SKP 100 G4 Plug-On Transmitter for Dynamic Microphones from Sennheiser is the latest addition to their evolution family of wireless microphones and is fully compatible with all previous series. Featuring an updated high-contrast LCD display, blue sync LED, and a dedicated escape button, it can be used when paired with a dynamic microphone and portable receiver (sold separately) for capturing audio in live sound, broadcast, film, business, and educational applications. It easily plugs onto microphones with XLR connections transforming them into world-class wireless units when combined with EM 100 G4 or EK 100 G4 receivers. This compact and lightweight transmitter has a run-time of up to 8 hours on just (2) AA batteries. - Updated Features
- The evolution Wireless G4 retains all of G3's best features
Quicker setup
High-contrast LCD display
Blue sync LED
Dedicated escape button - Features
- Sturdy metal housing
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
Enhanced frequency bank system with up to 12 compatible frequencies
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Enhanced AF frequency range
Wireless synchronization of transmitter via infrared interface
User-friendly menu operation with more control options
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Operates on 2 standard AA batteries
Transmitter features battery indication in 4 steps
Contacts for recharging BA 2015 accupack directly in the transmitter
Wide range of accessories adapts the system to any requirement UPC: 615104309821 In the Box Sennheiser SKP 100 G4 Plug-On Transmitter for Dynamic Microphones G: (566 to 608 MHz) 2 x AA Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SKP 100 G4 Plug-On Transmitter for Dynamic Microphones G: in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SKP 100 G4 Specs | Modulation | Wideband FM | | Frequency Band | G: (566 to 608 MHz) | | Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels | | Switching Bandwidth | Up to 42 MHz | | Nominal/Peak Deviation | ±24 kHz / ±48 kHz | | Frequency Stability | ≤
