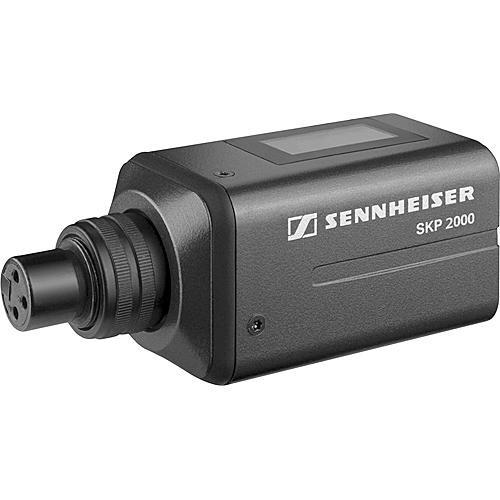

User Manual for Sennheiser SKP2000 Wireless Plug-In Transmitter Click to enlarge the picture
Contents of the user manual for the Sennheiser SKP2000 Wireless Plug-In Transmitter
- Product category: Wireless Transmitters Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Transmitters
|
User manual for the Sennheiser SKP2000 Wireless Plug-In Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description Designed for use with the Sennheiser 2000 Series wireless microphone system, the SKP2000 is a plug-in transmitter that allows any standard dynamic or condenser microphone with a 3-pin XLR connection, to be used wireless. The transmitter provides up to 2,880 tunable frequencies, 26 banks and 64 frequency presets. A comprehensive LCD provides frequency and channel information as well as battery status, Mute status and more. The SKP2000 plug-in transmitter is lightweight yet durable enough for rigorous use in the field and is powered by 2x AA batteries or optional Sennheiser BA2015 accupack. - Up to 72 MHz switching bandwidth
- 26 fixed frequency bands with up to 64 compatible presets
- 6 banks each with up to 64 tunable channels
- Frequency setting in 25 kHz steps
- Pilot tone squelch for interference-free operation
- 48V switchable phantom powering
- Backlit display on transmitter (keystroke activation)
- Auto-lock feature to prevent buttons from accidently being pressed
- Audio and RF MUTE feature for muting the transmitter can be configured from the receiver menu
- Transmitter can be synchronized with the receiver using infrared interface
- Wide range of accessories for virtually any use
UPC: 615104173811 In the Box Sennheiser SKP2000 Wireless Plug-In Transmitter SKP 2000 Plug-on Transmitter POP 1 Protective Pouch 2 x 2 AA 1.5V Batteries Instruction Manual Supplementary Frequency Sheet Supplementary RF Power Sheet 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SKP2000 Wireless Plug-In Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SKP 2000 Specs Type of Transmitter | SKP2000 Plug-In | # Of Channels | Frequencies: 2,880Presets: 26 banks, 24 presets each | Type of Input Connector | 3-pin XLR female | Type of Microphone | Not applicable, plug-in transmitters adapt to standard wired microphones | Polar Pattern | Not applicable, plug-in transmitters adapt to standard wired microphones | Interchangeable Mic Heads | Any Dynamic or Condenser Microphone with 3-pin XLR male Output | Frequency Response | 25 Hz to 20 kHz | RF Output | 10, 30, 50, 100 mW | Battery Type/Approx. Life | 2x AA Batteries | Mute Switch | Yes | Level Control | Yes, Variable Microphone Input Level | Antenna Type | Utilizes Microphone Body as Antenna | Display | Yes, LC Display: Channel, Low Battery Warning | Dimensions | 4.13 x 1.69 x 1.69" (105 x 43 x 43 mm) | Weight | 6.88 oz (195 g) | | Package Weight | 1.95 lb | Box Dimensions (LxWxH) | 13.9 x 5.6 x 2.8" |
