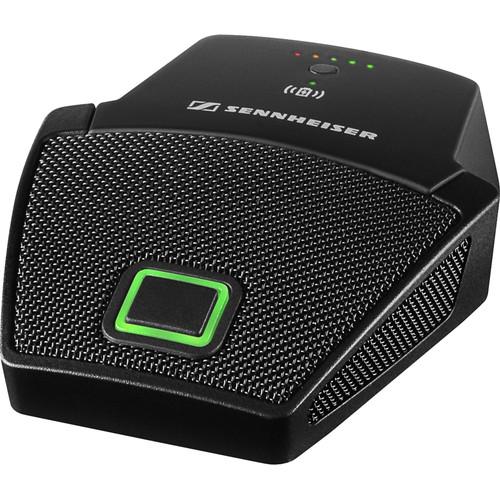

User Manual for Sennheiser SL Boundary 114-S DW-4 B Wireless Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser SL Boundary 114-S DW-4 B
- Product category: Audio Conferencing Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Audio Conferencing
|
User manual for the Sennheiser SL Boundary 114-S DW-4 B contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description Part of the SpeechLine Digital Wireless line of microphone conferencing systems, the Sennheiser SL Boundary 114-S DW-4 B is a wireless boundary microphone optimized for speech transmission in conference rooms, huddle rooms, and meeting spaces. Designed to be placed on a flat surface such as a desk or a conference table, its flat shape is visually unobtrusive for the seated meeting participants. The microphone is equipped with a cardioid polar pattern that picks up the speaker either in front of the mic or in close proximity, ideal for meetings, presentations, video conferencing, streaming, and more. The SL Boundary 114-S DW-4 B is powered via the included BA 40 rechargeable battery pack, which provides a typical operating time of 13 hours on a full charge. The complete absence of cable gives you speed of setup and the freedom to position the mic anywhere in the room. The battery can be charged wirelessly with the CHG 2W wireless power transmitter (available separately) or via USB. Compatible with the SL Rack Receiver DW stationary receiver, the SL Boundary 114-S DW-4 B can be monitored and controlled remotely with the free Sennheiser Control Cockpit software (available separately). - Key Features
-
- Wireless boundary microphone optimized for speech transmission in conference rooms, offices, huddle rooms, and more
- Use for meetings, presentations, video conferencing, streaming
- Complete absence of cable gives you the freedom to position the mic anywhere in the room
- Place on a flat surface such as a desk or a conference table
- Compatible with the SL Rack Receiver DW stationary receiver and the SpeechLine Digital Wireless family
- Includes BA 40 rechargeable battery pack—operates up to 13 hours on a full charge
- Cardioid polar pattern picks up speaker either in front of the microphone or in close proximity
- Unobtrusive flat shape provides desirable low-visual profile
- Clean look without cable
- Supports charging via USB and wireless inductive charging with the CHG 2W wireless power transmitter (available separately)
- Automatic sensitivity adjustment
- Remote monitoring and control via the free Sennheiser Control Cockpit software for Windows, Mac, iOS, and Android (available separately)
- Battery-status LEDs provide clear battery-life indication
In the Box Sennheiser SL Boundary 114-S DW-4 B Wireless Boundary Microphone BA 40 Rechargeable Battery Pack Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SL Boundary 114-S DW-4 B Wireless Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SL BOUNDARY 114-S DW-4 B Specs | Compatibility | SL Rack Receiver DW stationary receiver | | AF Frequency Response | 40 Hz to 20 kHz | | Polar Pattern | Cardioid | | Dynamic Range | < 100 dBA | | Sensitivity | 10 mV/PA | | Total Harmonic Distortion (THD) | 0.1%, typically | | Signal to Noise Ratio | > 90 dBA | | Sampling Rates | 24-bit / 48 kHz | | Input Level | 1.7 Vrms, maximum | | Input Impedance | 30 KOhms | | RF Frequency Range | 1.92 to 1.93 GHz | | RF Output Power | Up to 250 mW, adaptive (country-specific) | | Remote Control | Sennheiser Control Cockpit software (free download, available separately)
Windows, Mac, Android, iOS | | USB Port | Micro-USB B, charging port | | Power Supply | Type: BA 40 Accupack, lithium-ion rechargeable battery
Operating Time: 13 hours, typically
Output Voltage: 3.6 V
Charging Current: 2200 mAh | | Temperature Range | Operation: 50 to 113°F / 10 to 45 °C
Storage: -4 to 158°F / -20 to 70°C | | Color | Black | | Dimensions | 4.49 x 3.36 x 1.21" / 114.04 x 85.34 x 30.73 mm | | Weight | 7.3 oz / 208 g, without battery |
