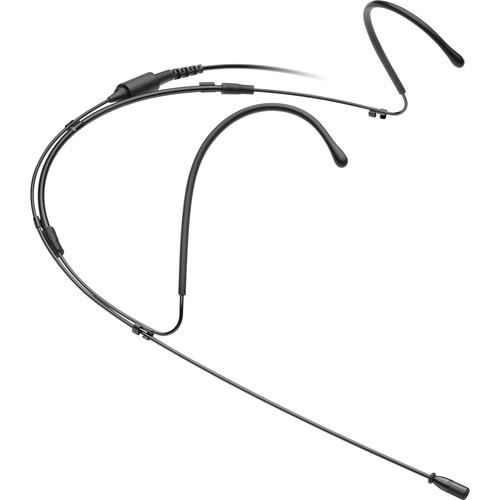

User Manual for Sennheiser SL Headmic 1-4 BK-NC Headworn Microphone with 3-Pin SE Connector Click to enlarge the picture
Contents of the user manual for the Sennheiser SL Headmic 1-4 BK-NC Headworn
- Product category: Microphones for Wireless Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Microphones for Wireless
|
User manual for the Sennheiser SL Headmic 1-4 BK-NC Headworn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The black Sennheiser SL Headmic 1-4 BK-NC Headworn Microphone with 3-Pin SE Connector is a comfortable presenter microphone with a sleek and unobtrusive appearance. It features an omnidirectional MKE 1 miniature capsule, which is optimized for a natural sound and high speech intelligibility. With its 3-pin LEMO-style SE connector and fixed cable that remains securely attached when the speaker moves, the headset can be paired with any Sennheiser bodypack transmitter equipped with a 3-pin LEMO connector, to capture audio in speech and presentation applications such as meetings, conferences, lectures, and more. Lightweight (at 0.25 oz without cable), the adjustable neckband easily adjusts to fit all head sizes. The metal frame is sturdy and durable for long-term use. The SL Headmic 1-4 BK-NC comes with an MZC 2 frequency response cap, an SL MZW 1 windshield, and a sleek soft case, which can also hold an optional bodypack transmitter. - Key Features
-
- Comfortable presenter microphone with adjustable neckband
- Omnidirectional MKE 1 miniature capsule for full, natural sound with high speech intelligibility
- 5.25' fixed cable remains securely attached when speaker moves
- Sleek and unobtrusive appearance
- Thin microphone boom
- 3-pin LEMO-style SE connector
- Compatible with any Sennheiser bodypack transmitter equipped with a LEMO connector—SK 5212-II (and variants), SK 2000, SK 6000, SK 9000, SK 6000
- Lightweight at 0.25 oz (without cable)
- Sturdy metal frame
- Includes MZC 2 frequency response cap and SL MZW 1 windshield
- Includes soft case for convenient transport and storage—case also holds a bodypack transmitter
UPC: 615104281028 In the Box Sennheiser SL Headmic 1-4 BK-NC Headworn Microphone with 3-Pin SE Connector (Black) MZC 2 Frequency Response Cap SL MZW 1 Windshield Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SL Headmic 1-4 BK-NC Headworn Microphone with 3-Pin SE Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SL Headmic Specs | | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 27 dB | | Maximum SPL | 143 dB SPL | | Impedance | 1 kOhms ± 1% Hz | | Load Impedance | 4.7 kOhms | | Sensitivity | 5 mV/Pa | | | | Output Connector | 3-Pin LEMO | | Cable Length | 5.25' / 1.6 m | | Operating Voltage | 4.5 to 15 V | | Operating Current Consumption | 240 µA | | Operating Humidity | 95% | | Diameter | 0.13" / 3.3 mm | | Weight | 0.25 oz / 7 g |
