User Manual for Sennheiser SL Interpreter Audio Control Center for Tourguide 2020 1039 Click to enlarge the picture
Contents of the user manual for the Sennheiser SL Interpreter Audio Control Center
- Product category: Components & Accessories Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Components & Accessories
 |
User manual for the Sennheiser SL Interpreter Audio Control Center contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

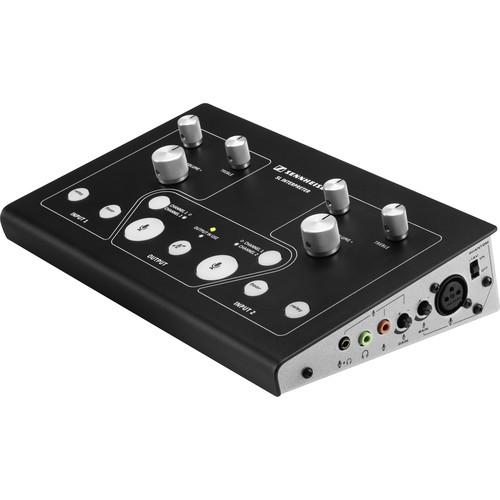

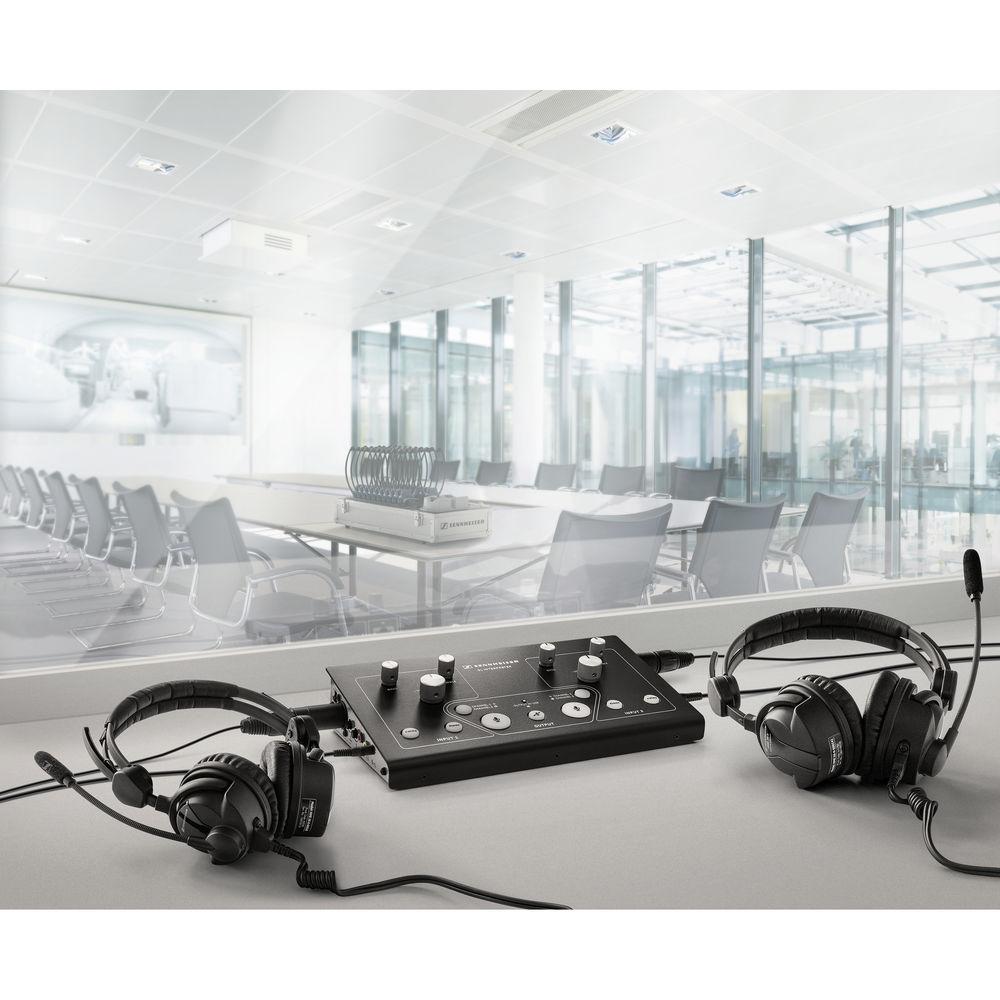

Product description The SL Interpreter Audio Control Center from Sennheiser is a compact and standalone audio control center for simultaneous interpretation of one or more languages. The unit features an XLR microphone input, two XLR output channels, a headphone output, and RJ45 link input and output connectors. It allows up to two interpreters to monitor floor or relay sources, activate microphone inputs, and route the interpretation signal to different outputs. It is designed for presentation-style conferences where a floor and a single relay language are used. It is recommended to be used with a Sennheiser Tourguide 2020 or 1039 system (available separately). - Stand-alone console with no need for external equipment
- Individual volume and tone controls for two interpreters
- Built-in distribution amplifier allows cascading of up to four consoles with Cat 5 audio
- Floor language feed-through
- Multiple microphone and headset options
- Power supply and Cat 5 link cable included
In the Box Sennheiser SL Interpreter Audio Control Center for Tourguide 2020 / 1039 (Up to 2 Interpreters) Power Supply Cat 5 Link Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SL Interpreter Audio Control Center for Tourguide 2020 1039 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser 506242 Specs | Frequency Response | 45 Hz - 20 kHz | | Distortion | 0.5% THD (1 kHz At Full Power) | | Signal to Noise Ratio | > 82 dB at 1 kHz | | Fade-Out/Crosstalk Attenuation | > 63 dB at 1 kHz | | Tone Controls | Bass: +12 dB Boost or −12 dB Cut at 100 Hz

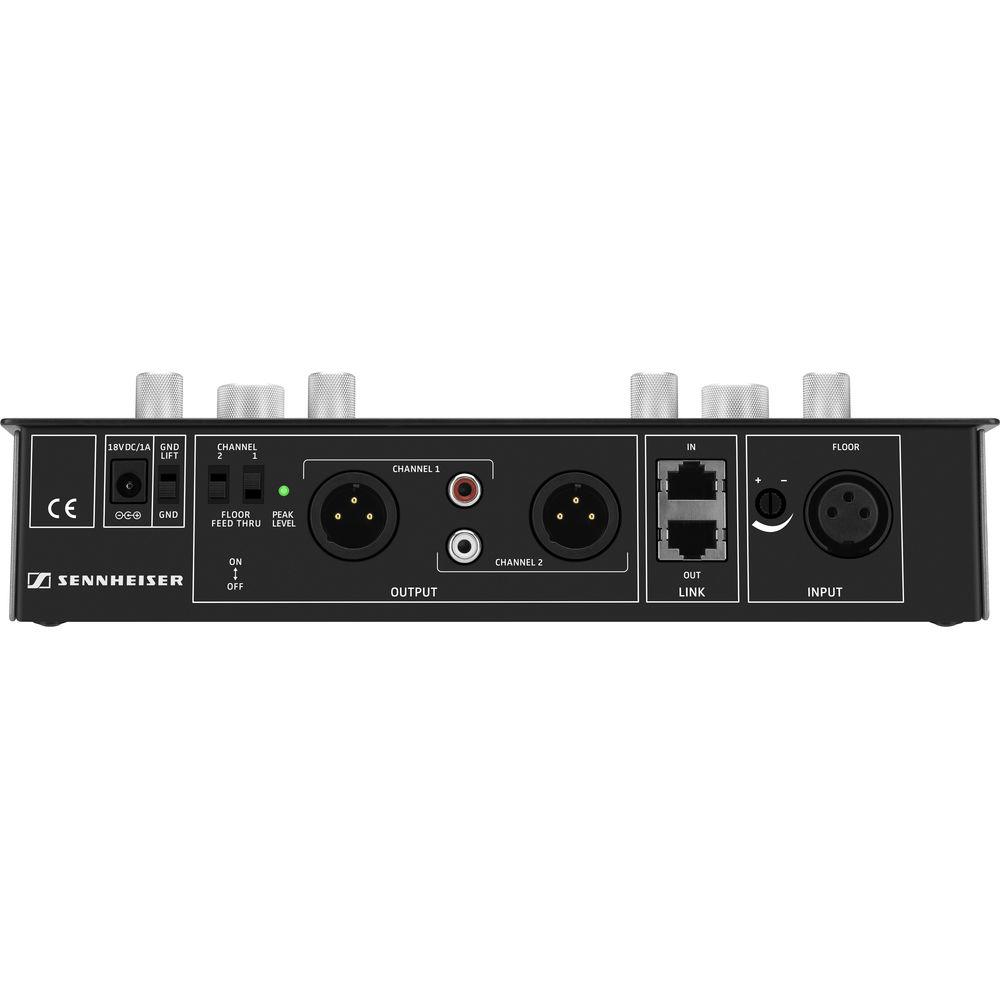

Treble: +12 dB Boost or −12 dB Cut at 10 kHz | | Balanced Input Level | +19 dBu (Maximum) | | Balanced Output Level | +19 dBu (Maximum) | | Input Impedance | 24 kOhms | | Output Impedance | 600 Ohms | | Connectors | 1 x 3-Pin XLR Female, Floor Input
1 x RJ45, Cat 5 Link Input
1 x RJ45, Cat 5 Link Output
1 x 3-Pin XLR Female, Microphone Input
1 x 3.5mm TRS Phone Jack, Microphone Input (Pink)
1 x 3.5mm TRS Phone Jack, Microphone Input (Black)
1 x 3.5mm TRS Phone Jack, Headphones Output

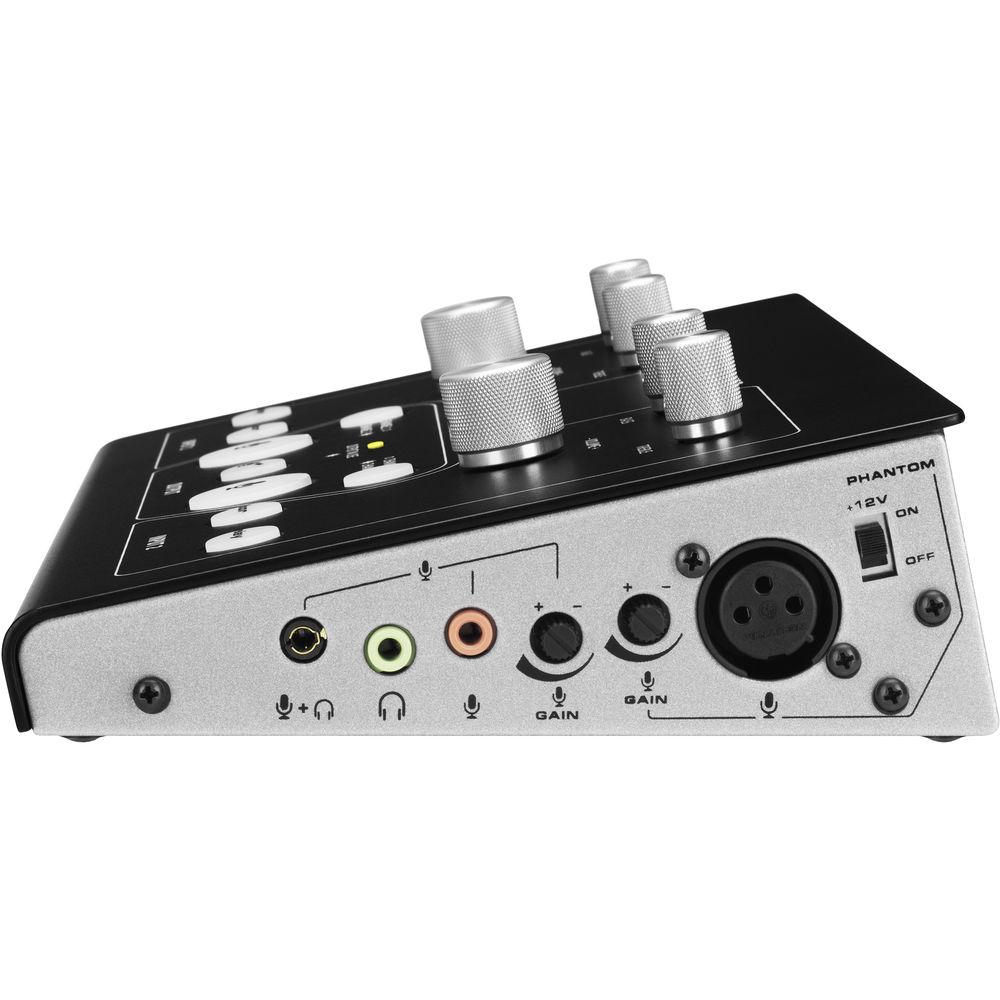

1 x 3.5mm TRRS Phone Jack, Microphone Input / Headphones Output
1 x 3-Pin XLR Male, Channel 1 Output
1 x 3-Pin XLR Male, Channel 2 Output
2 x RCA Jack, Channel 1 and Channel 2 Output | | Controls | 1 x Rotary, Left and Right Volume
1 x Rotary, Left and Right Bass
1 x Rotary, Left and Right Treble
1 x Pushbutton, Mute
1 x Pushbutton, Microphone On
1 x Pushbutton, Floor Input
1 x Pushbutton, Relay Input
1 x Pushbutton, Channel 2 Output
1 x Rotary, Gain Adjust
1 x Slide Switch, Phantom Power
1 x Slide Switch, Channel 1 Feedthrough
1 x Slide Switch, Channel 2 Feedthrough
1 x Slide Switch, Ground Lift | | Indicators | 1 x LED Green, Peak Level
1 x LED Yellow, Channel 2 Output | | Operating Voltage | 18 VDC | | Phantom Power | 12 VDC | | Power Supply | 100-240 VAC | | Dimensions | 10 x 6.35 x 2.45" / 25.4 x 16.1 x 6.2 cm | | Weight | 3.4 lb / 1.5 kg |
