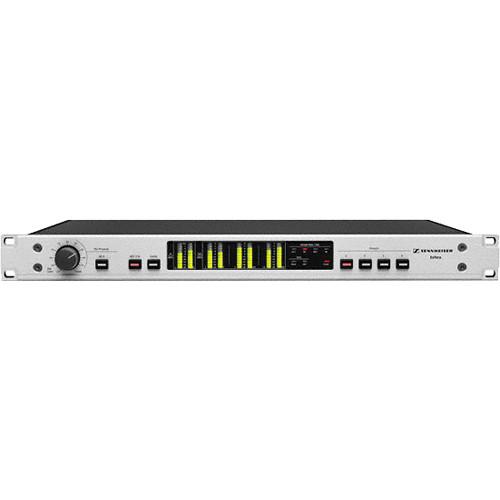

User Manual for Sennheiser SPB 8000 Esfera Surround Sound Process Base Click to enlarge the picture
Contents of the user manual for the Sennheiser SPB 8000 Esfera Surround Sound
- Product category: Stereo & Specialty Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Stereo & Specialty Microphones
|
User manual for the Sennheiser SPB 8000 Esfera Surround Sound contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The SPB 8000 Esfera Surround Sound Process Base by Sennheiser is for converting stereo microphone signals into 5.1 surround. It can be used in various environments when capturing audio in studios, live stage, theater, rehearsals, houses of worship, and more. The system consists of the SPM 8000 stereo microphone, (sold separately), and the SPB 8000 processing unit that converts the stereo signals of the microphone into a complete 5.1 audio signal. The DPB 8000 supplies the microphone with 48V phantom power, is input switchable between analog and digital AES3 signals and has a switchable compressor built-in. In addition it features 4 programmable presets for storage of 5.1 surround parameters. The SPB 8000 is adjustable via a web interface. UPC: 615104239494 In the Box Sennheiser SPB 8000 Esfera Surround Sound Process Base 3 x Mains Cables (US, EU, and UK Version) Network Cable 4 x Self-Adhesive Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SPB 8000 Esfera Surround Sound Process Base in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SPB 8000 Specs | | | Impedance | Approximately 4 kOhms, balanced | | Phantom Power | 48 V, switchable | | Connection | 2 XLR-3F sockets, transformerless balanced | | | | Connector | Mains: 3-pin, protection class I as per IEC/EN 60320-1 | | Power Consumption | Maximum 15 W | | Fuse | 115 V AC: T 160 mA L 250 V, T 315 mA L 250 V | | Voltage Range | 115 V / 230 V, 50/60 Hz | | | | Total Harmonic Distortion (THD) | 0.03% at 64 dBu: Gain: −12 dBFS at 1 kHz
0.004% at 30 dBu: Gain: −12 dBFS at 1 kHz | | Signal to Noise Ratio | CCIR 468: -82.6 dB, 64 dB gain at 48 kHz sampling rate
CCIR 468: -106,1 dB, 30 dB gain at 48 kHz sampling rate
A-weighted: -85.5 dB, 64 dB gain at 48 kHz sampling rate
A-weighted: -109.3 dB, 30 dB gain at 48 kHz sampling rate
Unweighted: -84 dB, 64 dB gain at 48 kHz sampling rate
Unweighted: -104,3 dB, 30 dB gain at 48 kHz sampling rate | | Gain | +64 dB (max) | | Dynamic Range | 130.3 dB 30 dB gain (A-weighted) | | Crosstalk | -70 dB at 10 kHz (-30 dBu input, 30 dB gain) | | Frequency Response | Measured at AES3 Out 1/2:
At 44.1 kHz Sampling Rate: 10 Hz-21 kHz
At 48 kHz Sampling Rate: 10 Hz-22.5 kHz
At 88 kHz Sampling Rate: 10 Hz-42 kHz
At 96 kHz Sampling Rate: 10 Hz-45 kHZ | | | | AES3 Input | Channels L/R | | Connection | 1 XLR-3F socket | | | | AES3 Audio Outputs | Channels L/R, C/LFE, SL, SR | | Sampling Rates | 44.1 / 48 / 88.2 / 96 kHz | | Bitrate | 24 bits | | Format | Professional | | Connection | 3 XLR-3M sockets | | | | Communication | HTTP (POST request method), JSON-compliant | | Ports | 80, 9050 with multicast | | Connection | RJ 45 socket | | Firmware Updates | Via HTTP | | | | Word Clock | Via input socket B (BNC) | | AES3 Input | Clock: Via in socket D (XLR-3F) | | Dimensions (H x W x D) | 1.7 x 19 x 11" (44 x 482 x 275 mm) depth with controls and sockets
1.7 x 19 x 10" (44 x 482 x 260 mm) depth with sockets
1.7 x 19 x 9.4" (44 x 482 x 240 mm) depth of housing | | Weight | 8.6 lb (3.9 kg) |
