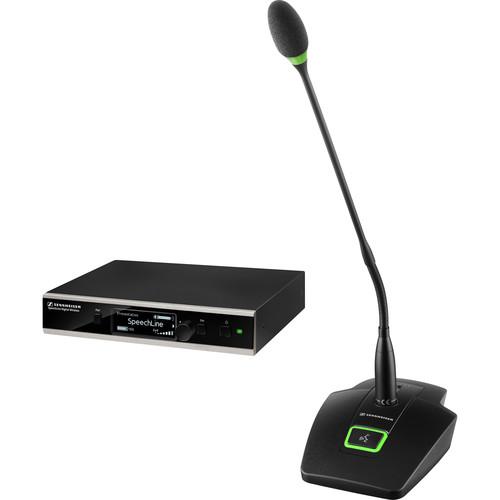

User Manual for Sennheiser SpeechLine Digital Wireless Microphone Set with 153-S DW Stand, MEG 14-40-L-II B Microphone, and DW Receiver Click to enlarge the picture
Contents of the user manual for the Sennheiser SpeechLine Digital Wireless Microphone Set
- Product category: Audio Conferencing Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Audio Conferencing
|
User manual for the Sennheiser SpeechLine Digital Wireless Microphone Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The SpeechLine Digital Wireless Microphone Set from Sennheiser includes an SL Table Stand 153-S DW, a MEG 14-40-L-II B gooseneck microphone with integrated LED ring, an SL Rack Receiver DW with power supply, a BA 40 rechargeable battery, and a rackmount kit. Optimized for speech transmission, this flexible wireless set offers speech intelligibility and ease of use for meeting participants, in conference rooms, offices, and huddle rooms.
The table stand features a 5-pin XLR port for connecting to the gooseneck microphone; it connects wirelessly to the receiver and can be charged wirelessly or via included USB cable. The rechargeable battery allows up to 10 hours of operation and an LED provides battery life status. The receiver features a clear visible OLED display for easy setup and operation. The automatic frequency and interference management allows convenient and reliable operation. The microphone set can be controlled and monitored remotely via the Sennheiser Control Cockpit software (available separately). UPC: 615104264120 In the Box Sennheiser SpeechLine Digital Wireless Microphone Set with 153-S DW Stand, MEG 14-40-L-II B Microphone, and DW Receiver (US) SL Table Stand 153-S DW MEG 14-40-L-II B Gooseneck Microphone BA 40 Accupack SL Rack Receiver DW Power Supply GA 4 Rackmount Kit USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SpeechLine Digital Wireless Microphone Set with 153-S DW Stand, MEG 14-40-L-II B Microphone, and DW Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SL TS 153 GN-L SET DW-4 US Specs | | | AF Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | > 120 dB | | THD | 0.1% at 1 kHz | | Audio Sampling | 24-bit / 48 kHz | | Signal to Noise Rate | > 90 dB | | Encryption | AES 256 | | RF Frequency Range | US: 1920 to 1930 MHz | | Modulation | GFSK with back channel | | Transmission Method | TDMA, space diversity | | Latency | 19 ms | | Relative Humidity | 95% maximum | | Operating Temperature | 14 to 131°F / -10 to 55 °C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | | | RF Sensitivity | < -90 dBm | | RF Output Channels | Adaptive, up to 250 mW (country-specific) | | Audio Output Level | XLR Balanced: Maximum +18 dBu
RCA Unbalanced: Maximum +6 dBu | | Audio Effects | Low Cut: -3 dB at 120 Hz
Equalizer: 7-band graphic equalizer with sound presets
Sound Profiles: Female voice, male voice, and media | | Display | OLED | | Network Protocol | Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/IPv6 | | Power Supply | 12 VDC | | Current Consumption | 350 mA | | Connectors | 1 x XLR
2 x RCA
2 x reverse SMA
1 x RJ45
1 x power | | Dimensions | 8.4 x 1.7 x 6.6" / 21.2 x 4.3 x 16.8 cm | | Weight | 29 oz / 828 g | | | | Nominal Input Voltage | 100 to 240 VAC | | Power Frequency | 50 or 60 Hz | | Input Current | Maximum 120 mA | | Power Consumption | Standby: ≤ 0.3 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Relative Humidity | 95% | | Dimensions | Not specified by manufacturer | | Weight | Approx. 3.5 oz / 100 g | | | | AF Frequency Response | 75 Hz to 20 kHz | | Max Input | 1.7 V RMS | | Input Impedance | 30 kOhms | | Power Supply | BA 40 accupack | | Operating Time | Up to 10 hours | | Microphone Connector | 5-pin XLR | | Operating Temperature | 50 to 113°F / 10 to 45°C | | Relative Humidity | 95% | | Dimensions | 6.6 x 4.7 x 1.9" / 16.7 x 12.0 x 4.8 cm | | Weight | 23 oz / 660 g without battery | | | | Model | BA 40 | | Capacity | 2200 mAh | | Output Voltage | 3.6 V | | | | Pick Up Pattern | Cardioid | | Frequency Response | 50 Hz to 20 kHz | | Acoustic Principle | Gooseneck microphone (condenser) | | Output Impedance | < 100 Ohms at 1 kHz | | Sensitivity | 15 mV/Pa | | Maximum Sound Pressure Level (SPL) | 130 dB at 1 kHz < 3% | | Equivalent Noise Level | 37 dB (CCIR)
26 dB (A) | | Power Supply | Microphone: 12 to 48 V phantom power
Signal Light Ring: 12 to 30 VDC, 1-18 mA, green LED | | Current Consumption | 3 mA | | Connector | 5-pin XLR | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -13 to 158°F / -25 to 70°C | | Length | 18.0" / 45.7 cm | | | | Package Weight | 7.65 lb | | Box Dimensions (LxWxH) | 16.0 x 13.8 x 2.9" |
