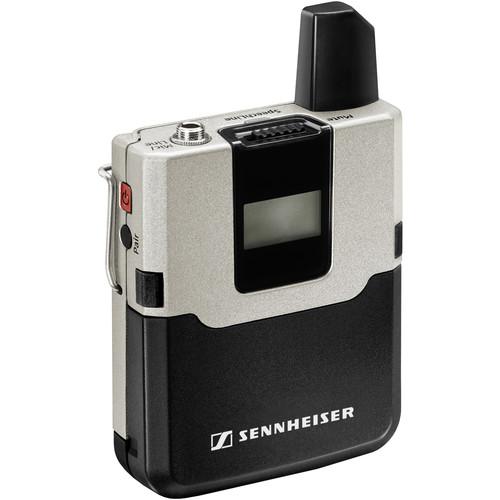

User Manual for Sennheiser SpeechLine Digital Wireless SL Bodypack DW-4-US Wireless Transmitter Click to enlarge the picture
Contents of the user manual for the Sennheiser SpeechLine Digital Wireless SL Bodypack
- Product category: Wireless Transmitters Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Transmitters
|
User manual for the Sennheiser SpeechLine Digital Wireless SL Bodypack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The SpeechLine Digital Wireless SL Bodypack DW-4-US from Sennheiser is an SL Series wireless transmitter optimized for speech. It can be used when paired with an optional wireless receiver and microphone in applications for meetings, lectures, conferences presentations where every word matters. In addition, it is compatible with all Sennheiser microphones such as the SL Headmic 1 or MKE 1 (sold separately). Featuring bi-directional communication between transmitter and receiver, the automatic frequency and interference management allows for convenient and reliable operation, which means the SL bodypack requires no settings to be adjusted. The LC display provides the link name, battery status and reception quality, and the easy-to-access mute-slider makes the use of the microphone very convenient. Furthermore, the SL bodypack comes with a rechargeable BA 30 accupack that is built with external charging contacts – for easy charging with the CHG 2 and a USB socket. It provides up to 15 hours of operating time on a full charge. Finally, Sennheiser Control Cockpit software (download) offers easy handling, control, and maintenance for the SpeechLine Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy. UPC: 615104243835 In the Box Sennheiser SpeechLine Digital Wireless SL Bodypack DW-4-US Wireless Transmitter BA 30 Rechargeable Battery Pack evtcuyxdtyddrvrvsbfyuydwf Carry Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SpeechLine Digital Wireless SL Bodypack DW-4-US Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SL Bodypack DW Specs | | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | > 120 dBA | | Total Harmonic Distortion (THD) | Typical 0.1 % | | Sampling Rates | 24-bit/48 kHz | | Signal-to-Noise Ratio | > 90 dBA | | Encryption | AES 256 | | Frequency Range | USA: 1,920 to 1,930 MHz | | Modulation | GFSK with back channel | | Transmission Method | TDMA, space diversity | | Latency | 19 ms | | Relative Humidity | Maximum 95% | | Temperature Range | Operation: 14 to 131°F (-10 to 55°C)
Storage: -4 to 158°F (-20 to 70°C) | | | | RF Output Power | Adaptive, up to 250 mW (country-specific) | | Frequency Response | Output Mic: 50 Hz to 20 kHz
Output Line: 20 Hz to 20 kHz | | Maximum Input Level | Mic: 2.2 V RMS
Line: 3.3 V RMS | | Line Input Impedance | 1 MOhms | | Input Sensitivity | Automatic sensitivity adjustment | | Power Supply | Accupack: BA 30 (Li-Ion, 3.7 V)
Batteries: 2 x AA size battery (1.5 V)
Charging Capacity: 2030 mAh | | Operating Time | Accupack: Typical 15 hours
Batteries: Typical 11 hours | | Output Connector | 1/8" (3.5 mm) locking mini-jack | | Dimensions | Not specified by manufacturer | | Weight | 3.1 oz (88 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 13.9 x 3.3 x 2.7" |
