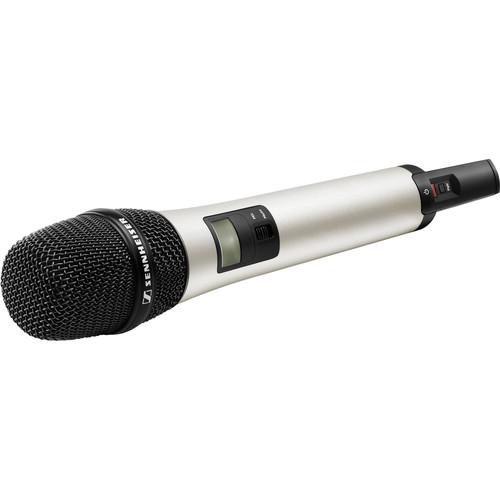

User Manual for Sennheiser SpeechLine Digital Wireless SL DW-4-US Handheld Transmitter & E865 Mic Capsule Click to enlarge the picture
Contents of the user manual for the Sennheiser SpeechLine Digital Wireless SL DW-4-US
- Product category: Wireless Transmitters Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Transmitters
|
User manual for the Sennheiser SpeechLine Digital Wireless SL DW-4-US contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The SpeechLine Digital Wireless SL Handheld 865 DW-4-US from Sennheiser is a wireless handheld transmitter with a supercardioid MME 865 microphone capsule. It can be used when paired with a receiver (sold separately) to capture speech in presentations or lectures for meetings, conferences, and more. The transmitter requires no settings to be adjusted. The automatic frequency and interference management allows convenient and reliable operation. The LC display provides the link name, battery status, and reception quality. Furthermore, there is a mute-slider switch ergonomically positioned on the transmitter that makes the use of the microphone very convenient. The SL Handheld microphone transmitter comes with a rechargeable accupack with up to 15 hours of operating time. A carry pouch is also included. Finally, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy. UPC: 615104243842 In the Box Sennheiser SpeechLine Digital Wireless SL DW-4-US Handheld Transmitter & E865 Mic Capsule BA 10 Rechargeable Battery Pack Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SpeechLine Digital Wireless SL DW-4-US Handheld Transmitter & E865 Mic Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SL Handheld DW Specs | | | RF Output Power | Adaptive, up to 250 mW (country-specific) | | Frequency Response | 50 Hz to 20 kHz | | Total Harmonic Distortion (THD) | Typical 0.1% | | Input Sensitivity | Automatic sensitivity adjustment | | Sampling Rate | 24-bit/48 kHz | | Signal to Noise Ratio | > 90 dBA | | Encryption | AES 256 | | Frequency Range | USA: 1,920 to 1,930 MHz | | Modulation | GFSK with back channel | | Transmission Method | TDMA, space diversity | | Latency | 19 ms | | Power Supply | Accupack: BA10 (Li-Ion, 3.7 V)
Batteries: 2 x AA size battery (1.5 V) | | Operating Time | Accupack: Typical 15 hours
Batteries: Typical 10 hours | | Display | LCD | | Mute Switch | Yes | | Dimensions | 9.02 x 1.99" (272.4 x 50.5 mm) (w/ capsule) | | Weight | 9.2 oz (262 g) with capsule (w/o Accupack) | | | | Type | Pre-polarized condenser microphone | | Sensitivity | 1.6 mV/Pa | | Pickup Pattern | Supercardioid | | Maximum SPL | 152 dB SPL | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 13.858 x 3.307 x 2.992" |
