User Manual for Sennheiser SpeechLine Digital Wireless SL Handheld Set DW-4-US RM Wireless Mic with Rackmount Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser SpeechLine Digital Wireless SL Handheld
- Product category: Wireless Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Systems
|
User manual for the Sennheiser SpeechLine Digital Wireless SL Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

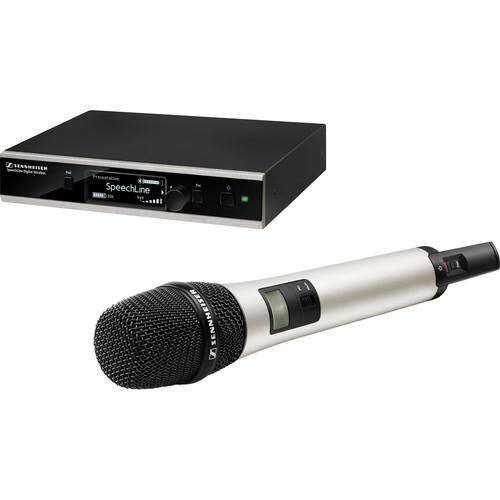

Product description The SpeechLine Digital Wireless SL Handheld Set DW-4-US RM from Sennheiser is a wireless microphone system with rackmount kit that includes a handheld transmitter, a stationary receiver, and a MME 865 condenser capsule. It can be used to capture speech in presentations or lectures for meetings, conferences, and more. Featuring bi-directional communication between transmitter and receiver, the SL Handheld Set requires no settings to be adjusted. The automatic frequency and interference management allows convenient and reliable operation. The LC display provides the link name, battery status, and reception quality. Furthermore, there is a mute-slider switch ergonomically position on the transmitter that makes the use of the microphone very convenient. The SL Handheld DW comes with a rechargeable accupack with up to 15 hours of operating time. It is also USB rechargeable and comes with the cable in the box. Finally, Sennheiser Control Cockpit software offers easy handling, control, and maintenance for the SpeechLine Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy. UPC: 615104243989 In the Box Sennheiser SpeechLine Digital Wireless SL Handheld Set DW-4-US RM Wireless Mic with Rackmount Kit SL Handheld DW Transmitter Stationary Receiver MME 865 Capsule BA 10 Rechargeable Battery Rackmount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SpeechLine Digital Wireless SL Handheld Set DW-4-US RM Wireless Mic with Rackmount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SL HANDHELD SET DW-4-US R Specs | | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | > 120 dBA | | Total Harmonic Distortion (THD) | Typical 0.1 % | | Sampling Rates | 24-bit/48 kHz | | Signal-to-Noise Ratio | > 90 dBA | | Encryption | AES 256 | | Frequency Range | USA: 1,920 to 1,930 MHz | | Modulation | GFSK with back channel | | Transmission Method | TDMA, space diversity | | Latency | 19 ms | | Relative Humidity | Maximum 95% | | Temperature Range | Operation: 14 to 131°F (-10 to 55°C)
Storage: -4 to 158°F (-20 to 70°C) | | | | RF Sensitivity | < -90 dBm | | RF Output Power | Adaptive, up to 250 mW (country-specific) | | Audio Output Level | Balanced: Maximum -18 dBu, typical -24 dBu
Unbalanced: Maximum +6 dBu | | Audio Effects | Low Cut: -3 dB at 120 Hz
Equalizer: 7-band graphic equalizer with sound presets
Sound Profiles: Female voice, male voice, instrument/media | | Display | OLED | | Network Protocol | Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/IPv6 | | Power Supply | 12 VDC | | Current Consumption | 350 mA | | Output Connection | 1 x 3-pin XLRM
2 x RCA | | Connections | Network: RJ 45
DC Socket for Power Supply: Hollow jack | | Dimensions | Not specified by manufacturer | | Weight | 29 oz (828 g) | | | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | > 120 dBA | | Total Harmonic Distortion (THD) | Typical 0.1% | | Audio Sampling | 24-bit/48 kHz | | Signal to Noise Ratio | > 90 dBA | | Encryption | AES 256 | | RF Frequency Range | USA: 1,920 to 1,930 MHz | | Modulation | GFSK with back channel | | Transmission Method | TDMA, space diversity | | Latency | 19 ms | | Humidity | Maximum 95% | | Temperature Range | Operation: 14 to 131°F (-10 to 55°C)
Storage: -4 to 158°F (-20 to 70°C | | RF Output Power | adaptive, up to 250 mW (country-specific) | | Frequency Response | Output: 50 Hz to 20 kHz | | Input Sensitivity | Automatic sensitivity adjustment | | Power Supply | Accupack: BA10 (Li-Ion, 3.7 V)
Batteries: 2 x AA size battery (1.5 V) | | Operating Time | Accupack: Typical 15 hours
Batteries: Typical 10 hours | | Display | LCD | | Mute Switch | Yes | | Dimensions | Not specified by manufacturer | | Weight | 9.2 oz (262 g) | | | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 16.0 x 13.7 x 3.0" |
