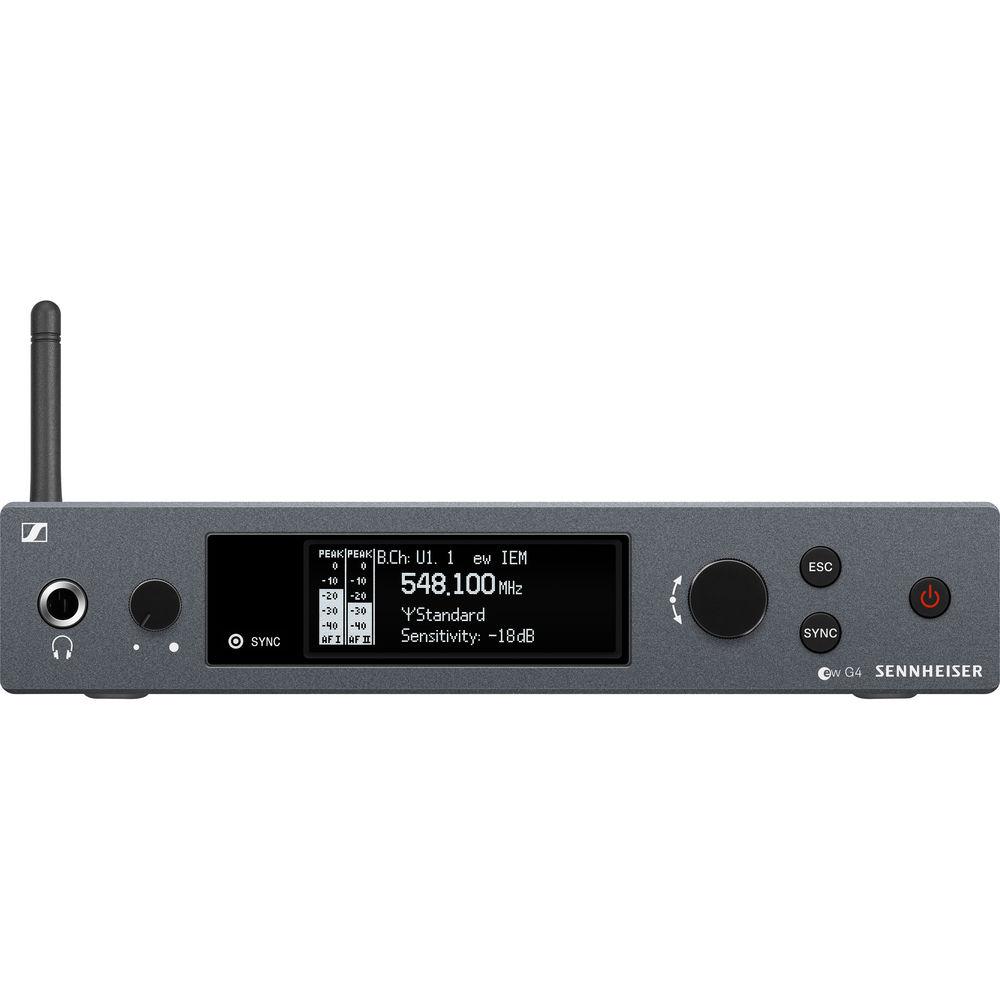

User Manual for Sennheiser SR IEM G4 Stereo Transmitter Click to enlarge the picture
Contents of the user manual for the Sennheiser SR IEM G4 Stereo Transmitter
- Product category: Transmitters Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Transmitters
 |
User manual for the Sennheiser SR IEM G4 Stereo Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

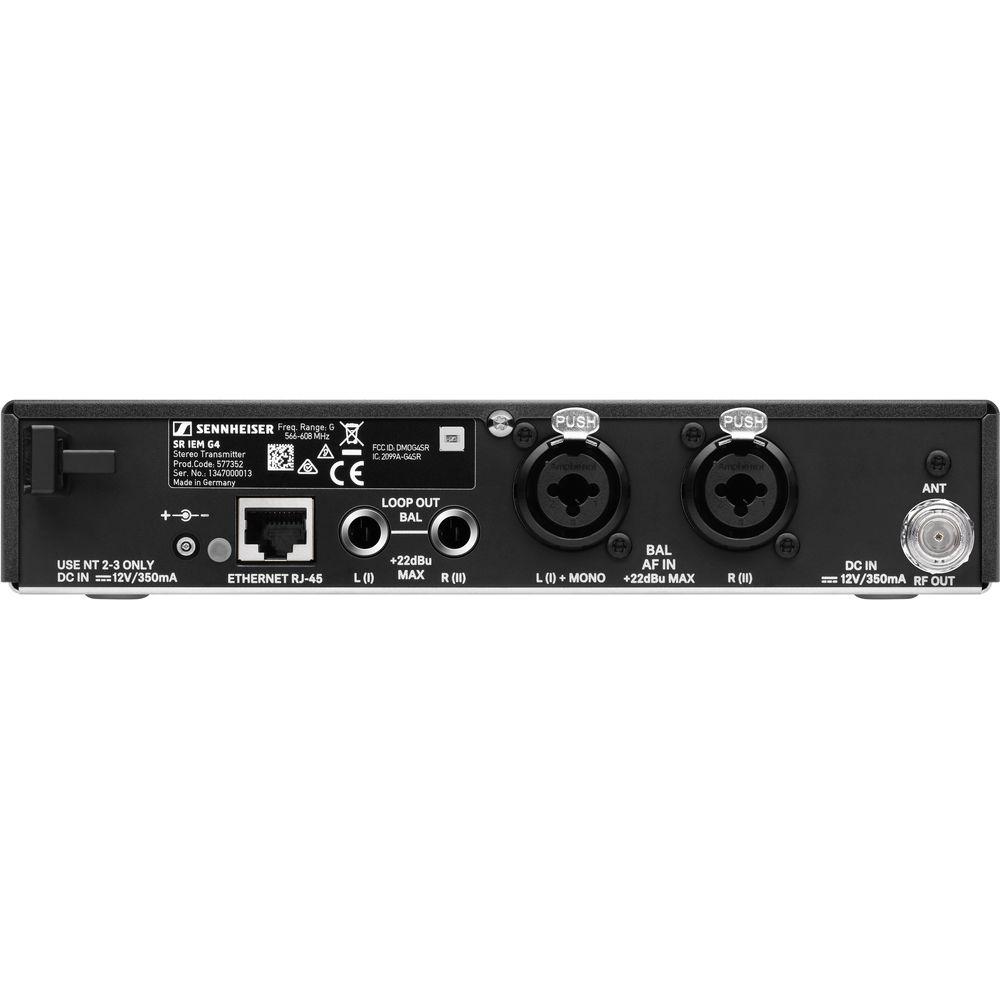

Product description The SR IEM G4 Stereo Transmitter from Sennheiser is an addition to their evolution series of wireless systems. It features wideband FM stereo modulation and can be used when paired with a companion receiver as part of a wireless RF monitoring system for live stage, theater, and rehearsal applications.The stereo transmitter is equipped with 1680 frequencies tunable in 25 kHz steps and has 20 fixed frequency banks, with up to 16 compatible frequency presets and 6 user banks with up to 16 user-programmable frequencies. The receiver's menu-driven backlit OLED display shows current frequency, frequency bank and channel number, metering of AF level, transmission status, equalizer settings, lock status, and input sensitivity. An auto-lock feature is provided to prevent settings from being accidentally altered.Additionally, associated receivers can be synchronized with the transmitter via an integrated infrared interface. This transmitter is built with two electronically balanced XLR/1/4" combo sockets, a 1/4" headphone output with headphone volume control, an Ethernet port (RJ-45 for remote network-based monitoring), and a 50 Ohm BNC-type antenna input. Finally, it has a rugged metal housing and includes a 12 V power supply and a GA 3 rackmount kit. - Half-rack stereo transmitter in a full-metal housing with OLED display for full control.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared.
- Compatible with Sennheiser WSM control software for flexible frequency allocation.
- Up to 16 compatible channels.
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.
- Transmission Range: up to 100 meters / 300'.
- High RF output power (up to 50 mW) depending on country regulations.
UPC: 615104311701 In the Box Sennheiser SR IEM G4 Stereo Transmitter (G: 566 to 608 MHz) Rod Antenna Power Supply GA 3 Rackmount Kit for G3 100/300/500 Series Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SR IEM G4 Stereo Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SR IEM G4-G Specs | Modulation | Wideband FM stereo (MPX pilot tone) | | Frequency Band | G: 566 to 608 MHz | | Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 16 factory-preset channels, no intermodulation
6 frequency banks with up to 16 programmable channels | | Switching Bandwidth | up to 42 MHz | | Nominal/Peak Deviation | ±24 kHz / ±48 kHz | | MPX Pilot Tone | 19 kHz/
