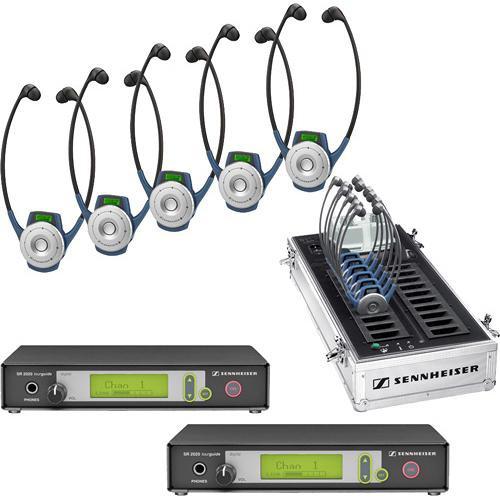

User Manual for Sennheiser SR2020-D-US Dual Rack-Mountable RF Transmitter Receiver Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser SR2020-D-US Dual Rack-Mountable RF Transmitter
- Product category: Assistive Listening Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Assistive Listening Systems
|
User manual for the Sennheiser SR2020-D-US Dual Rack-Mountable RF Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The SR2020-D-US Dual from Sennheiser is a flexible and versatile solution for assistive listening and multi-language applications. It consists of a pair of SR2020-D-US rack-mountable single-channel wireless RF transmitters and 5 HDE2020-D-US stethoset receivers. The system operates in the license-free 926-928MHz radio band, ensuring that you can find a clear communication channel for transmission.
The transmitters can be installed in a standard 19" equipment rack and have backlit LCD displays for relaying vital information. The balanced XLR mic/line inputs let you connect a microphone, mixer, or other audio device. The input also offers 48V phantom power, allowing you to use pro-level condenser mics. A front-panel 1/4" headphone jack provides easy monitoring.
The stethoset receivers have 6 selectable RF channels, which are displayed on the backlit LCD display. The headset has an auto on/off function that is triggered by wearing or removing the headset. The in-ear earpieces provide comfort and noise isolation, while the large rotary volume control makes it easy to adjust the volume. The integrated rechargeable battery provides hours of operation. A carrying case is included that charges the receivers. - RF transmission system ideal for assistive listening
- License-free 926-928MHz ISM RF band
- Transmitters are mountable in a standard equipment rack
- Includes 5 stethoset receivers
- Backlit LCD display with intuitive menus
- Balanced XLR mic/line input with 48V phantom power
- Front-panel headphone jack for convenient monitoring
- Auto on/off function on stethosets
- In-ear design for comfort and noise isolation
- Large volume control dial
- Integrated rechargeable batteries
- Coverage can be expanded by adding remote antennas
- Carrying case also charges stethosets
In the Box Sennheiser SR2020-D-US Dual Rack-Mountable RF Transmitter/Receiver Kit 2 x SR2020-D-US Rack-Mountable RF Transmitter sdcvczxsduxeffzvscccfczbswweqrq 5 x HDE2020-D-US 6-Channel RF Stethoset Receiver sdcvczxsduxeffzvscccfczbswweqrq Antenna Mounting Kit Charger Case ADA Signage Kit 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser SR2020-D-US Dual Rack-Mountable RF Transmitter Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser SR2020-D-US Specs | Signal System | RF | | Operating Frequency | 926-928MHz | | Channels | 6/8 | | RF Power Output | 1mW | | Modulation | 2-FSK | | Antenna | Front-Mount | | Wireless Range | 80' (24.2 m) (Indoors)
160' (48.4 m) (Outdoors) Range can be expanded with remote antennas, sold separately | | Audio Input | 1 x 3-Pin XLR Female Balanced Input
1 x 1/4" Headphone Jack
1 x Power Input | | Power Requirements | 110-220VAC | | Power Consumption | 300mA, Max | | Operating Temperature | 32-122° F (0-50° C) | | Dimensions (WxHxD) | 8.35 x 5.71 x 1.5" (212 x 145 x 38mm) | | Weight | 2.43 lbs (1.1kg) | | | | Package Weight | 36.95 lb | | Box Dimensions (LxWxH) | 27.0 x 20.0 x 18.75" |
