User Manual for Sennheiser TeamConnect SL Audio System with CU1 Central Unit & CB1 Combox Click to enlarge the picture
Contents of the user manual for the Sennheiser TeamConnect SL Audio System with
- Product category: Assistive Listening Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Assistive Listening Systems
 |
User manual for the Sennheiser TeamConnect SL Audio System with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

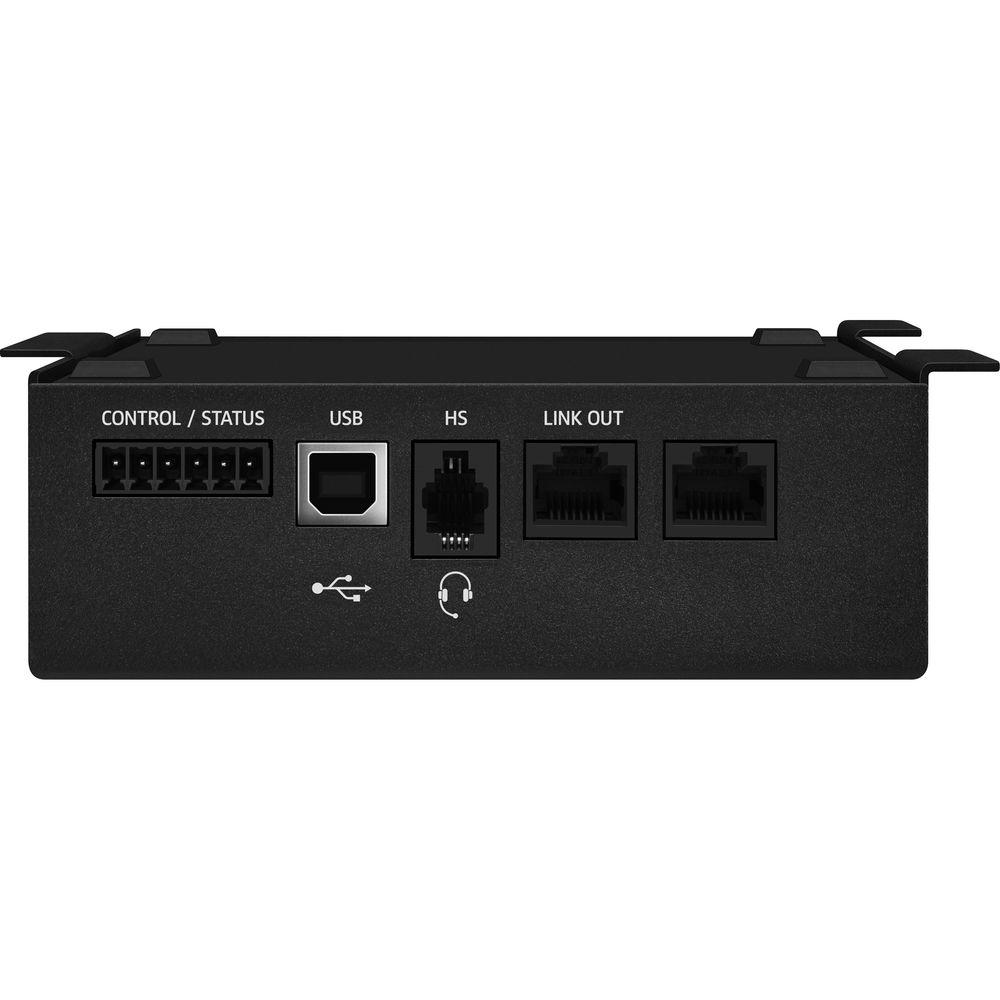

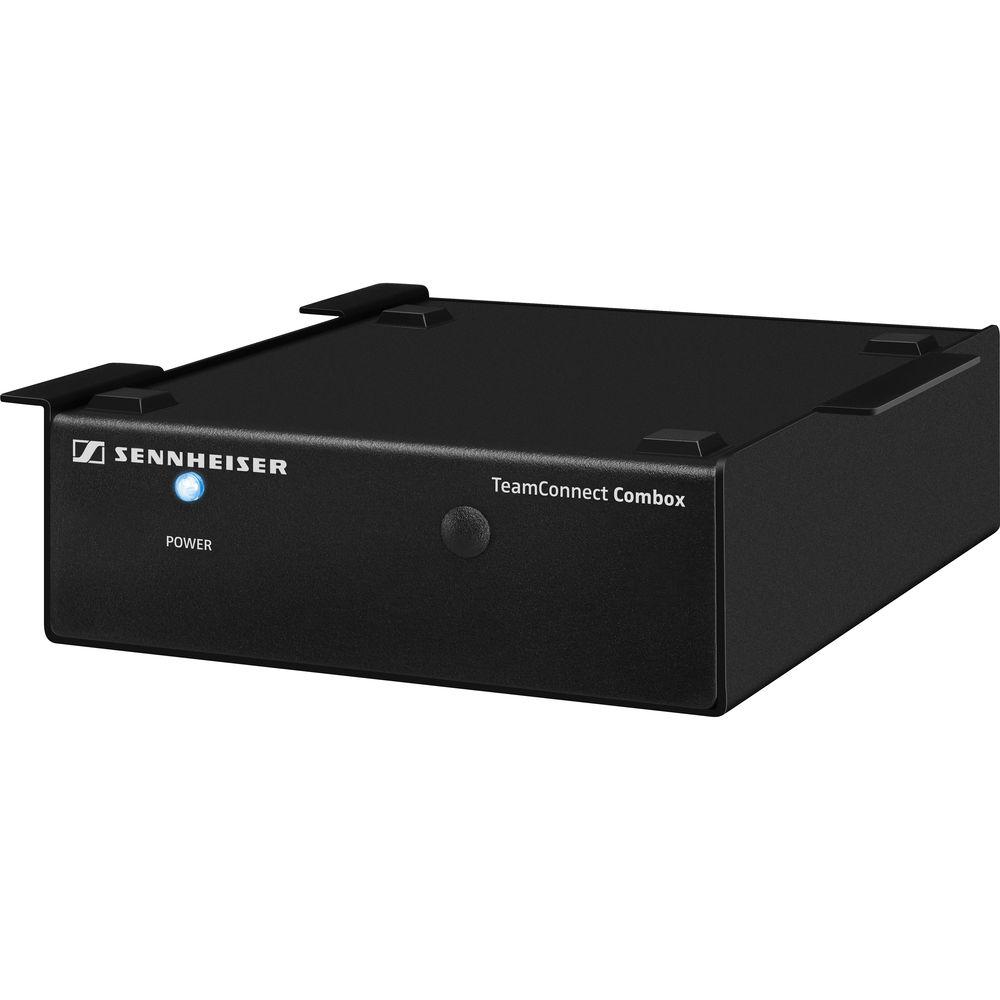

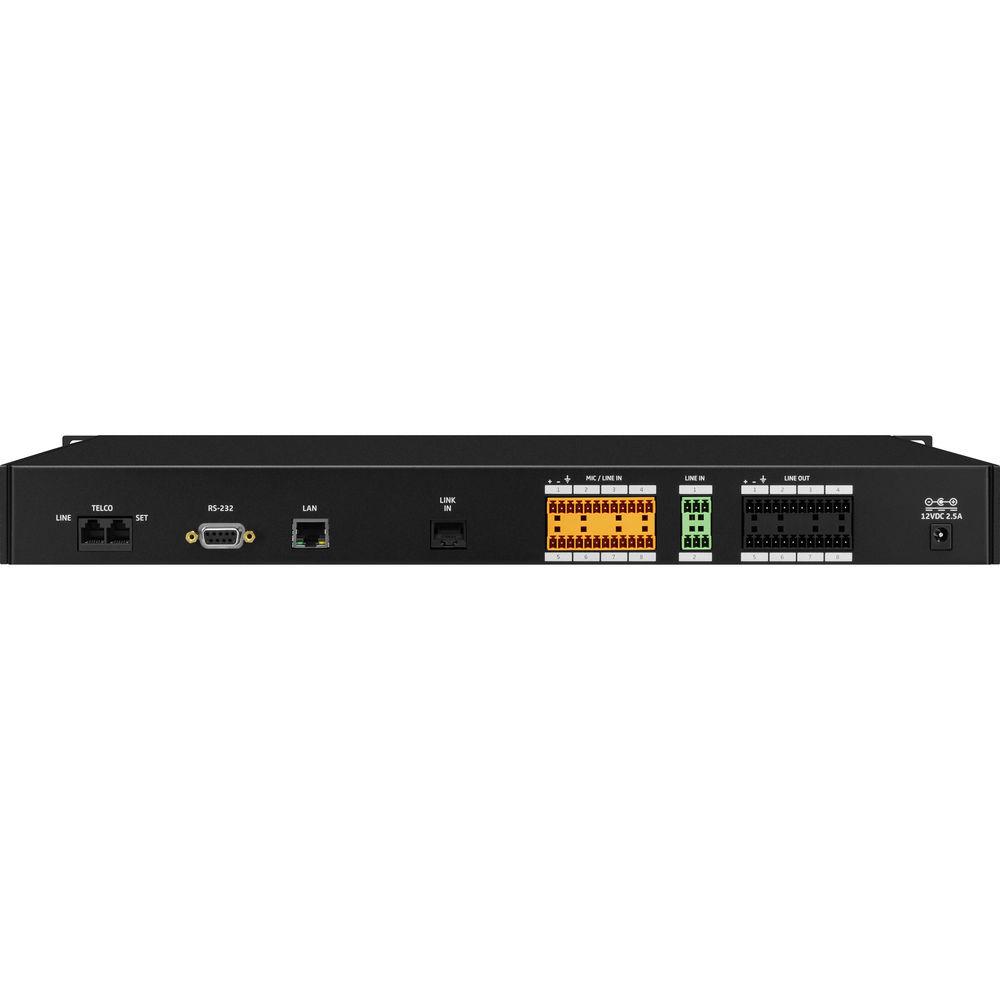

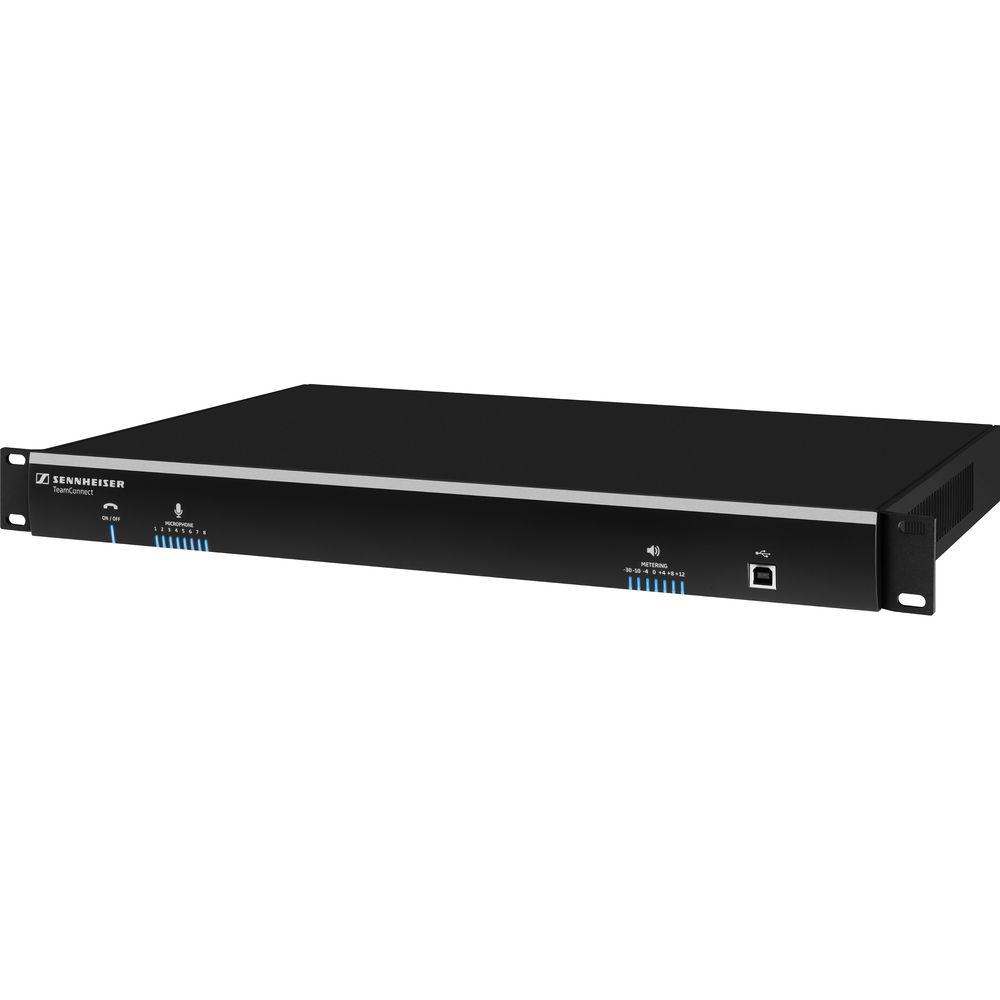

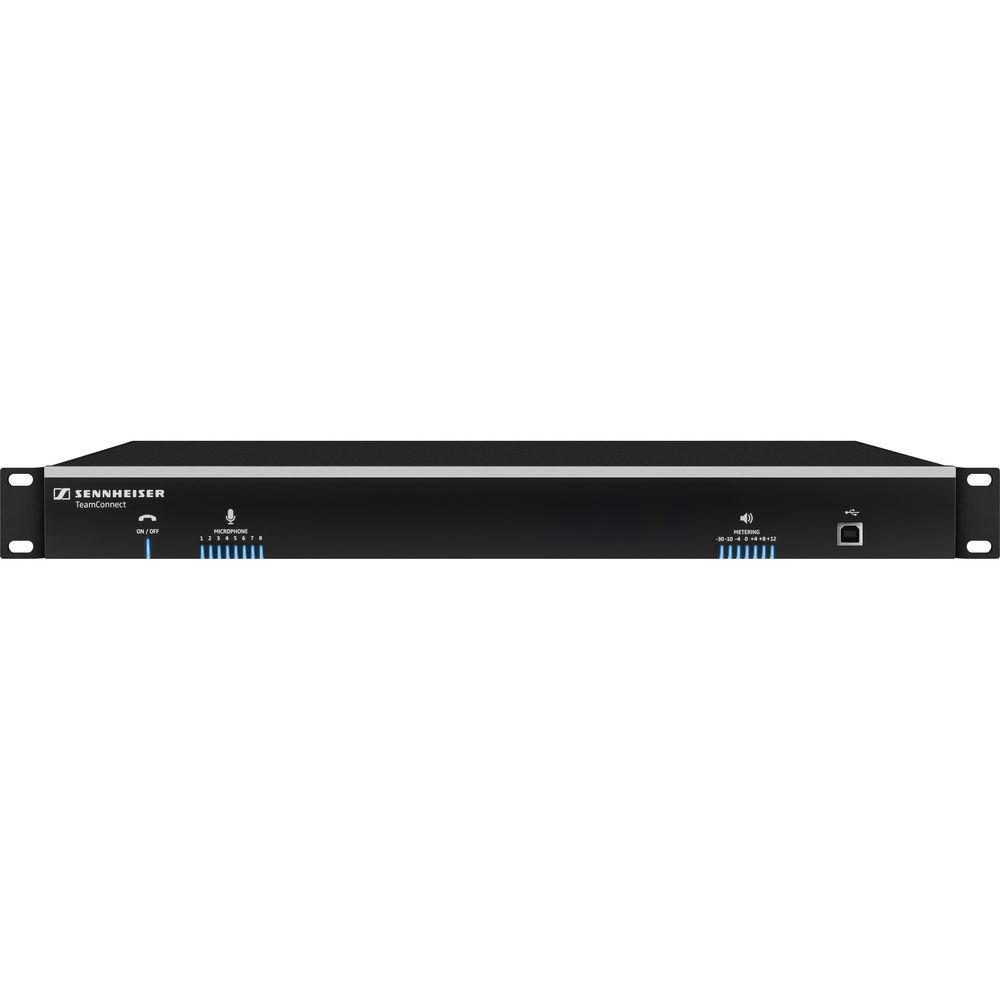

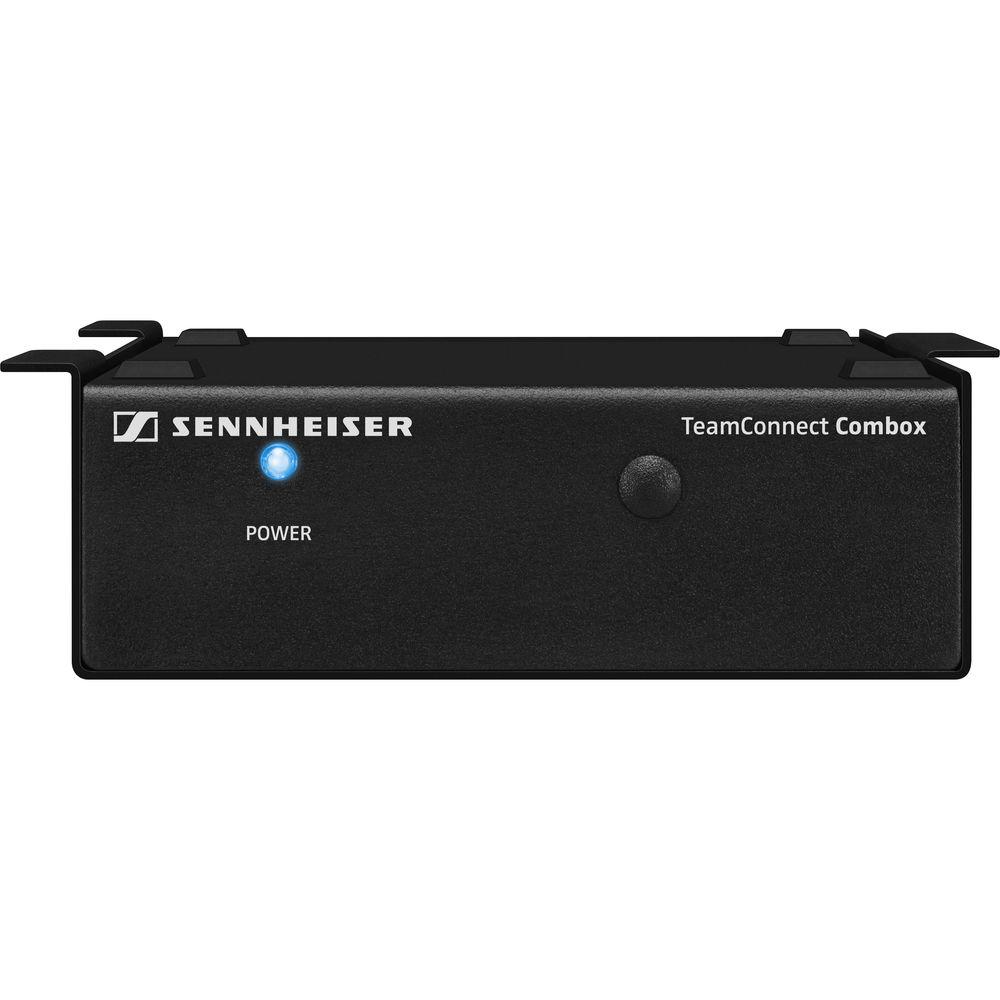

Product description The Sennheiser TeamConnect Central Unit and Combox provide a complete professional audio system for meeting rooms that require a web and telephone conference infrastructure. The TeamConnect CU1 central unit and CB1 communication box (Combox) provide several mic/line inputs and outputs, advanced mixing capabilities, and powerful echo cancellation for professional quality audio.
The TeamConnect ecosystem includes optional microphones and loudspeakers, which are matched for speech intelligibility optimization. Simply connect your iPad or notebook and start the meeting without worry. The Sennheiser TeamConnect Central Unit and Combox ships with a power cord, power adapter, rackmount hardware, terminal block connectors, RJ cables, a USB cable, and stickers. -
- Connectivity via landline and PC/VoIP for web and teleconferencing
- Single solution with high-flexibility for end-users
- Easy to use with iOS app or any network device via web server application
- Works with nearly any personal mobile device
- High-quality audio
- High efficiency of remote meetings because of high speech intelligibility and audio quality
- Complete audio solution for standard meeting rooms
- Minimum effort of administration and maintenance
In the Box Sennheiser TeamConnect SL Audio System with CU1 Central Unit & CB1 Combox Central Unit SL TeamConnect CU1 Combox SL TeamConnect CB1 Mains Cable (US) Power Adapter 4 x Rack Mount Screw 4 x Rubber Washers for Rack Mount Screws 8 x 3-pin Orange Terminal Connectors 2 x 3-pin Green Terminal Connectors 8 x 3-pin Black Terminal Connectors 6-pin Black Terminal Connector RJ-9 Cable RJ-11 Cable 2 x RJ-45 Cable RJ-45 Patch Cable USB Cable Quick Guide Sticker Room Sticker Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser TeamConnect SL Audio System with CU1 Central Unit & CB1 Combox in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser USTCCU1 Specs | | | Operating Conditions | Unless otherwise specified, all measurements are performed with a 20 Hz to 22 kHz | | Frequency Response | 20 Hz to 22 kHz | | Noise | -124 dBu, 22 kHz, max gain Rs = 150 Ohms | | THD + N | < 0.02% | | Dynamic Range | 100 dB (non-A-weighted) | | Crosstalk | < -91 dB, rel 17 dBu | | Sampling Rate | 48 kHz | | A/D and D/A Conversion | 24-bit | | Impedance | Mic / Line Inputs 1-8: 10 kOhms balanced
Line Inputs 1-2: 10 kOhms balanced
Line Outputs 1-8: 50 Ohms | | Levels | Mic / Line Inputs 1-8 Maximum Level: -65 to +17 dBu
Line Inputs 1-2 Maximum Level: 17 dBu
Line Outputs 1-8 Maximum Level: 17 dBu
Line Outputs 1-8 Nominal Level: 0 dBu | | Echo Cancellation | 128 ms tail time (works with 12 dB of room gain) | | Phantom Power | 24 VDC at 10 mA | | | | Telephone Jack | Telephone audio performance conditions: Unless otherwise specified, all measurements are performed with Transmit Limiter and Receive ALC disabled | | Frequency Response | 250 Hz to 3.3 kHz ±1 dB | | THD + N | < 0.30% re-max level 250 Hz to 3.3 kHz | | SNR | > 62 dB re-max level | | Echo Cancellation | Tail Time: 32 ms
Null: 55 dB nominal | | Noise Cancellation | 6 to 15 dB attenuation | | | | Connector | DB9 female | | Baud Rate | 9,600 / 19,200 / 38,400 / 57,600 (default) / 115,200 kb/s | | Protocol | 8-bit / 1 stop / no parity | | Hardware Control | On (default)/ off | | | | Dimensions (W x H x D) | 17.0 x 7.5 x 2.0" / 43.2 x 19.1 x 5.1 cm | | Weight | 4.5 lb / 2.0 kg | | | | Frequency Response | 40 to 3.3 kHz THD | | Noise | < 0.04% re-max level with 0 dB gain at 1 kHz | | Dynamic Range | > 84 dB (non-A-weighted) | | | | DC Output Voltage | +12 V | | AC Input Voltage | 100 to 240 VAC | | Input Frequency | 47 to 63 Hz | | Input Current | 0.8 A (RMS) maximum at 115 VAC
0.5 A (RMS) maximum at 240 VAC | | Leakage Current | 3.5 mA maximum | | Output Power | 30 W | | Temperature | Operation: 32 to 104°F / 0 to 40°C
Storage: -22 to 185°F / -30 to 85°C | | Relative Humidity | 20 to 90% | | | | Dimensions (W x H x D) | 4.7 x 5.6 x 1.7" / 12 x 14 x 4.3 cm | | Weight | 1.5 lb / 0.7 kg |
