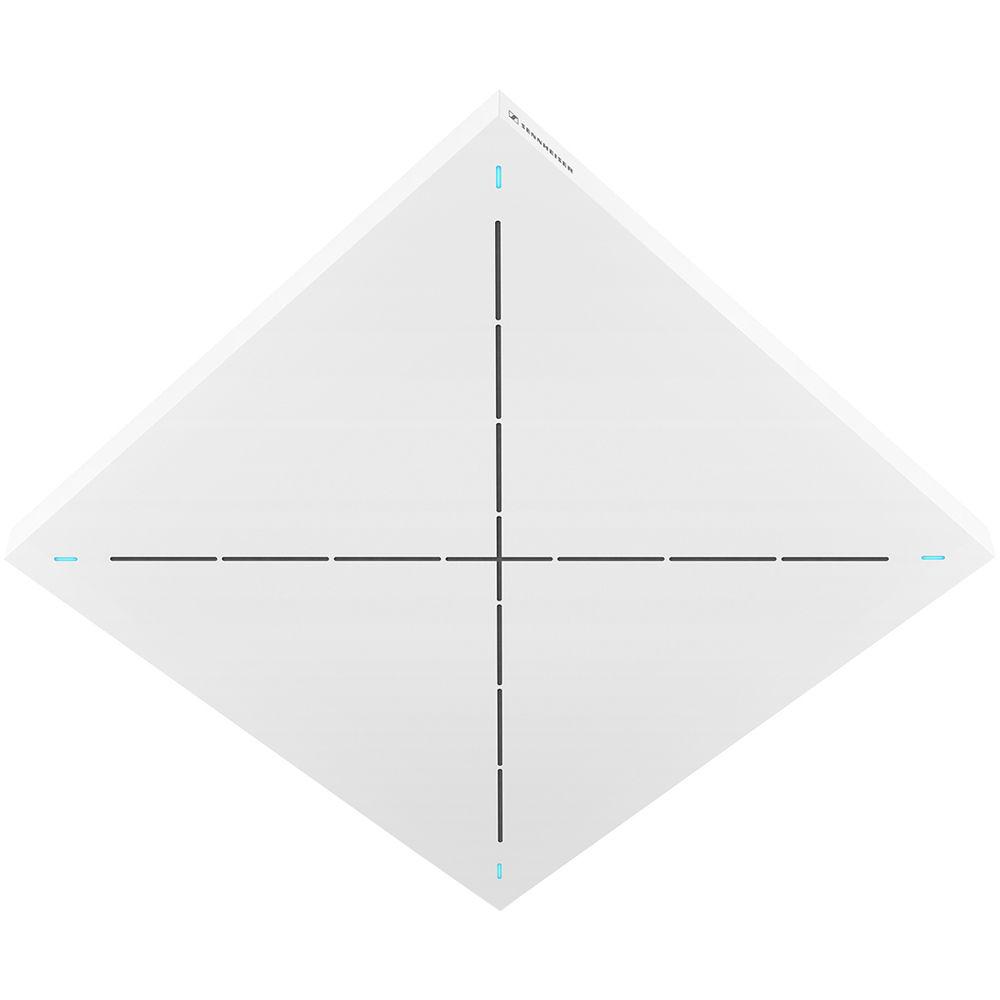

User Manual for Sennheiser TeamConnect SL Ceiling Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser TeamConnect SL Ceiling Microphone
- Product category: Audio Conferencing Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Audio Conferencing
 |
User manual for the Sennheiser TeamConnect SL Ceiling Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

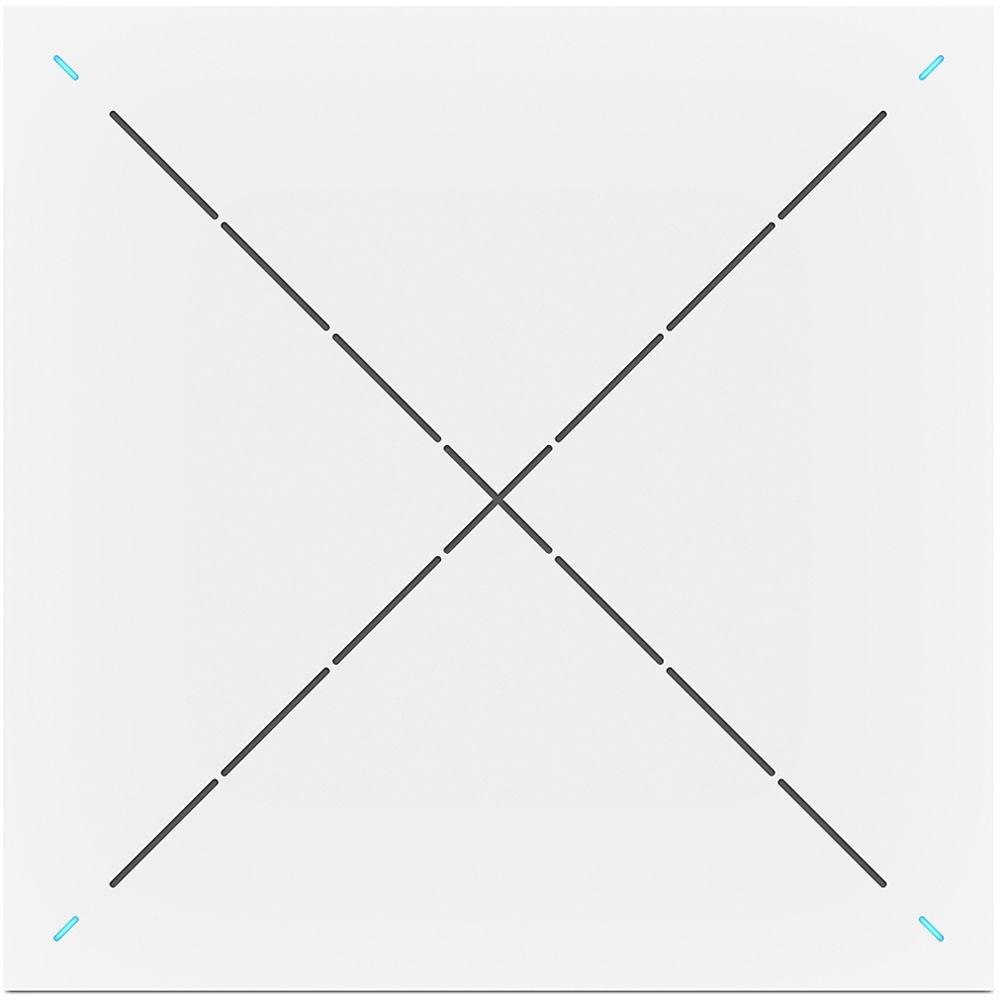

Product description The TeamConnect SL Ceiling Microphone from Sennheiser features 29 Sennheiser KE 10-237 pre-polarized condenser microphone capsules designed to blend into any conference room infrastructure. Featuring beamforming technology that automatically focuses on whoever is speaking in the room, the microphone can be installed in or on any ceiling. When paired with the conference system (sold separately), which can be hidden away in a cabinet, the loudspeakers (sold separately) can be mounted freely in the room. The ceiling microphone covers 197 square feet and can be easily expanded for larger groups with additional ceiling mics. After initial installation, the microphone requires little to no additional maintenance. As a result, conference tables remain free from cables and do not require using a fixed table for your clients. - Allows the person speaking to move around freely anywhere in the room during conferences and presentations
- Dynamic Beamforming with high directivity by 29 Sennheiser microphone capsules
- Mounting is possible with a ceiling suspension kit, with tile installation, or it can be surface mounted
- Very low configuration and maintenance effort
UPC: 615104269217 In the Box Sennheiser TeamConnect SL Ceiling Microphone Power Supply and Power Cord Cable Set (Audio-, Power- and Control-Cable; 10m) Suspension Kit Limited 2-Year Warranty More from Manufacturer useffrxbadeduturzz Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser TeamConnect SL Ceiling Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser 506797 Specs | | | Audio | Sockets: 2 x 3-pin terminals (fits Phoenix Contact MCVW 1.5-3-ST-3.81) | | Power Socket | 4-pin terminal (fits Phoenix Contact MCVW 1.5-3-ST-3.81) | | Control Sockets | 6-pin terminal (fits Phoenix Contact MCVW 1.5-3-ST-3.81) | | Supply Voltage | 20 to 28 VDC | | Power Consumption | 20 W | | Temperature | Operation: 32 to 104°F (0 to 40°C)
Storage: 14 to 140°F (-10 to 60°C) | | Relative Humidity | 20 to 95%, non-condensing | | Microphone Type | Pre-polarized condenser microphone | | Sensitivity | -1 dBV/Pa (930 mV/Pa) | | Equivalent Noise Level | 20 dBA | | Microphones | 29 KE 10-237 microphone capsules | | Pick-up Pattern | Beam pattern | | Maximum Sound Pressure Level (SPL) | 119 dB | | Dynamic Range | 99 dBA | | Dimensions (L x W x H) | 23.2 x 23.2 x 1.7" (590 x 590 x 43 mm) | | Weight | 13.2 lb (6 kg) | | | | Package Weight | 27.35 lb | | Box Dimensions (LxWxH) | 28.3 x 28.0 x 7.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
