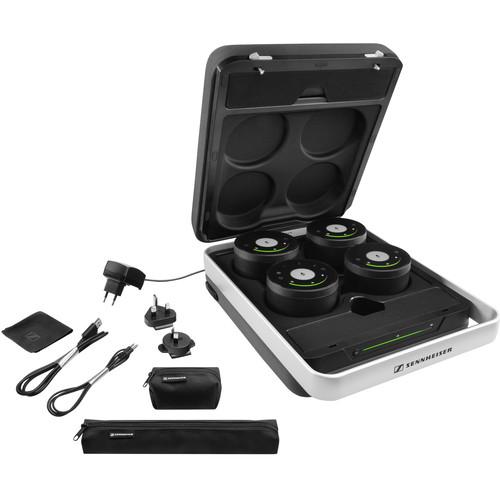

User Manual for Sennheiser TeamConnect Wireless Audio Conferencing System with Case Click to enlarge the picture
Contents of the user manual for the Sennheiser TeamConnect Wireless Audio Conferencing System
- Product category: Audio Conferencing Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Audio Conferencing
|
User manual for the Sennheiser TeamConnect Wireless Audio Conferencing System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The TeamConnect Wireless from Sennheiser is a high-quality professional audio solution for remote conferencing. It can be used with up to 24 people in unequipped rooms or table arrangements and set up easily for seamless integration with smart devices. It transmits on the 1.9 GHz frequency band with wireless connectivity via Bluetooth, or can be wired with a USB or a 3.5mm jack cable. Featuring a TC-W Master and three satellites, the TeamConnect Wireless system also comes with a durable and stylish case for storing, transporting and charging of the four satellites. Furthermore, four BA 100 rechargeable batteries, a power supply, a micro-USB cable, and a 2.5 to 3.5mm jack cable are also included. This go-anywhere, wireless audio conferencing solution offers incredible ease of use. Now, anyone can set up a professionally sounding conference in any room. - Easy setup lets you connect in less than a minute
- Wireless connectivity via Bluetooth or wired with USB or 3.5mm audio-jack cable
- Supports multiple simultaneous audio channels, allowing for additional callers to be added with ease
- The system comes with a durable and stylish case for storing, transporting and charging of the four satellites
- Superior acoustic quality allows for high-speech intelligibility
UPC: 615104265011 In the Box Sennheiser TeamConnect Wireless Audio Conferencing System with Case TC-W Master 3 x TC-W Satellite TC-W Case (Transport and Charging) 4 x BA 100 Battery for TC-W Satellite Wireless NT 12-10BW Power Supply for TeamConnect Wireless Charging Station Micro-USB Type B to USB Type A Cable 2.5 to 3.5mm Jack Cable Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser TeamConnect Wireless Audio Conferencing System with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser 506687 Specs | | | Speaker Frequency Response | 200 Hz to 9 kHz | | Microphone Frequency Response | 200 Hz to 12 kHz | | Sockets Supported | Master Satellite: 3/32" (2.5 mm)
Micro-USB | | Connection Cable | Micro-USB type B to USB type A cable
3/32 to 1/8" jack cable. (2.5 to 3.5 mm) | | Bluetooth | Version 4.2 / class 1
Profiles HSP (v1.2), HFP (v1.6), A2DP (v1.3)
Frequency Range: 2.4 GHz | | Maximum Range | 38.8' (10 m) Bluetooth (master to smart device)
65.6' (20 m) DECT (master to satellite) | | RF Frequency Range | USA: 1,920 to 1,930 MHz | | RF Output Power | Maximum 100 mW (EIRP) | | Operating Time | Up to 8 hours | | Rechargeable Battery | Lithium-Ion BA100
Input Power Case: 3.7 VDC
TC-W Master via USB: 5 V / maximum 500 mA | | Charging Time | up to 10 hours | | Operating Temperature | 41 to 113°F (5 to 45°C) | | Storage Temperature | -4 to 131°F (-20 to 55°C) | | Relative Humidity | 20 to 80%, non-condensing | | | | Input Voltage | 100 - 240 VAC | | Mains | Frequency: 50 to 60 Hz | | Output Voltage | 12 VDC | | Output Current | Maximum 1.0 A | | Energy Efficiency | DOE Level VI | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Relative Humidity | Maximum 90%, non-condensing | | | | Satellite Dimensions (D x H) | 3.82 x 2.99" (97 x 76 mm) | | Dimensions (W x H x D) | Case: 11.02 x 4.33 x 1.54" (280 x 110 x 39 mm) | | Weight | Satellite: 0.99 lb (0.45 kg) including battery pack
Case: 5.95 lb (2.7 kg)
Complete Set: 10.36 lb (4.7 kg) | | | | Package Weight | 13.65 lb | | Box Dimensions (LxWxH) | 18.3 x 13.9 x 6.1" |
