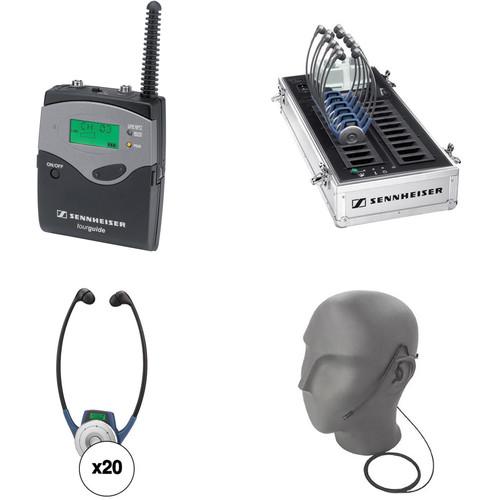

User Manual for Sennheiser TG 2020 Bodypack Tour Guide System Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser TG 2020 Bodypack Tour Guide
- Product category: Assistive Listening Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Assistive Listening Systems
|
User manual for the Sennheiser TG 2020 Bodypack Tour Guide contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The 20-pack Sennheiser TG 2020 Bodypack Tour Guide System Kit from includes a Sennheiser SK 2020-D-US tour guide transmitter bodypack, 20 HDE2020-D-II-US 6-channel RF stethoset receivers, an EZL2020-20L charger case for the stethoset receivers, and an HS2 head-worn microphone. It can be used to deliver professional guided tours in just about any environment and is portable and lightweight. Featuring six channels in the license-free frequency range of 926 to 928 MHz, the bodypack transmitter has a 1/8" screw-type mic input and a 1/8" screw-type line input with adjustable sensitivity controls. There is a backlit display that shows channel selection, battery status, and audio level meters for microphone and line inputs. The charger case is also a storage case designed for the tour guide system. It can hold up to 20 stethoset receivers, and also has bays to hold the SK2020-D transmitter and an extra battery. It can charge all system components in about 2.5 hours and has safe recharging with temperature monitoring The 20 stethoset receivers are wireless listening headsets that allow you to listen to RF transmissions at a matching frequency. It features in-ear earpieces for a secure and comfortable fit. The headset has six selectable RF channels. Finally, the Sennheiser HS2 low-profile omnidirectional head-worn microphone is suitable for performance and speech vocal capturing. The steel frame and steel-wire cable make it both unobtrusive and durable. - Sennheiser SK 2020-D-US Tourguide Transmitter Bodypack Deliver professional guided tours when you connect your headworn or clip-on microphone with the Sennheiser SK 2020-D-US Tourguide Transmitter Bodypack. This lightweight transmitter has a backlit display with separate microphone and line inputs using 3.5mm screw-type sockets.
- 6 channels in the license-free frequency range USA: 926-928 MHz
- Microphone input (3.5mm screw-type jack socket) with adjustable sensitivity
- Line input (3.5mm screw-type jack socket) with adjustable sensitivity
- Backlit display shows:
- Channel selection
Battery status
Audio level meter for microphone
Audio level meter for line input
Lock mode - Red LED: MUTE or LOW BATT warning
UPC: 615104108257 - Sennheiser EZL2020-20L Charger Case for HDE2020-D-US The EZL2020-20L from Sennheiser is a storage case and charger designed for Tour Guide systems. The metal case can hold up to 20 HDE2020-D-US stethoset receivers, and also has bays to hold an SK 2020-D transmitter and extra battery.
The case can charge all of the system components in as little as 2.5 hours, and has safe recharging with temperature monitoring. A copy button allows you to set the channel on a single receiver, push the copy button, and automatically set the channel on the other docked receivers. - Stores and charges up to 20 HDE2020-D-US receivers
- Stores and charges an SK 2020-D transmitter and a spare BA2015 battery
- Charges all components in as little as 2.5 hours with safe temperature monitoring
- Copy function lets you set the channel on a single receiver, and automatically copy the channel to other docked receivers
UPC: 615104108165 - 20 x Sennheiser HDE2020-D-II-US 6-Channel RF Stethoset Receiver The HDE2020-D-II-US 6-Channel RF Stethoset Receiver from Sennheiser is a wireless listening headset that allows you to listen to any RF transmission at a matching frequency. The headset features in-ear earpieces for a secure and comfortable fit that helps to block out external noise.
The headset has 6 selectable RF channels, which are displayed on the backlit LCD display. The headset has an auto on/off function that is triggered by wearing or removing the headset. A large rotary volume control makes it easy to adjust the volume, and the integrated rechargeable battery provides hours of operation. Note: This item requires a 926-928MHz RF transmitter, sold separately. - Reliable RF wireless transmission with 6 selectable channels
- In-ear earpieces for comfort and noise isolation
- Automatic on/off function
- Large volume control dial
- Integrated rechargeable battery
UPC: 615104219007 - Sennheiser HS2 Head-Worn Microphone (Black) The Sennheiser HS2 is a professional, low-profile head-worn microphone suitable for performance and speech vocal capturing. The steel, low-profile frame and steel-wire cable make it both, unobtrusive and durable. The HS2 capsule features a wide, flat frequency response and omnidirectional polar pattern. The microphone is available with various connectors to suit various applications; this version features a Locking 1/8" (3.5mm) for connection to EW G2 transmitters.
- Optimized Sensitivity and Frequency Curve
- The capsule is optimized for close-miking and reproducing high SPL without noise and distortion. The included frequency response caps alter high-end response.
- Moisture Resistant Diaphragm
- The Umbrella Diaphragm protects the microphone against sweat and moisture damage.
- Light, Unobtrusive Design
- Light, low profile frame and capsule are ideal for broadcast and presentations.
UPC: 615104101579 In the Box - SK 2020-D-US Tourguide Transmitter Bodypack fsdersbrcyubur
- SK 2020-D-US
- BA 2015 Battery Pack
- 2-Year Limited Warranty
- EZL2020-20L Charger Case for HDE2020-D-US
- 20 x HDE2020-D-II-US 6-Channel RF Stethoset Receiver
- HS2 Head-Worn Microphone (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser TG 2020 Bodypack Tour Guide System Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser SK 2020-D-US Tourguide Transmitter Bodypack
| Type of Transmitter | Bodyback | | RF Frequency Range | D (926 - 928MHz) | | # Of Channels | 6 | | Type of Input Connector | Mic: 3.5mm screw-type socket
Line-in: 3.5mm screw-type socket | | Frequency Response | Mic: 100 - 7,000Hz | | Battery Type/Approx. Life | 10 hours | | Display | Backlit | | Dimensions | 3.3 x 2.5 x 0.9" (82 x 64 x 24mm) | | Weight | 5.64 oz (160g) | | | | Box Dimensions (LxWxH) | 6.6 x 2.7 x 1.0" | - Sennheiser EZL2020-20L Charger Case for HDE2020-D-US
| | | Box Dimensions (LxWxH) | 26.5 x 18.0 x 14.8" | - 20 x Sennheiser HDE2020-D-II-US 6-Channel RF Stethoset Receiver
| Type | Stethoset, RF | | RF Frequency Range | 926-928MHz | | Modulation | 2 FSK | | # Of Channels | 6 | | Frequency Response | 100Hz - 7kHz | | SPL | 120dB | | THD | < 1% | | Battery Type/Life | 830mAh Lithium-polymer
8 hours | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Dimensions (HxWxD) | 9.4 x 4.9 x 0.8" (245 x 125 x 20mm) | | Weight | 2.6 oz (73g) (with Accupack battery) | | | | Box Dimensions (LxWxH) | 9.4 x 5.2 x 0.4" | - Sennheiser HS2 Head-Worn Microphone (Black)
| Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 KHz | | Dynamic Range (Typical) | Not specified by manufacturer | | Signal-to-Noise Ratio | 26 dB (A), 39 dB (CCIR 468-3) | | Maximum Input Sound Level | 142 dB | | Power Requirements | 18 kOhms / 7.5 V | | Output Impedance | 1 kOhm | | Output Connectors | Locking 1/8" (3.5mm) | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 0.18" / 4.8 mm (diameter)
Cable Length: 5.25' / 1.6 m | | Weight | 1.21 oz / 34.4g | | | | Box Dimensions (LxWxH) | 8.0 x 7.3 x 2.5" |
