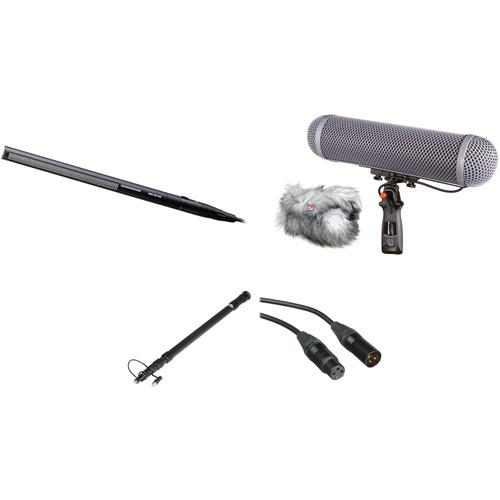

User Manual for Sennheiser Ultimate Shotgun Microphone Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser Ultimate Shotgun Microphone Kit
- Product category: Shotgun Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Shotgun Microphones
|
User manual for the Sennheiser Ultimate Shotgun Microphone Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description Available exclusively through , the Ultimate Shotgun Microphone Kits are designed to deliver the ultimate in professional audio recording for feature film, broadcast and field production. All Ultimate Shotgun kits are configured to satisfy the demands of veteran and professional engineers who require the very best in audio performance, handling and durability. The Sennheiser MKH-416 is the featured shotgun microphone in this kit. As standard in all Ultimate Kits, a carbon fiber boom pole, Canare XLR cable and complete Rycote Windshield system are included to provide the user with everything necessary for capturing audio in professional applications. - Sennheiser MKH-416 Short Shotgun Interference Tube Microphone Designed for recording audio in film, radio, and television the MKH 416 from Sennheiser is a short shotgun interference microphone optimized for outdoor applications. It offers excellent directional control in a compact design with high consonant articulation and rejection of feedback. The unit is highly immune to humidity because of its RF condenser design. It operates as a hypercardioid at low and medium frequencies with a lobar pattern above 2 kHz.
- Pressure gradient receiver with short interference tube
- Employs RF-technology to control residual microphone noise. Optimizing the transducer's acoustic impedance results in a further improvement in low noise performance
- The RF-design yields low noise levels and high immunity to humidity and moisture
- The comparatively low RF-voltage across the elements of the transducer also eliminates arcing and DC-bias creeping currents
- Hypercardioid at low and medium frequency, above 2 kHz approaches lobar pattern
- Very low inherent self-noise
- Transformerless and fully floating balanced output
- Rugged, suitable for adverse climatic conditions
- Matt black all-metal body
UPC: 615104015111 - Rycote Windshield Kit 4 - Complete Windshield and Suspension System The Rycote Windshield Kit #4 is a complete modular microphone windshield system including the Rycote modular suspension mount, windjammer, windshield and necessary extensions. It can be used with the Rode NTG4+ shotgun microphone to provides optimum protection against wind. In addition, the windshield kit is a useful solution for those who do not already own a suspension mount or windjammer.Each custom configured system will include the correct combination of suspension mount, windjammer, windshield and extensions (whenever necessary) to accommodate the size requirements for use with your specific microphone.
- Complete Kit Solution
- The Windscreen Kit includes all that is needed for complete set up and use. Each kit includes the necessary modular suspension mount, windshield, windjammer and extensions.
- Hytrel Plastic Construction
- A material called Hytrel is used on the end rings and shield. The material aids in creating the "dead" space necessary for quiet operation.
- Interlocking Ends
- Modular locking end rings provide quick and easy replacement of dented ends and modular extensions.
- Compatible Shotgun Microphones
- Rode: NTG3, NTG4+
Sennheiser: MKH 416
Schoeps: CMIT-5U, SuperCMIT 2U
Shure: VP89S
Audio Technica: AT897, BP4073(AT4073a)
Neumann: KMR-81i
Sanken: CS-3e, CS-2
Sony: ECM 670, ECM 674, ECM 678 - K-Tek K102CCR Klassic Series Five-Section Lightweight Boompole The K-Tek K-102CCR Klassic Series Lightweight Boompole features five telescoping sections, lightweight graphite construction, a captive collet locking system, and soft-touch rubberized collars with dimpled grip.The rain-resistant construction is also dent-proof, and weighs just 1.5 lb for easy handling and portability. Eight layers of graphite also resist handling noise. The K-102CCR features an internally coiled cable and side-exit XLR connector at the base.
- The K-102CCR features an internally coiled cable and side-exit XLR connector at the base.
- The Klassic series poles feature graphite construction for lightweight, dent-resistant handling, and minimal noise.
- The rubberized, dimpled grips stay firm even when wet.
- Each section features easy locking due to the low-torque captive collet locking system.
UPC: 791090331234 - Canare Star Quad (L-4E6S) Microphone Cable 25' (7.62 m) The Canare Star Quad (L-4E6S) Microphone Cable 25' (7.62 m) is the premier Star Quad cable for all handheld microphone applications. This cable uses trusted Canare technology to give you the optimum in sound quality. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing. A cross-section of the cable shows four conductors arranged as two pairs in an "X" configuration. The result is a microphone cable that resists induced noise in the most severe environments.
- Conductors
- Canare microphone cables utilize high conductivity, annealed copper wires, stranded to form flexible conductors and shields
In the Box - MKH-416 Short Shotgun Interference Tube Microphone csbwsfzufzrxyr
- MZW-415 - Foam Windscreen
- MZQ100 Quick Release for K3U, MD409 and MKH-416
- Case
- Limited 1-Year Warranty
- Rycote - Windshield Kit 4 - Complete Windshield and Suspension System
- K-Tek - K102CCR Klassic Series Five-Section Lightweight Boompole csbwsfzufzrxyr
- Canare - Star Quad (L-4E6S) Microphone Cable 25' (7.62 m)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser Ultimate Shotgun Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser MKH-416 Short Shotgun Interference Tube Microphone
| Transducer | Pressure Gradient/Interference Receiver Condenser | | Polar Pattern | Low, Mid: Hypercardioid Above 2 kHz: Lobar | | Frequency Response | 40 to 20,000 Hz | | Dynamic Range (Typical) | 117 dB | | Signal-to-Noise Ratio | 81 dB | | Maximum Input Sound Level | 130 dB (@ 1 KHz)
Sensitivity 25 mV/Pa +/- 1dB | | Power Requirements | Phantom Power 48 V (± 12 v) | | Output Impedance | Nominal Impedance: 25 Ohms
Minimum Terminating Impedance: 800 Ohms | | Output Connectors | XLR-3M Type | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Film, Radio and Television, Especially for Outside Broadcast Applications. | | Dimensions (L x Diam) | 9.84 x 0.74" / 250 x 19 mm | | Weight | 5.82 oz / 175 g | | | | Box Dimensions (LxWxH) | 13.9 x 5.4 x 2.6" | - Rycote Windshield Kit 4 - Complete Windshield and Suspension System
| | | Box Dimensions (LxWxH) | 24.5 x 8.2 x 4.3" | - K-Tek K102CCR Klassic Series Five-Section Lightweight Boompole
| Material | Graphite | | Sections | 5 | | Minimum Length | 2.7' (79.0 cm) | | Maximum Length | 8.9' (271.3 cm) | | Weight | 1.5 lb | | Load Capacity | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 33.0 x 2.5 x 2.0" | - Canare Star Quad (L-4E6S) Microphone Cable 25' (7.62 m)
| Connector 1 | 3-Pin XLR Female | | Connector 2 | 3-Pin XLR Male | | Cable Length | 25' / 7.6 m | | Shielding | 95% Tinned-Annealed Copper (TAC) Braid | | Number of Conductors | 4 | | Wire Gauge | 21 AWG | | Jacket Type | Polyvinyl Chloride (PVC) | | Insulation Type | Polyethylene | | | | Box Dimensions (LxWxH) | 6.693 x 5.354 x 0.472" |
