Sennheiser XSW 1-825 Dual-Vocal Set with

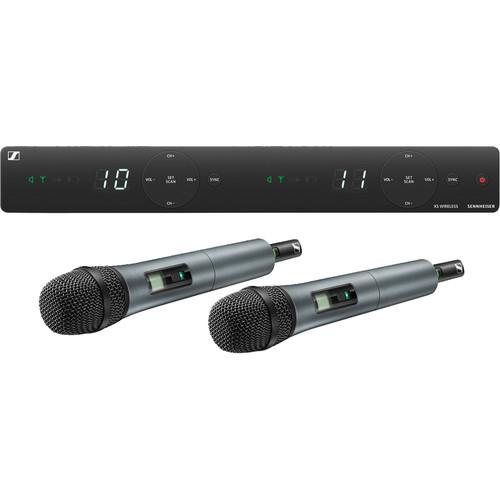

User Manual for Sennheiser XSW 1-825 Dual-Vocal Set with Two 825 Handheld Microphones

• Product category: Wireless Systems Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Wireless Systems

Product description

• EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas (A: 548 to 572 MHz) The EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas from Sennheiser is a 2-channel analog UHF wireless receiver. It can be used for singers and presenters when paired with an XS wireless 1 series handheld transmitter and microphone capsule (sold separately). The dual-channel receiver is designed with ease of use in mind and is well suited for DJ, church, and school applications. Each receiver channel is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter is also included.
  • Antenna-switching 2-channel diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels
  UPC: 615104315617
• SKM 825-XSW-A Handheld Transmitter with e825 Capsule (A: 548 to 572 MHz) The SKM 825-XSW-A Handheld Transmitter from Sennheiser is a wireless microphone equipped with an e825 Dynamic Cardioid Capsule. It is designed to be paired with the EM-XSW 1 or EM-XSW 2 wireless receivers (sold separately) and can be used to capture audio for singers, presenters, and live sound applications. Featuring automatic frequency management, the transmitter offers up to 10 compatible channels in a stable UHF band. This transmitter is built to withstand even the toughest stress in everyday on-stage use and offers reliable transmission with an easy-to-use set up. No matter whether you're a band, a theater, or at a seminar, the SKM 825-XSW-A Handheld Transmitter lets you do your thing and not worry about channel selection.
  Great Performance and Price
  • The SKM XSW transmitter lets you concentrate on your talent—and not the equipment. Just switch it on and its automatic frequency management does the rest. You can operate up to 10 coordinated frequency preset wireless connections.
  Live Sound
  • The transmitter yields an open, natural sound. No lengthy set up—just go!
  Reliable Transmission
  • On stage, you must put up with a lot of things—so does your equipment. XS Wireless 1 is built to last: Transmitters are designed to withstand even the toughest stress in everyday on-stage use.
  UPC: 615104282063
• MZQ1 Microphone Clamp The Sennheiser MZQ1 is a microphone holder specifically sized to accommodate the SKM100, 300 and 500 handheld wireless microphone transmitters. The MZQ1 will mount to any standard microphone stand.

• NT 12-5 CW Power Supply

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

• 4 x AA Batteries

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas (A: 548 to 572 MHz)

  Modulation	Wideband FM
  Switching Bandwidth	Up to 24 MHz
  Frequencies	80 factory presets (8 banks of 10 channels each)
  Signal to Noise Rate	≥ 103 dBA
  THD	≤ 0.9%
  Temperature Range	Operation: 32 to 104°F / 0 to 40°C Storage: -4 to 158°F / -20 to 70°C
  Transmitter Synchronization	2.4 GHz, low power OQPSK (only active during synchronization

  Receiver Type	Double superheterodyne
  Frequency Band	(A: 548 to 572 MHz)
  Diversity Method	Antenna switching diversity via internal antennas
  Sensitivity	< 3 μV at 52 dB(A) rms S/N (at peak deviation)
  AF Frequency Response	50 Hz to 16 kHz (-3 dB)
  Maximum AF Output Voltage	1/4" / 6.3 mm Socket (Unbalanced): +6 dBu XLR Socket (Balanced): +12 dBu
  Audio Adjustment Range	45 dB, adjustable in 5 dB steps
  Power Supply	12 VDC nominal / 300 mA
  Squelch	Adjustable from 3 dB μV to 28 dB μV (combined with pilot tone)
  Line/Mic Level	20 dB, switchable
  Housing Material	Rugged ABS housing
  Dimensions (W x H x D)	12.6 x 5.0 x 1.7" / 32.0 x 12.7 x 4.2 cm
  Weight	21.9 oz / 620.0 g

  Box Dimensions (LxWxH)	14.7 x 10.8 x 3.5"

• SKM 825-XSW-A Handheld Transmitter with e825 Capsule (A: 548 to 572 MHz)

  Modulation	Wideband FM
  Frequency Range	A: 548 to 572 MHz
  Switching Bandwidth	Up to 24 MHz
  Signal to Noise Ratio	≥ 103 dBA
  Total Harmonic Distortion	≤ 0.9%
  Temperature Range	Operation: 32 to 104°F (0 to +40°C)
  Storage	-4 to 158°F (-20 to 70°C)
  Transmitter Synchronization	2.4 GHz, Low Power OQPSK (only active during synchronization)

  Output Power	10 mW
  Frequency Response	80 Hz to 14 kHz
  Power Supply	2 x AA batteries, 1.5 V
  Operating Time	Approximately 10 hrs.
  Microphone Type	Dynamic
  Polar Pattern	Dynamic cardioid
  Input Sensitivity	Capsule: 1.5 mV/Pa
  Adjustment Range	Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
  Material of Construction	Rugged ABS housing
  Dimensions (L x Diam)	10 x 2.0" (260 x 50 mm)
  Weight	8.6 oz (245 g)

  Box Dimensions (LxWxH)	11.0 x 9.8 x 3.2"

• MZQ1 Microphone Clamp

  Box Dimensions (LxWxH)	3.0 x 2.0 x 1.0"
