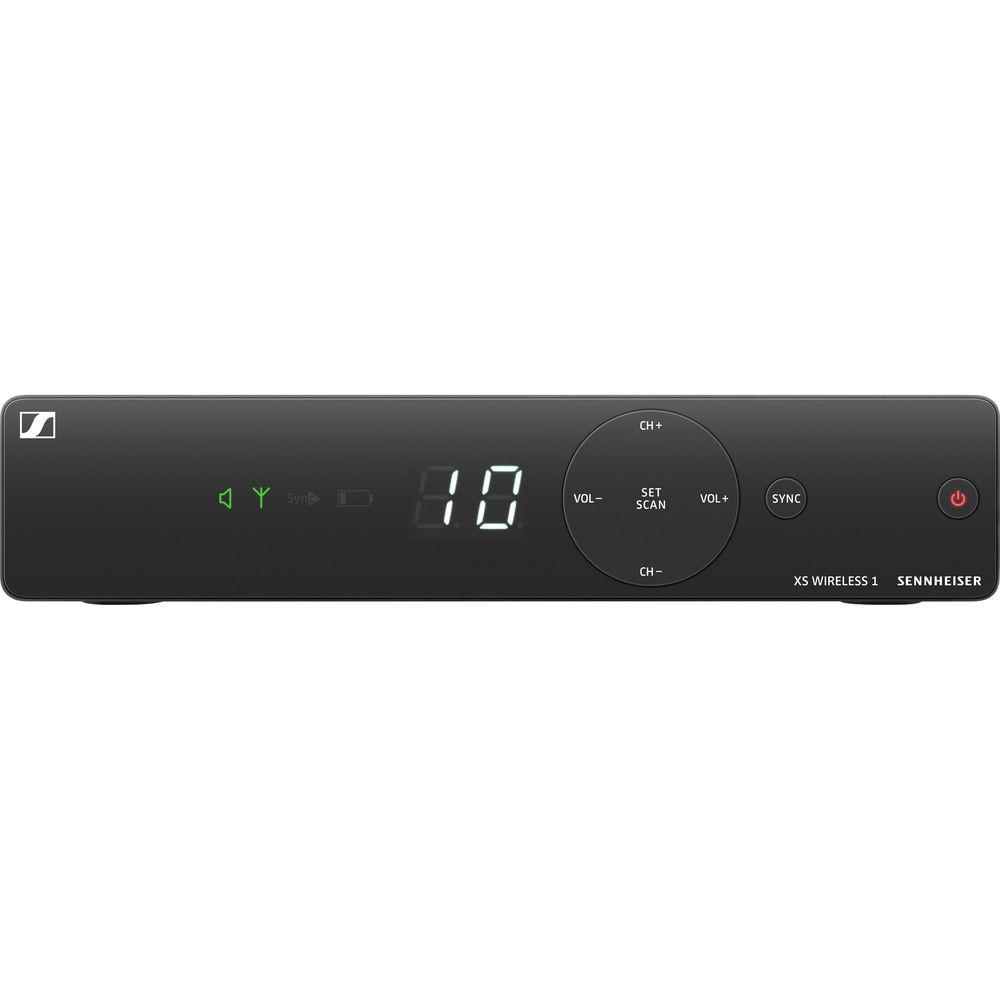

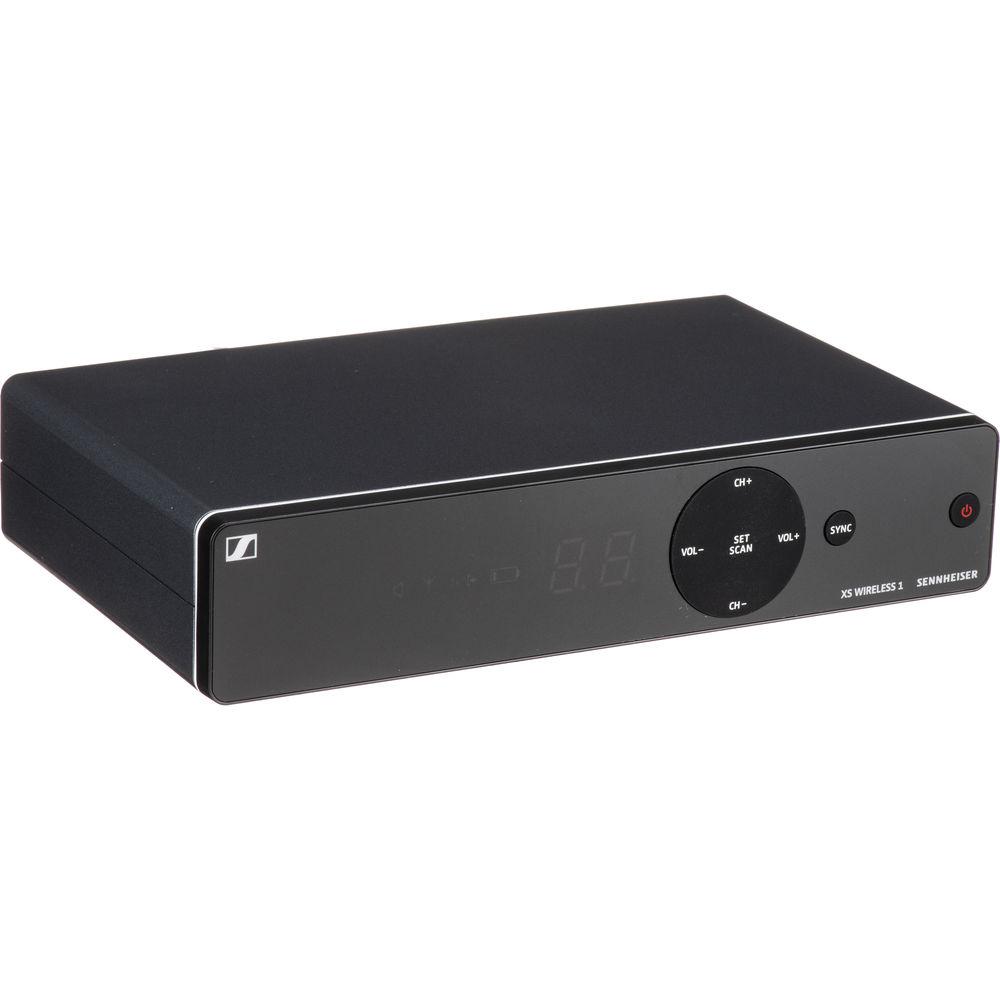

User Manual for Sennheiser XSW 1-835-A UHF Vocal Set with e835 Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser XSW 1-835-A UHF Vocal Set
- Product category: Wireless Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Systems
 |
User manual for the Sennheiser XSW 1-835-A UHF Vocal Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

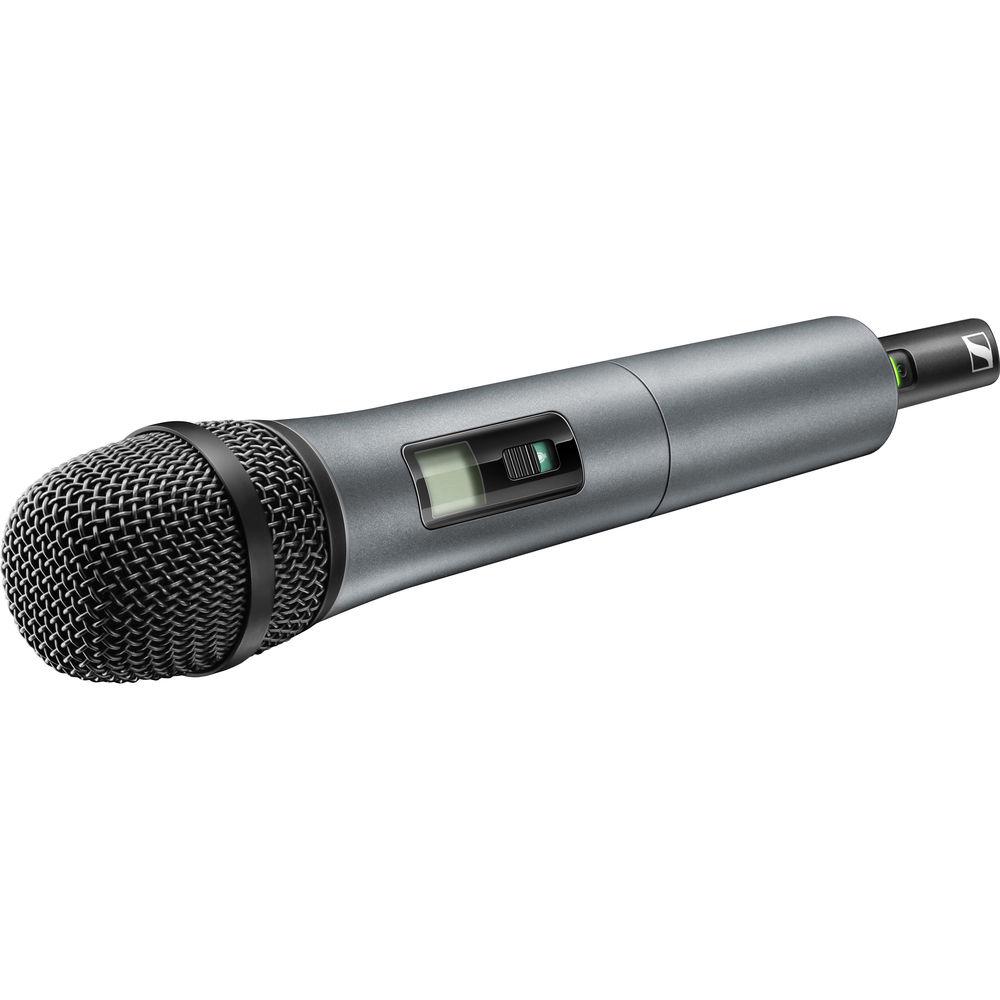

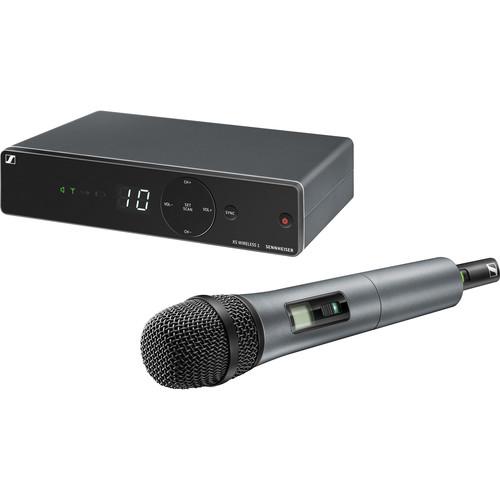

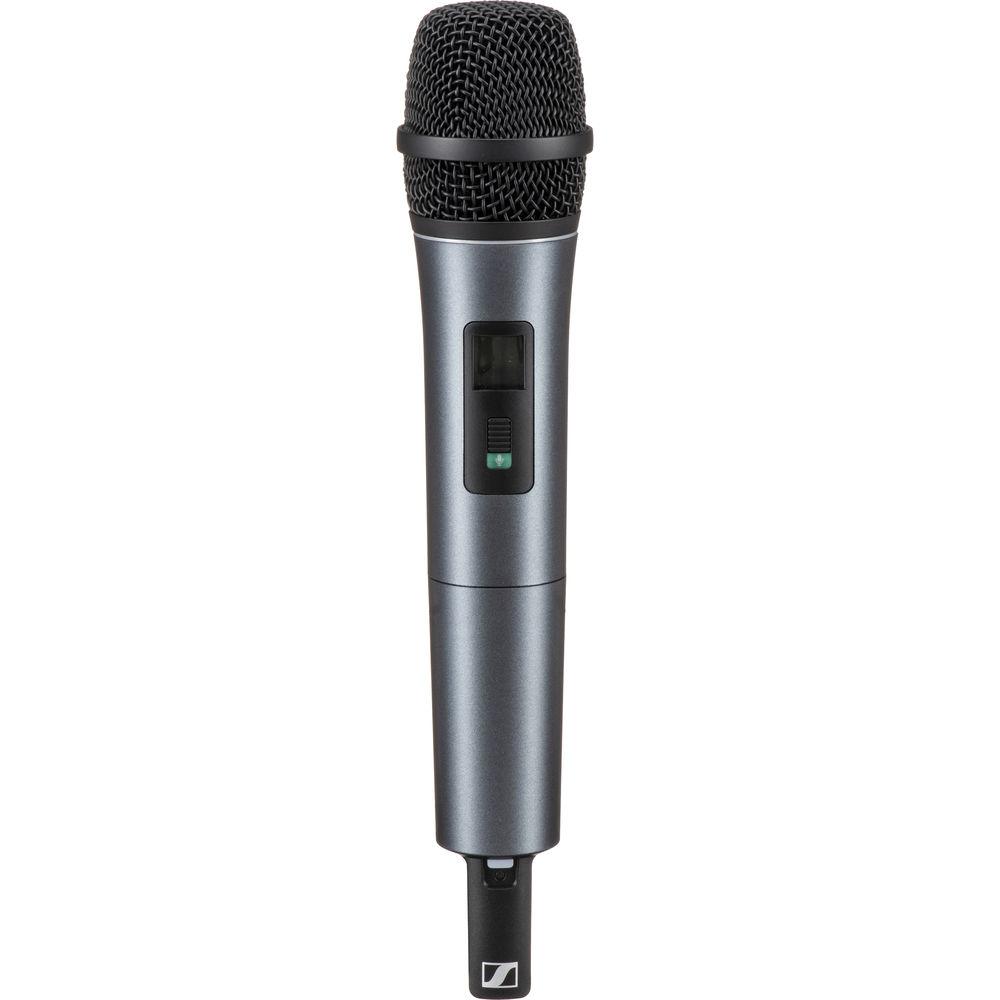

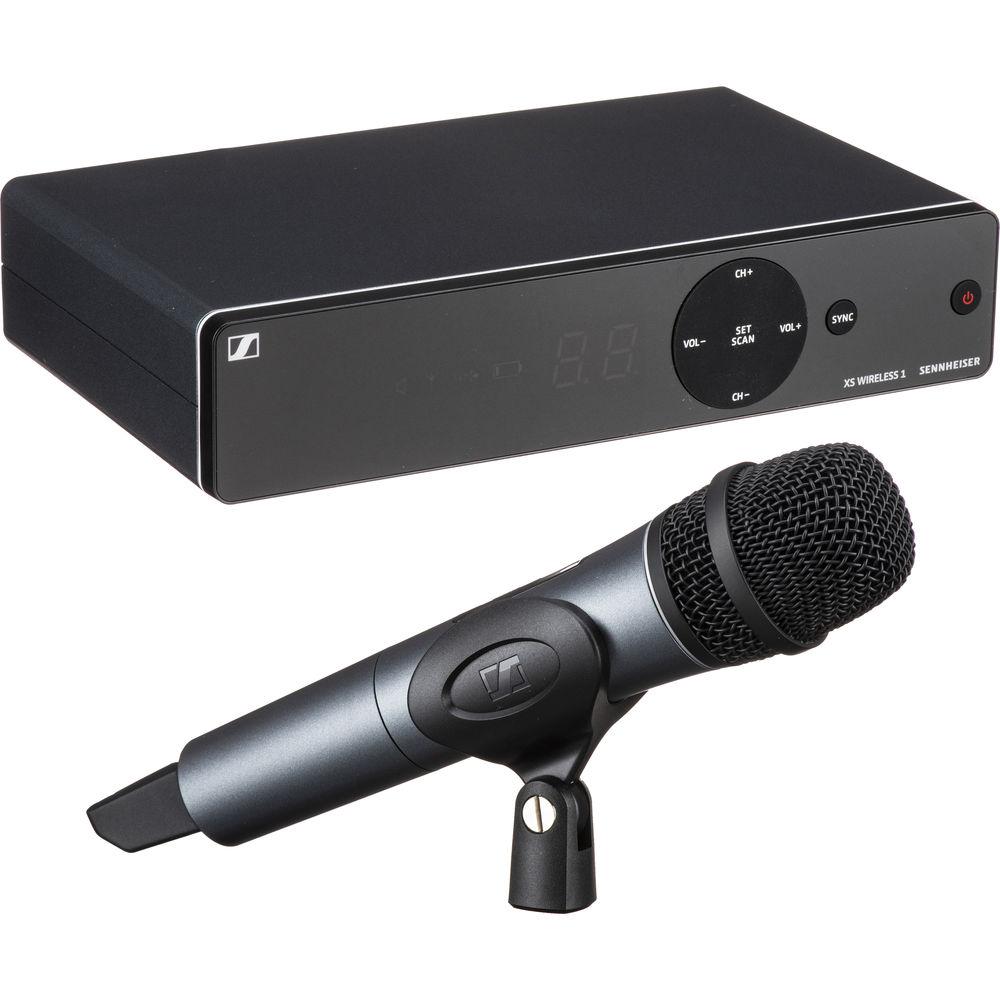

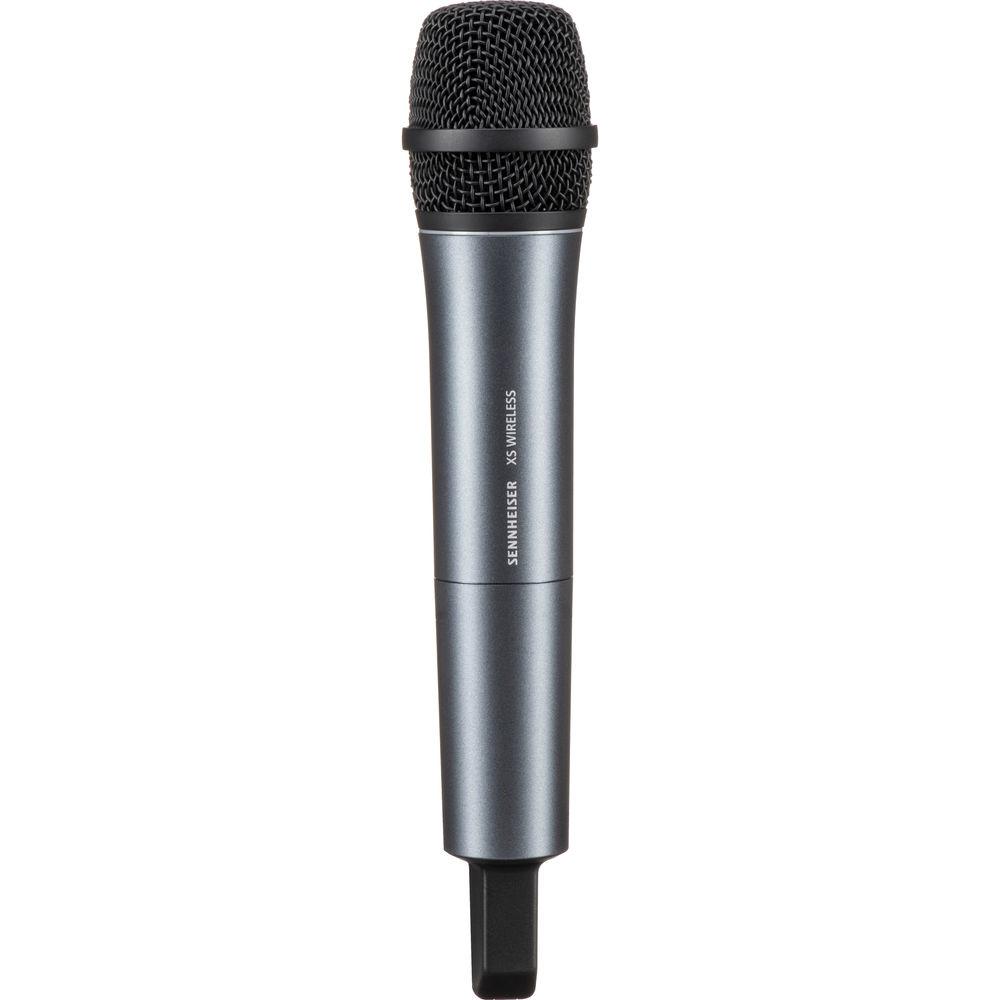

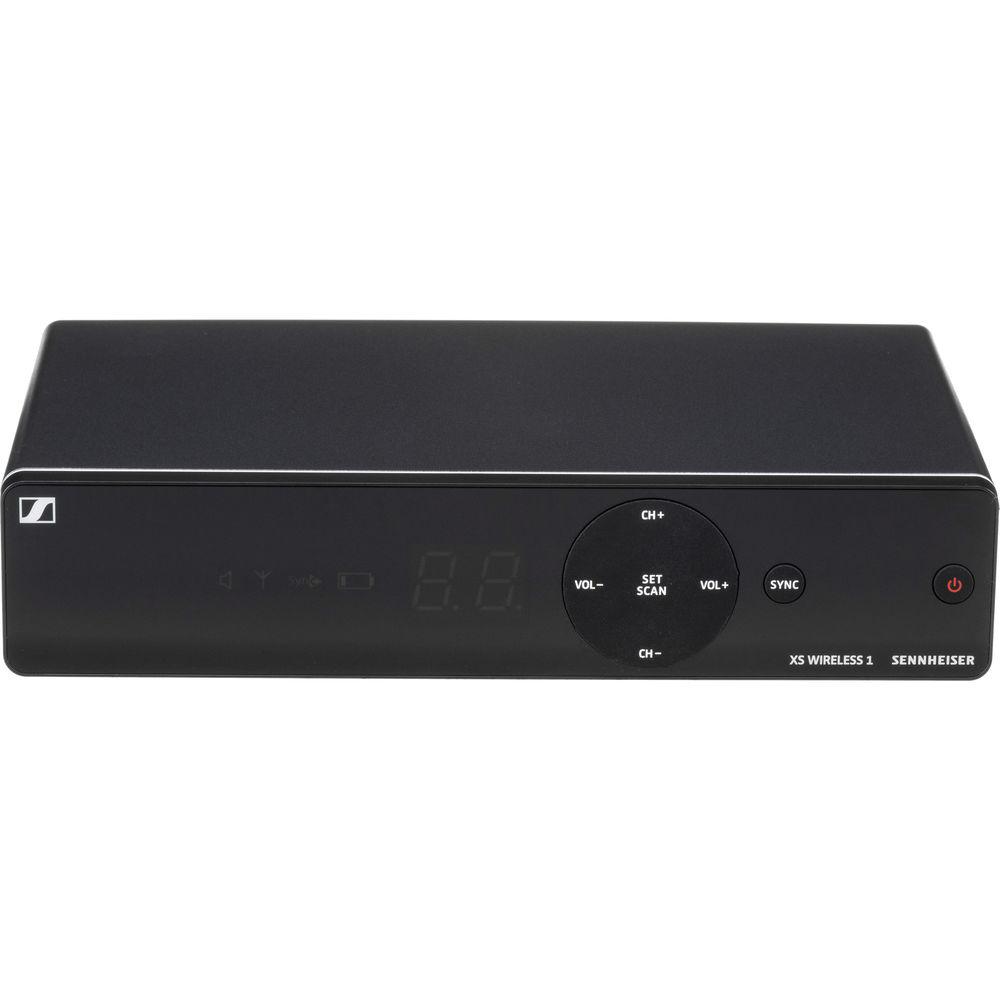

Product description The XSW 1-835-A UHF Vocal Set with e835 Dynamic Microphone from Sennheiser is an easy to use all-in-one wireless system for singers and presenters. It can be used to capture audio for live sound, stage, and theater applications. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a vocal microphone and microphone clamp. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included. - Featuring Sennheiser's renowned evolution microphone capsule e835
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
UPC: 615104278790 In the Box Sennheiser XSW 1-835-A UHF Vocal Set with e835 Dynamic Microphone (A: 548 to 572 MHz) MZQ1 Microphone Clamp NT12-5 CW Power Supply 2 x AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser XSW 1-835-A UHF Vocal Set with e835 Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

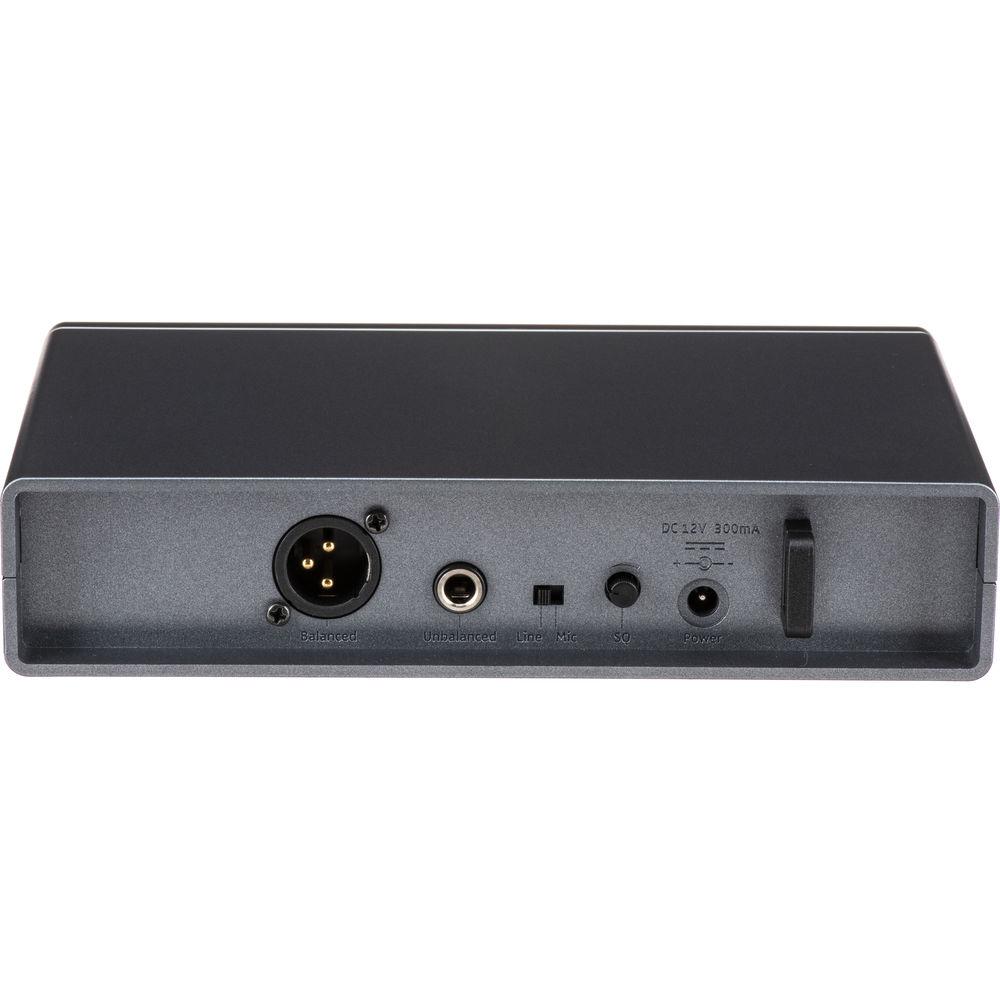

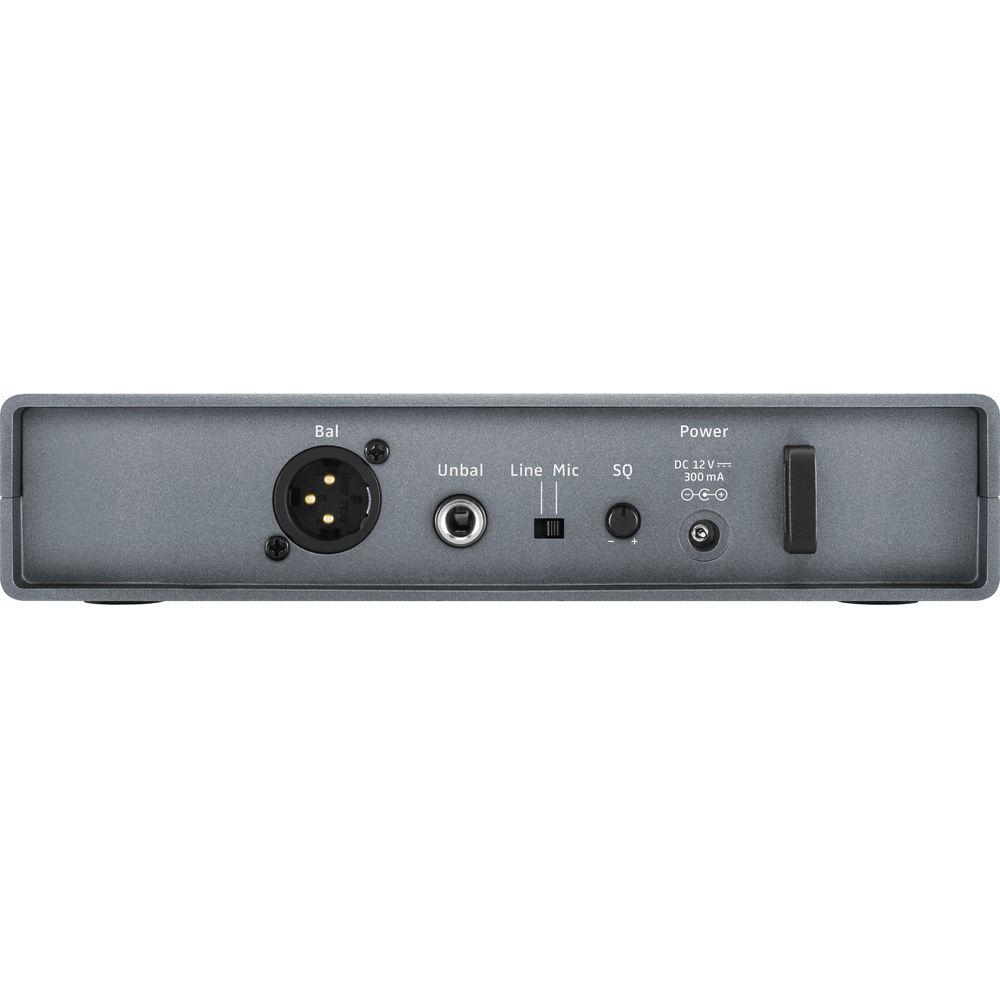

Technical parametersSennheiser XSW 1-835-A Specs | | | Modulation | Wideband FM | | Frequency Range | A: 548 to 572 MHz | | Switching Bandwidth | Up to 24 MHz | | Signal to Noise Ratio | ≥ 103 dBA | | Total Harmonic Distortion | ≤ 0.9% | | Temperature Range | Operation: 32 to 104°F (0 to +40°C) | | Storage | -4 to 158°F (-20 to 70°C) | | Transmitter Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) | | | | Principle | Double superheterodyne | | Diversity | Antenna switching diversity via internal antennas | | Sensitivity | < 3 μV at 52 dBA RMS S/N (at peak deviation) | | Frequency Response | 50 Hz to 16 kHz (-3 dB) | | Max Output Voltage | At Peak Deviation, 1 kHz AF
1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu
XLR Socket (balanced): +12 dBu | | Adjustment Range | Audio: 45 dB, adjustable in 5-dB steps | | Power Supply | Nominal Input Voltage: 100 to 240 VAC
Nominal Output Voltage: 12 VDC/300 mA | | Squelch | Adjustable from 3 dB μV to 28 dB μV (combined with pilot tone) | | Line/Mic Level | 20 dB, switchable | | Material of Construction | ABS housing | | Dimensions (W x H x D) | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) | | Weight | 12 oz (340 g) | | | | Output Power | 10 mW | | Frequency Response | 80 Hz to 16 kHz | | Power Supply | 2 x AA batteries, 1.5 V | | Operating Time | Approximately 10 hrs. | | Microphone Type | Dynamic | | Polar Pattern | Cardioid | | Input Sensitivity | Capsule: 1.5 mV/Pa | | Adjustment Range | Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps | | Material of Construction | Rugged ABS housing | | Dimensions (L x Diam) | 10 x 2.0" (260 x 50 mm) | | Weight | 8.6 oz (245 g) | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 13.7 x 13.4 x 3.4" |
