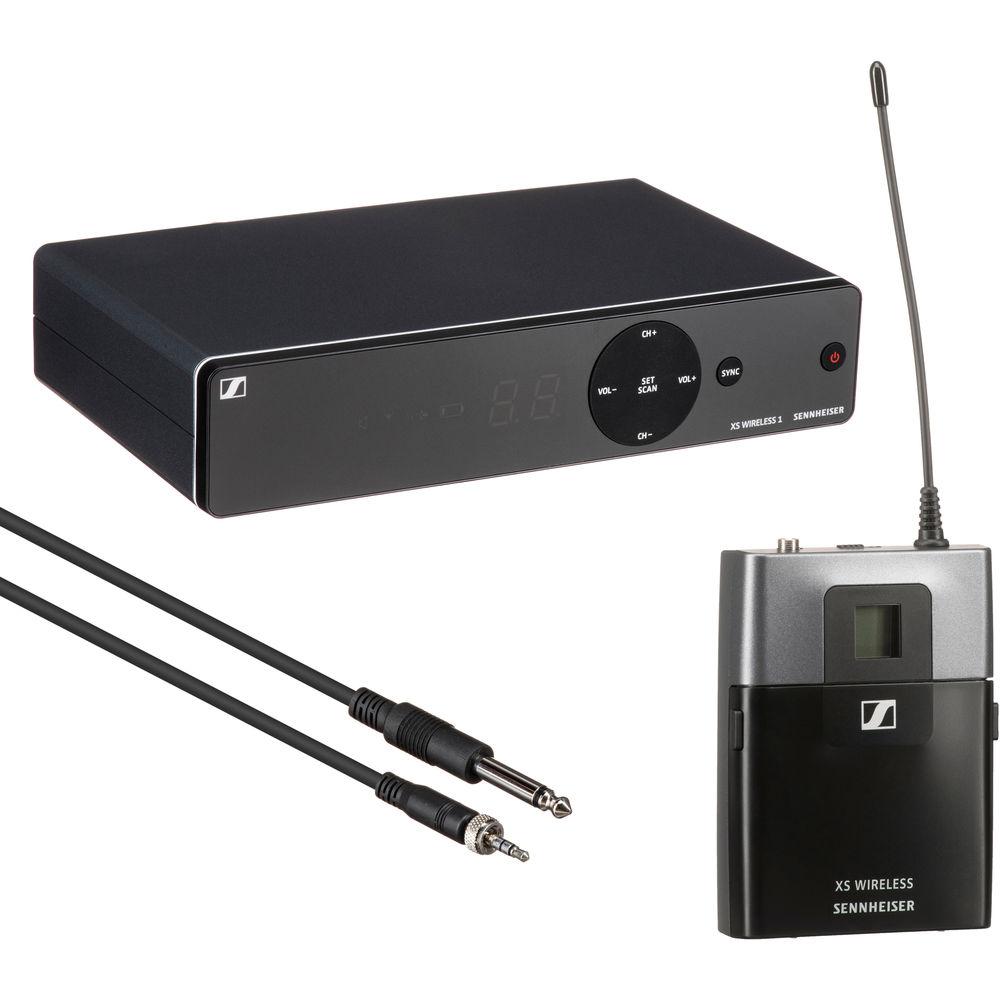

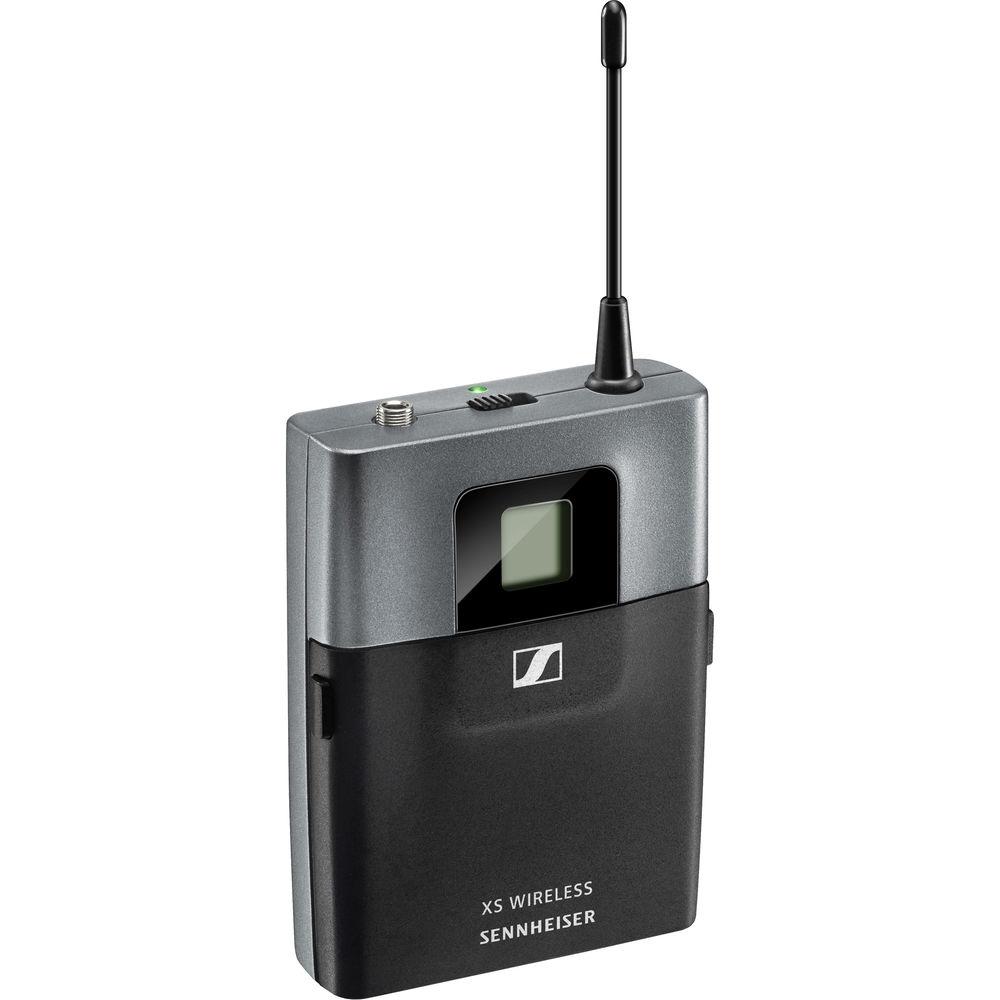

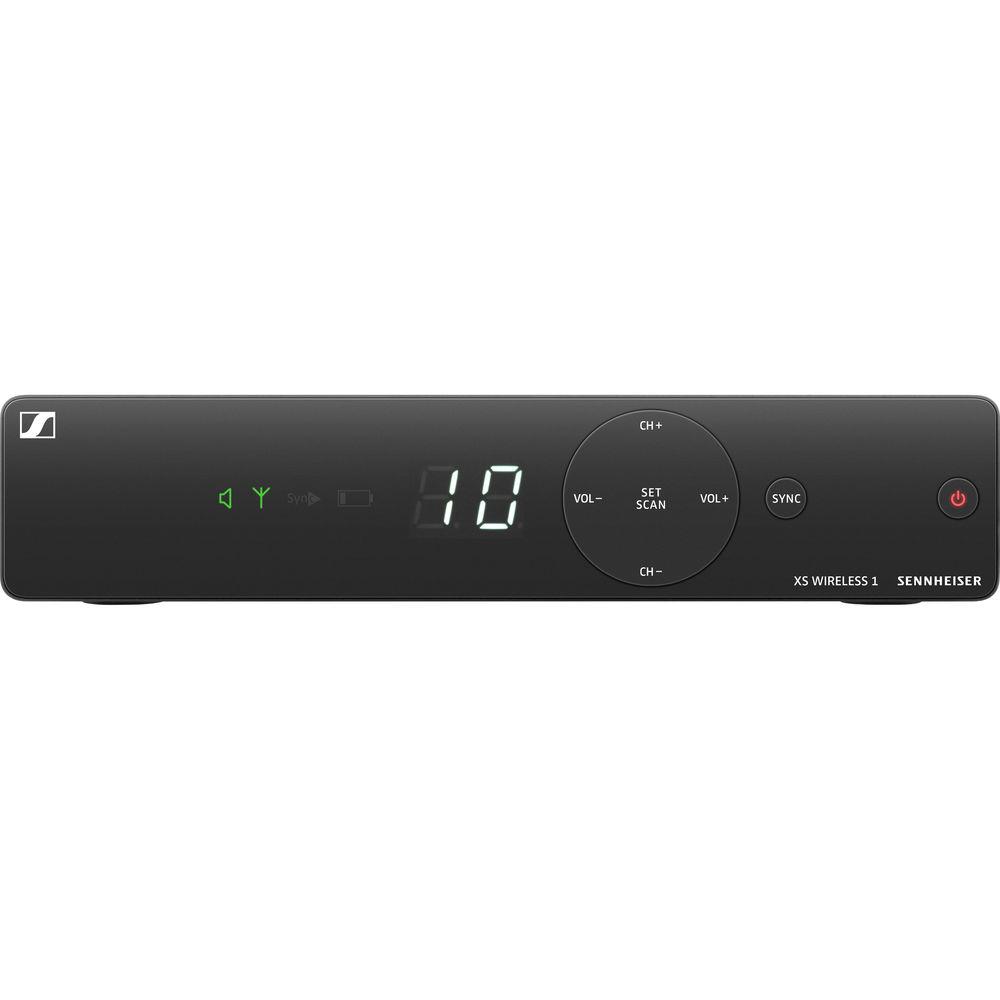

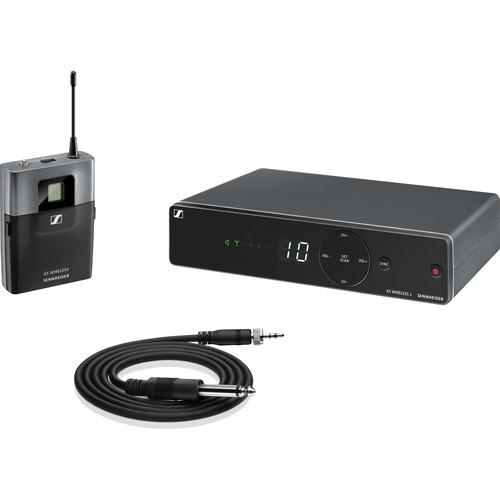

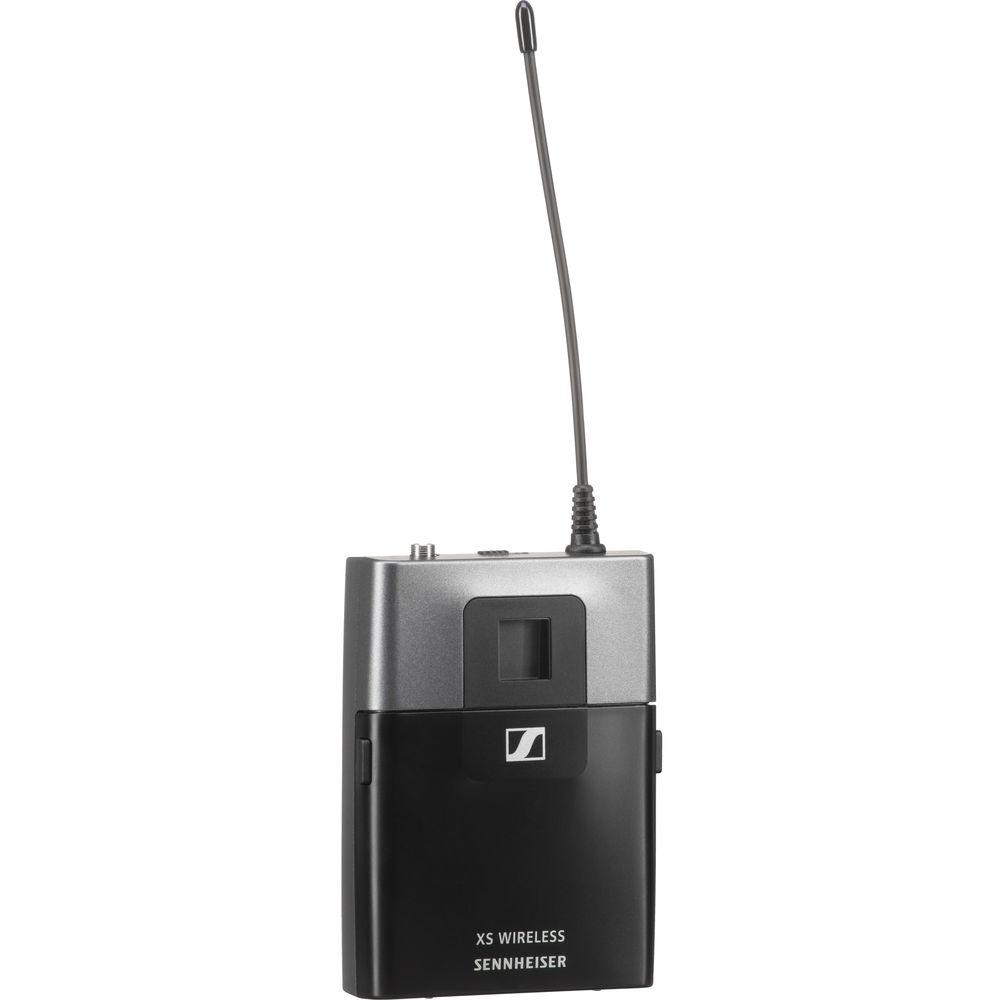

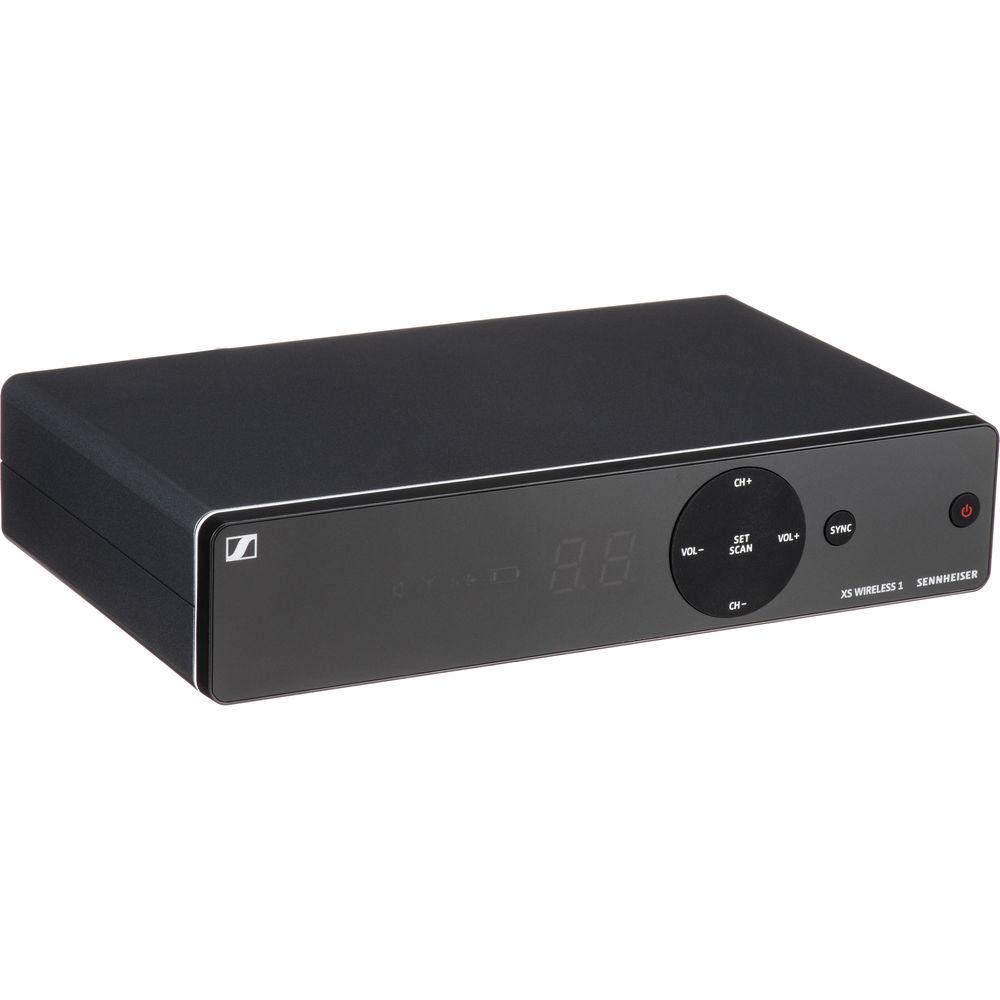

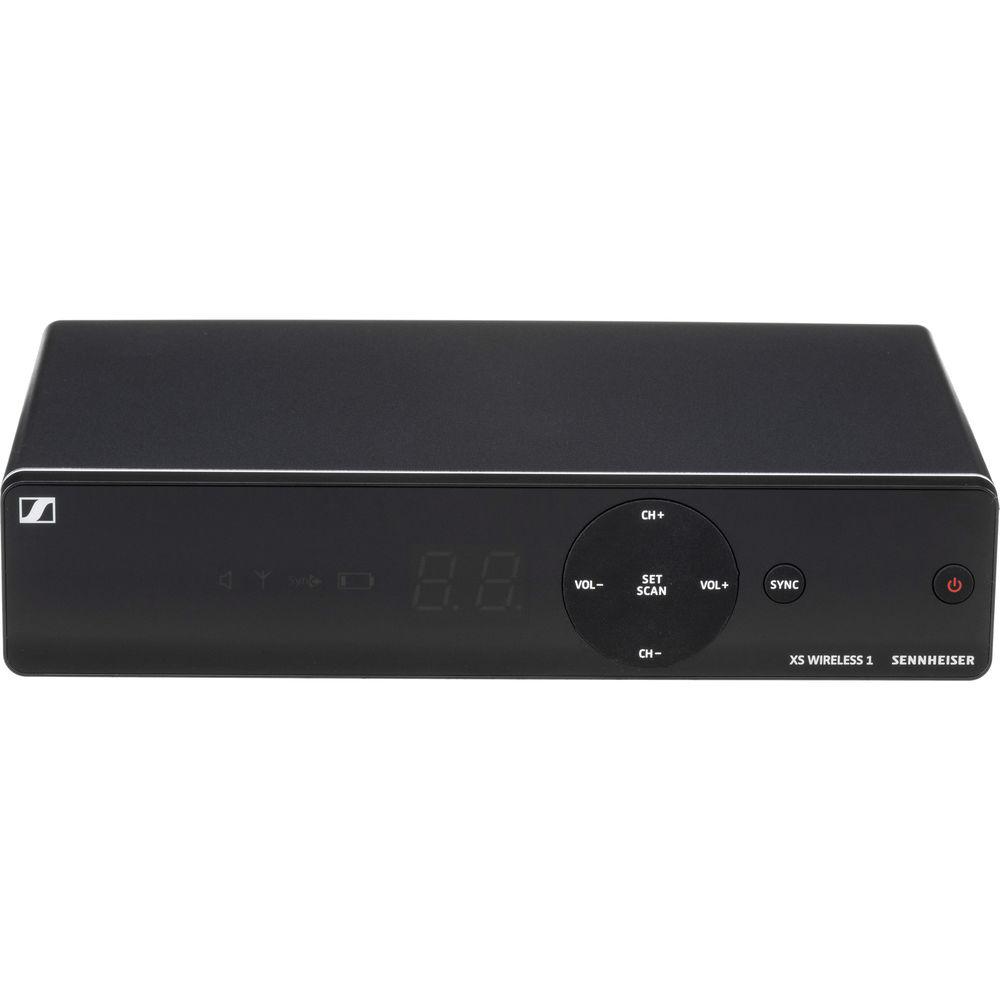

Product description The XSW 1 CI1-A UHF Instrument Set from Sennheiser is an easy to use all-in-one wireless system for guitarists and bassists. It can be used for live sound applications to free the performer from instrument cables, which connect to a power amp or mixer. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and a 1/4" instrument cable. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included. - Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels

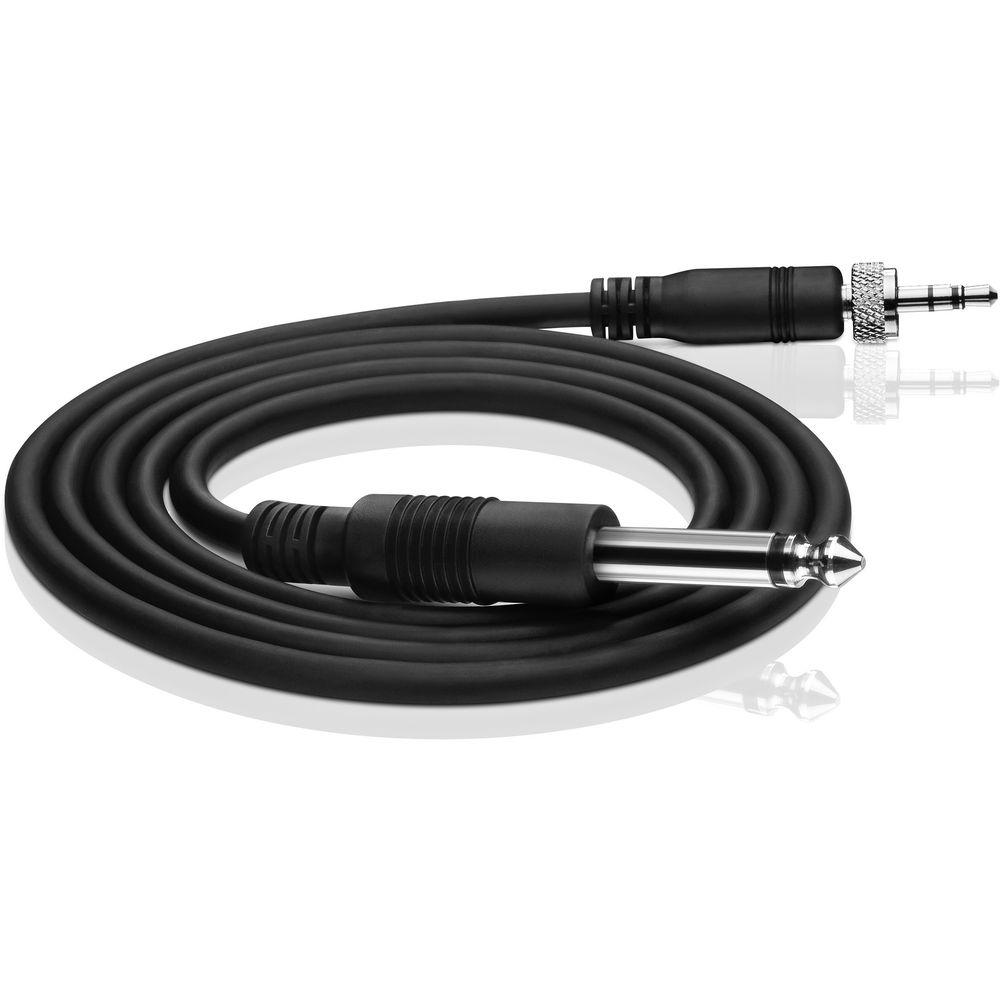

UPC: 615104278448 In the Box Sennheiser XSW 1 CI1-A UHF Instrument Set (A: 548 to 572 MHz) CL1 Instrument Cable NT12-5 CW Power Supply 2 x AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser XSW 1 CI1-A UHF Instrument Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

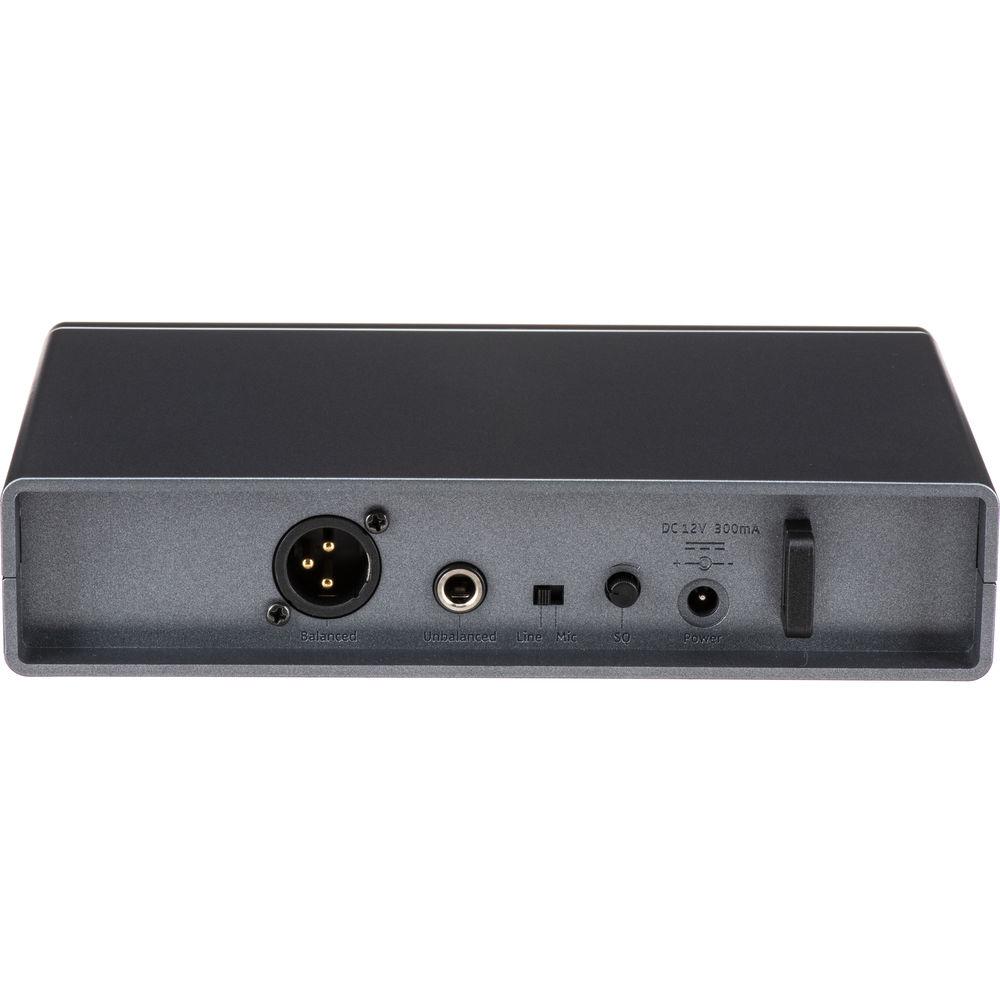

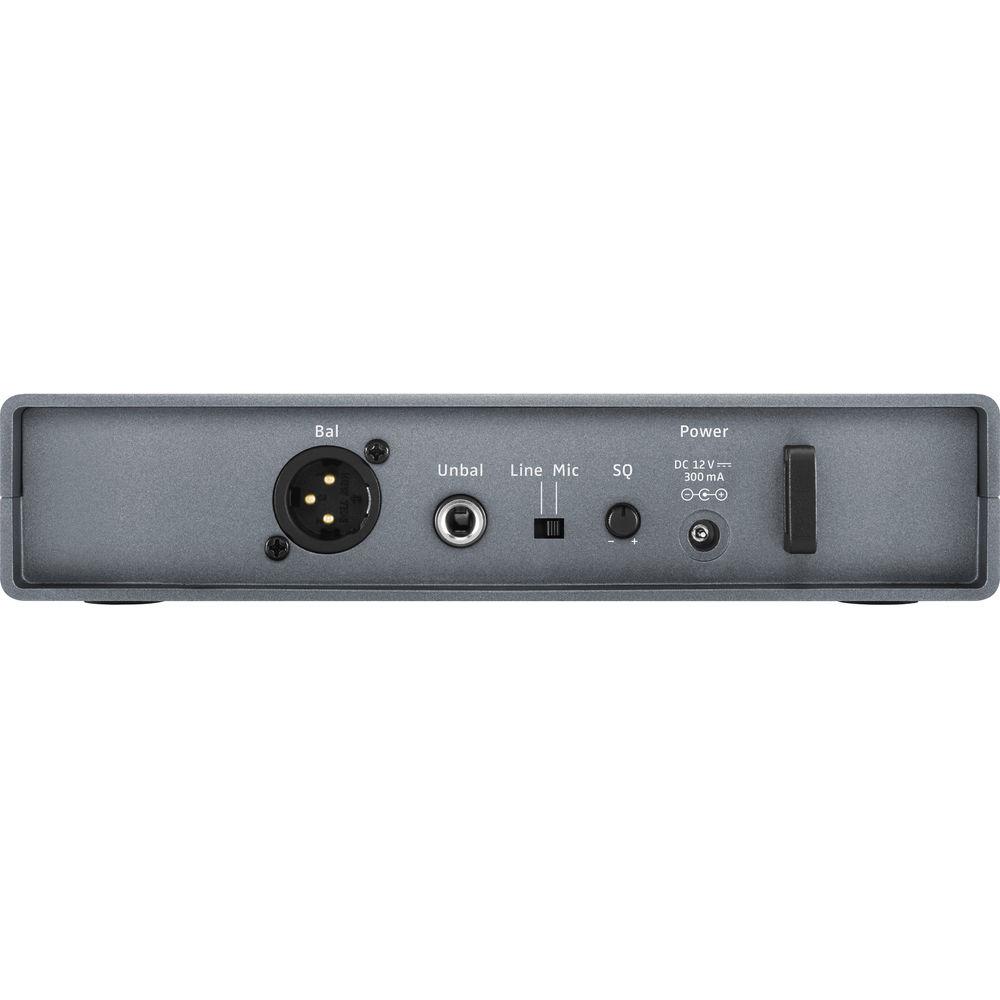

Technical parametersSennheiser XSW 1-CI1-A Specs | | | Modulation | Wideband FM | | Frequency Range | A: 548 to 572 MHz | | Switching Bandwidth | Up to 24 MHz | | Signal to Noise Ratio | ≥ 103 dBA | | Total Harmonic Distortion | ≤ 0.9% | | Temperature Range | Operation: 32 to 104°F (0 to +40°C) | | Storage | -4 to 158°F (-20 to 70°C) | | Transmitter Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) | | | | Principle | Double superheterodyne | | Diversity | Antenna switching diversity via internal antennas | | Sensitivity | < 3 μV at 52 dBA rms S/N (at peak deviation) | | Frequency Response | 50 Hz to 16 kHz (-3 dB) | | Max Output Voltage | At Peak Deviation, 1 kHz AF
1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu
XLR Socket (balanced): +12 dBu | | Adjustment Range | Audio: 45 dB, adjustable in 5-dB steps | | Power Supply | 12 VDC nominal, 300 mA | | Squelch | Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) | | Line/Mic Level | 20 dB, switchable | | Material of Construction | ABS housing | | Dimensions (W x H x D) | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) | | Weight | 12 oz (340 g) | | | | Output Power | 10 mW | | Frequency Response | Line: 50 Hz to 16 kHz
Mic: 50 Hz to 16 kHz | | Audio Input | 1/8" (3.5 mm) jack socket | | Input Voltage | Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain | | Power Supply | 2 x AA batteries, 1.5 V | | Operating Time | Approximately 10 hours | | Adjustment Range | Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps | | Material of Construction | Rugged ABS housing | | Dimensions (W x H x D) | 2.8 x 3.8 x 1.1" (71 x 96 x 28 mm) | | Weight | 3.4 oz (95 g) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 13.7 x 13.4 x 3.4" |
Rating50% users recommend this product to others. And what about you?
