User Manual for Sennheiser XSW 2-865-A Wireless Handheld Microphone System with e865 Capsule Click to enlarge the picture
Contents of the user manual for the Sennheiser XSW 2-865-A Wireless Handheld Microphone
- Product category: Wireless Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Systems
 |
User manual for the Sennheiser XSW 2-865-A Wireless Handheld Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

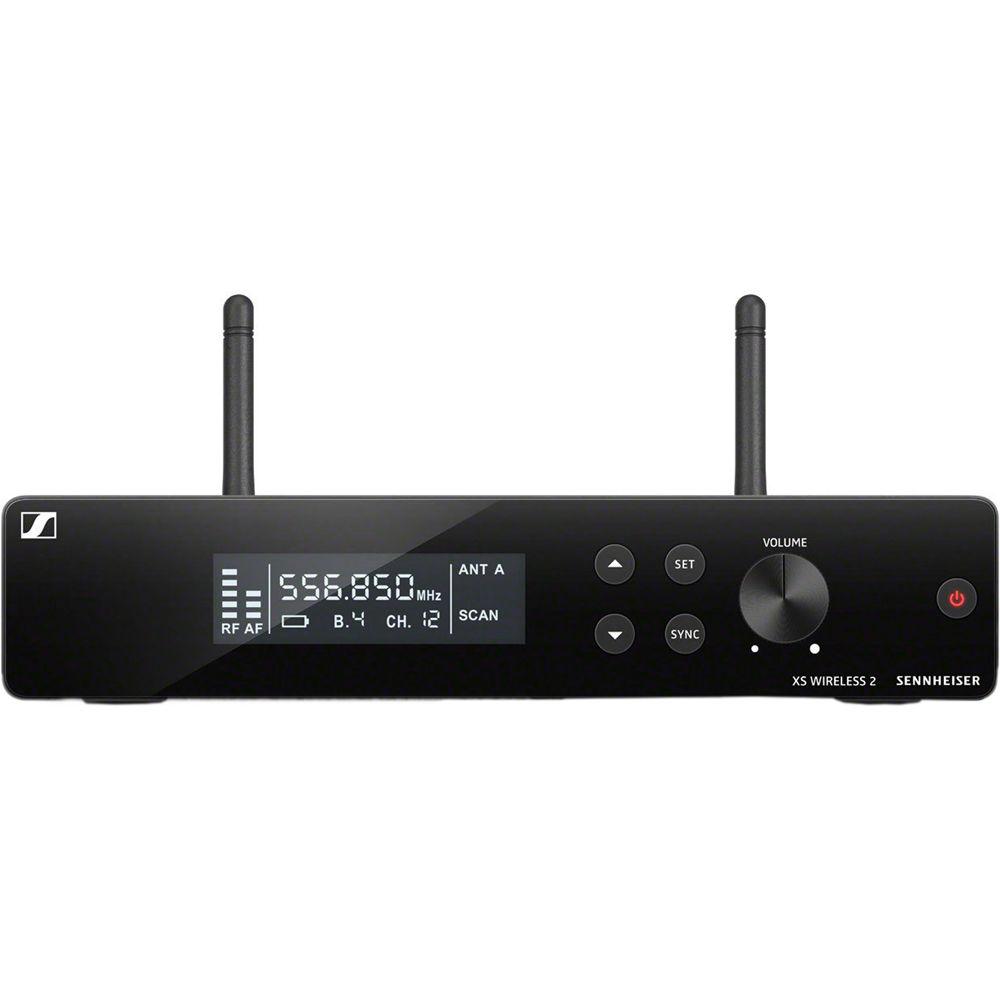

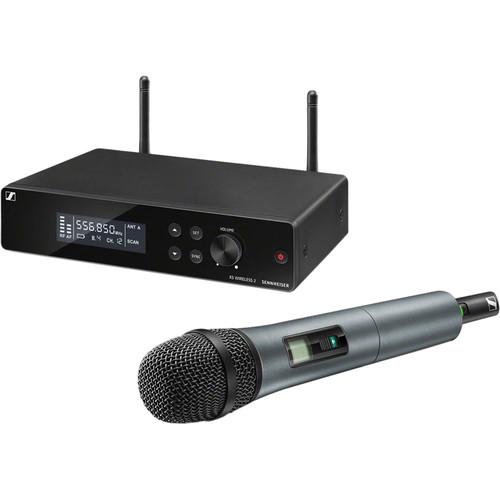

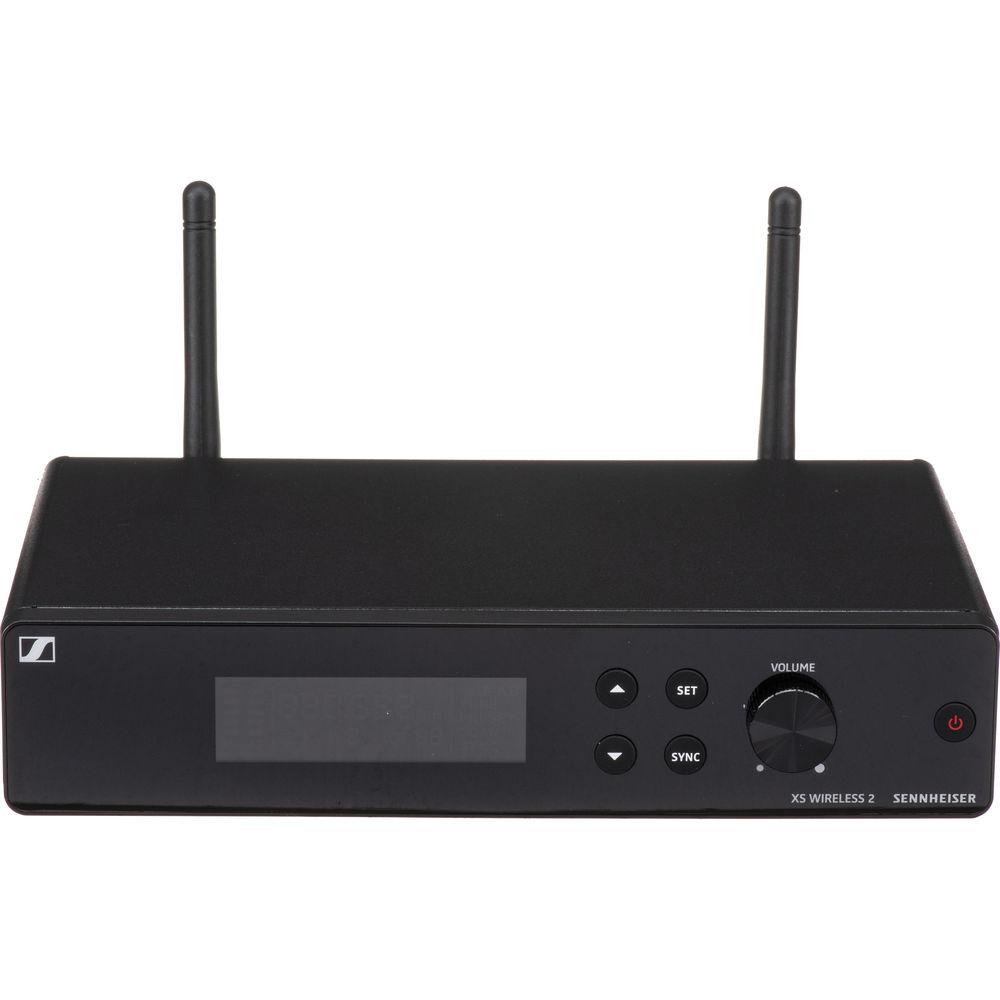

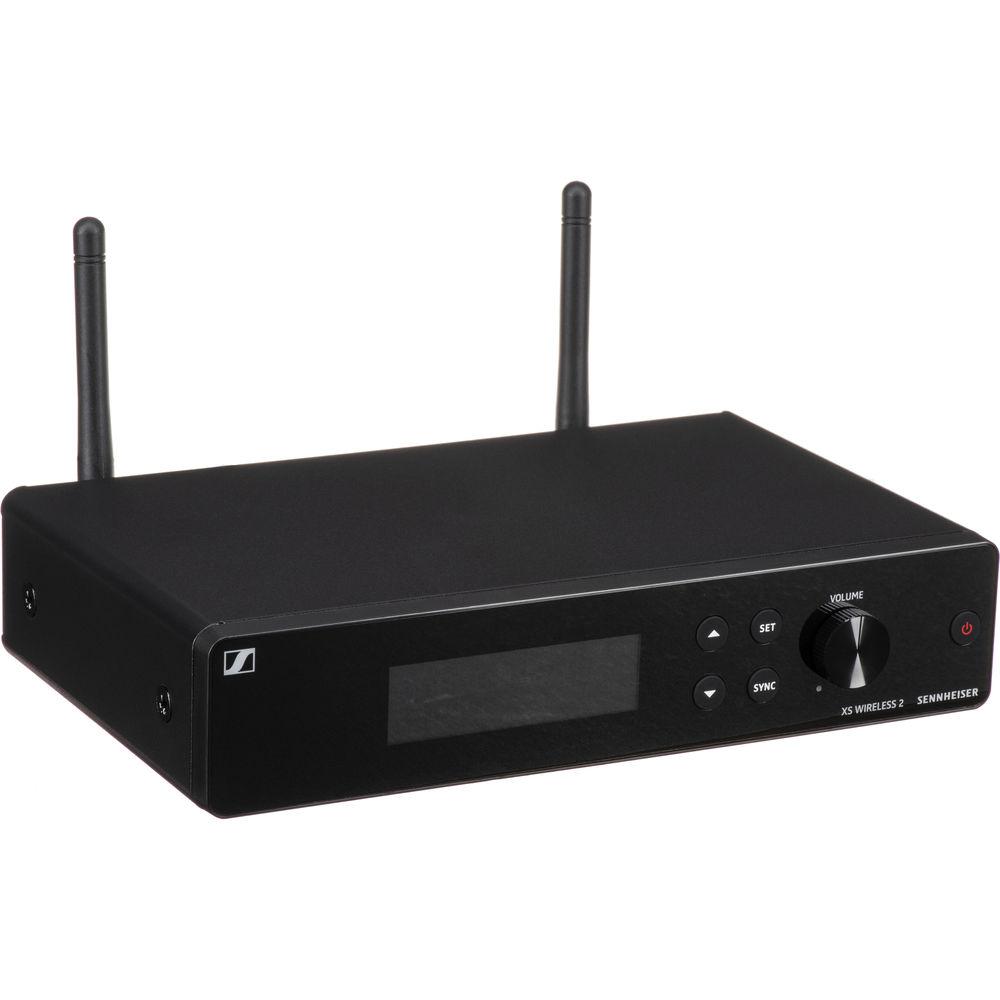

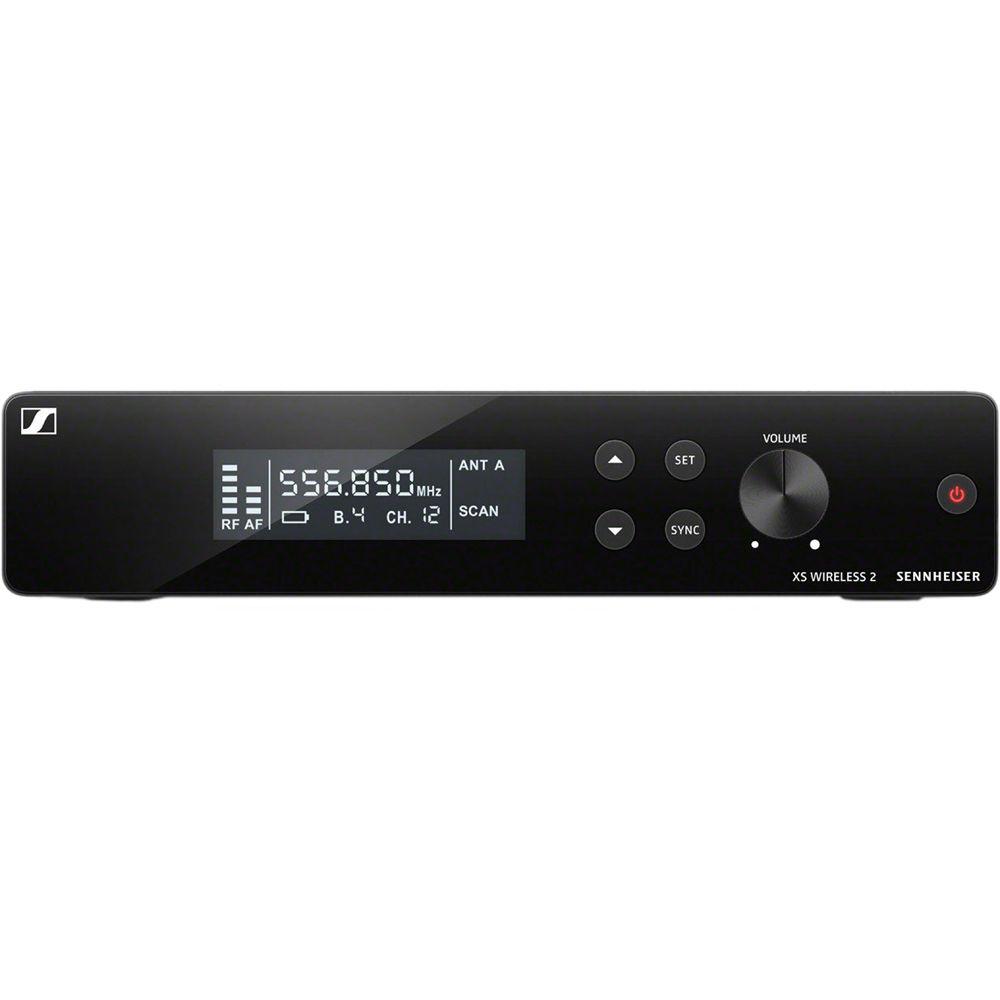

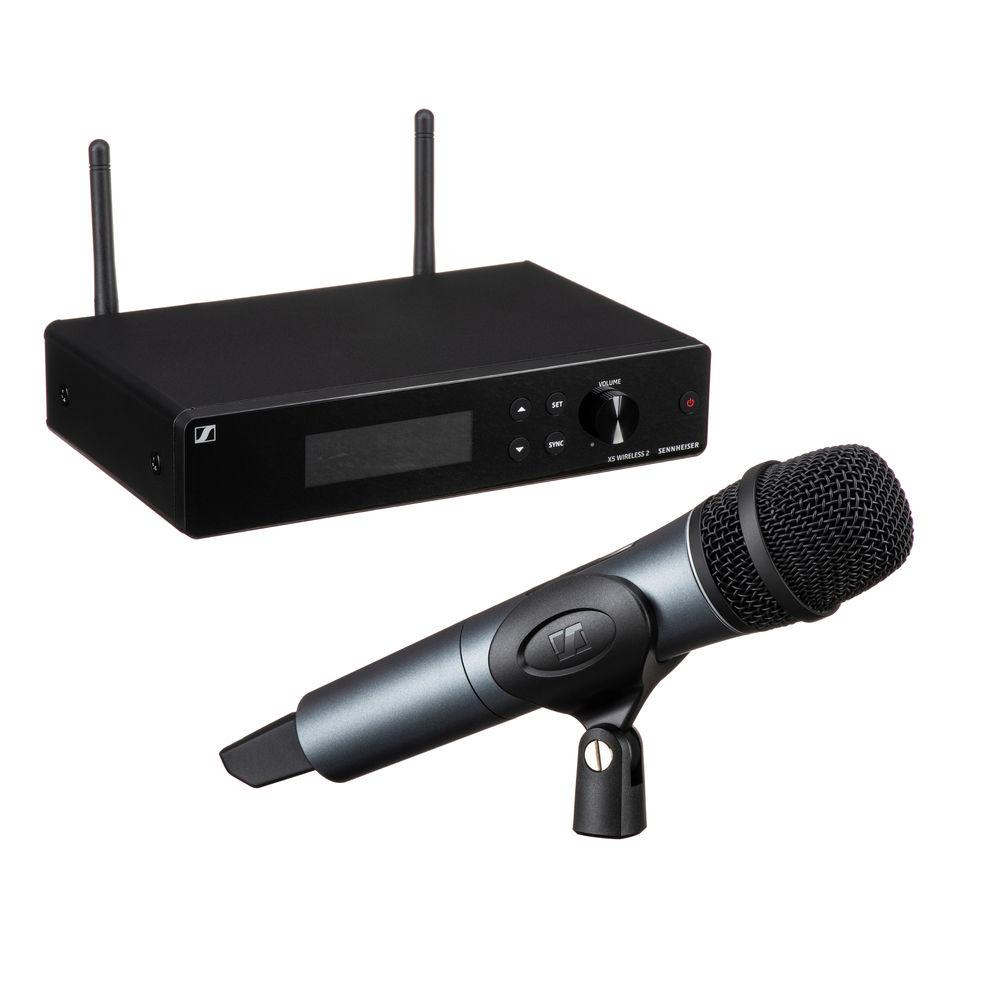

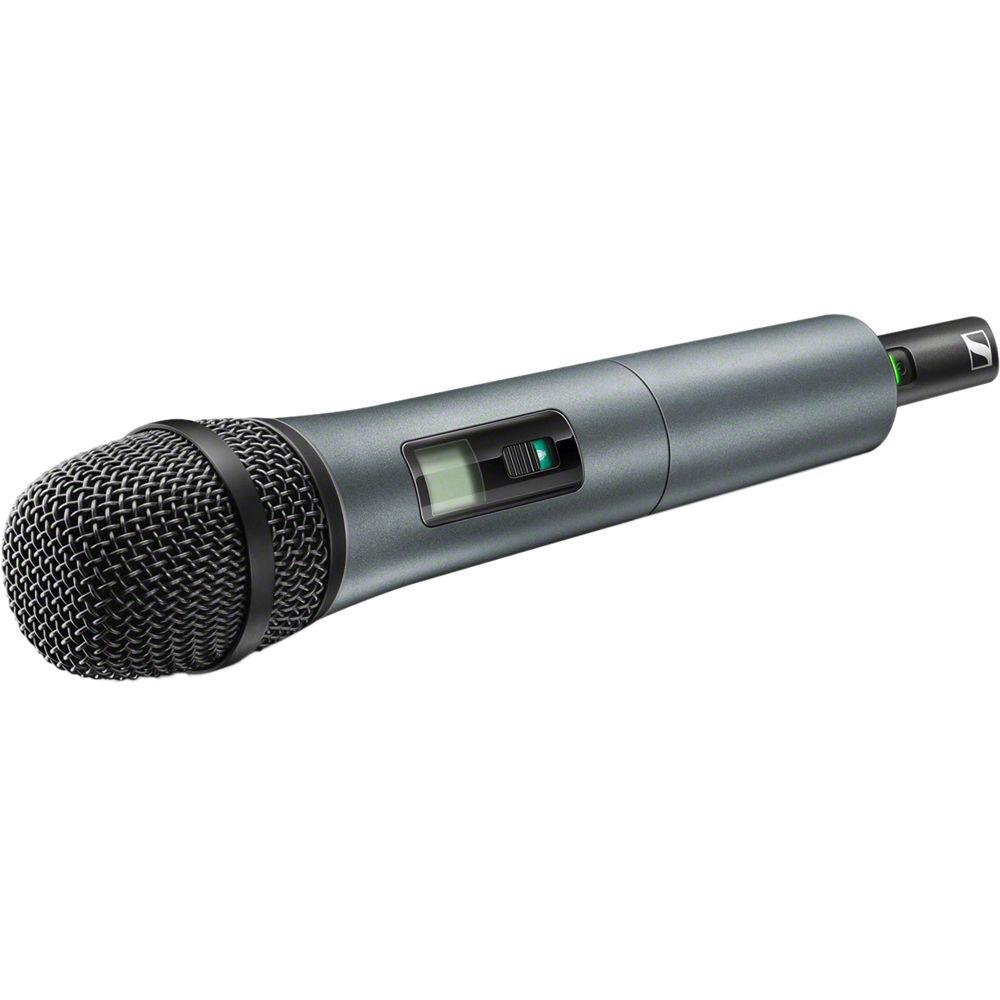

Product description Sennheiser XSW 2: Wireless Rigs for Vocals and Instruments Alike Read More The XSW 2-865-A Wireless Handheld Microphone System with e865 Capsule features a true diversity receiver, and a handheld transmitter with an intuitive LCD display. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for singers and presenters. The unit has automatic frequency management and synchronization so you don't have to scramble to find an available channel. The transmitter's e865 capsule uses a supercardioid polar pattern, which is part of the evolution series and designed for withstanding tougher, live-stage conditions. - True diversity receiver with metal housing
- Automatic frequency management and synchronization
- Remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Up to 12 compatible channels
UPC: 615104279971 In the Box Sennheiser XSW 2-865-A Wireless Handheld Microphone System with e865 Capsule (A: 548 to 572 MHz) EM-XSW 2 Receiver SKM 865-XSW Handheld Transmitter MZQ1 Microphone Clamp NT 12-5 CW Power Supply Rackmount Kit Protective Pouch 2 x AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser XSW 2-865-A Wireless Handheld Microphone System with e865 Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser XSW 2-865-A Specs | | | Modulation | Wideband FM | | Frequency Range | A: 548 to 572 MHz | | Switching Bandwidth | Up to 24 MHz | | Frequencies | Adjustable in 25-kHz steps
8 frequency banks, each with up to 12 factory-preset channels | | Signal to Noise Ratio | ≥ 103 dBA | | Total Harmonic Distortion (THD) | ≤ 0.9% | | Temperature Range | Operation: 32 to 104°F (0 to +40°C)
Storage: -4.0 to 158°F (-20 to +70°C) | | Transmitter Synchronization | 2.4 GHz, low power OQPSK (only active during synchronization) | | | | Principle of Operation | Double superheterodyne | | Diversity Method | True diversity | | Sensitivity | < 3 µV at 52 dBA rms S/N at (peak deviation) | | Frequency Response | 50 Hz to 16 kHz (-3 dB) | | Maximum AF Output Voltage | At peak deviation, 1 kHz AF

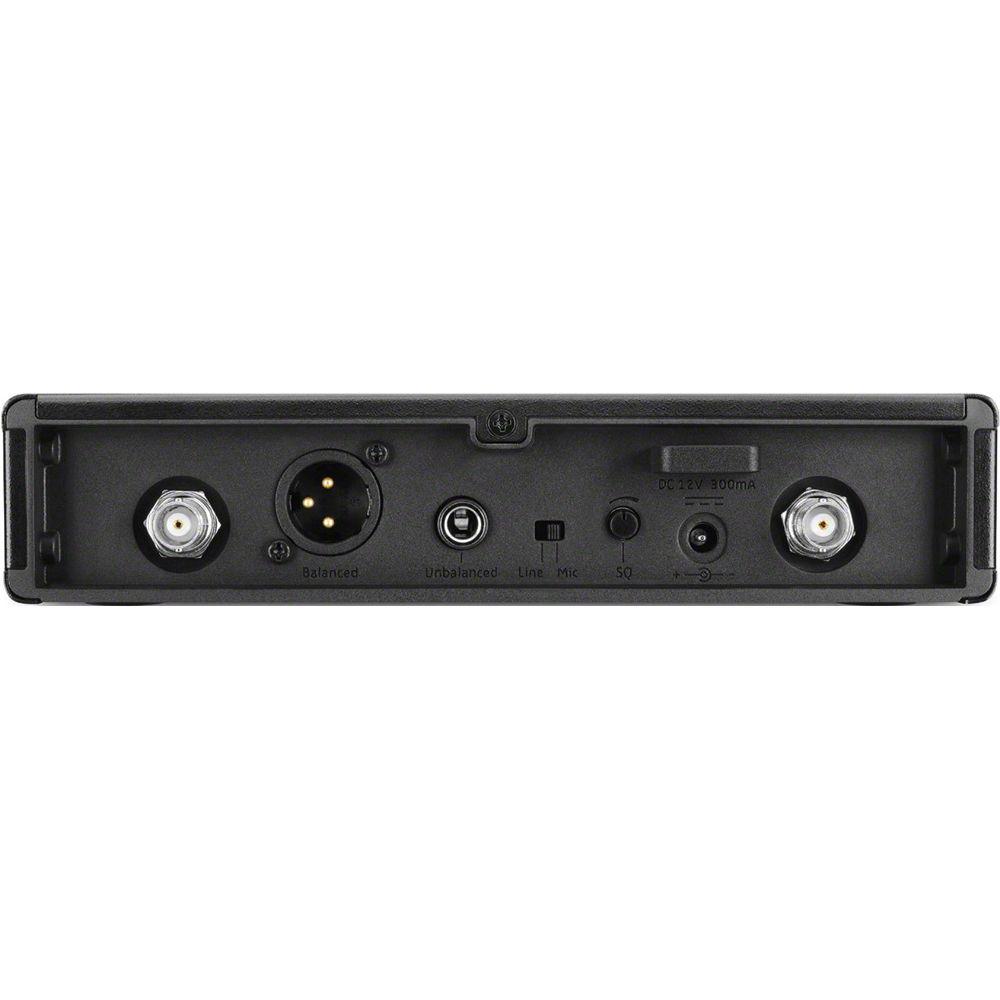

1/4" (6.3 mm) Jack Socket (Unbalanced): +6 dBu
XLR Socket (Balanced): +12 dBu
At peak deviation, 1 kHz AF) | | Adjustment Range | Audio: 40 dB, adjustable in 5-dB steps | | Power Supply | Nominal Input: 100 to 240 VAC 50/60 Hz
Input Current: 200 mA (Max.)
Nominal Output: 12 VDC 300 mA | | Squelch | Adjustable from 3 dBμ V to 28 dBμ V (combined with pilot tone) | | Line/Mic Level | 20 dB, switchable | | Housing Material | Rugged metal housing | | Dimensions (W x H x D) | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) | | Weight | 24 oz (680 g) | | | | RF Output Power | 10 mW | | AF Frequency Response | 80 Hz to 16 kHz | | Power Supply | 2 x AA size batteries, 1.5 V | | Operating Time | Approximately 10 hours | | Microphone Type | Condenser, pre-polarized | | Input Sensitivity | Capsule: 1.8 mV/Pa | | Polar Pattern | Supercardioid | | Sensitivity Adjustment | Range: 0 to -30 dB, adjustable in 10-dB steps | | Housing Material | Rugged ABS housing | | Dimensions (L x Diam) | 10.2 x 2.0" (260 x 50 mm) approximate | | Weight | 8.6 oz (245 g) approximate | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 13.6 x 13.4 x 3.4" |
