Sennheiser XSW-D 2-Person Digital Camera-Mount Wireless

User Manual for Sennheiser XSW-D 2-Person Digital Camera-Mount Wireless Combo Microphone System Kit

• Product category: Wireless Systems Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Wireless Systems

Product description

• Sennheiser XSW-D PORTABLE LAVALIER SET Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz)
  • Sennheiser XSW-D Wireless System - First Look
  • XS Wireless Digital | An instant connection - DSLR Audio | Sennheiser
  • XS Wireless Digital | An instant overview - DSLR Audio | Sennheiser
  • SoundAcademy XSW-D Part 4 of 5 - Technical Details
  The Sennheiser XSW-D PORTABLE LAVALIER SET is an easy entry point into the world of wireless microphone audio for vloggers, video shooters, and mobile journalists looking for a camera-mount system that's cost effective as well as quick and simple to use. It puts world-renowned Sennheiser sound quality in a plug-and-record, 1-button digital system that anyone can operate. Plug it in, power it up, and you're immediately up and running, instantly lightening your workload so you can concentrate on creating.The set offers the highly popular ME2-II omnidirectional lavalier microphone along with a bodypack transmitter and a camera-mount receiver, both featuring lightweight, miniature housings. The system connects to a DSLR, camcorder, or a tablet/smartphone (with additional adapter) to capture crisp-sounding interviews or dialog for video shoots.
  Unboxing the System
  • • The ME2-II lavalier microphone clips to your clothing and plugs into the locking 3.5mm input on the bodypack transmitter. The transmitter is designed to only transmit signal from a mic (not from a mixer or recorder).
    • The exceptionally lightweight and compact transmitter can be easily concealed in your pocket or discreetly attached to your waist with the included belt clip.
    • The equally discreet and lightweight receiver mounts to your camera shoemount with the supplied adapter. Connect its 3.5mm output to the 3.5mm audio input of your camera via the included coiled cable.
    • You're ready to turn it on and get started, it's that easy.
  Plug In, Turn On: It Works
  • • The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you.
    • The receiver and transmitter are pre-paired at the factory so when you turn on the system, it works—without the need for any additional button pressing.
    (For optimal results, use of the XSW-D is recommended in environments with limited Wi-Fi / 2.4 GHz traffic.)
  Step Up to Sennheiser Sound Quality
  • • Sennheiser wireless mic systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.
    • The ever-popular ME2-II lavalier microphone delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the talent's head moves away from the mic.
  Easy 2.4 GHz Digital Wireless
  • • Nothing ruins a take like hearing the weather report coming through your mic. Unlike traditional analog wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, away from interruptions and dropouts caused by TV and radio channel interference.
    • Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel, providing reliable transmission at a distance up to 250' line of sight.
    • For optimal performance, users are encouraged to maintain as direct a line of sight as possible between the transmitter and receiver.
  Expand Your System as Your Needs Grow
  • • The functionality of this XSW-D PORTABLE LAVALIER SET can easily be expanded by adding XSW-D series transmitters and receivers, as your needs evolve.
    • With this set, adding the XSW-D XLR female plug-on transmitter allows you to connect a dynamic handheld microphone for man-on-the-street-style interviews or a self-powered shotgun mic for booming.
    • For clearer speech in noisy environments, you can substitute the included lav mic with a Sennheiser-compatible headset mic.
  License-Free Operation Worldwide
  • • Because the XSW-D system operates in the license-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination, and other technical hassles.
    • Simply let the system pick a channel for you and start recording, whether you're working at home or anywhere in the world.
  Other Features
  • • Eco-friendly USB-rechargeable lithium-ion batteries—1-hour charging to reach 50% of battery time
    • 5-hour total battery life gives you plenty of shooting time
    • Conveniently recharge batteries via USB while in operation or during breaks throughout the day
    • Up to five systems can be operated simultaneously in the same environment
    • Low 3.9 ms latency with aptX Live codec specifically designed to maximize digital wireless microphone performance
    • Mute from either transmitter or receiver
    • Multi-pairing lets you quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to one receiver at a time)
  UPC: 615104317772
• Sennheiser XSW-D PORTABLE ENG SET Digital Camera-Mount Wireless Combo Microphone System (2.4 GHz)
  • Sennheiser XSW-D Wireless System - First Look
  • XS Wireless Digital | An instant connection - DSLR Audio | Sennheiser
  • XS Wireless Digital | An instant overview - DSLR Audio | Sennheiser
  • SoundAcademy XSW-D Part 4 of 5 - Technical Details
  The Sennheiser XSW-D PORTABLE ENG SET is an easy entry point into the world of wireless microphone audio for vloggers, video shooters, and mobile journalists looking for a camera-mount system that's cost effective as well as quick and simple to use. It puts world-renowned Sennheiser sound quality in a plug-and-record, 1-button digital system that anyone can operate. Plug it in, power it up, and you're immediately up and running, instantly lightening your workload so you can concentrate on creating.The XSW-D PORTABLE ENG SET is the choice where utmost flexibility is key. This set comes with a bodypack transmitter and the highly popular ME2-II omnidirectional lavalier microphone. Also included is a plug-on transmitter which can be attached to a handheld microphone of your choice for man-on-the-street interviews or to a shotgun mic for booming (both types of mics are available separately).The camera-mount receiver connects to a DSLR, camcorder, or a tablet/smartphone (with additional adapter) to capture crisp-sounding interviews or dialog for video shoots.Note: While this system includes two transmitters, only one can be used at a time.
  Unboxing the System
  • • The ME2-II lavalier microphone clips to your clothing and plugs into the locking 3.5mm input on the bodypack transmitter. The exceptionally lightweight and compact transmitter can be easily concealed in your pocket or discreetly attached to your waist with the included belt clip.
    • The plug-on transmitter lets you connect any dynamic microphone or self-powered shotgun mic equipped with an XLR connector (It does not provide phantom power).
    • Both transmitters are designed to transmit signal from a mic only (not from a mixer or recorder).
    • The discreet and lightweight receiver mounts to your camera shoemount with the supplied adapter. Connect its 3.5mm output to the 3.5mm audio input of your camera via the included coiled cable, and you're ready to turn the system on.
  Plug In, Turn On: It Works
  • • The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you.
    • Both transmitters are pre-paired with the receiver at the factory. All you have to do is turn on the transmitter you want to use, and it works—without the need for any additional button pressing.
    • When you’re ready to use the other transmitter, simply power down the first one, turn on the second one, and the system does the switch for you (note that only one transmitter at a time can work with the receiver).
    (For optimal results, use of the XSW-D is recommended in environments with limited Wi-Fi / 2.4 GHz traffic.)
  Step Up to Sennheiser Sound Quality
  • • Sennheiser wireless mic systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.
    • The ever-popular ME2-II lavalier microphone delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the talent's head moves away from the mic.
  Easy 2.4 GHz Digital Wireless
  • • Nothing ruins a take like hearing the weather report coming through your mic. Unlike traditional analog wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, away from interruptions and dropouts caused by TV and radio channel interference.
    • Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel, providing reliable transmission at a distance up to 250' line of sight.
    • For optimal performance, users are encouraged to maintain as direct a line of sight as possible between the transmitter and receiver.
  Expand your System as Your Needs Grow
  • • The functionality of this XSW-D PORTABLE ENG SET can easily be expanded by adding XSW-D Series transmitters and receivers, as your needs evolve.
    • With this set, you can substitute the included lav mic with a Sennheiser-compatible headset mic, for clearer speech in noisy environments.
  License-Free Operation Worldwide
  • • Because the XSW-D system operates in the license-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination, and other technical hassles.
    • Simply let the system pick a channel for you, and start recording—whether you're working at home or anywhere in the world.
  Other Features
  • • Eco-friendly USB-rechargeable lithium-ion batteries—1-hour charging to reach 50% of battery time
    • 5-hour total battery life gives you plenty of shooting time
    • Conveniently recharge batteries via USB while in operation or during breaks throughout the day
    • Up to five systems can be operated simultaneously in the same environment
    • Low 3.9 ms latency with aptX Live codec specifically designed to maximize digital wireless microphone performance
    • Mute from either transmitter or receiver
  UPC: 615104317796
• Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)
  • Sennheiser XSW-D Wireless System - First Look
  • XS Wireless Digital | An instant connection - DSLR Audio | Sennheiser
  • XS Wireless Digital | An instant overview - DSLR Audio | Sennheiser
  • SoundAcademy XSW-D Part 4 of 5 - Technical Details
  The Senal ENG-18RL is a broadcast-quality omnidirectional dynamic microphone. The dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications. The microphone's exceptionally low handling noise and resistance to wind noise and vocal plosives make it perfect for professional ENG applications like live reporting, interviews, and press conferences.

  At multiple areas inside the microphone, natural rubber with special shock-absorbing properties is bonded to carbon steel rings to isolate the sealed inner shell from the outer shell. This system protects the microphone capsule from impacts and inclement weather, and dissipates kinetic energy, dramatically reducing handling noise and resonance due to rustling and knocking.

  The microphone also incorporates multistage wind protection to minimize wind noise and vocal plosives. A mesh grille, acoustic foam, acoustic fabric, and another layer of acoustic foam work to diffuse excess sound pressure from wind and breath. A fixed rigid carbon-steel ring with a unique bullet-shaped design disperses breath to minimize vocal plosives.

  The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion. Whether broadcasting on television, AM/FM radio, or over the internet, the ENG-18RL is designed to ensure that dialogue cuts through the mix, and can be broadcast live without EQ adjustment.

  The ENG-18RL features a durable aluminum-alloy shaft designed for EMI rejection and reduced internal resonance, with a matte black finish for a professional appearance and minimum light reflection. The mic is also long enough to accommodate a mic flag.
  Ideal Choice for Critical Field Applications
  • The broadcast-quality omnidirectional dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications
  Isolated Inner Shell
  • The kinetic isolation system helps protect the microphone capsule and dissipate kinetic energy to dramatically reduce handling noise and resonance. Natural rubber shockmouts are bonded to carbon steel rings to isolate the sealed inner shell from the outer shell
  Diffuses Excess Sound Pressure From Wind and Vocal Plosives
  • Multistage wind protection comprises a mesh grille, acoustic foam, a bullet-shaped ring, acoustic fabric, and another layer of acoustic foam to diffuse excess sound pressure from wind and vocal plosives
  Broadcast Live Without EQ Adjustment
  • The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion
  Can Accommodate Mic Flag
  • The ENG-18RL is long enough to fit a mic flag for show or station identification
  UPC: 847628572461
• Vello 4" Cold Shoe Extension
  • Sennheiser XSW-D Wireless System - First Look
  • XS Wireless Digital | An instant connection - DSLR Audio | Sennheiser
  • XS Wireless Digital | An instant overview - DSLR Audio | Sennheiser
  • SoundAcademy XSW-D Part 4 of 5 - Technical Details
  Expand the number of items able to be mounted to your camera's hot shoe with the 4" Cold Shoe Extension from Vello. It features a 4" high-impact ABS plastic rail raised about 1.5" above the camera's shoe and supports multiple shoe-mounted accessories, including self-powered lighting, audio equipment, and more. The extension's shoe mount also includes 1/4"-20 female threads for alternate mounting options. UPC: 847628029545
• 2 x Senal Right-Angle Locking 1/8" Mini to 3-Pin XLR Output Cable (15")
  • Sennheiser XSW-D Wireless System - First Look
  • XS Wireless Digital | An instant connection - DSLR Audio | Sennheiser
  • XS Wireless Digital | An instant overview - DSLR Audio | Sennheiser
  • SoundAcademy XSW-D Part 4 of 5 - Technical Details
  The Right-Angle Locking 1/8" Mini to 3-Pin XLR Output Cable from Senal is a 15" replacement cable for Senal's AWS-2000 wireless system receiver. The cable can be used to connect to your AWS-2000 receiver output jack, and features a space-saving, right-angle locking 1/8" mini-jack connector. The cable securely locks into the receiver's output jack with a quarter twist turn and is compatible with devices that have an XLR input.
  Replacement Cable
  • The AWS-CBL-XLR is a replacement output cable for Senal's AWS-2000 wireless system receiver. It is also compatible with the Sennheiser evolution 100, 300 and 500 series, and Sony UWP receivers.
  Right-Angle, Locking Mini-Jack Connector
  • The right-angle, locking mini-jack connector attaches to your receiver and locks into place with a quarter-twist. The space-saving design ensures a secure connection and won't come apart even when it's pulled or stressed.
  UPC: 847628594821
• Kopul 1/8" Stereo Y Cable
  • Sennheiser XSW-D Wireless System - First Look
  • XS Wireless Digital | An instant connection - DSLR Audio | Sennheiser
  • XS Wireless Digital | An instant overview - DSLR Audio | Sennheiser
  • SoundAcademy XSW-D Part 4 of 5 - Technical Details
  The 1/8" Stereo Y Cable from Kopul features a 1/8" stereo male TRS connector that splits to two 1/8" stereo female TRS inputs, allowing you to split a stereo signal, such as a headphone output, to two stereo outputs. It features a premium OFC spiral-shielded cable for reduced EMI and is 8-inches in length. Its gold-plated metal connectors are manufactured by Rean, a trademark of Neutrik. UPC: 847628572430

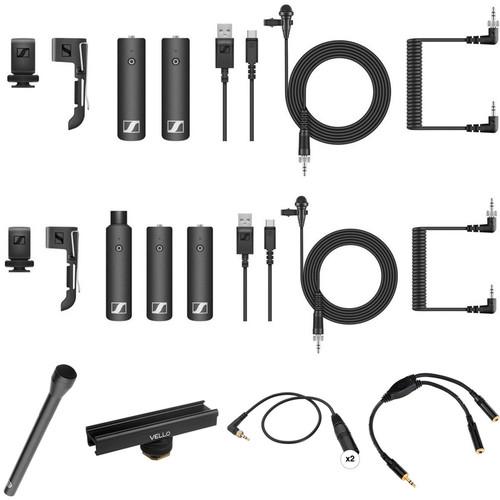

• XSW-D PORTABLE LAVALIER SET Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz) xqbqfrvwvc
• XSW-D MINI JACK TX Bodypack Transmitter (2.4 GHz)
• XSW-D MINI JACK RX Camera-Mount Receiver (2.4 GHz)
• ME 2-II Omnidirectional Lavalier Microphone (Black)
• Belt Clip
• Cold-Shoe Mount
• 3.5mm Coiled Output Cable
• Colored Stickers for Labeling
• USB Type-A to USB Type-C Charging Cable
• Limited 2-Year Warranty

• XSW-D PORTABLE ENG SET Digital Camera-Mount Wireless Combo Microphone System (2.4 GHz)

• Senal - ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)

• Vello - 4" Cold Shoe Extension

• 2 x Senal - Right-Angle Locking 1/8" Mini to 3-Pin XLR Output Cable (15")

• Kopul - 1/8" Stereo Y Cable

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser XSW-D PORTABLE LAVALIER SET Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz)

  Wireless Transmission	Digital 2.4 GHz
  Included Transmitters	1 x Bodypack
  Diversity	TDMA
  RF Frequency Band	2400 to 2483.5 MHz
  Max Operating Range	250' / 76.2 m (Line of Sight)
  Max Systems per Setup	5
  Audio Codec	APT-X Live
  Latency	<4 ms
  Encryption	None
  Modulation	GFSK

  Form Factor	Camera-Mount
  Mounting Options	Shoe-Mount (with Included Hardware)
  Antenna	1 x Internal
  Number of Audio Channels	1
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Output
  Audio Output Level	12 dB (Consumer Level)
  Frequency Response	80 Hz to 18 kHz
  USB Port	1 x USB Type-C (Bus Power, Charging)
  Power Requirements	Battery, USB Bus Power
  Battery Type	1 x Built-In Rechargeable (Included, Not Replaceable)
  Internal Battery Capacity	850 mAh
  Battery Charging Time	3 Hours
  Approx. Battery Life	5 Hours (Lithium Rechargeable)
  Battery Cycle Count	Up to 1000 Cycles
  Display & Indicators	1 x LED (Battery Status, Mute, RF Level)
  Housing	Plastic
  Operating Temperature	14 to 131°F / -10 to 55°C
  Operating Humidity	95%
  Dimensions	1.1 x 3.4 x 0.9" / 28.0 x 86.0 x 24.0 mm

  Form Factor	Bodypack
  RF Output Power	10 mW
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
  Muting	Off/On Switch
  Audio Input Level	(Mic Level)
  Frequency Response	80 Hz to 18 kHz
  Antenna	1 x Internal
  Power Requirements	Battery, USB Bus Power
  Battery Type	1 x Built-In Rechargeable (Included, Not Replaceable)
  Internal Battery Capacity	850 mAh
  Battery Charging Time	3 Hours
  Approx. Battery Life	5 Hours (Lithium Rechargeable)
  Battery Cycle Count	Up to 1000 Cycles
  USB Port	1 x USB Type-C (Bus Power, Charging)
  Display & Indicators	1 x LED (Battery Status, Mute, Signal Strength)
  Housing	Plastic
  Operating Temperature	14 to 131°F / -10 to 55°C
  Operating Humidity	95%
  Dimensions	1.1 x 3.4 x 0.9" / 28.0 x 86.0 x 24.0 mm

  Form Factor	Lavalier
  Sound Field	Mono
  Transducer	Electret Condenser
  Polar Pattern	Omnidirectional
  Frequency Range	50 Hz to 18 kHz
  Equivalent Noise Level	36 dB
  Maximum SPL	130 dB SPL Peak
  Sensitivity	20 mV/Pa
  Output Connectors	1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
  Cable Length	5.25' / 1.6 m
  Operating Voltage	7.5 V

  Box Dimensions (LxWxH)	9.8 x 4.8 x 2.8"

• Sennheiser XSW-D PORTABLE ENG SET Digital Camera-Mount Wireless Combo Microphone System (2.4 GHz)

  Wireless Transmission	Digital 2.4 GHz
  Included Transmitters	1 x Bodypack 1 x Plug-On
  Diversity	TDMA
  RF Frequency Band	2400 to 2483.5 MHz
  Max Operating Range	250' / 76.2 m (Line of Sight)
  Max Systems per Setup	5
  Audio Codec	APT-X Live
  Latency	<4 ms
  Encryption	None
  Modulation	GFSK

  Form Factor	Camera-Mount
  Mounting Options	Shoe-Mount (with Included Hardware)
  Antenna	1 x Internal
  Number of Audio Channels	1
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
  Audio Output Level	12 dB (Consumer Level)
  Frequency Response	80 Hz to 18 kHz
  USB Port	1 x USB Type-C (Bus Power, Charging)
  Power Requirements	Battery, USB Bus Power
  Battery Type	1 x Built-In Rechargeable (Included, Not Replaceable)
  Internal Battery Capacity	850 mAh
  Battery Charging Time	3 Hours
  Approx. Battery Life	5 Hours (Lithium Rechargeable)
  Battery Cycle Count	Up to 1000 Cycles
  Display & Indicators	1 x LED (Battery Status, Mute, RF Level)
  Housing	Plastic
  Operating Temperature	14 to 131°F / -10 to 55°C
  Operating Humidity	95%
  Dimensions	1.1 x 3.4 x 0.9" / 28.0 x 86.0 x 24.0 mm

  Form Factor	Bodypack
  RF Output Power	10 mW
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
  Muting	Off/On Switch
  Audio Input Level	(Mic Level)
  Frequency Response	80 Hz to 18 kHz
  Antenna	1 x Internal
  Power Requirements	Battery, USB Bus Power
  Battery Type	1 x Built-In Rechargeable (Included, Not Replaceable)
  Internal Battery Capacity	850 mAh
  Battery Charging Time	3 Hours
  Approx. Battery Life	5 Hours (Lithium Rechargeable)
  Battery Cycle Count	Up to 1000 Cycles
  USB Port	1 x USB Type-C (Bus Power, Charging)
  Display & Indicators	1 x LED (Battery Status, Mute, Signal Strength)
  Housing	Plastic
  Operating Temperature	14 to 131°F / -10 to 55°C
  Operating Humidity	95%
  Dimensions	1.1 x 3.4 x 0.9" / 28.0 x 86.0 x 24.0 mm

  Form Factor	Lavalier
  Sound Field	Mono
  Transducer	Electret Condenser
  Polar Pattern	Omnidirectional
  Frequency Range	50 Hz to 18 kHz
  Equivalent Noise Level	36 dB
  Maximum SPL	130 dB SPL Peak
  Sensitivity	20 mV/Pa
  Output Connectors	1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
  Cable Length	5.25' / 1.6 m
  Operating Voltage	7.5 V
  Operating Temperature	14 to 131°F / -10 to 55°C
  Operating Humidity	95%

  Form Factor	Plug-On
  RF Output Power	10 mW
  Audio I/O	1 x XLR 3-Pin Female Unbalanced Input
  Muting	Off/On Switch
  Audio Input Level	(Mic Level)
  Frequency Response	80 Hz to 18 kHz
  Antenna	1 x Internal
  Power Requirements	Battery, USB Bus Power
  Battery Type	1 x Built-In Rechargeable (Included, Not Replaceable)
  Internal Battery Capacity	850 mAh
  Battery Charging Time	3 Hours
  Approx. Battery Life	5 Hours (Lithium Rechargeable)
  Battery Cycle Count	Up to 1000 Cycles
  USB Port	1 x USB Type-C (Bus Power, Charging)
  Display & Indicators	1 x LED (Battery Status, Mute, Signal Strength)
  Housing	Plastic
  Operating Temperature	14 to 131°F / -10 to 55°C
  Operating Humidity	95%
  Dimensions	1.1 x 3.4 x 0.9" / 28.0 x 86.0 x 24.0 mm

  Box Dimensions (LxWxH)	9.5 x 4.6 x 2.8"

• Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)

  Polar Pattern	Omnidirectional
  Element Type	Dynamic
  Output Connector	3-Pin XLR Male
  Frequency Response	50 Hz - 18 kHz
  Output Impedance	500 Ohms
  Sensitivity	2.2 mV/Pa
  Case Material	Aluminum
  Dimensions (L x D)	1.3 x 9.1" / 33.0 x 231.0 mm
  Weight	4.8 oz / 136 g

  Box Dimensions (LxWxH)	11.1 x 5.1 x 2.6"

• Vello 4" Cold Shoe Extension

  Bottom Mount	1 x 1/4"-20 Female 1 x Accessory Foot
  Top Mount	1 x Shoe Bar
  Material	Plastic
  Dimensions	4" / 10 cm
  Weight	1.3 oz / 36.85 g

  Box Dimensions (LxWxH)	5.7 x 3.8 x 1.4"

• 2 x Senal Right-Angle Locking 1/8" Mini to 3-Pin XLR Output Cable (15")

  Connector 1	Locking 1/8" (3.5 mm) TRS right-angle
  Connector 2	3-pin XLR male
  Cable Length	15" (38 cm)
  Weight	1.7 oz (48 g)

  Box Dimensions (LxWxH)	4.0 x 4.0 x 0.5"

• Kopul 1/8" Stereo Y Cable

  Connector 1	1 x 1/8" (3.5 mm) TRS Male
  Connector 2	2 x 1/8" / 3.5 mm TRS Female

  Connector Plating	Gold

  Cable Length	8" / 20.3 cm

  Box Dimensions (LxWxH)	6.2 x 4.0 x 1.0"

Rating

Discussion
