Product description - SoundAcademy XSW-D Part 4 of 5 - Technical Details

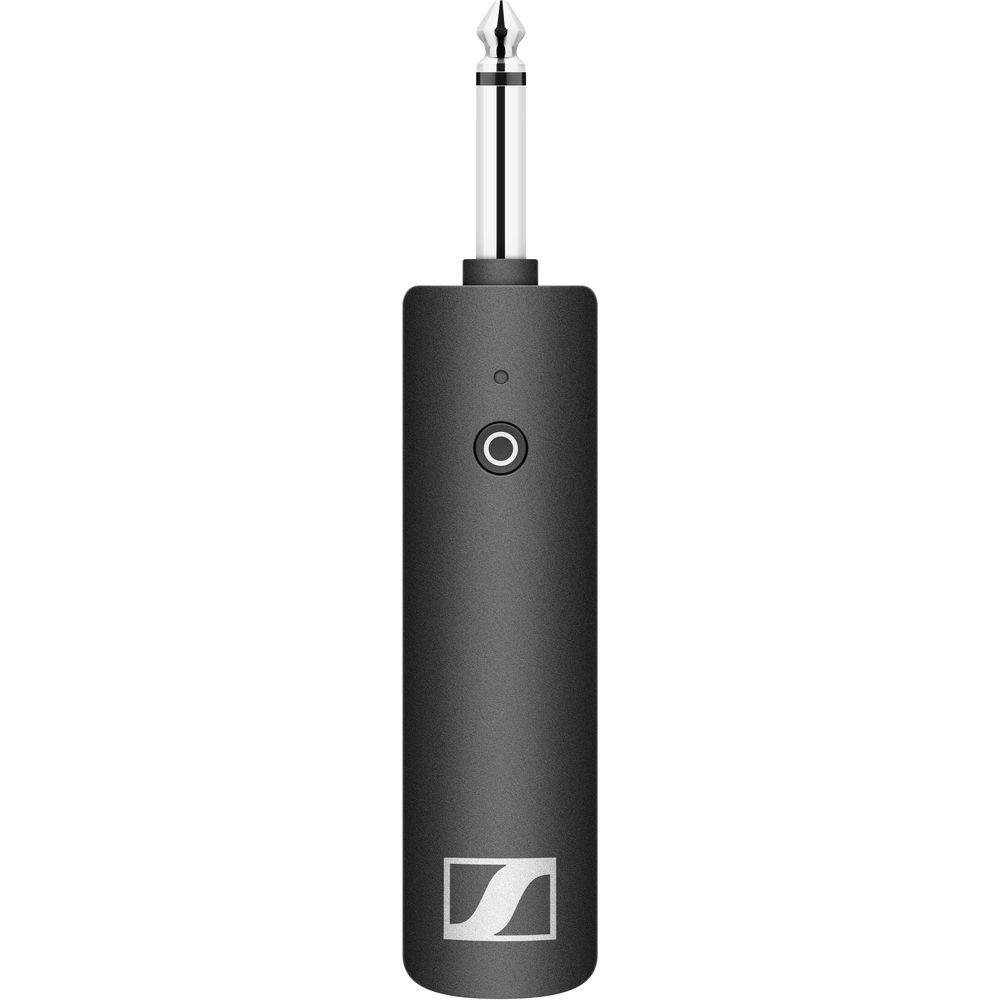

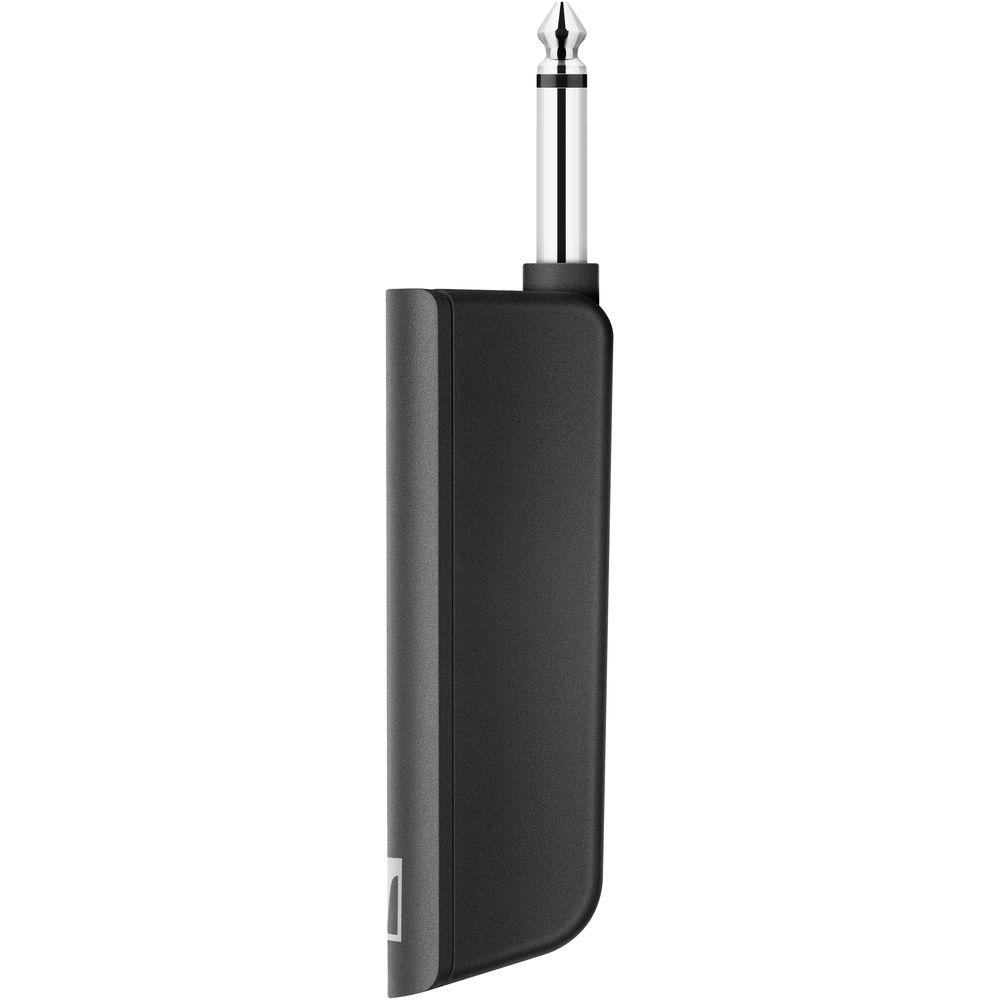

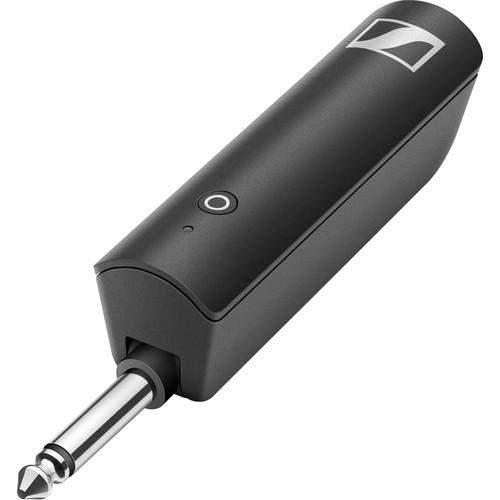

Part of the Sennheiser XSW-D digital wireless system, the XSW-D INSTRUMENT RX 1/4" plug-on receiver is available as an individual component to be used as a backup receiver or as a replacement unit. It features a 1/4" male connector ready to plug directly into the input of your amplifier or pedal. The XSW-D puts world-renowned Sennheiser wireless sound quality in a miniaturized, low-latency, 1-button digital system that anyone can use. Plug it in, power it up, and you're immediately up and playing, simplifying your setup so you can concentrate on performing with confidence. - Plug In, Turn On: It Works
-
- The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you—without the need for any additional button pressing.
(For optimal results, use of the XSW-D is recommended in environments with limited Wi-Fi / 2.4 GHz traffic.) - Step Up to Sennheiser Sound Quality
-
- Sennheiser wireless systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.
- Analog wireless systems need to squash your signal to operate in the FM band, resulting in a thin sound with a high noise floor. The XSW-D uses digital technology to preserve the dynamic range of your signal and deliver a crisp, clean, guitar sound with all the nuances of your performance.
- On stage, timing is critical, and the XSW-D uses the aptX Live codec to deliver an impressively low latency of 3.9ms so you don't experience any lag when playing, keeping you on point and in the groove.
- Easy 2.4 GHz Digital Wireless
-
- Nothing ruins a take like hearing the weather report coming through your amp. Unlike traditional analog wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, protecting the integrity of your signal from interruptions and drop outs caused by TV channels, radios, or other sources.
- Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel to provide reliable transmission at a distance up to 250' line of sight.
- License-Free Operation Worldwide
-
- Because the XSW-D system operates in the license-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination, and other technical hassles.
- Simply let the system pick a channel for you and start playing, whether you're working at home or anywhere in the world.
- Other Features
-
- Eco-friendly USB-rechargeable lithium-ion battery—1-hour charging to reach 50% of battery time
- 5-hour total battery life gives you plenty of playing time
- Conveniently recharge battery via USB while in operation or during breaks throughout the day
- Mute from either transmitter or receiver
- Up to five systems can be operated simultaneously in the same environment
- Multi-pairing lets you quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to one receiver at a time)

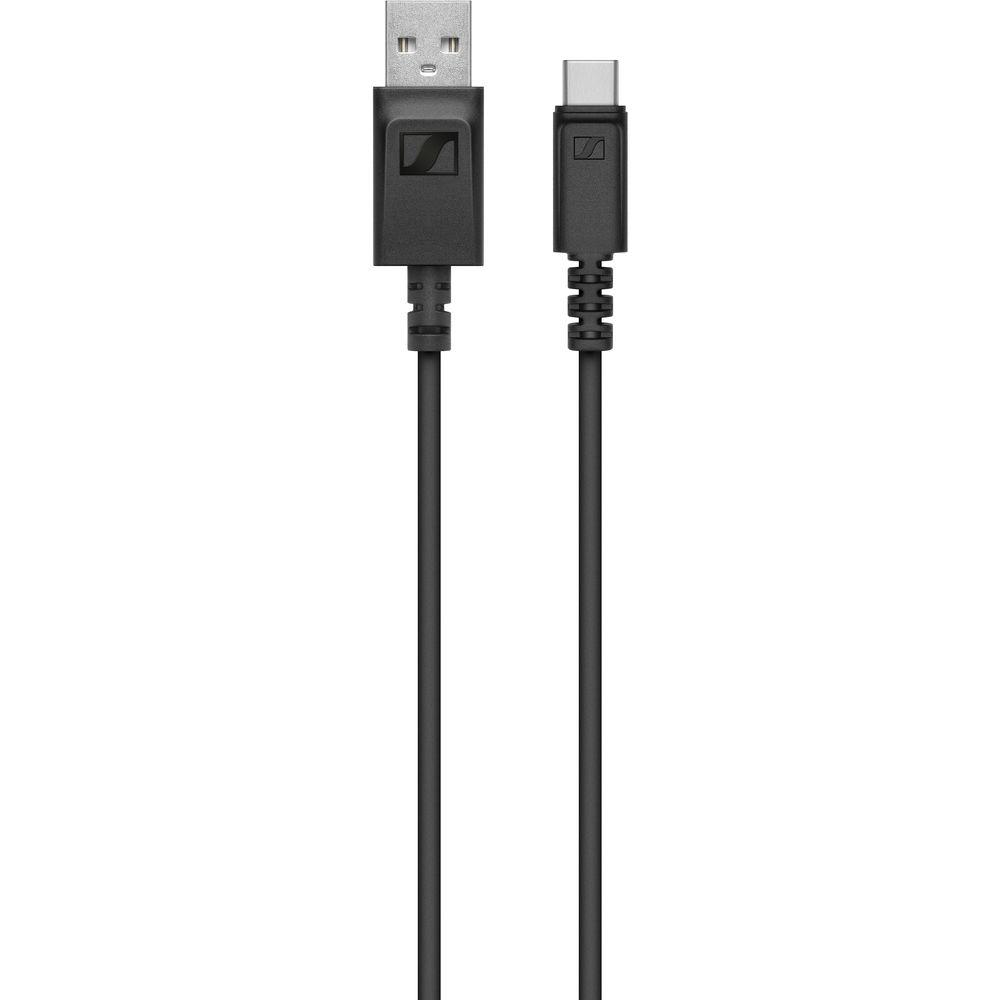

UPC: 615104317871 In the Box Sennheiser XSW-D INSTRUMENT RX 1/4" Plug-In Receiver (2.4 GHz) USB Type-A to USB Type-C Charging Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser XSW-D INSTRUMENT RX 1 4" Plug-In Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser XSW-D Specs | | | Frequency Range | 2.400 to 2.483 GHz | | Latency | <4 ms with aptX Live Codec | | Transmission Range | 250' / 76.2 m (Line of Sight) | | Simultaneous Operation of Units | Up to 5 Systems Simultaneously | | Frequency Response | 10 Hz to 18 kHz | | Signal-to-Noise Ratio | ≥106 dB | | THD | <0.1 % | | Modulation | GFSK with TDMA | | Operating Temperature | -10 to 55° C / 14 to 131° F | | Relative Humidity | 95% (Non-Condensing) | | | | Type | 1/4" Plug-In Receiver | | Output Connector | 1/4" / 6.3 mm TS, Male, Foldable (90°) | | Audio Output Level | Instrument-Level Output Only | | Battery | Type: Built-In, USB-Rechargeable, Lithium-Ion
Battery Life: 5 Hours
Charging Time: 3 Hours (Typical)
Charging Cycles: Up to 1000 Cycles
Nominal Voltage: 3.7 V
Cell Capacity: 850 mAh
Input Voltage: 5.0 V (Typical)
Charging Temperature: 32 to 140° F / 0 to 60° C | | Dimensions | 4.8 x 0.9 x 1.1" / 122 x 24 x 28 mm | | Weight | Not Specified by Manufacturer |
