Product description
XS Wireless Digital | An instant connection - Stage & Rehearsal | Sennheiser
XS Wireless Digital | An instant overview - Stage & Rehearsal | Sennheiser
SoundAcademy XSW-D Part 2 of 5 - Sets
SoundAcademy XSW-D Part 3 of 5 - Setting into operation XSW-D
SoundAcademy XSW-D Part 4 of 5 - Technical Details
The Sennheiser XSW-D LAVALIER SET is an easy entry point into the world of wireless microphone audio for speakers, educators, panelists, and moderators looking for a stage-ready system that's both cost effective and simple to use. It puts world-renowned Sennheiser wireless sound quality in a miniaturized, plug-and-go, 1-button digital system that anyone can operate. Plug it in, power it up, and you're immediately up and running, streamlining your setup so you can concentrate on delivering your message to your audience with confidence.The set offers the highly popular ME2-II omnidirectional lavalier microphone along with a bodypack transmitter and an XLR-equipped plug-in receiver, both featuring lightweight, miniature housings. The system connects to a wide variety of professional audio gear including mixing boards and portable PA systems, allowing you to capture crisp-sounding speech with the hands-free convenience of a clip-on microphone, for presentations on stage, in lecture halls, houses of worship, or conference rooms.
Unboxing the System

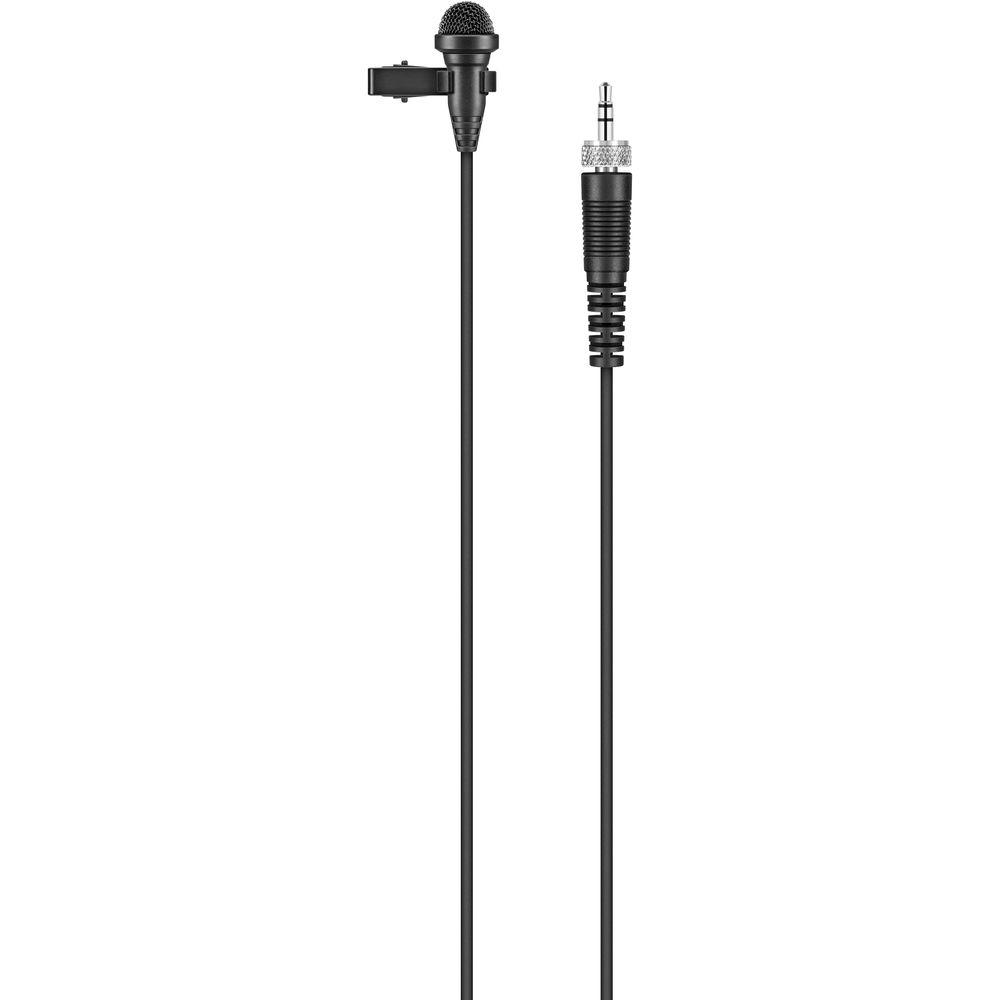

The ME2-II lavalier microphone clips to your clothing and plugs into the locking 3.5mm input on the bodypack transmitter. The transmitter is designed to only transmit signal from a mic (not from a mixer or recorder).

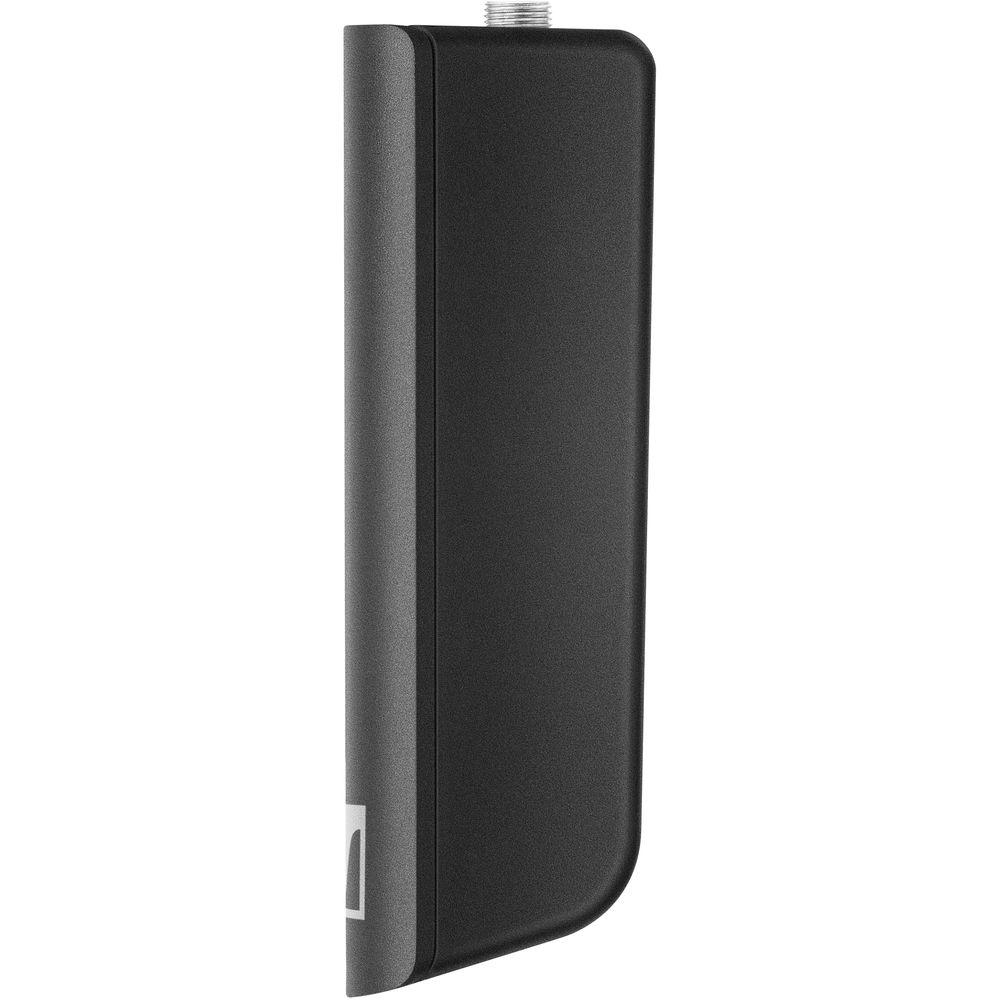

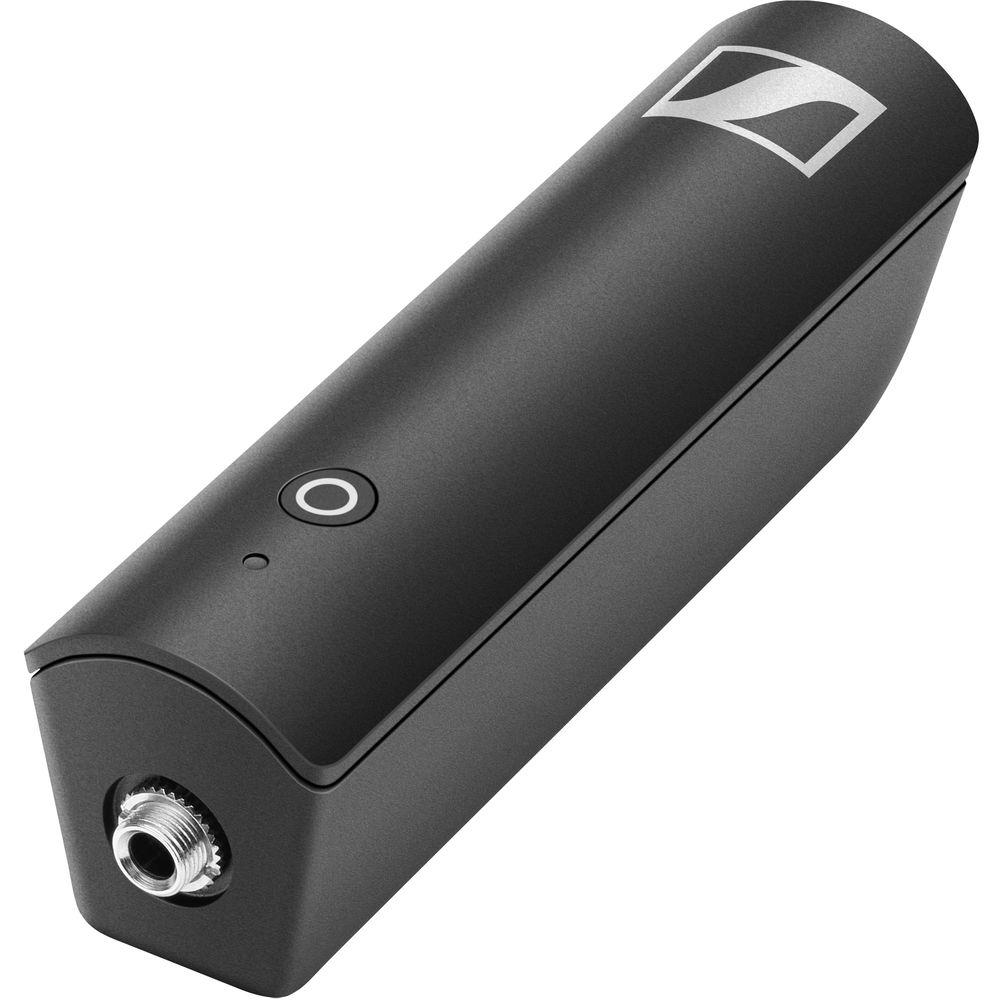

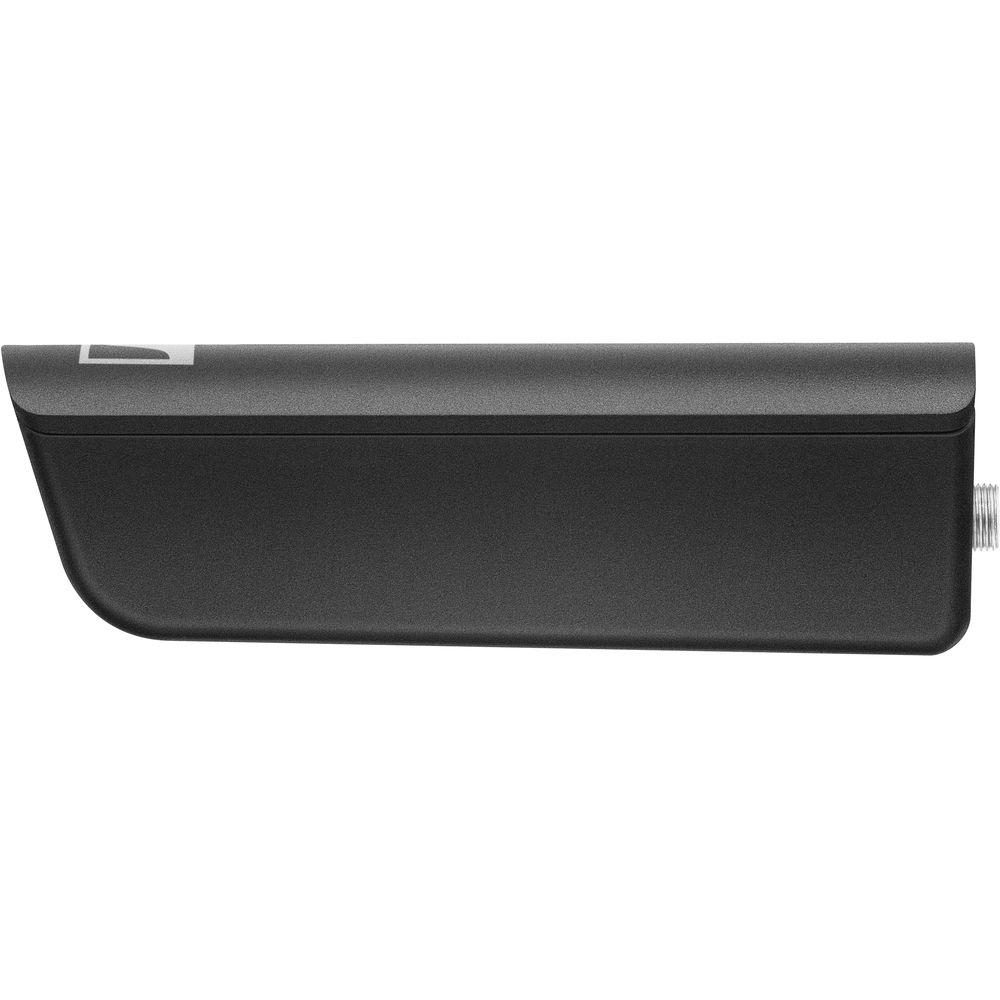

The exceptionally lightweight and compact transmitter can be easily concealed in your pocket or discreetly attached to your waist with the included belt clip.

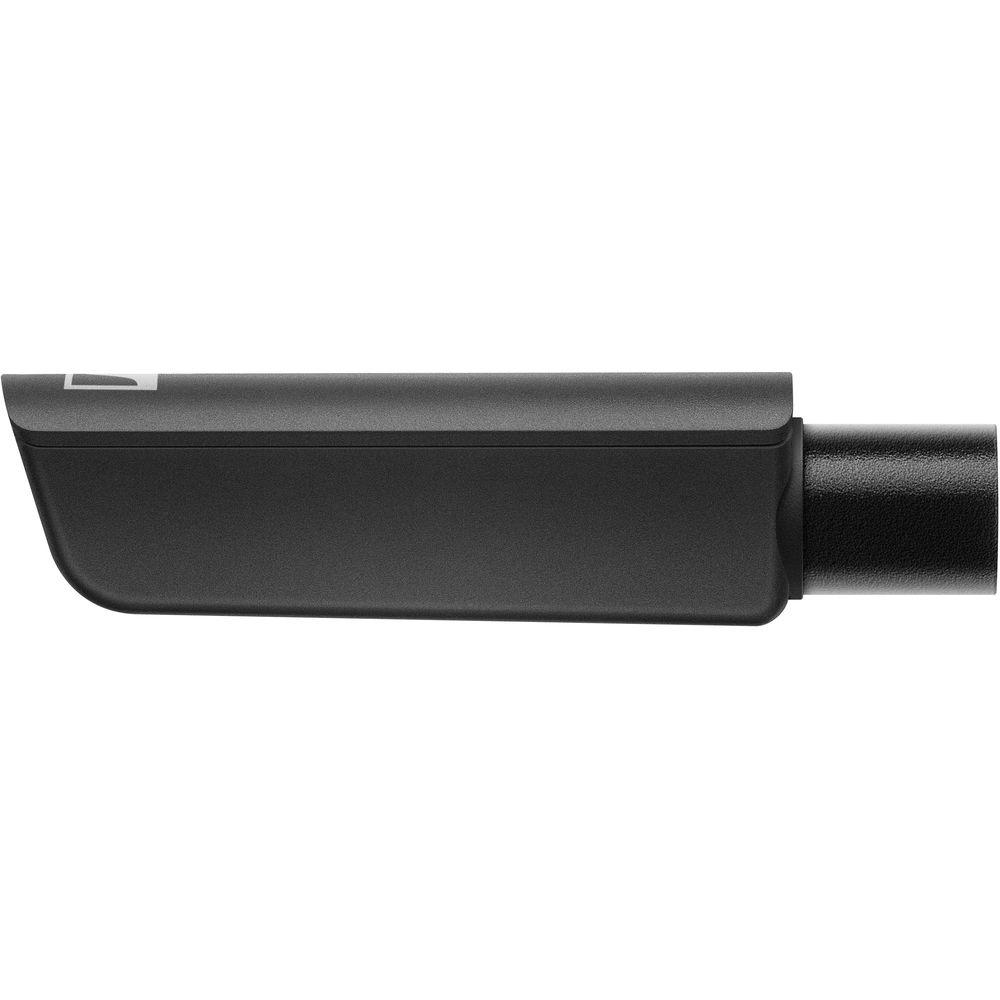

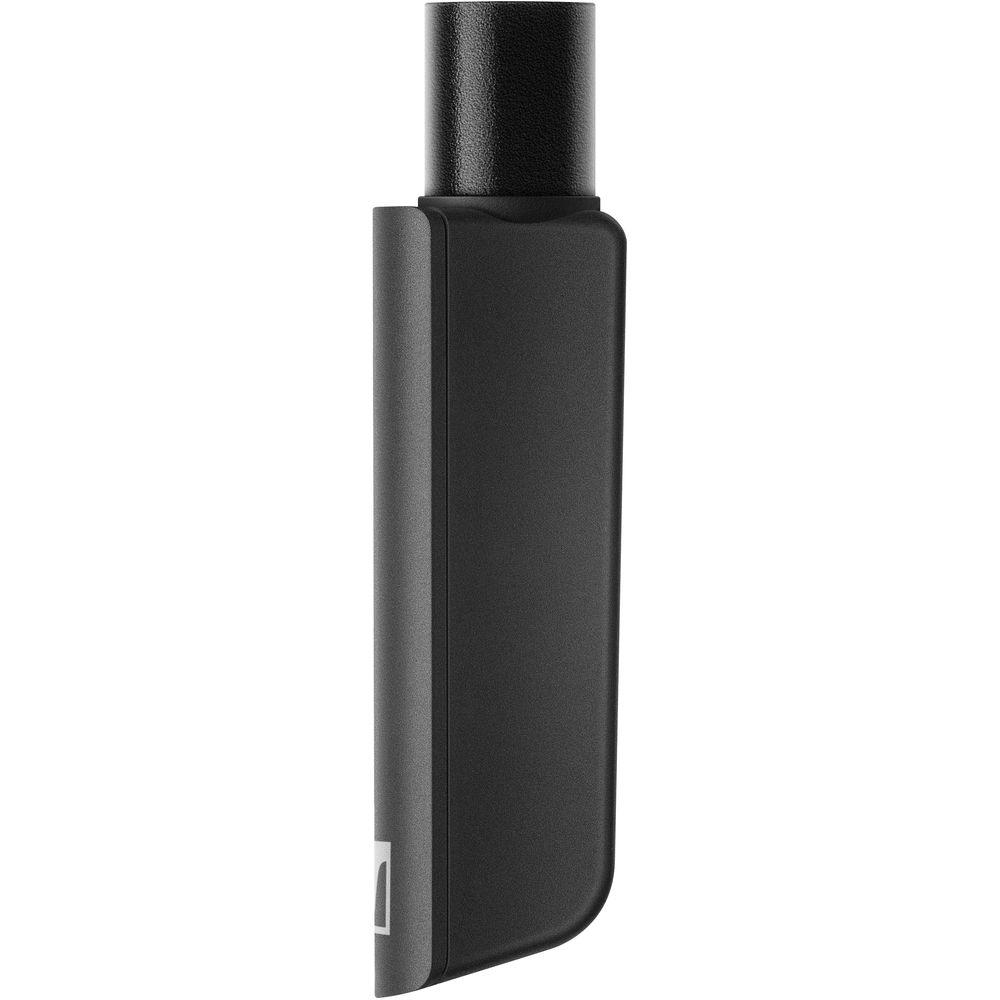

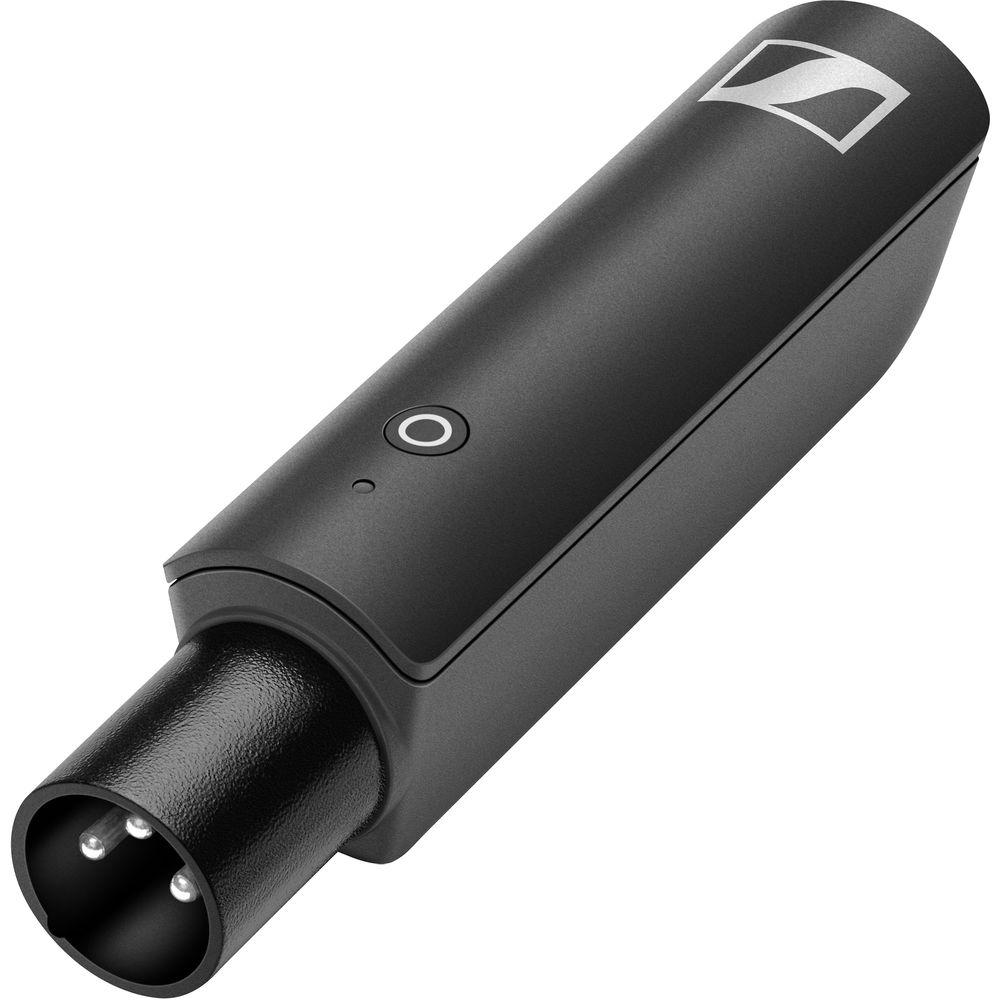

Plug the compact receiver directly into the XLR input of your audio mixer or PA, and you're ready to turn the system on. The receiver cannot be phantom powered by a mixer. It needs to be charged ahead of time or used while being charged via USB.
Plug In, Turn On: It Works
The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you.
The receiver and transmitter are pre-paired at the factory so when you turn on the system, it works—without the need for any additional button pressing.
(For optimal results, use of the XSW-D is recommended in environments with limited Wi-Fi / 2.4 GHz traffic.)
Step Up to Sennheiser Sound Quality
Sennheiser wireless mic systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.
The ever-popular ME2-II lavalier microphone delivers a natural sound, optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the talent's head moves away from the mic.
Easy 2.4 GHz Digital Wireless
Nothing ruins a take like hearing the weather report coming through your mic. Unlike traditional analog wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, away from interruptions and dropouts caused by TV and radio channel interference.
Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel to provide reliable transmission at a distance up to 250' line of sight.
Expand Your System as Your Needs Grow
The functionality of this XSW-D LAVALIER SET can easily be expanded by adding XSW-D Series transmitters and receivers, as your needs evolve.
With this set, adding the XSW-D XLR female plug-on transmitter allows you to connect a dynamic handheld microphone for situations when the mic needs to be shared between speakers or passed around in the audience.
For clearer speech in noisy environments, you can substitute the included lav mic with a Sennheiser-compatible headset mic.
License-Free Operation Worldwide
Because the XSW-D system operates in the license-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination, and other technical hassles.
Simply let the system pick a channel for you, and you're ready to go—whether you're working at home or anywhere in the world.
Other Features
Eco-friendly USB-rechargeable lithium-ion batteries—1-hour charging to reach 50% of battery time
5-hour total battery life gives you plenty of presentation time
Conveniently recharge batteries via USB while in operation or during breaks throughout the day
Up to five systems can be operated simultaneously in the same environment
Low 3.9 ms latency with aptX Live codec specifically designed to maximize digital wireless microphone performance
Mute from either transmitter or receiver
Multi-pairing lets you quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to one receiver at a time)

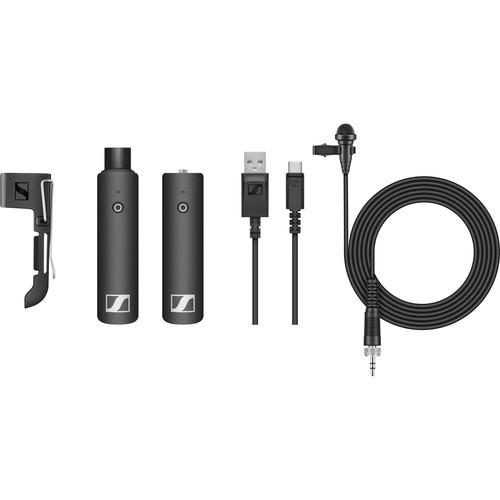

UPC: 615104317741 In the Box Sennheiser XSW-D LAVALIER SET Digital Wireless Omni Lavalier Microphone System (2.4 GHz)
XSW-D MINI JACK TX Bodypack Transmitter (2.4 GHz) vwezdrbacqarcq
XSW-D XLR MALE RX Plug-In Receiver (2.4 GHz)
ME 2-II Omnidirectional Lavalier Microphone (Black)

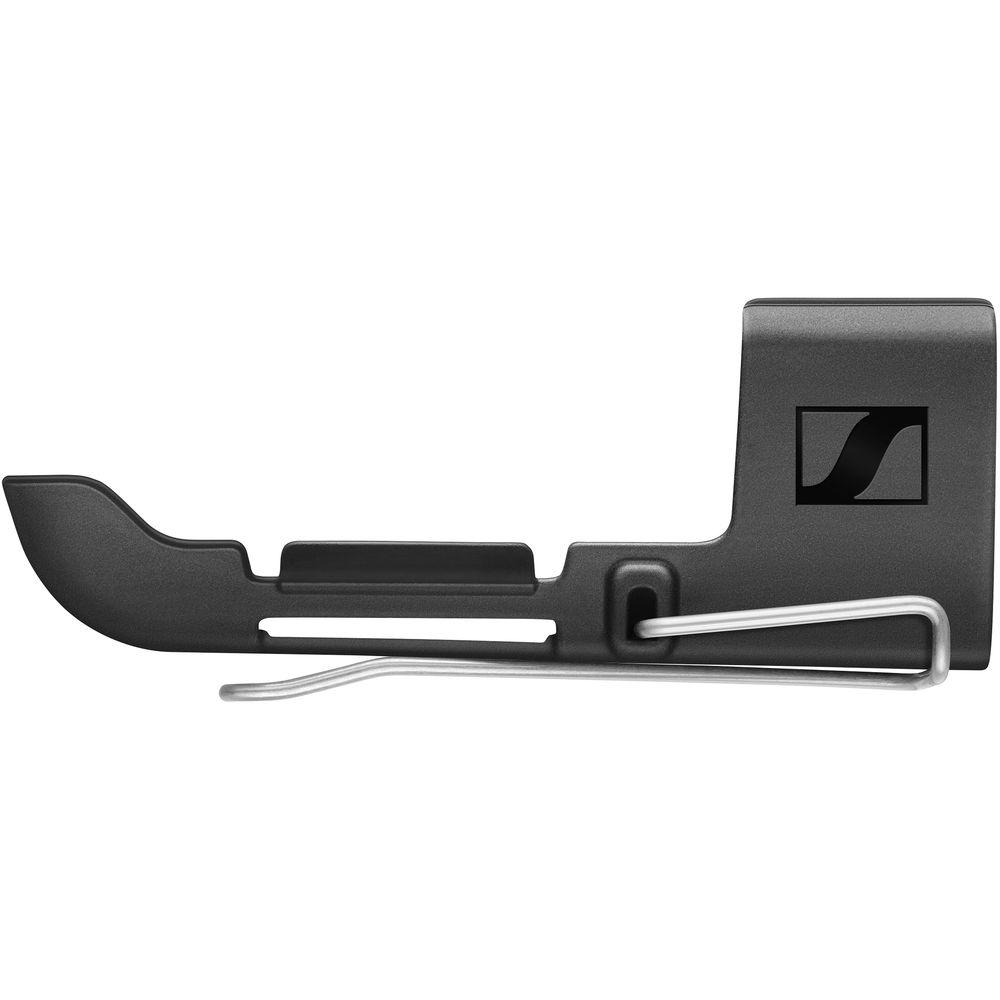

Belt Clip
Colored Stickers for Labeling

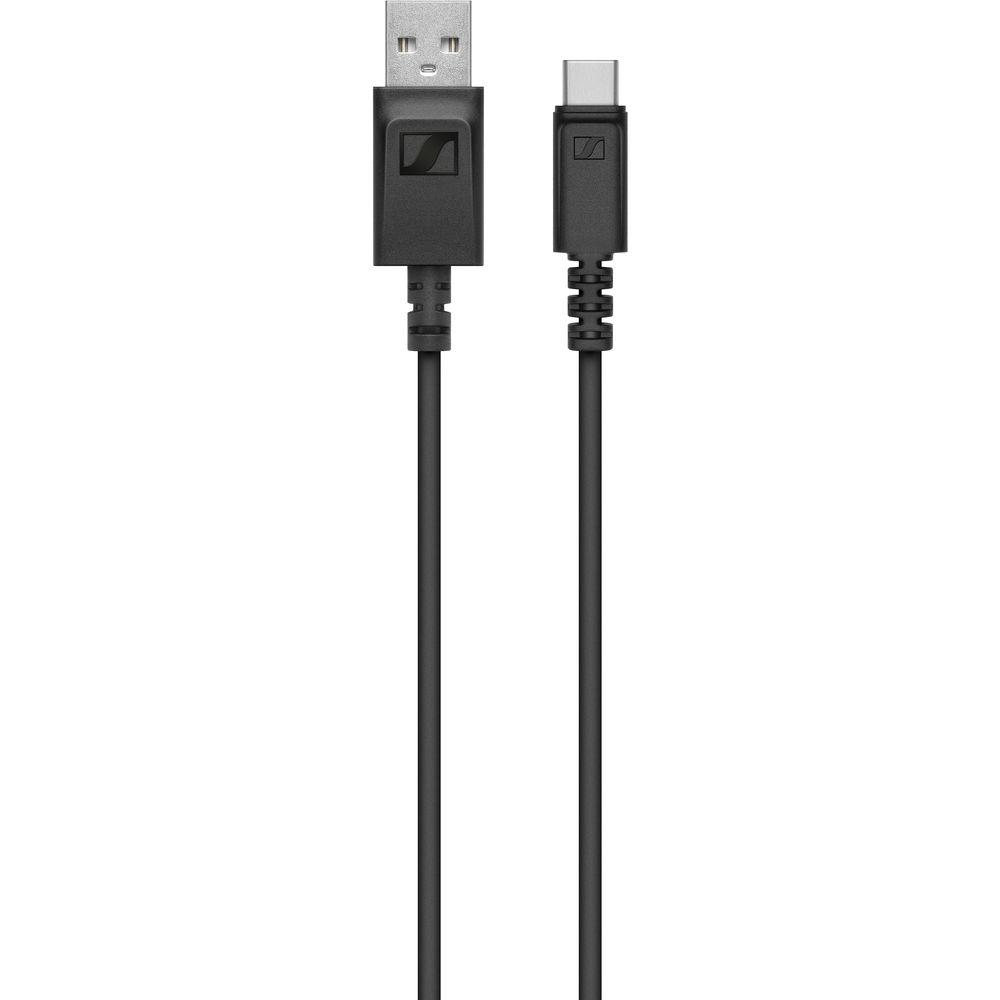

USB Type-A to USB Type-C Charging Cable
Limited 2-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the Sennheiser XSW-D LAVALIER SET Digital Wireless Omni Lavalier Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Sennheiser XSW-D LAVALIER SET Specs
Frequency Range
2.400 to 2.483 GHz
Latency
<4 ms with aptX Live Codec
Transmission Range
250' / 76.2 m (Line of Sight)
Simultaneous Operation of Units
Up to 5 Systems Simultaneously
Frequency Response
80 Hz to 18 kHz
Signal-to-Noise Ratio
≥106 dB
THD
<0.1 %
Modulation
GFSK with TDMA
Operating Temperature
-10 to 55° C / 14 to 131° F
Relative Humidity
95% (Non-Condensing)
Type
Bodypack Transmitter
Input Connector
1/8" / 3.5 mm TRS, Locking
RF Output Power
10 mW
Input Level
Mic-Level Input Only
Battery
Type: Built-In, USB-Rechargeable, Lithium-Ion Battery Life: 5 Hours Charging Time: 3 Hours (Typical) Charging Cycles: Up to 1000 Cycles Nominal Voltage: 3.7 V Cell Capacity: 850 mAh Input Voltage: 5.0 V (Typical) Charging Temperature: 32 to 140° F / 0 to 60° C
Type: Built-In, USB-Rechargeable, Lithium-Ion Battery Life: 5 Hours Charging Time: 3 Hours (Typical) Charging Cycles: Up to 1000 Cycles Nominal Voltage: 3.7 V Cell Capacity: 850 mAh Input Voltage: 5.0 V (Typical) Charging Temperature: 32 to 140° F / 0 to 60° C
Dimensions
4.3 x 0.9 x 1.1" / 109 x 24 x 28 mm
Weight
Not Specified by Manufacturer
Type
Me2-II Clip-On Lavalier Mic
Transducer
Permanent Polarized Condenser
Polar Pattern
Omnidirectional
Sensitivity
20 mV/Pa
EIN
36 dB
Maximum SPL
130 dB
Operating Voltage
7.5 V
Frequency Response
50 Hz to 18 kHz
Connector
1/8" / 3.5 mm, Locking
Windscreen
Integrated, Fixed
RF
100% Compliant RF Compatibility
Cable Length
5.2' / 1.6 m
Diameter
0.4" / 10.5 mm
Package Weight
0.765 lb
Box Dimensions (LxWxH)
9.9 x 4.7 x 2.8"
