Product description - SoundAcademy XSW-D Part 4 of 5 - Technical Details

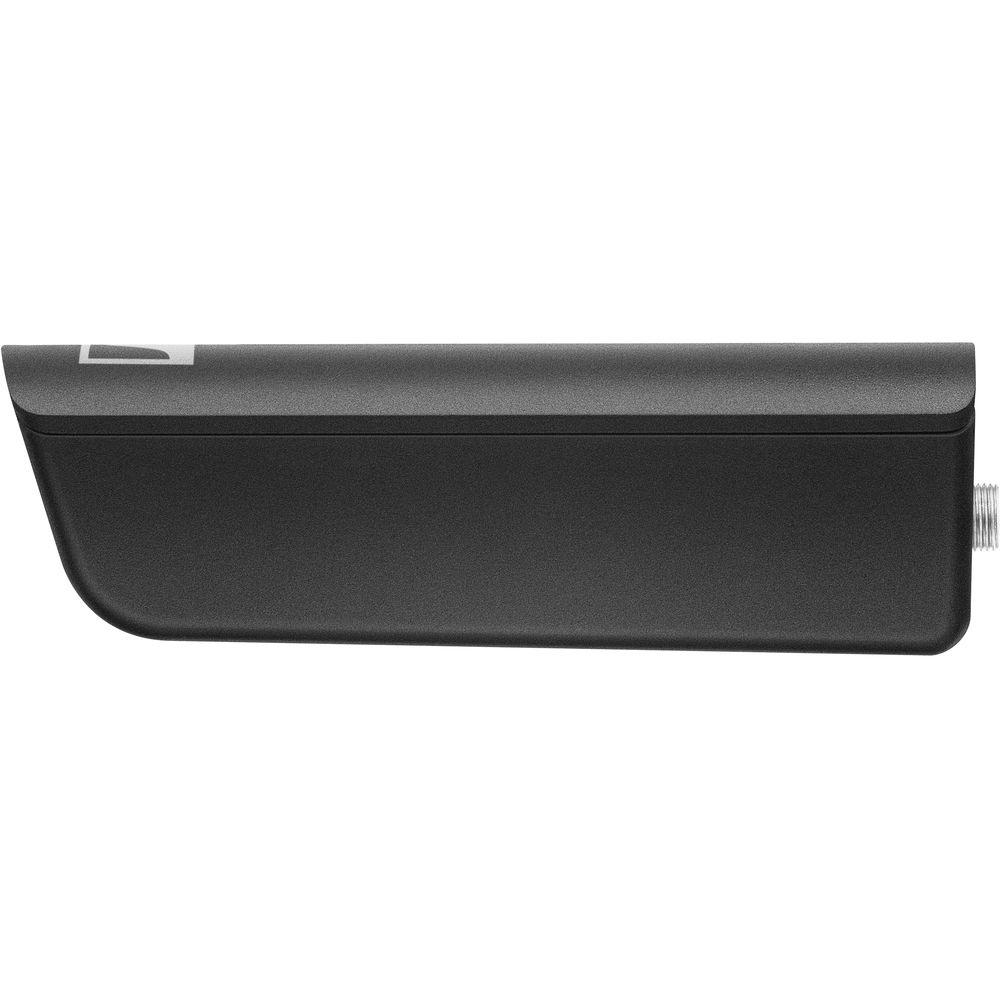

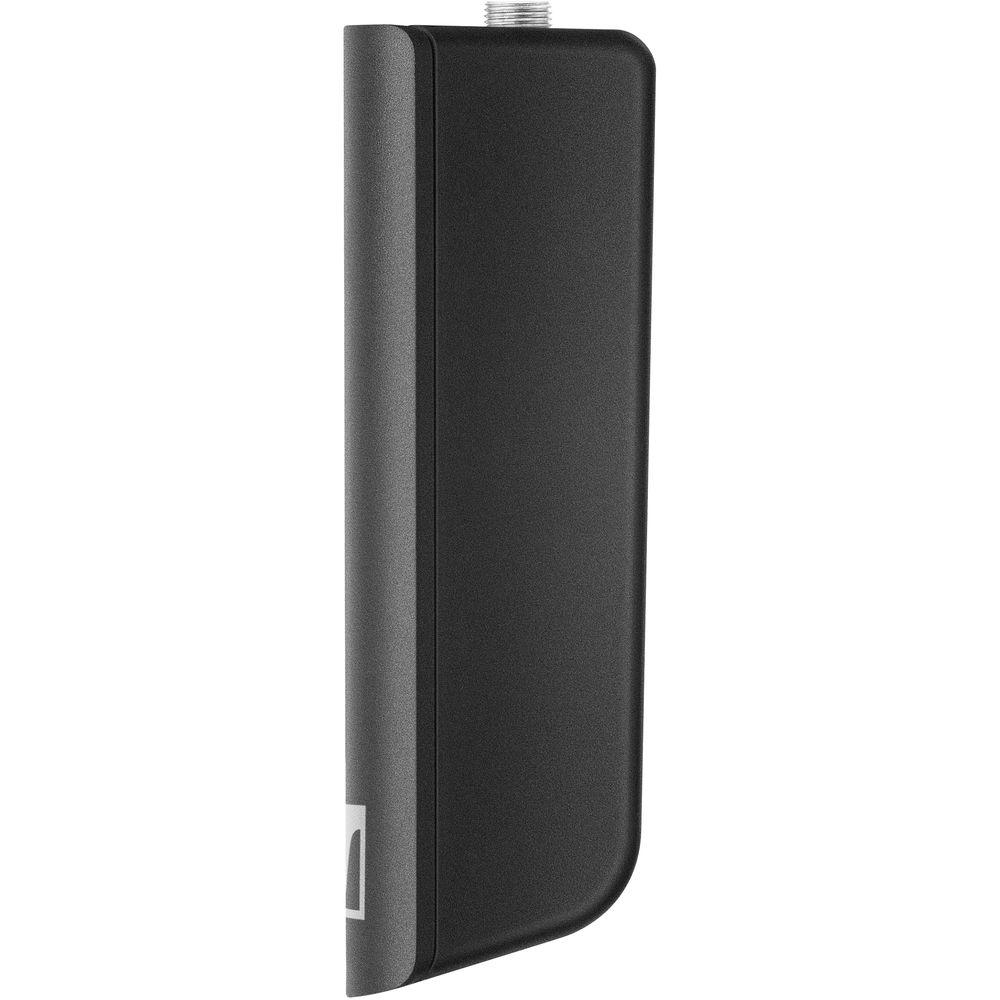

Part of the Sennheiser XSW-D digital wireless system, the XSW-D MINI JACK TX bodypack transmitter is available as an individual component when you're ready to add an additional transmitter to your system, or as a replacement unit. The XSW-D MINI JACK TX features a 3.5mm locking microphone input connector, ready to accommodate a Sennheiser or Sennheiser-compatible lavalier or headset mic. This exceptionally lightweight and compact transmitter can be easily concealed in your pocket or discreetly attached to your waist with a belt clip (available separately). Note that it is designed to transmit signal only from a microphone (not from a mixer or recorder). The XSW-D puts world-renowned Sennheiser wireless sound quality in a miniaturized, plug-and-record, 1-button digital system that anyone can use. Plug it in, power it up, and you're immediately up and running, instantly lightening your workload so you can concentrate on creating. - Plug In, Turn On: It Works
-

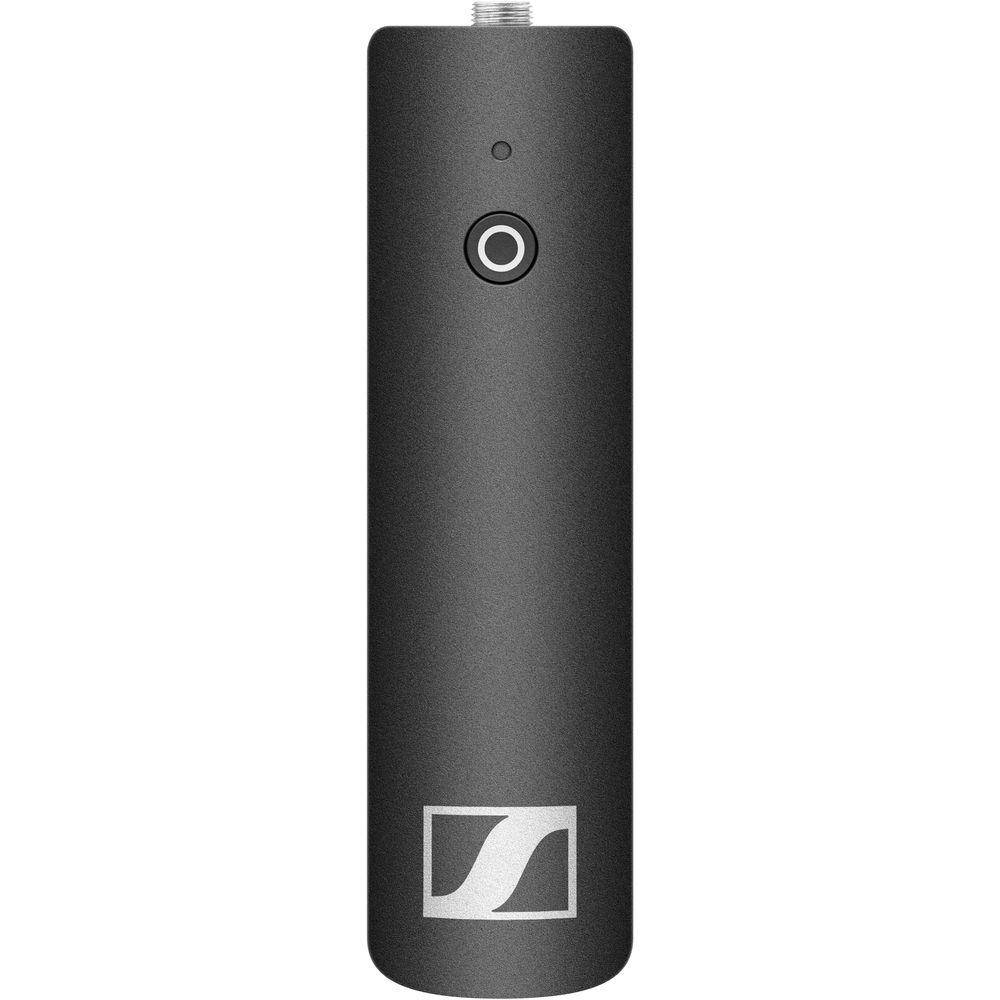

- The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you—without the need for any additional button pressing.
(For optimal results, use of the XSW-D is recommended in environments with limited Wi-Fi / 2.4 GHz traffic.) - Step Up to Sennheiser Sound Quality
-
- Sennheiser wireless mic systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.
- Easy 2.4 GHz Digital Wireless
-
- Nothing ruins a take like hearing the weather report coming through your mic. Unlike traditional analog wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, protecting the integrity of your signal from interruptions and drop outs caused by TV channels, radios, or other sources.
- Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel to provide reliable transmission at a distance up to 250' line of sight.
- License-Free Operation Worldwide
-
- Because the XSW-D system operates in the license-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination, and other technical hassles.
- Simply let the system pick a channel for you, and you're ready to get started—whether you're working at home or anywhere in the world.
- Other Features
-
- Eco-friendly USB-rechargeable lithium-ion battery—1-hour charging to reach 50% of battery time
- 5-hour total battery life gives you plenty of shooting time
- Conveniently recharge battery via USB while in operation or during breaks throughout the day
- Up to five systems can be operated simultaneously in the same environment
- Low 3.9 ms latency with aptX Live codec specifically designed to maximize digital wireless microphone performance
- Mute from either transmitter or receiver
- Multi-pairing lets you quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to one receiver at a time)

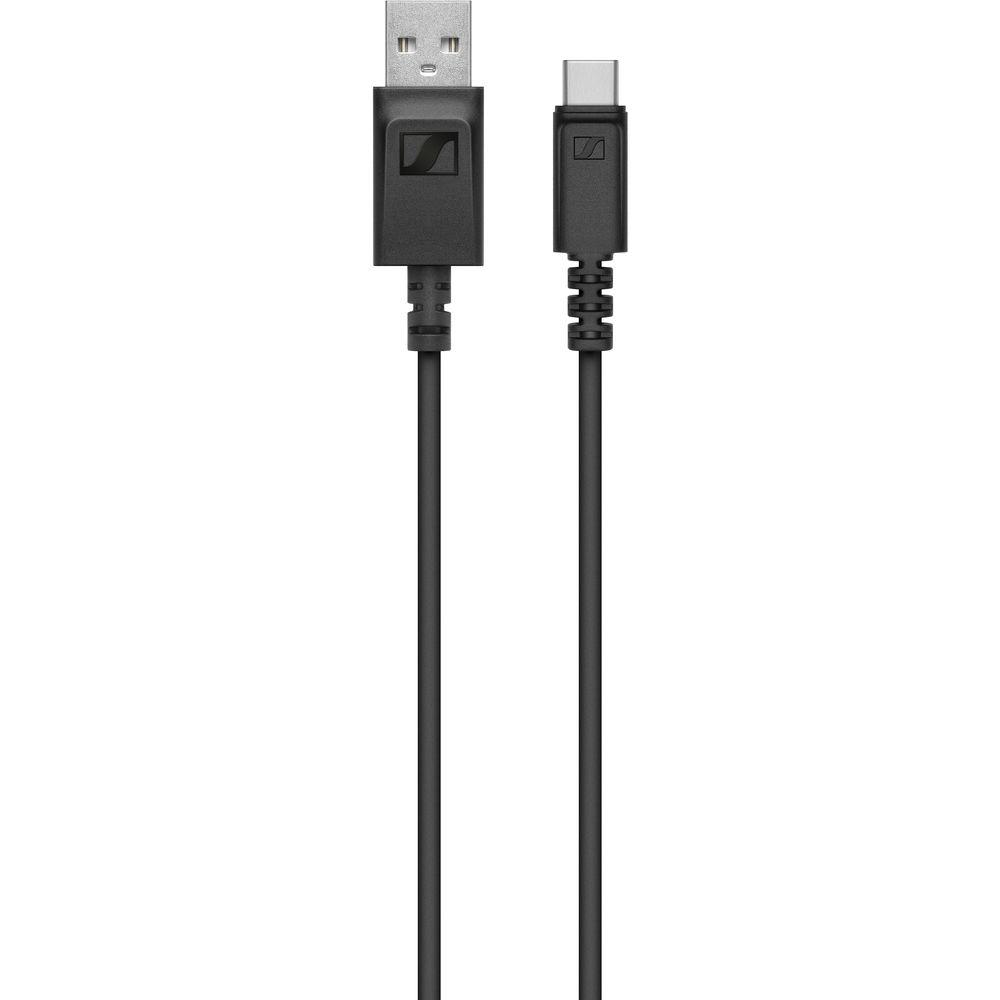

UPC: 615104317840 In the Box Sennheiser XSW-D MINI JACK TX Bodypack Transmitter (2.4 GHz) USB Type-A to USB Type-C Charging Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser XSW-D MINI JACK TX Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser XSW-D MINI JACK TX Specs | Wireless Transmission | Digital 2.4 GHz | | RF Frequency Band | 2400 to 2483.5 MHz | | Max Operating Range | 250' / 76.2 m (Line of Sight) | | Latency | <4 ms | | Encryption | None | | Modulation | GFSK | | | | Form Factor | Bodypack | | RF Output Power | 10 mW | | Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) | | Muting | Off/On Switch | | Audio Input Level | 1.2 dBu (Mic Level) | | Frequency Response | 80 Hz to 18 kHz | | Antenna | 1 x Internal | | Power Requirements | Battery, USB Bus Power | | Battery Type | 1 x Built-In Rechargeable(Not Replaceable) | | Internal Battery Capacity | 850 mAh | | Battery Charging Time | 3 Hours | | Approx. Battery Life | 5 Hours (Lithium Rechargeable) | | Battery Cycle Count | Up to 1000 Cycles | | USB Port | 1 x USB Type-C (Bus Power, Charging) | | Housing | Plastic | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 95% | | Dimensions | 1.1 x 3.4 x 0.9" / 28.0 x 86.0 x 24.0 mm |
