Product description

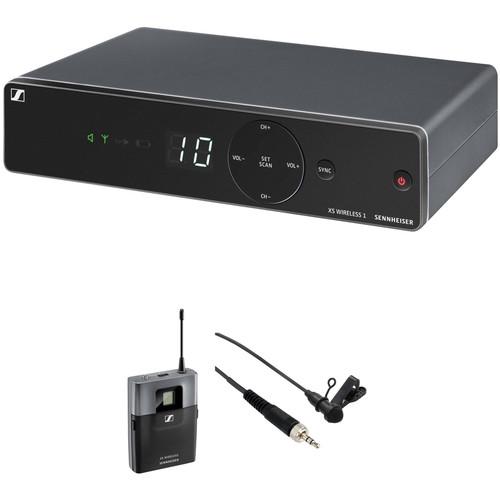

• Sennheiser EM-XSW 1-A Table Top Receiver (A: 548 to 572 MHz) The EM-XSW 1-A Table Top Receiver from Sennheiser is designed to be paired with the XSW 1-A handheld microphone or bodypack transmitter with a lavalier microphone (sold separately). It can be used to capture audio for live stage applications and features internal, integrated antennas, as well as automatic frequency management, which offers up to ten coordinated frequency presets for wireless applications. The receiver is built to withstand even the toughest stress in everyday on-stage use and offers reliable transmission with easy-to-use set up. No matter whether you're a band, a theater, or at a seminar, the XS Wireless 1 receiver lets you do your thing and not worry about equipment.
  Great Performance and Price
  • The XS Wireless 1 receiver lets you concentrate on your talent and not the equipment. Just switch it on and its automatic frequency management does the rest. You can operate up to 10 coordinated frequency preset wireless connections.
  Live Sound
  • The receiver yields an open, natural sound. No lengthy set up—just go!
  Reliable Transmission
  • On stage, you must put up with a lot of things—so does your equipment. XS Wireless 1 is built to last: Receivers are designed to withstand even the toughest stress in everyday on-stage use.
  UPC: 615104281820
• Sennheiser SK-XSW-A Bodypack Transmitter (A: 548 to 572 MHz) The SK-XSW-A Bodypack Transmitter from Sennheiser is designed to be paired with an EM-XSW1-A receiver (sold separately). It can be used to capture audio for live stage applications and features automatic frequency management, which offers up to ten coordinated frequency presets for wireless connections. The transmitter is sweat-resistant and can withstand even the toughest stress in everyday on-stage use.
  Great Performance and Price
  • The XS Wireless 1 lets you concentrate on your talent—and not the microphone equipment. Just switch it on and its automatic frequency management does the rest. You can operate up to ten wireless connections simultaneously.
  Live Sound
  • The transmitter yields an open, natural sound. No lengthy set up—just go!
  Reliable Transmission
  • On stage, you must put up with a lot of things—so does your equipment. XS Wireless 1 is built to last: Transmitters are sweat-resistant and withstand even the toughest stress in everyday on-stage use.
  UPC: 615104281998
• Senal OLM-2 Lavalier Microphone with 3.5mm Connector for Sennheiser ew & Senal AWS-2000 Series This Senal OLM-2 Lavalier Microphone is a high-performance professional lavalier microphone with a locking 1/8" connector for Sennheiser ew and Senal AWS-2000 wireless transmitters. Its miniature, lightweight design allows for discrete placement without compromising sound quality. This versatile workhorse microphone is ideal for broadcast, video, and stage applications.

  Utilizing a broadcast-quality electret condenser element, it features a smooth frequency response and a wide dynamic range. Its omnidirectional polar pattern enables 360° sound pickup, capturing a natural blend of voice and ambiance with low sensitivity to wind and handling noise, as well as to vocal plosives. In addition to being designed to connect to a Sennheiser or Senal bodypack transmitter, the OLM-2 can be combined with the Senal PS-48B Power Supply (sold separately) to operate on phantom or battery power, enabling it to plug into any XLR microphone input.
  • Gold-plated locking 1/8" connector for Sennheiser ew and Senal AWS-2000 wireless transmitters
  • Metal windscreen reduces wind noise and vocal plosives
  • Tie clip for securing mic to clothing
  • 16.3 x 6.5mm (length x diameter) head size
  UPC: 847628562639

• EM-XSW 1-A Table Top Receiver (A: 548 to 572 MHz) eqzdvrrtwettzszvcxtvewuf
• Limited 2-Year Warranty

• SK-XSW-A Bodypack Transmitter (A: 548 to 572 MHz)

• Senal - OLM-2 Lavalier Microphone with 3.5mm Connector for Sennheiser ew & Senal AWS-2000 Series

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser EM-XSW 1-A Table Top Receiver (A: 548 to 572 MHz)

  Modulation	Wideband FM
  Frequency Range	A: 548 to 572 MHz
  Switching Bandwidth	Up to 24 MHz
  Signal to Noise Ratio	≥ 103 dBA
  Total Harmonic Distortion	≤ 0.9%
  Temperature Range	Operation: 32 to 104°F (0 to +40°C)
  Storage	-4 to 158°F (-20 to 70°C)
  Transmitter Synchronization	2.4 GHz, Low Power OQPSK (only active during synchronization)

  Principle	Double superheterodyne
  Diversity	Antenna switching diversity via internal antennas
  Sensitivity	< 3 μV at 52 dBA RMS S/N (at peak deviation)
  Frequency Response	50 Hz to 16 kHz (-3 dB)
  Max Output Voltage	At Peak Deviation, 1 kHz AF 1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu XLR Socket (balanced): +12 dBu
  Adjustment Range	Audio: 45 dB, adjustable in 5-dB steps
  Power Supply	12 VDC nominal/300 mA
  Squelch	Adjustable from 3 to 28 dB μV (combined with pilot tone)
  Line/Mic Level	20 dB, switchable
  Material of Construction	ABS housing
  Dimensions (W x H x D)	7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)
  Weight	12 oz (340 g)

  Box Dimensions (LxWxH)	10.9 x 10.0 x 3.3"

• Sennheiser SK-XSW-A Bodypack Transmitter (A: 548 to 572 MHz)

  Modulation	Wideband FM
  Frequency Range	A: 548 to 572 MHz
  Switching Bandwidth	Up to 24 MHz
  Frequencies	8 frequency banks, each with up to 10 factory-preset channels
  Signal to Noise Ratio	≥ 103 dBA
  Total Harmonic Distortion	≤ 0.9%
  Temperature Range	Operation: 32 to 104°F (0 to +40°C)
  Storage	-4 to 158°F (-20 to 70°C)
  Transmitter Synchronization	2.4 GHz, Low Power OQPSK (only active during synchronization)

  Output Power	10 mW
  Frequency Response	Line: 50 Hz to 16 kHz Mic: 50 Hz to 16 kHz
  Audio Input	1/8" (3.5 mm) jack socket
  Input Voltage	Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
  Power Supply	2 x AA batteries, 1.5 V
  Operating Time	Approximately 10 hours
  Adjustment Range	Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
  Material of Construction	Rugged ABS housing
  Dimensions (W x H x D)	2.8 x 3.8 x 1.1" (71 x 96 x 28 mm)
  Weight	3.4 oz (95 g)

  Box Dimensions (LxWxH)	10.9 x 9.9 x 3.3"

• Senal OLM-2 Lavalier Microphone with 3.5mm Connector for Sennheiser ew & Senal AWS-2000 Series

  Transducer	Electret condenser
  Polar Pattern	Omnidirectional
  Frequency Response	50 Hz to 20 kHz
  Sensitivity	-63 dB ±3 dB (0 dB = 1 v/microbar @ 1 kHz)
  Impedance	15,000 Ω ±30% @ 1 kHz
  Operating Voltage	1 - 10 VDC
  Connector	Gold-plated 1/8" (3.5 mm) locking connector jack
  Cable Length	5.3' (1.6 m)
  Head Diameter	0.3" (6.5 mm)
  Head Length	0.6" (16.3 mm)
  Total Weight	1 oz (28.3 g)

  Box Dimensions (LxWxH)	3.4 x 3.3 x 1.6"
