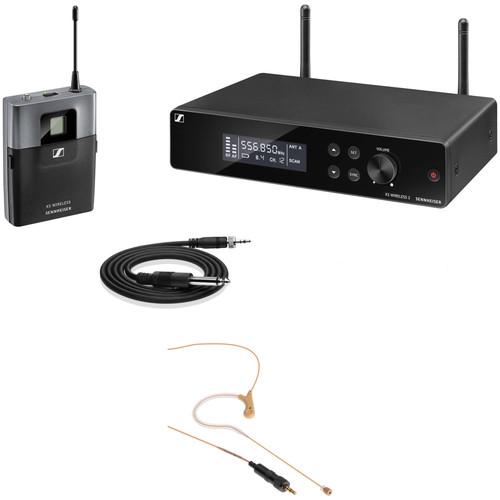

User Manual for Sennheiser XSW2-CI1 Rackmount Wireless Earset Microphone System Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser XSW2-CI1 Rackmount Wireless Earset Microphone
- Product category: Wireless Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Systems
|
User manual for the Sennheiser XSW2-CI1 Rackmount Wireless Earset Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The beige Sennheiser XSW2-CI1 Rackmount Wireless Earset Microphone System Kit from B&H provides speakers, educators, panelists, and moderators with an easy-to-use, cost-effective, and reliable solution for presentations, public speaking, interviews, lectures, and more.
The kit comes with a beige, low-profile Senal UEM-155-35H omnidirectional earset microphone, an SK-XSW bodypack transmitter, and an EM-XSW 2 true-diversity rackmount receiver with external antennas, for clean signal even on the busiest stages. - Sennheiser XSW2-CI1 Wireless 2 Instrument System (A: 548 to 572 MHz) The XSW2-CI1 Wireless 2 Instrument System features a true diversity receiver, a compact bodypack transmitter, and a robust instrument cable with a 1/4" jack. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for electric bass, guitar, and keyboard instruments for live-sound applications. The unit is built with automatic frequency management and synchronization so you don't have to scramble to find an available channel. The system offers an intuitive LCD display, two external antennas, a compact bodypack transmitter, and an instrument cable. Additionally, built with a metal receiver housing, the system also includes a rackmount kit, power supply, carry pouch, and two AA batteries.
- True diversity receiver with metal housing
- Automatic frequency management and synchronization
- Remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Up to 12 compatible channels
UPC: 615104279759 - Senal UEM-155-35H-BE Omni Earset Microphone with 3.5mm Locking Connector for Sennheiser Transmitters (Beige) The Beige UEM-155-35H-BE Omnidirectional Earset Microphone with 3.5mm Locking Connector for Sennheiser Transmitters from Senal is a low-profile, lightweight, and miniature hands-free microphone with a flexible boom arm that can be worn on either ear. It can be used to deliver rich, accurate, and natural-sounding audio in vocal and speech applications for theater performances, lectures, houses of worship, and more. The adjustable ear loop comfortably conforms to your ear, and the boom can be precisely placed to deliver an accurate sound. The UEM-155 microphone capsule is optimized to capture rich and natural-sounding speech or vocals, and provides high gain before feedback. The microphone's proximity to the mouth assures accuracy and clarity.
- For Sennheiser Bodypack Transmitters
- The UEM-155 features a 3.5mm Locking connector for connectivity with Sennheiser Bodypack Transmitters. The four-foot cable is long enough that it won't restrict your movements while speaking or performing.
- Speech and Vocals
- The UEM-155 is optimized for the voice. It features a rich and natural sound, whether you're speaking or singing. Proximity to the microphone limits volume fluctuations and assures that the mic is always in a suitable position to capture your voice.
- Omnidirectional Polar Pattern
- The miniature omnidirectional capsule ensures low sensitivity to vocal pops or plosives. Its accurate and natural sound eliminates the proximity effect, which can make your voice sound deep and boomy as you move closer to the microphone.
- Low Profile
- Thanks to the narrow mic boom, an earpiece that tucks neatly behind your ear, and the option of black or tan colors, the UEM-155 is inconspicuous and won't be a distraction to your audience.
- High Gain Before Feedback
- The UEM-155 has been optimized to drastically reduce the possibility of feedback that can interrupt programs and performances. This microphone can tolerate high levels of amplification, so you can use it in large rooms or when performing on a loud, live stage environment.
- Windscreen and Clothing Clip
- For the quietest performance, the included windscreen minimizes unwanted noise from wind or moving air. The clothing clip affixes the mic cable to clothes and prevents handling or cable noise.
UPC: 847628002173 In the Box - XSW2-CI1 Wireless 2 Instrument System (A: 548 to 572 MHz) eqzdvrrtwettzszvcxtvewuf
- EM-XSW 2 Receiver
- SK-XSW Bodypack Transmitter
- 1/4" to 1/8" Instrument Cable
- 2 x AA Batteries
- NT 12-5 CW Power Supply
- Rackmount Kit
- Protective Pouch
- Limited 2-Year Warranty
- Senal - UEM-155-35H-BE Omni Earset Microphone with 3.5mm Locking Connector for Sennheiser Transmitters (Beige)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser XSW2-CI1 Rackmount Wireless Earset Microphone System Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser XSW2-CI1 Wireless 2 Instrument System (A: 548 to 572 MHz)
| | | Modulation | Wideband FM | | Frequency Range | A: 548 to 572 MHz | | Switching Bandwidth | Up to 24 MHz | | Frequencies | Adjustable in 25-kHz steps
8 frequency banks, each with up to 12 factory-preset channels | | Signal to Noise Ratio | ≥ 103 dBA | | Total Harmonic Distortion (THD) | ≤ 0.9% | | Temperature Range | Operation: 32 to 104°F (0 to +40°C)
Storage: -4.0 to 158°F (-20 to +70°C) | | Transmitter Synchronization | 2.4 GHz, low power OQPSK (only active during synchronization) | | | | Principle of Operation | Double superheterodyne | | Diversity Method | True diversity | | Sensitivity | < 3 µV at 52 dBA rms S/N at (peak deviation) | | Frequency Response | 50 Hz to 16 kHz (-3 dB) | | Maximum AF Output Voltage | At peak deviation, 1 kHz AF
1/4" (6.3 mm) Jack Socket (Unbalanced): +6 dBu
XLR Socket (Balanced): +12 dBu
At peak deviation, 1 kHz AF | | Adjustment Range | Audio: 40 dB, adjustable in 5-dB steps | | Power Supply | 12 VDC nominal/300 mA | | Squelch | Adjustable from 3 dBμ V to 28 dBμ V (combined with pilot tone) | | Line/Mic Level | 20 dB, switchable | | Housing Material | Rugged metal housing | | Dimensions (W x H x D) | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) | | Weight | 24 oz (680 g) | | | | RF Output Power | 10 mW | | AF Frequency Response | 50 Hz to 16 kHz (Line)
80 Hz to 16 kHz (Mic) | | Audio Input | 1/8" (3.5 mm) jack socket | | Input Voltage | Maximum at 3% THD:
Mic: Typ. 1.5 V rms
Line: Typ. 2.6 V rms @ -30 dB gain | | Power Supply | 2 x AA size batteries, 1.5 V | | Operating Time | Approximately 10 hours | | Sensitivity Adjustment | Range: 0 to -30 dB, adjustable in 10-dB steps | | Housing Material | Rugged ABS housing | | Dimensions (W x H x D) | 2.8 x 3.8 x 1.1" (71 x 96 x 28 mm) approximate | | Weight | 3.4 oz (95 g) approximate | | | | Box Dimensions (LxWxH) | 13.6 x 13.4 x 3.4" | - Senal UEM-155-35H-BE Omni Earset Microphone with 3.5mm Locking Connector for Sennheiser Transmitters (Beige)
| | | Sound Field | Mono | | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 50 Hz to 18 kHz | | Impedance | 1.5 kOhms ± 30% @ 1 kHz | | Sensitivity | -60 dB | | | | Output Connector | 1/8" (3.5 mm) Locking | | Cable Length | 4' / 1.22 m | | Operating Voltage | 1 to 10 V | | Length | 6" / 152.40 mm | | Diameter | 0.2" / 5.08 mm | | Weight | 0.3 oz / 9 g | | | | Box Dimensions (LxWxH) | 7.0 x 4.5 x 1.1" |
