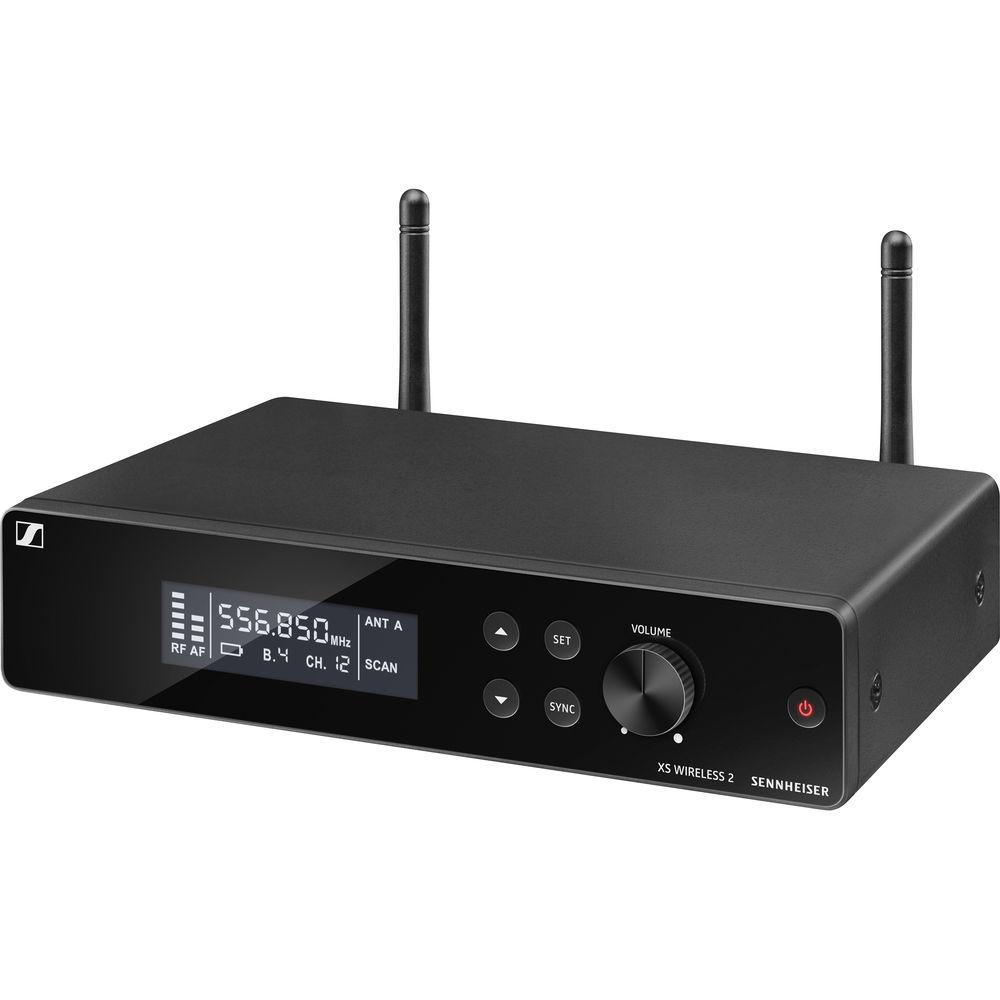

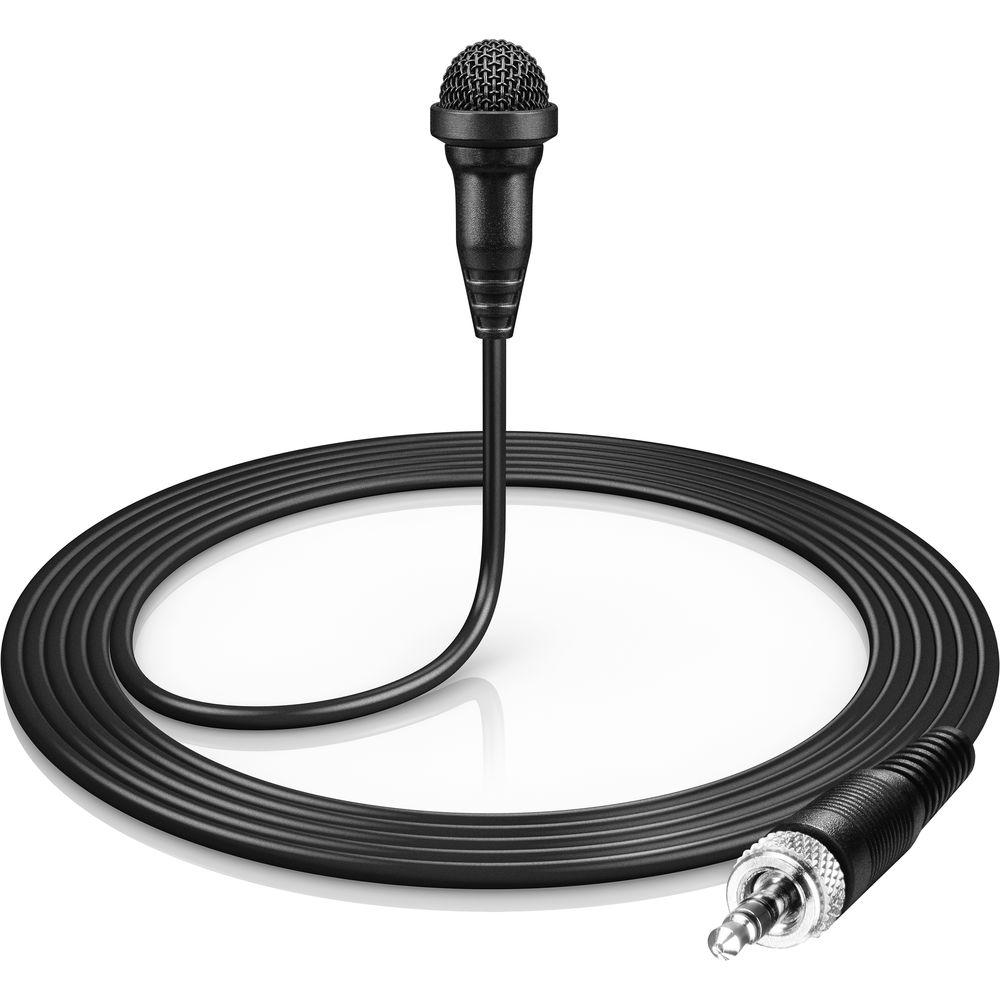

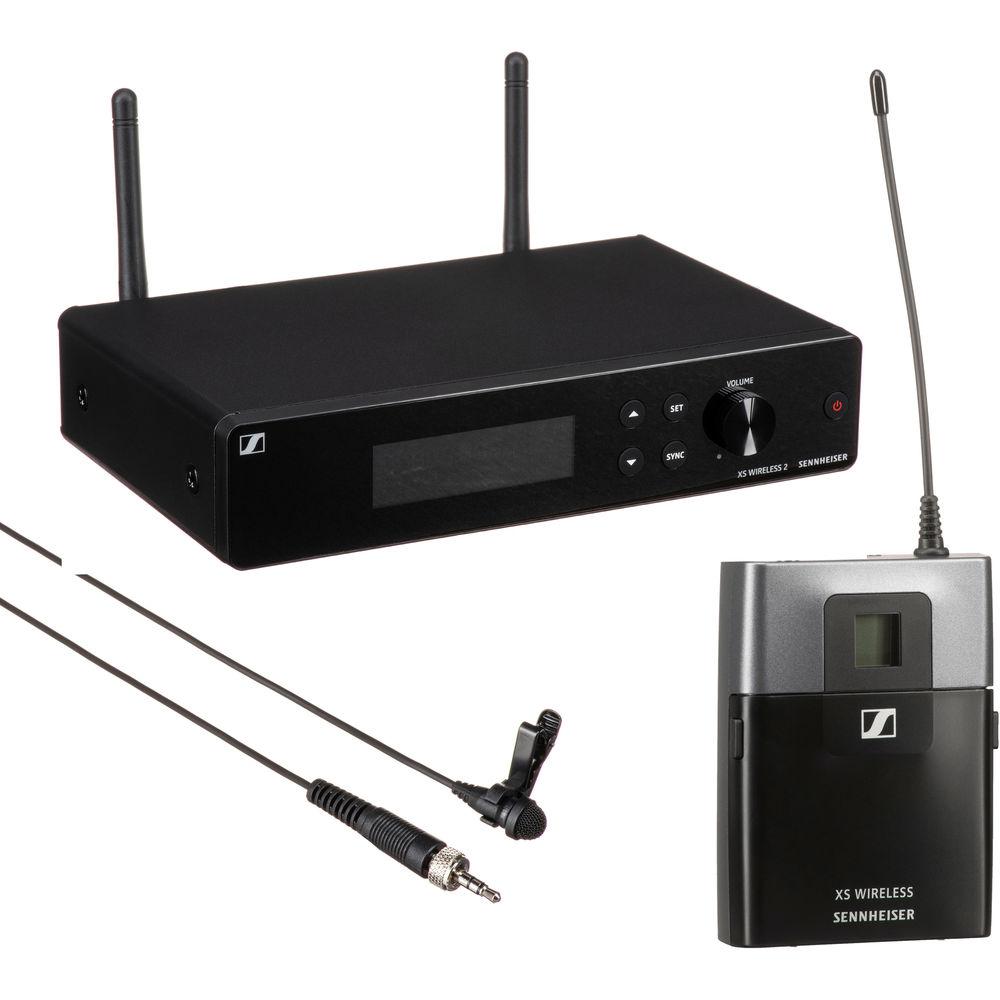

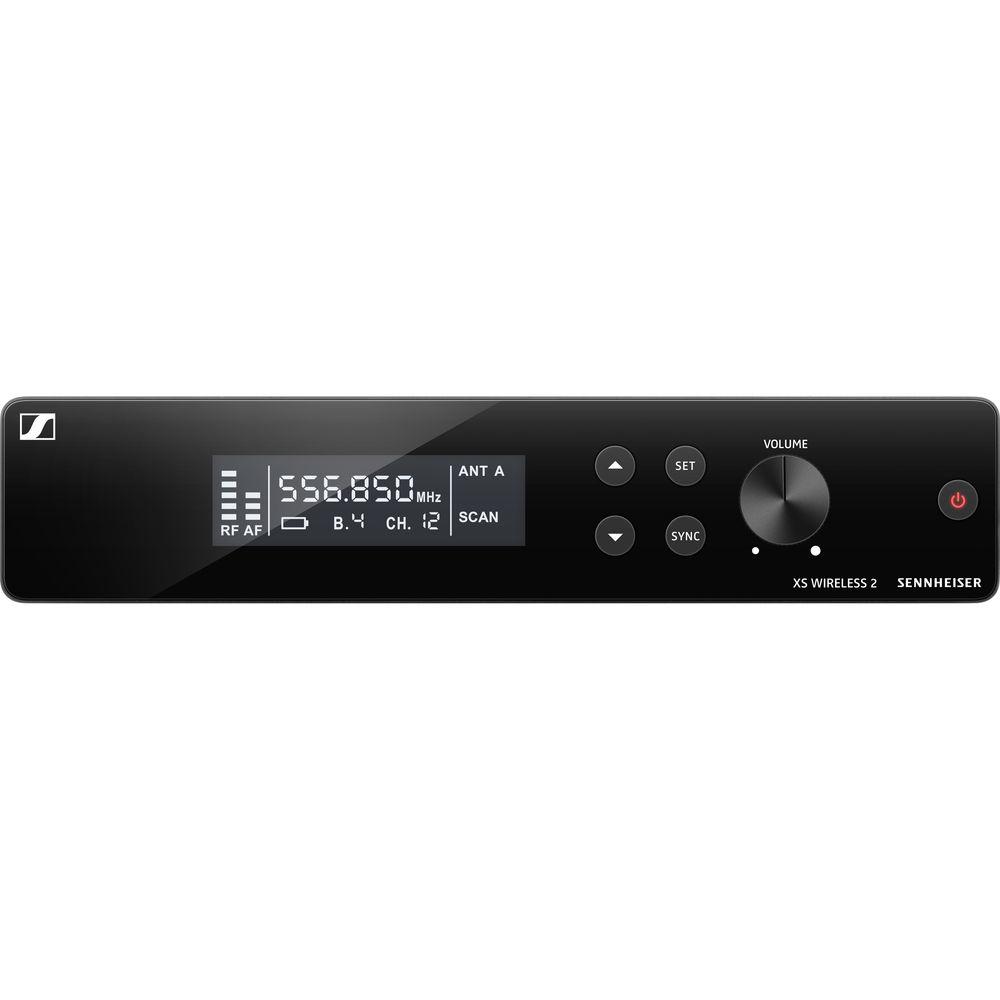

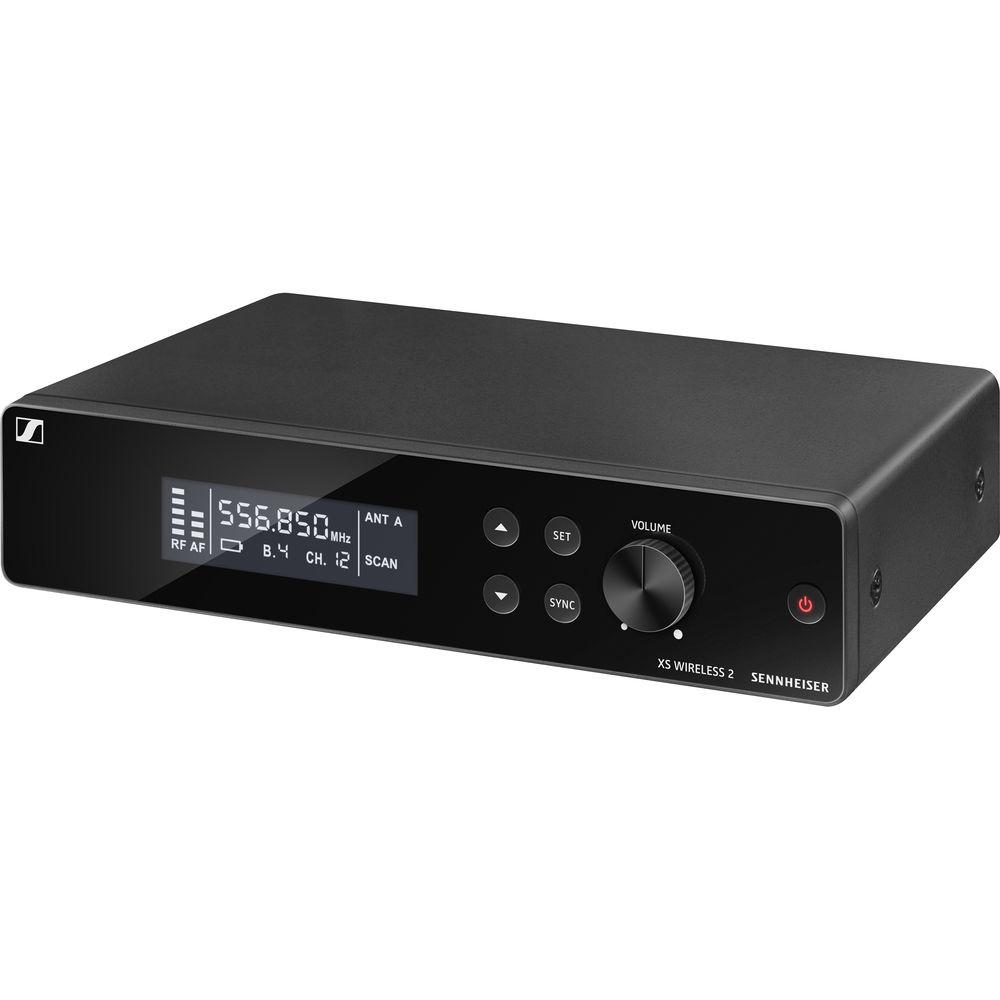

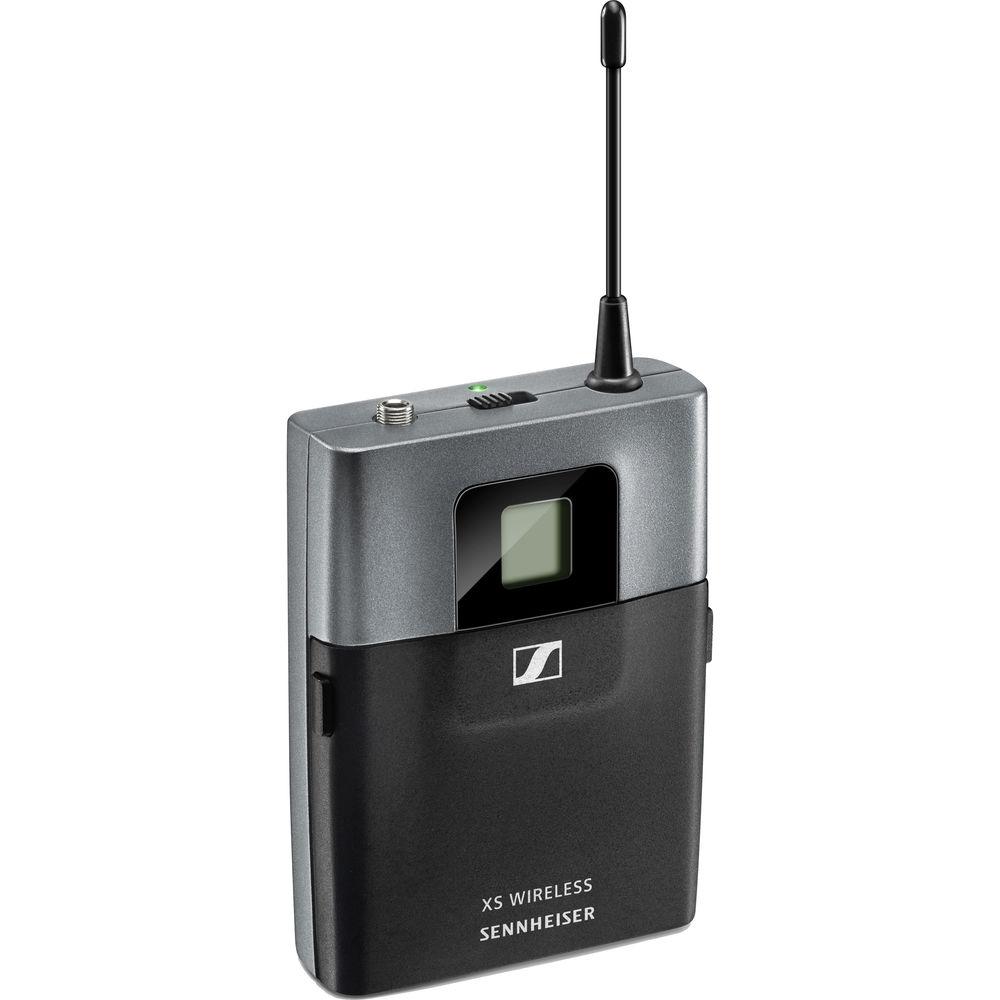

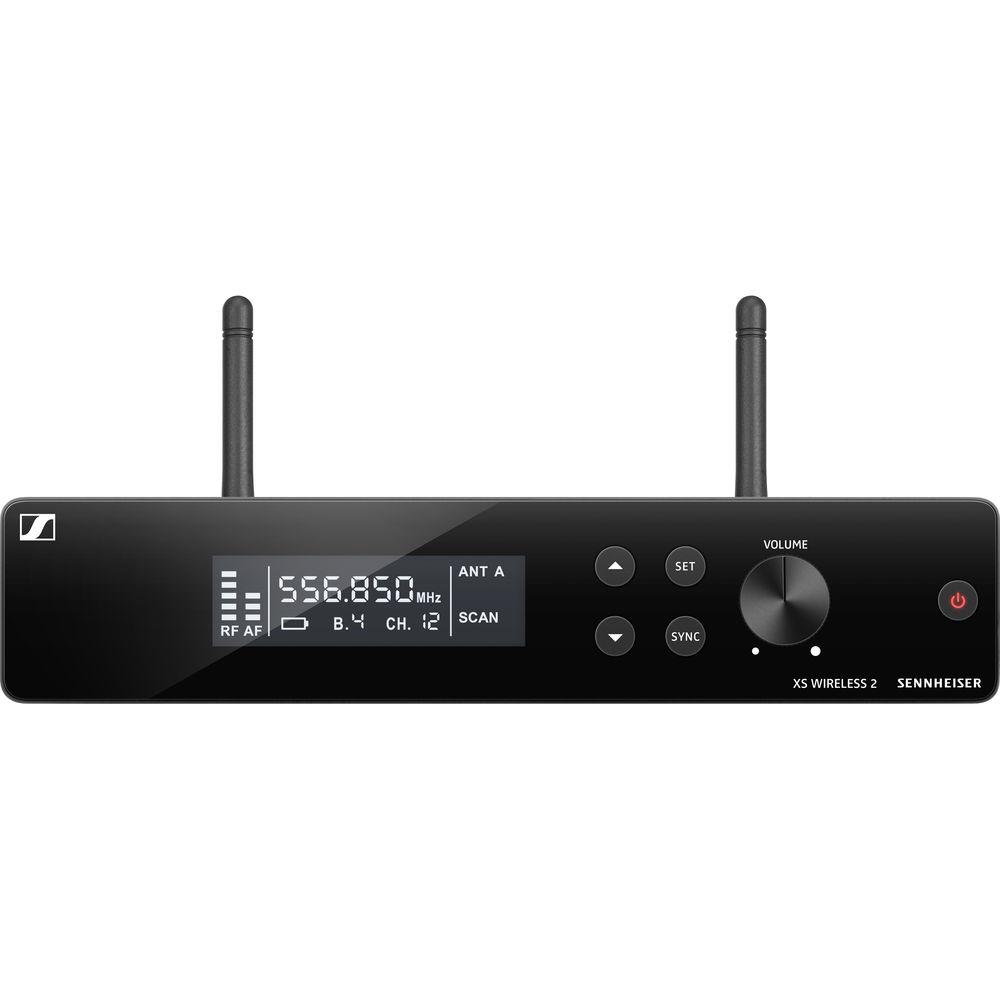

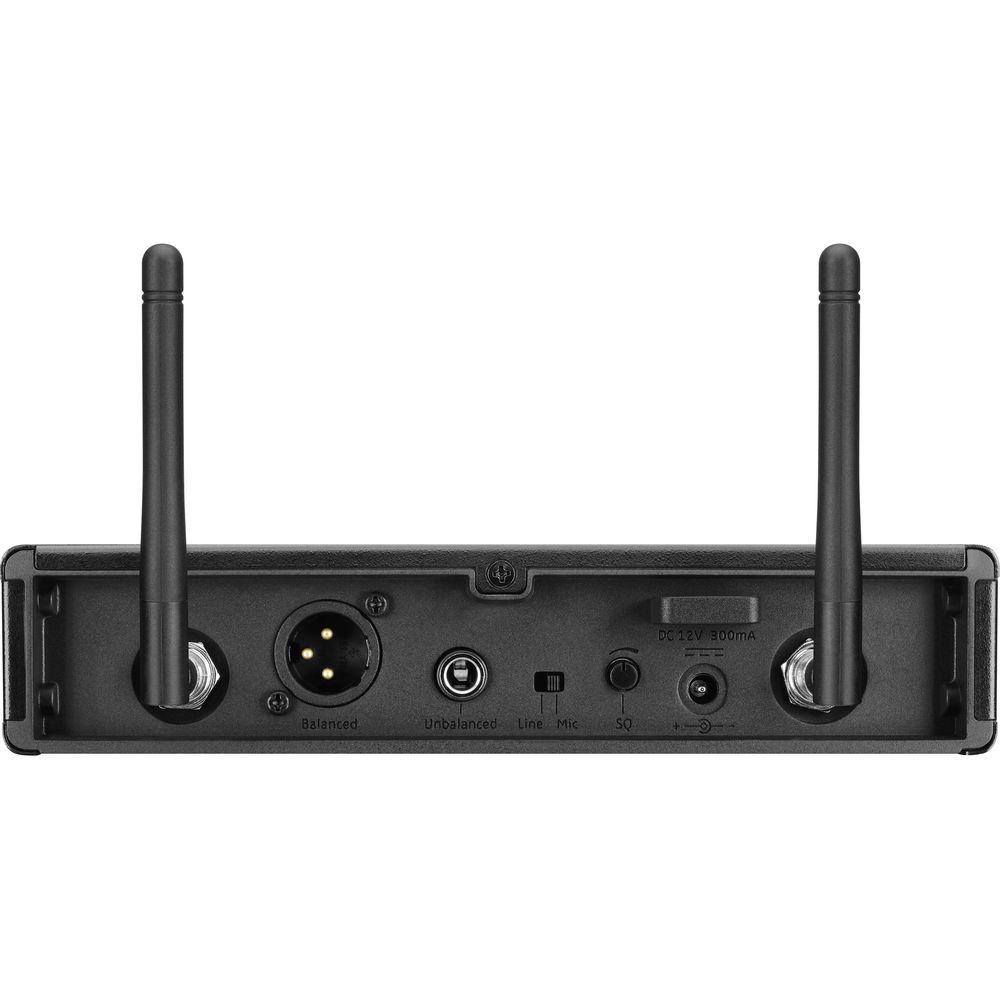

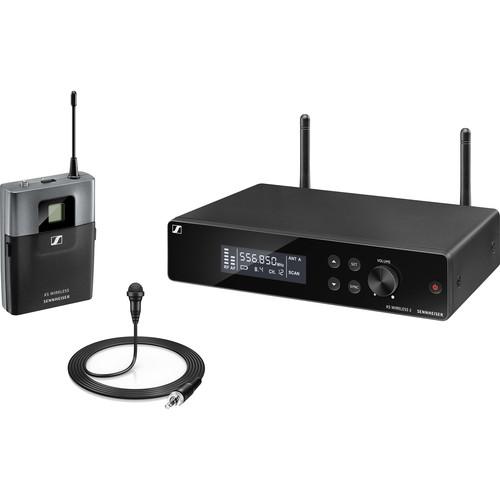

Product description Sennheiser XSW 2: Wireless Rigs for Vocals and Instruments Alike Read More The XSW2-ME2 Wireless Lavalier Microphone System features a true diversity receiver, a compact bodypack transmitter, and an ME 2-2 lavalier microphone with a locking 1/8" mini-jack connector. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for presenters, moderators, and other live-sound applications. The system is built with automatic frequency management and synchronization so you don't have to scramble to find an available channel. It offers an intuitive LCD display, two external antennas, and is built with a metal receiver housing. In addition, a rackmount kit, power supply, carry pouch, and two AA batteries are also included. - Unobtrusive clip-on ME 2-2 microphone for hands-free operation and a compact bodypack transmitter
- True diversity receiver with metal housing
- Automatic frequency management and synchronization
- Remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Up to 12 compatible channels
UPC: 615104279377 In the Box Sennheiser XSW2-ME2 Wireless Lavalier Microphone System (A: 548 to 572 MHz) EM-XSW 2 Receiver SK-XSW Bodypack Transmitter ME 2-II Omnidirectional Lavalier Microphone (Black) 2 x AA Batteries NT 12-5 CW Power Supply Rackmount Kit Protective Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser XSW2-ME2 Wireless Lavalier Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser XSW 2-ME2-A Specs | | | Modulation | Wideband FM | | Frequency Range | A: 548 to 572 MHz | | Switching Bandwidth | Up to 24 MHz | | Frequencies | Adjustable in 25-kHz steps
8 frequency banks, each with up to 12 factory-preset channels | | Signal to Noise Ratio | ≥ 103 dBA | | Total Harmonic Distortion (THD) | ≤ 0.9% | | Temperature Range | Operation: 32 to 104°F (0 to +40°C)
Storage: -4.0 to 158°F (-20 to +70°C) | | Transmitter Synchronization | 2.4 GHz, low power OQPSK (only active during synchronization) | | | | Principle of Operation | Double superheterodyne | | Diversity Method | True diversity | | Sensitivity | < 3 µV at 52 dBA rms S/N at (peak deviation) | | Frequency Response | 50 Hz to 16 kHz (-3 dB) | | Maximum AF Output Voltage | At peak deviation, 1 kHz AF

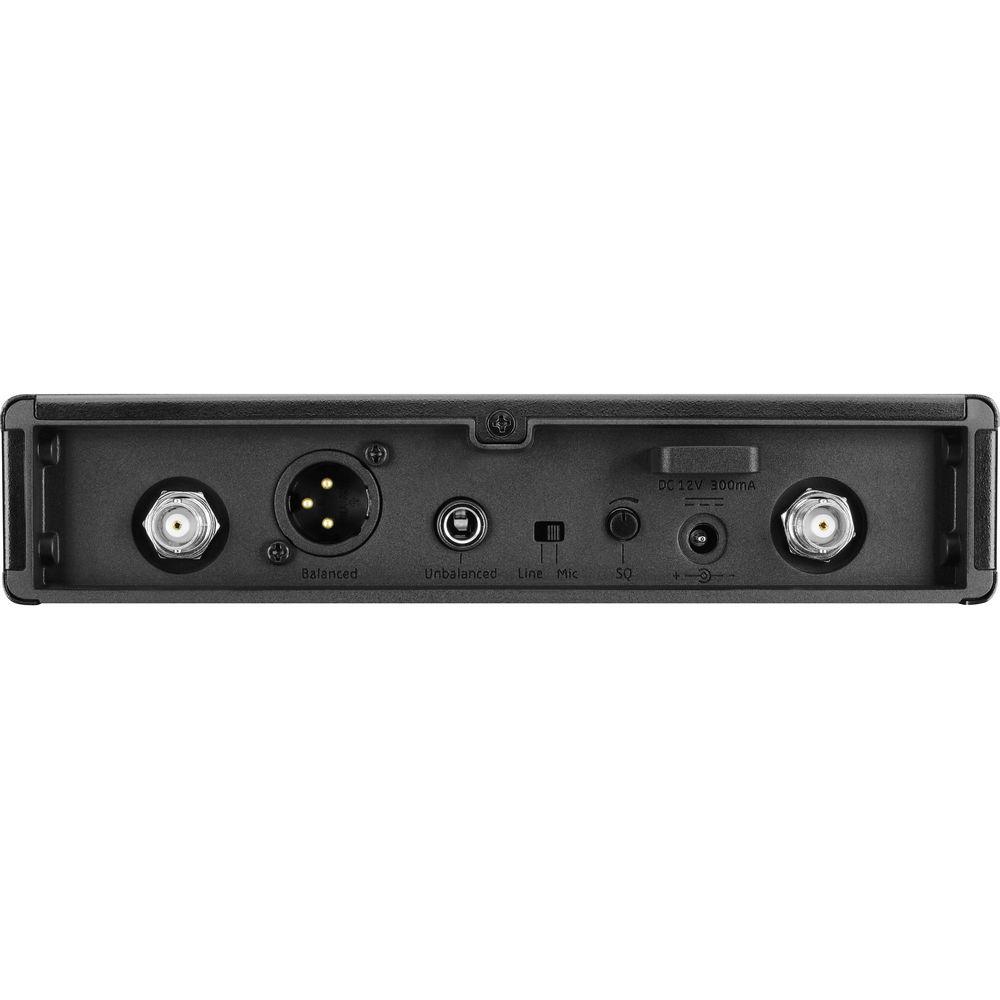

1/4" (6.3 mm) Jack Socket (Unbalanced): +6 dBu
XLR Socket (Balanced): +12 dBu
At peak deviation, 1 kHz AF | | Adjustment Range | Audio: 40 dB, adjustable in 5-dB steps | | Power Supply | Nominal Input: 100 to 240 VAC 50/60 Hz
Input Current: 200 mA (Max.)
Nominal Output: 12 VDC 300 mA | | Squelch | Adjustable from 3 dBμ V to 28 dBμ V (combined with pilot tone) | | Line/Mic Level | 20 dB, switchable | | Housing Material | Rugged metal housing | | Dimensions (W x H x D) | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) | | Weight | 24 oz (680 g) | | | | RF Output Power | 10 mW | | AF Frequency Response | 50 Hz to 16 kHz (Line)
80 Hz to 16 kHz (Mic) | | Audio Input | 1/8" (3.5 mm) jack socket | | Input Voltage | Maximum at 3% THD:
Mic: Typ. 1.5 V rms
Line: Typ. 2.6 V rms @ -30 dB gain | | Power Supply | 2 x AA size batteries, 1.5 V | | Operating Time | Approximately 10 hours | | Sensitivity Adjustment | Range: 0 to -30 dB, adjustable in 10-dB steps | | Housing Material | Rugged ABS housing | | Dimensions (W x H x D) | 2.8 x 3.8 x 1.1" (71 x 96 x 28 mm) approximate | | Weight | 3.4 oz (95 g) approximate | | | | Transducer Principle | Condenser, pre-polarized | | Sensitivity | 20 mV/Pa | | Pickup Pattern | Omnidirectional | | Maximum SPL | 130 dB | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 13.7 x 13.3 x 3.4" |
