User Manual for Sensei Pro 100mm Aluminum Universal Filter Holder Click to enlarge the picture
Contents of the user manual for the Sensei Pro 100mm Aluminum Universal Filter
- Product category: Filter Holders & Frames Sensei
- Brand: Sensei
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sensei Filter Holders & Frames
 |
User manual for the Sensei Pro 100mm Aluminum Universal Filter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sensei product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sensei user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sensei product will considerably shorten its lifespan!
|

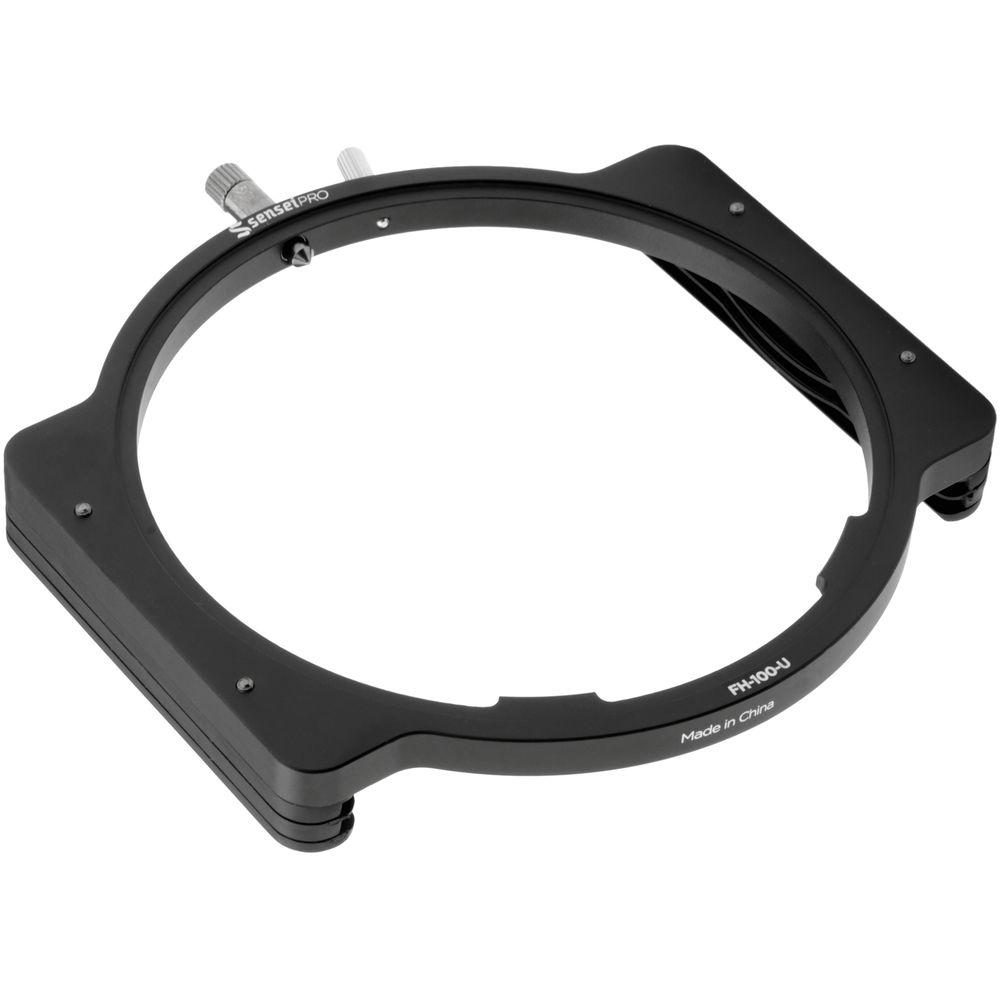

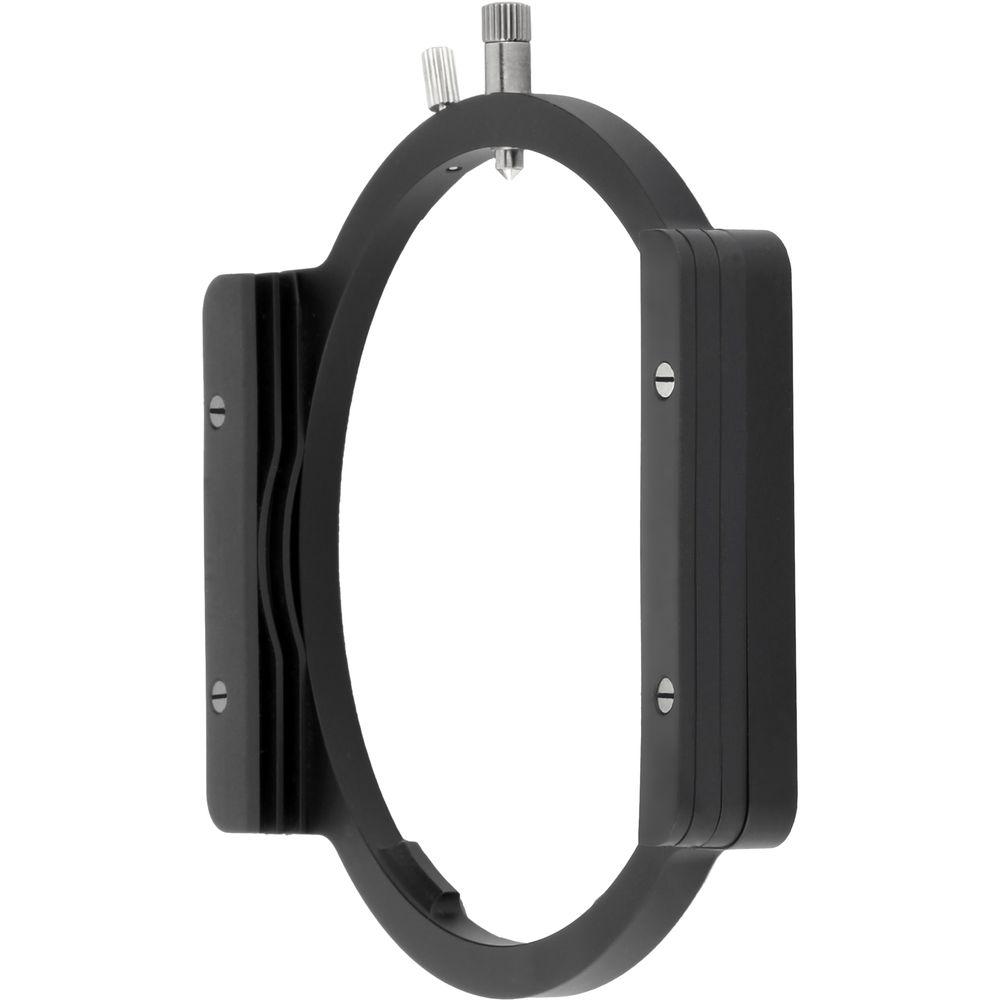

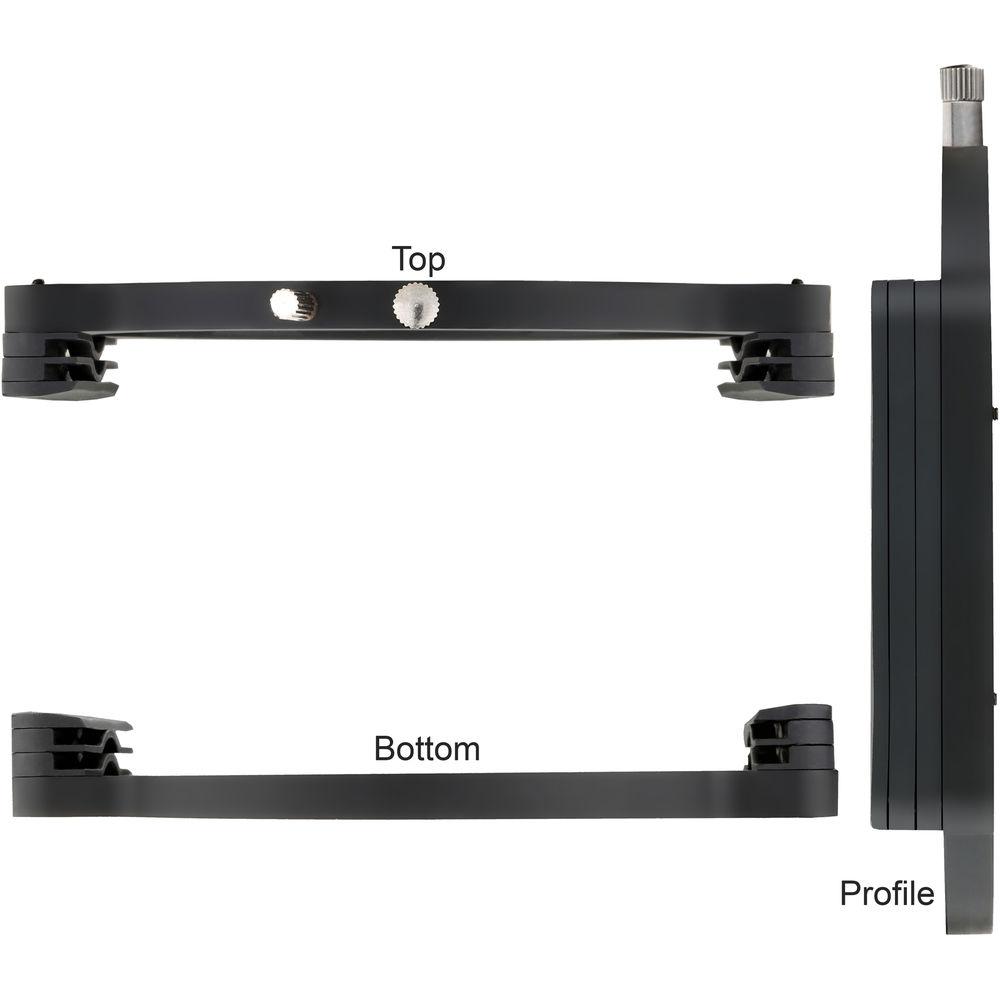

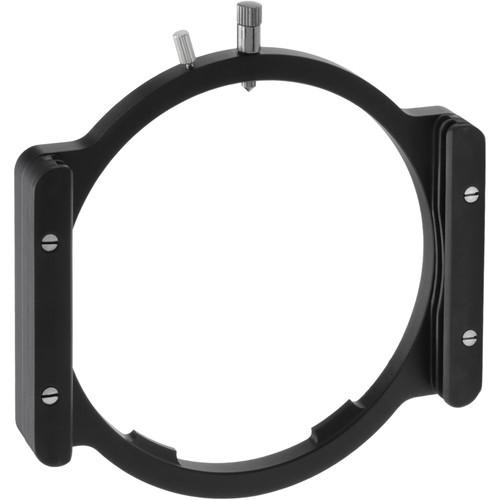

Product description Sensei Pro 100mm Aluminum Universal Filter Holder Read More fvzwftyfeyyecbaadcywtrfzwrffzbysezef The Sensei Pro 100mm Aluminum Universal Filter Holder is designed to allow for the convenient use of 100mm-wide, 2mm-thick filters. While in use, vignetting is prevented on wide-angle, non-fisheye lenses with focal lengths as low as 10mm for APS-C sensor digital cameras, and 16mm for 35mm film and full-frame sensor digital cameras.
Use of this filter holder is easily accomplished by first screwing a separately available Sensei Pro Adapter Ring for 100mm Aluminum Universal Filter Holder onto a compatible lens. Those adapter rings are available for lenses with 52mm, 55mm, 58mm, 62mm, 67mm, 72mm, 77mm, or 82mm front filter threads. After being fitted onto an adapter ring, the filter holder's push-pull locking pin helps to provide a reliable, yet adjustable connection that allows the holder to be rotated 360°, permitting the use of graduated neutral density and other filters that are enhanced by varied positioning. A locking screw next to the Sensei Pro 100mm Aluminum Universal Filter Holder's locking pin ensures that the grip on an adapter ring remains secure.

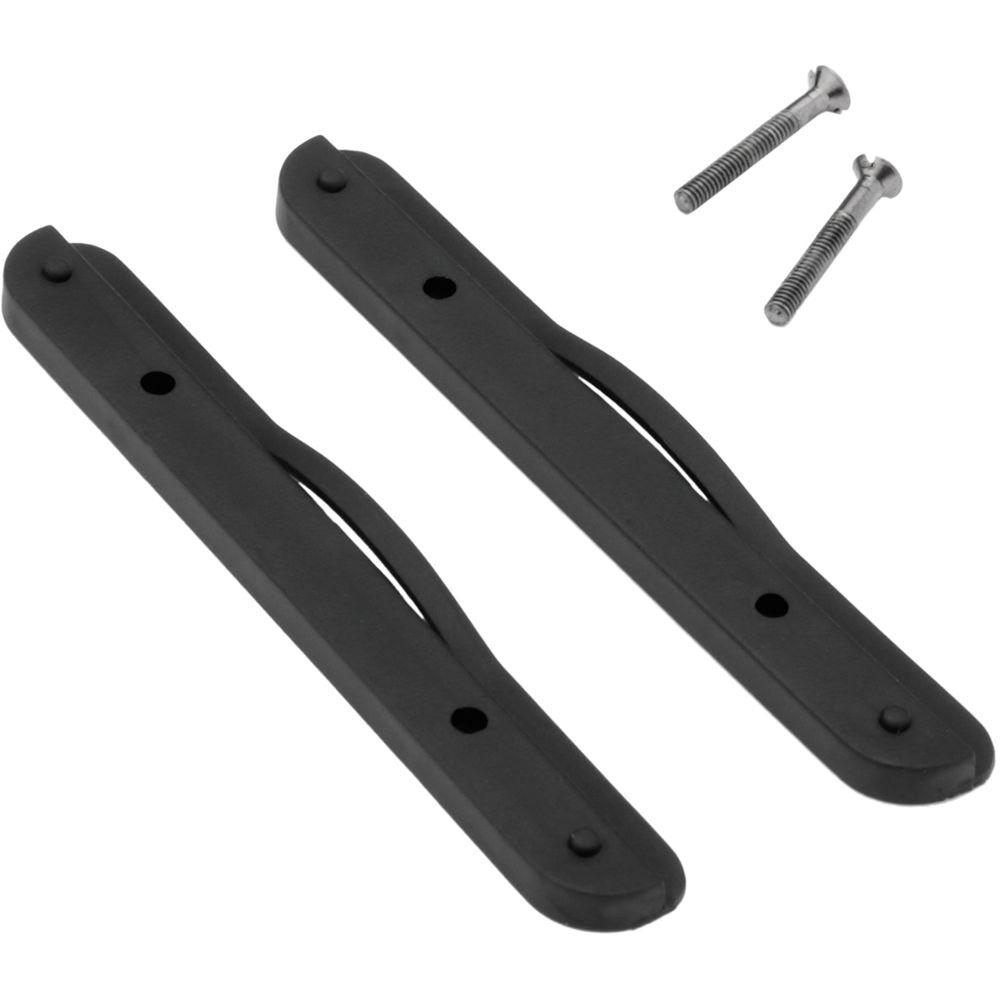

The Sensei Pro 100mm Aluminum Universal Filter Holder is preinstalled with two pairs of filter slots, a configuration that accommodates two rectangular filters. Also included is a third filter slot which allows up to three rectangular filters to be used at the same time. Each Sensei Pro Adapter Ring for 100mm Aluminum Universal Filter Holder includes front filter threads, which allows a thin, 86mm round filter to be used along with this filter holder. If a thin, 86mm round filter is used on the attached adapter ring, the rectangular filter slot closest to the rear of the filter holder becomes unavailable. -
- With a separately-available Sensei Pro Adapter Ring for 100mm Aluminum Universal Filter Holder, allows 100mm-wide, 2mm-thick filters to be conveniently used on lenses with 52mm, 55mm, 58mm, 62mm, 67mm, 72mm, 77mm, or 82mm front filter threads
- Preconfigured to hold two 100mm-wide, 2mm-thick filters and can accommodate up to three 100mm-wide, 2mm-thick filters
- Integrated alignment teeth help to ensure optimal positioning of the holder on a compatible Sensei Pro Adapter Ring for 100mm Aluminum Universal Filter Holder
- Push-pull locking pin allows for adjustment of holder's grip
- Locking screw ensures secure grip
- Durable aluminum-alloy construction
UPC: 847628587779 In the Box Sensei Pro 100mm Aluminum Universal Filter Holder Filter Holder 3 x Filter Slots 6 x Screws Limited 1-Year Warranty User Manual PDF 249kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sensei Pro 100mm Aluminum Universal Filter Holder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSensei FH-100-U Specs | Filter Capacity | 3 x 4 x 4", 4 x 6", 100 x 100 mm, 100 x 150 mm, Sensei Pro 100 mm (2 mm Thick)
or
2 x 4 x 4", 4 x 6", 100 x 100 mm, 100 x 150 mm, Sensei Pro 100 mm (2 mm Thick) and
1 x Round NiSi 86 mm | | Material | Aluminum, Plastic | | Dimensions | 4.6 x 4.4 x 0.6" / 11.8 x 11.3 x 1.5 cm | | Weight | 2.3 oz / 65.2 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 6.3 x 5.9 x 1.1" |
