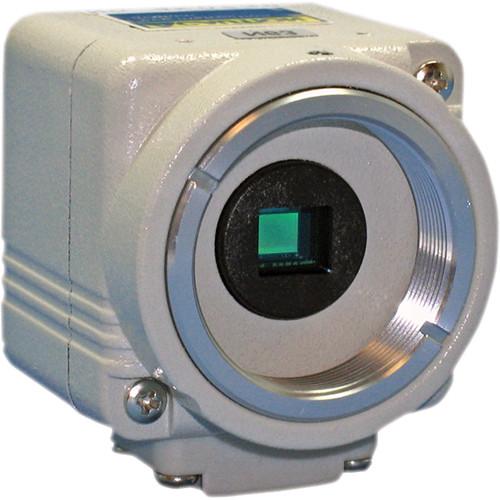

User Manual for Sentech 2:1 Interlace Cased Color Camera Click to enlarge the picture
Contents of the user manual for the Sentech 2:1 Interlace Cased Color Camera
- Product category: Industrial & Multi-Purpose Cameras Sentech
- Brand: Sentech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sentech Industrial & Multi-Purpose Cameras
|
User manual for the Sentech 2:1 Interlace Cased Color Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sentech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sentech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sentech product will considerably shorten its lifespan!
|
Product description The Sentech 2:1 Interlace Cased Color Camera is a high resolution, 1/3" color CCD, NTSC camera that offers 480 TVL and a 10-bit DSP in a very compact, cased configuration 1.42 x 1.42 x 1.46” (36 x 36 x 37mm). This camera offers an optional user-programmable DSP and setup. - Compact high performance color camera
- Push-To-Set White Balance function and Auto White Balance
- User programmable DSP software
In the Box Sentech 2:1 Interlace Cased Color Camera 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sentech 2:1 Interlace Cased Color Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSentech STC-N63CJ Specs Signal Format | NTSC | Image Sensor | 1/3" Interline CCD (ICX408AK) | Effective Picture Elements | 768 (H) x 494 (V) | Chip Size | 5.59 mm (H) x 4.69 mm (V) | Unit Cell Size | 6.35 um (H) x 7.4 um (V) | Pixel Frequency | 14.318 MHz | Horizontal Frequency | 15.734 kHz | Vertical Frequency | 59.94 Hz | Scanning System | 2:1 Interlace | Video Output Level | 1.0 Vpp / 75 Ω | Horizontal Resolution | 480 TVL | Minimum Illumination | 0.17 lux with F1.2 lens | Lens Type | CS-mount | S/N Ratio | More than 48 dB | Gamma Correction | 0.45 | White Balance | AWB, White Balance lock, PWB modes | Aperture Correction | On | AGC (Automatic Gain Control) | On | Blemish Compensation | On | Flicker Correction | On / Off | Back Light Compensation | On / Off | Shutter | 1/60, Electronics Iris | Electronics Iris | 1/60 to 1/100,000 sec | Boards | 3x | Output Format | VBS & Y/C | External Sync | None | Communications | DSP: I2 C (Requires USB adapter Jig) | Power Supply Input Voltage | 10.5 to 14 VDC | Power Consumption | 180 mA at 12 VDC | Dimensions (W x H x D) | 1.38 x 1.67 x 2.15" (35 x 42.5 x 54.5 mm) | | Package Weight | 0.2 lb | Box Dimensions (LxWxH) | 2.7 x 2.2 x 1.9" |
