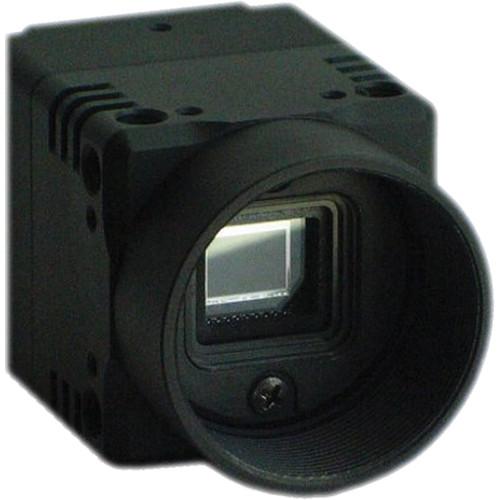

Product description The STC-MB133USB Monochrome USB 2.0/CCD/SXVGA Camera Kit from Sentech pairs the compact STC-MB133USB USB 2.0 camera with software and a mini-USB cable. The camera's SXVGA resolution places it in the mid-range of Sentech's USB 2.0 mini-camera series. This industrial/medical–use camera features a 1/3" monochrome CCD progressive-scan sensor that produces up to 12-bit RAW video output. The STC-MB133USB offers frame rates ranging from 5.6 fps (1/4 clock) to 89.8 fps (partial-scanning) with a maximum full-scanning rate of 22.40 fps. This is a cased camera offering hardware and software triggering, digital zoon, and full and partial scanning modes. Auto and manual gain control, and manual gamma control enable precise image adjustments. The STC-MB133USB Monochrome is a CS-mount, cased camera with a mini-USB interface, and a 6-pin Hirose I/O signal connector. A 6' mini-USB cable, Sentech viewing software, an SDK (software development kit), and DirectX, Twain, and Linux drivers are included in this kit. - Capture up to 29.18 fps in full-scanning mode
- Up to 12-bit RAW SXVGA video output
- 1/3" progressive-scan, monochrome CCD sensor
- Auto/manual gain control, and manual gamma control for precise image adjustments
- Hardware and software triggering options
In the Box Sentech STC-MB133USB USB 2.0/CCD/SXVGA Camera Kit 6' Mini-USB Cable DirectX, Twain, and Linux Drivers Sentech Viewing Software & SDK Limited 2-Year Warranty (1-Year on CCD) Table of Contents
|
Upload User Manual
Have you got an user manual for the Sentech STC-MB133USB USB 2.0 CCD SXVGA Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSentech STC-MB133USB Specs | Image Sensor | 1/3" monochrome progressive CCD (Sony ICX445AL) | | Lens Mount | CS | | Resolution (H x V) | Full Scanning: 1280 x 960
1/2 Partial Scanning: 1280 x 44
1/4 Partial Scanning: 1280 x 168 | | Frame Rates | Full Scanning:
Normal: 22.4 fps
1/2 Clock: 11.2 fps
1/4 Clock: 5.6 fps
1/2 Partial Scanning:
Normal: 44.81 fps
1/2 Clock: 22.4 fps
1/4 Clock: 11.2 fps
1/4 Partial Scanning:
Normal: 89.8 fps
1/2 Clock: 44.9 fps
1/4 Clock: 22.45 fps | | Chip Size | H x V: 0.25 x 0.2" (6.26 x 5.01 mm) | | Picture Element | Total (H x V): 1348 x 976
Effective (H x V): 1280 x 966 | | Cell Size | H x V: 3.75 x 3.75 µm | | Scanning Method | Full Scanning
Partial 1/1, 1/2, 1/4, and variable partial-scanning
Binning, binning 1/1, 1/2, 1/4, and binning variable partial-scanning | | Pixel Frequency | Normal: 36.818 MHz
1/2 Clock: 18.409 MHz
1/4 Clock: 9.20453 MHz | | Video Output | 8/10/12 bit RAW | | Minimum Illumination | 0.15 Lux at f/1.2 | | Electronic Shutter Settings | Auto/Manual:
Normal: 1/36,818,182 to 1/22.40 sec
1/2 Clock: 1/18,409,091 to 1/11.20 sec
1/4 Clock: 1/9,204,545 to 1/5.60 sec | | Triggering | Free-run/edge preset/pulse width/start & stop | | Input / Output Connectors | USB: USB2.0 high speed
I/O Signal: 6-Pin Hirose | | Input Voltage | 5 VDC via USB port (4.4 to 5.25 VDC) | | Power Consumption | <300 mA | | Temperature | Operational: 32 to 104°F (0 to 40°C)
Storage: -22 to 149°F (-30 to 65°C) | | Vibration | 20-200-20 Hz (5 minutes/cycle)
Acceleration: 10G, 3 directions 30 minutes each | | Shock | Acceleration: 70G, half amplitude 6 ms, 3 directions 3 times each | | Dimensions (W x H x D) | 1.1 x 1.1 x 1.5" (28 x 28 x 37 mm) | | Weight | 1.6 oz (45 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.3 x 4.7 x 4.4" |
