User Manual for Sentech STC-MB152USB Monochrome USB 2.0 CCD SXGA Camera Kit Click to enlarge the picture
Contents of the user manual for the Sentech STC-MB152USB Monochrome USB 2.0 CCD
- Product category: Industrial & Multi-Purpose Cameras Sentech
- Brand: Sentech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sentech Industrial & Multi-Purpose Cameras
|
User manual for the Sentech STC-MB152USB Monochrome USB 2.0 CCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sentech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sentech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sentech product will considerably shorten its lifespan!
|

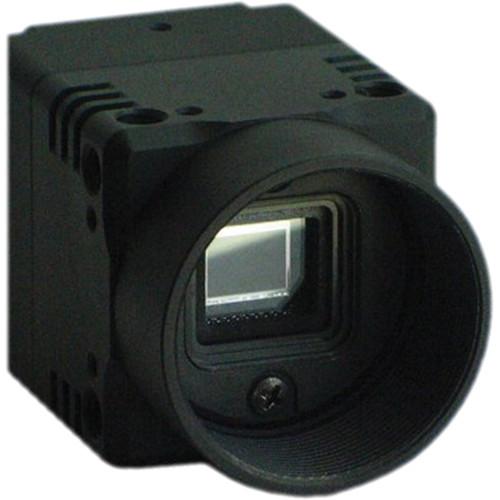

Product description The STC-MB152USB Monochrome USB 2.0/CCD/SXGA Camera Kit from Sentech packages the compact STC-MB152USB USB 2.0 camera with software and a mini-USB cable. This SXGA-resolution model in Sentech's USB 2.0 mini-camera series features a 1/2" monochrome CCD progressive-scan image sensor. This industrial/medical–use camera's frame rates range from 4.815 fps (1/4 clock) to 77.04 fps (partial-scanning), and up to 19.26 fps in full-scanning mode. Auto and manual gain control, and manual gamma control enable fine-tuning of your images. The STC-MB152USB Monochrome camera offers hardware and software triggering, digital zoom, full and partial scanning modes, and up to 12-bit RAW output. The STC-MB152USB Monochrome is a C-Mount, cased camera that comes with a rear mini-USB interface, and a 6-pin Hirose I/O signal connector. This kit includes a 6' mini-USB cable, Sentech viewing software, an SDK (software development kit), and DirectX, Twain, and Linux drivers. - 1/2" progressive-scan, monochrome CCD sensor
- Capture up to 19.26 fps in full-scanning mode
- Hardware and software triggering options
- Auto/manual gain control, and manual gamma control for precise image adjustments
In the Box Sentech STC-MB152USB Monochrome USB 2.0/CCD/SXGA Camera Kit 6' Mini-USB Cable SDX, DirectX, Twain, and Linux Drivers Sentech Viewing Software Limited 2-Year Warranty (1-Year on CCD) Table of Contents
|
Upload User Manual
Have you got an user manual for the Sentech STC-MB152USB Monochrome USB 2.0 CCD SXGA Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSentech STC-MB152UB Specs | Image Sensor | 1/2" monochrome progressive CCD (Sony ICX205AL) | | Lens Mount | C-Mount | | Picture Element | Total (H x V): 1434 x 1050
Effective (H x V): 1392 x 1040 | | Chip Size | H x V: 0.30 x 0.24" (7.6 x 6.2 mm) | | Cell Size | H x V: 4.65 x 4.65µm | | Resolution (H x V) | Full Scanning: 1360 x 1024
1/2 Partial Scanning: 1360 x 476
1/4 Partial Scanning: 1360 x 184 | | Scanning Method | Full Scanning
1/1, 1/2, 1/4, and variable partial scanning
Binning, binning 1/1, 1/2, 1/4, and binning variable partial-scanning | | Frame Rates | Full Scanning:
Normal: 19.26 fps
1/2 Clock: 9.63 fps
1/4 Clock: 4.815 fps
1/2 Partial Scanning:
Normal: 38.52 fps
1/2 Clock: 19.26 fps
1/4 Clock: 9.63 fps
1/4 Partial Scanning:
Normal: 77.04 fps
1/2 Clock: 38.52 fps
1/4 Clock: 19.26 fps | | Pixel Frequency | Normal: 36.818 MHz
1/2 Clock: 18.409 MHz
1/4 Clock: 9.20453 MHz | | Video Output | 8/10/12 bit | | Minimum Illumination | 0.47 Lux at f/1.2 | | Electronic Shutter Settings | Auto/Manual:
Normal: 1/36,818,18 to 1/19.26 sec
1/2 Clock: 1/18,409,091 to 1/9.63 sec
1/4 Clock: 1/9,204,545 to 1/4.81 sec | | Triggering | Free-run / edge preset / pulse width / start & stop | | Input / Output Connectors | USB 2.0 high speed | | Input Voltage | 5 VDC via USB port (4.4 - 5.25 VDC) | | Power Consumption | <420 mA | | Interface Connector | USB: Mini-B USB
I/O Signal: 6-pin Hirose | | Temperature | Operational: 32 to 104°F (0 to 40°C)
Storage: -22 to 149°F (-30 to 65°C) | | Vibration | 20 - 200 - 20 Hz (5 minutes/cycle)
Acceleration: 10G, 3 directions 30 minutes each | | Shock | Acceleration: 70G, half amplitude 6 ms, 3 directions 3 times each | | Dimensions (W x H x D) | Excluding Connector: 1.1 x 1.1 x 1.5" (28 x 28 x 37 mm) | | Weight | 1.6 oz (45 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.6" |
