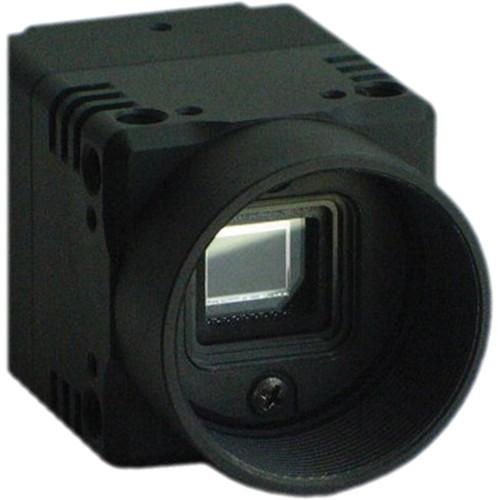

Product description The STC-MB202USB Monochrome USB 2.0/CCD/UXGA Camera Kit from Sentech packages the compact STC-MB202USB USB 2.0 camera with software and a mini-USB cable. The camera's UXGA resolution places it at the upper range of Sentech's USB 2.0 mini-camera series. This industrial/medical–use camera features a 1/1.8" monochrome CCD progressive-scan image sensor. Frame rates range from 3.83 fps (1/4 clock) to 61.27 fps (partial-scanning), and up to 15.32 fps in full-scanning mode. Auto and manual gain control, and manual gamma control enable fine-tuning of your images. The STC-MB202USB camera offers hardware and software triggering, digital zoom, full and partial scanning modes, and up to 12-bit RAW output. The STC-MB202USB Monochrome is a C-mount, cased camera with a rear mini-USB interface, and a 6-pin Hirose I/O signal connector. A 6' mini-USB cable, Sentech viewing software, an SDK (software development kit), and DirectX, Twain, and Linux drivers are included in this kit. - 1/1.8" progressive-scan, monochrome CCD sensor
- Capture up to 15.32 fps in full-scanning mode
- Hardware and software triggering options
- Auto/manual gain control, and manual gamma control for precise image adjustments
In the Box Sentech STC-MB202USB Monochrome USB 2.0/CCD/UXGA Camera Kit 6' Mini-USB Cable SDX, DirectX, Twain, and Linux Drivers Sentech Viewing Software Limited 2-Year Warranty (1-Year on CCD) Table of Contents
|
Upload User Manual
Have you got an user manual for the Sentech STC-MB202USB Monochrome USB 2.0 CCD UXGA Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSentech STC-MB202USB Specs | Image Sensor | 1/1.8" monochrome progressive CCD (Sony ICX274AL) | | Lens Mount | C-Mount | | Picture Element | Total (H x V): 1688 x 1248
Effective (H x V): 1628 x 1236 | | Chip Size | H x V: 0.33 x 0.27" (8.5 x 6.8 mm) | | Cell Size | H x V: 4.40 x 4.40 µm | | Resolution (H x V) | Full Scanning: 1600 x 1200
1/2 Partial Scanning: 1600 x 544
1/4 Partial Scanning: 1600 x 208 | | Scanning Method | Full Scanning
1/1, 1/2, 1/4, and variable partial scanning
Binning, binning 1/1, 1/2, 1/4, and binning variable partial-scanning | | Frame Rates | Full Scanning:
Normal: 15.32 fps
1/2 Clock: 7.66 fps
1/4 Clock: 3.83 fps
1/2 Partial Scanning:
Normal: 30.63 fps
1/2 Clock: 15.31 fps
1/4 Clock: 7.65 fps
1/4 Partial Scanning:
Normal: 61.27 fps
1/2 Clock: 30.63 fps
1/4 Clock: 15.31 fps | | Pixel Frequency | Normal: 36.818 MHz
1/2 Clock: 18.409 MHz
1/4 Clock: 9.20453 MHz | | Video Output | 8 / 10 / 12 bit | | Minimum Illumination | 0.13 Lux at f/1.2 | | Electronic Shutter Settings | Auto/Manual:
Normal: 1/36,818,18 to 1/15.32 sec
1/2 Clock: 1/18,409,091 to 1/7.66 sec
1/4 Clock: 1/9,204,545 to 1/3.83 sec | | Triggering | Free-run/edge preset/pulse width/start & stop | | Input / Output Connectors | USB 2.0 high speed | | Input Voltage | 5 VDC via USB port (4.4 - 5.25 VDC) | | Power Consumption | <420 mA | | Interface Connector | USB: Mini-B USB
I/O Signal: 6-pin Hirose | | Temperature | Operational: 32 to 104°F (0 to 40°C)
Storage: -22 to 149°F (-30 to 65°C) | | Vibration | 20-200-20 Hz (5 minutes/cycle)
Acceleration: 10G, 3 directions 30 minutes each | | Shock | Acceleration: 70G, half amplitude 6 ms, 3 directions 3 times each | | Dimensions (W x H x D) | Excluding Connector: 1.1 x 1.1 x 1.7" (28 x 28 x 42 mm) | | Weight | 1.6 oz (45 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 1.0" |
