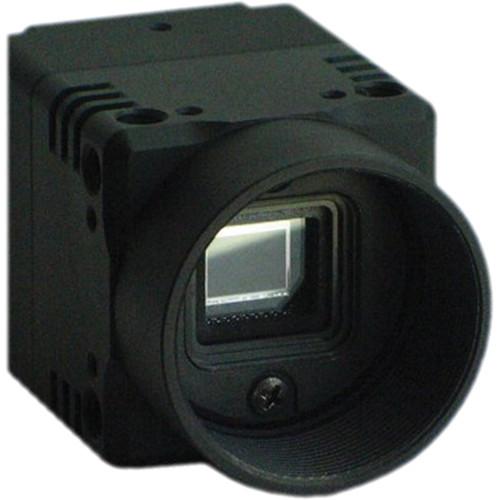

Product description The STC-MC152USB Color USB 2.0/CCD/SXGA Camera Kit from Sentech packages the compact STC-MC152USB USB 2.0 camera with software and a mini-USB cable. This SXGA-resolution model in Sentech's USB 2.0 mini-camera series features a 1/2" color CCD progressive-scan image sensor. This industrial/medical–use camera's frame rates range from 4.815 fps (1/4 clock) to 77.04 fps (partial-scanning), and up to 19.26 fps in full-scanning mode. Auto and manual gain control, auto, manual and one-shot white balance controls, and manual gamma control enable fine-tuning of your images. The STC-MC152USB Color camera offers hardware and software triggering, digital zoom, full and partial scanning modes, and up to 12-bit RAW output. The STC-MC152USB Color is a C-Mount, cased camera that comes with a rear mini-USB interface, and a 6-pin Hirose I/O signal connector. This kit includes a 6' mini-USB cable, Sentech viewing software, an SDK (software development kit), and DirectX, Twain, and Linux drivers. - 1/2" progressive-scan, color CCD sensor
- Capture up to 19.26 fps in full-scanning mode
- Hardware and software triggering options
- Auto/manual gain control, and manual gamma control for precise image adjustments
- Auto/manual/one-shot white-balance control (software selectable)
In the Box Sentech STC-MC152USB Color USB 2.0/CCD/SXGA Camera Kit 6' Mini-USB Cable SDX, DirectX, Twain, and Linux Drivers Sentech Viewing Software Limited 2-Year Warranty (1-Year on CCD) Table of Contents
|
Upload User Manual
Have you got an user manual for the Sentech STC-MC152USB Color USB 2.0 CCD SXGA Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSentech STC-MC152UB Specs | Image Sensor | 1/2" color progressive CCD (Sony ICX205AK) | | Lens Mount | C-Mount | | Picture Element | Total (H x V): 1434 x 1050
Effective (H x V): 1392 x 1040 | | Chip Size | H x V: 0.30 x 0.24" (7.6 x 6.2 mm) | | Cell Size | H x V: 4.65 x 4.65µm | | Resolution (H x V) | Full Scanning: 1360 x 1024
1/2 Partial Scanning: 1360 x 476
1/4 Partial Scanning: 1360 x 184 | | Scanning Method | Full Scanning
1/1, 1/2, 1/4, and variable partial scanning
| | Frame Rates | Full Scanning:
Normal: 19.26 fps
1/2 Clock: 9.63 fps
1/4 Clock: 4.815 fps
1/2 Partial Scanning:
Normal: 38.52 fps
1/2 Clock: 19.26 fps
1/4 Clock: 9.63 fps
1/4 Partial Scanning:
Normal: 77.04 fps
1/2 Clock: 38.52 fps
1/4 Clock: 19.26 fps | | Pixel Frequency | Normal: 36.818 MHz
1/2 Clock: 18.409 MHz
1/4 Clock: 9.20453 MHz | | Video Output | 8/10/12 bit | | Minimum Illumination | 18 Lux at f/1.2 | | Electronic Shutter Settings | Auto/Manual:
Normal: 1/36,818,18 to 1/19.26 sec
1/2 Clock: 1/18,409,091 to 1/9.63 sec
1/4 Clock: 1/9,204,545 to 1/4.81 sec | | Triggering | Free-run / edge preset / pulse width / start & stop | | Input / Output Connectors | USB 2.0 high speed | | Input Voltage | 5 VDC via USB port (4.4 - 5.25 VDC) | | Power Consumption | <420 mA | | Interface Connector | USB: Mini-B USB
I/O Signal: 6-pin Hirose | | Temperature | Operational: 32 to 104°F (0 to 40°C)
Storage: -22 to 149°F (-30 to 65°C) | | Vibration | 20 - 200 - 20 Hz (5 minutes/cycle)
Acceleration: 10G, 3 directions 30 minutes each | | Shock | Acceleration: 70G, half amplitude 6 ms, 3 directions 3 times each | | Dimensions (W x H x D) | Excluding Connector: 1.1 x 1.1 x 1.5" (28 x 28 x 37 mm) | | Weight | 1.6 oz (45 g) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 6.0 x 4.0 x 4.0" |
