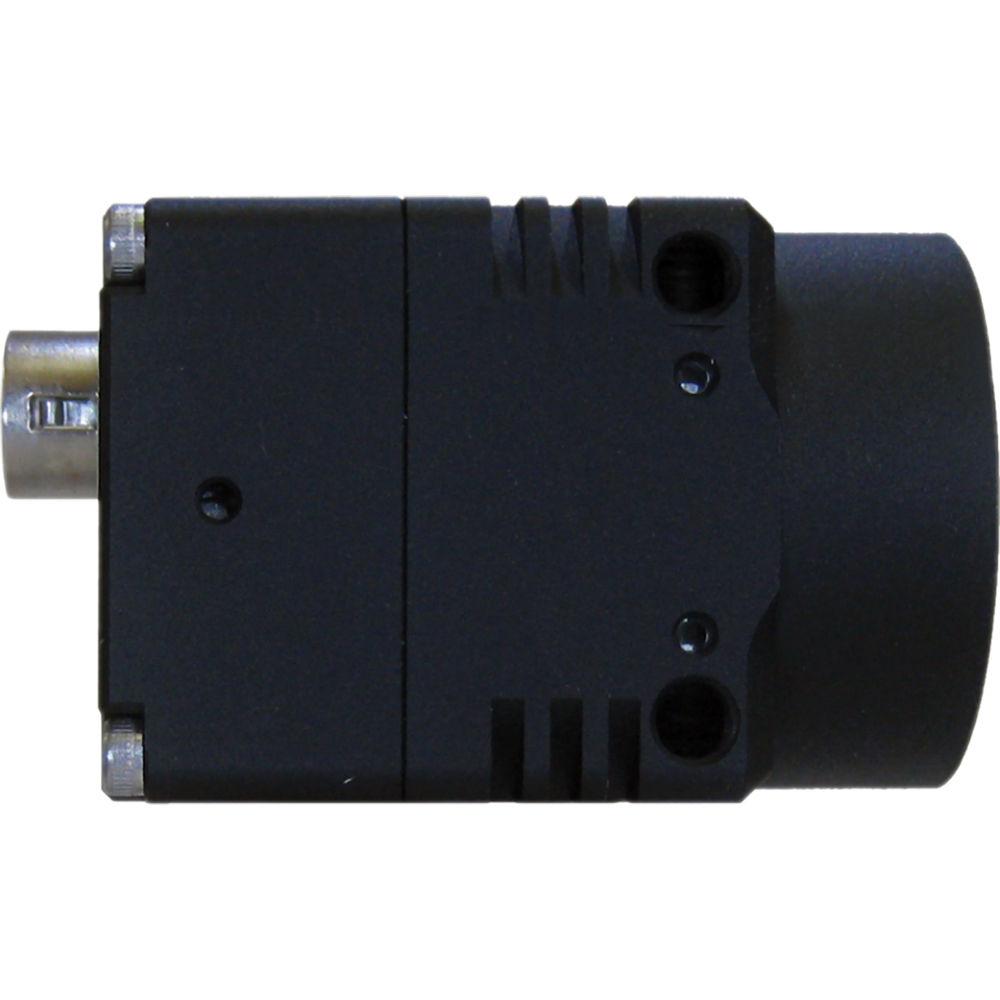

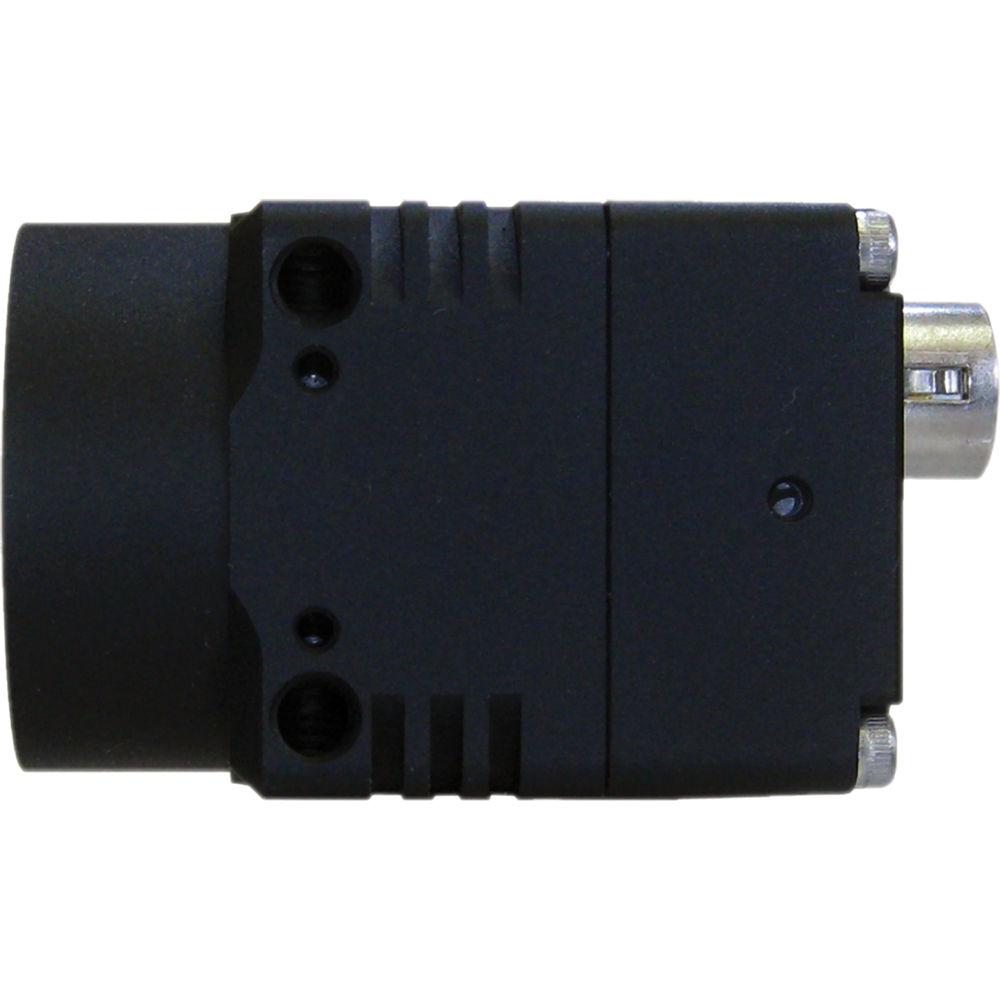

Product description The Sentech STC-MC152USB SXGA Color USB 2.0 Camera is an ultra-compact camera with special features for scientific and medical applications. With a 1/2” interline color progressive scan CCD sensor (Sony ICX205AK), the camera captures clear, detailed images at SXGA resolution when it is connected to a microscope or other medical/scientific equipment.
You can set the shutter speed, white balance, and gain manually or choose the automatic mode. In addition, the gamma correction can also be set manually. The Low-Light Extended Integration feature slows the image frame rate and increases the camera’s sensitivity under low light conditions for capturing clear images.

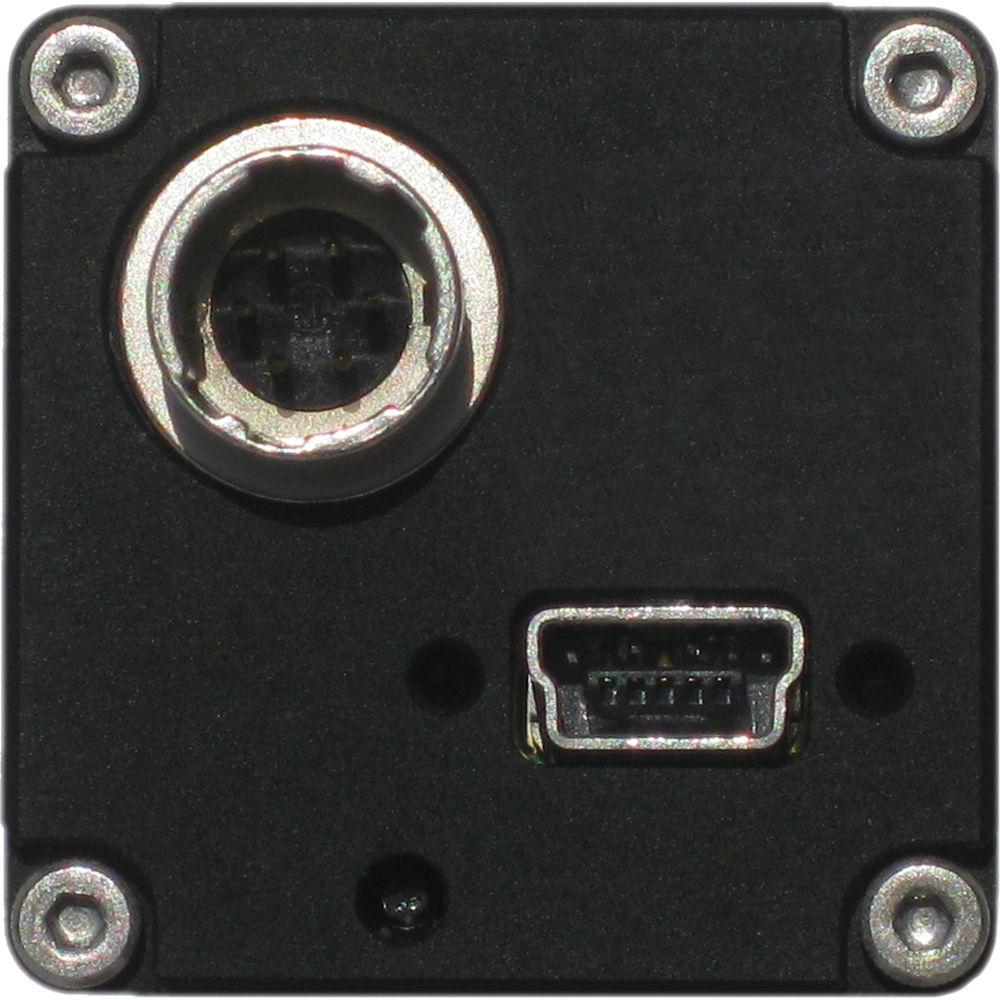

A USB 2.0 port lets you transfer video clips to a flash drive, PC, or any other storage/viewing device and eliminates the need for a frame grabber. In addition, the camera features a C-type mount that supports most lenses. Furthermore, enclosed in a rugged metal housing, the camera can withstand shocks up to 70G. - Ultra-compact (1.1 x 1.1 x 1.65") one-piece system ideal for microscopy and astrophotography
- Outputs 8-bit (10, 12-bit via SDK) 1360 x 1024 resolution videos at 19 fps
- Single 1/2" Interline VGA color progressive scan CCD sensor (Sony ICX205AK)
- One shot, Auto, and Manual White Balance modes
- Low-Light Extended Integration for clear pictures in low light conditions
- Hardware and software based triggers for accurate monitoring
- Rugged metal housing for added durability
- Comes with Sentech Viewing Software and SDK (Software Developer Kit)
In the Box Sentech STC-MC152USB SXGA Color USB 2.0 Camera Sentech Viewing Software Documentation 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sentech STC-MC152USB SXGA Color USB 2.0 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSentech STC-MC152USB Specs | Image Sensor | 1/2" Interline SXGA color progressive CCD, Sony ICX205AK | | Effective Picture Elements | 1392 (H) x 1040 (V) | | Resolution | 1360 (H) x 1024 (V) (full scanning) | | Maximum Frame Rate | 19 fps | | Video Output | 8-bit (10 / 12-bit via SDK) | | Scene Illumination | 18 lux at F1.2 | | Sync System | Internal | | Electronic Shutter | Auto / Manual (software selectable) | | Gain | Auto / Manual (software selectable) | | Gamma | Manual (software selectable) | | Triggering | Free-run / Edge preset trigger / Pulse width trigger / Start & stop trigger (software selectable) | | White Balance | Auto / Manual / One Shot | | Power | Input Voltage: +5 VDC through USB connector (+4.4 to +5.25V)
Consumption: < 420 mA | | Operational Temperature | 0 to 104°F (0 to 40°C) | | Storage Temperature | -22 to 149°F (-30 to 65°C) | | Vibration | 20 Hz to 200 Hz to 20 Hz (5 minute/cycle), acceleration 10G, 3 directions 30 minutes each | | Shock | Acceleration 70G, half amplitude 6 ms, 3 directions 3 times each | | RoHS | Yes | | Interface | mini-B USB connector | | Lens Mount | C mount | | Dimensions | 1.1 x 1.1 x 1.65" (28 x 28 x 42 mm) | | Weight | 0.09 lb (45 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 2.9 x 2.8 x 1.9" |
