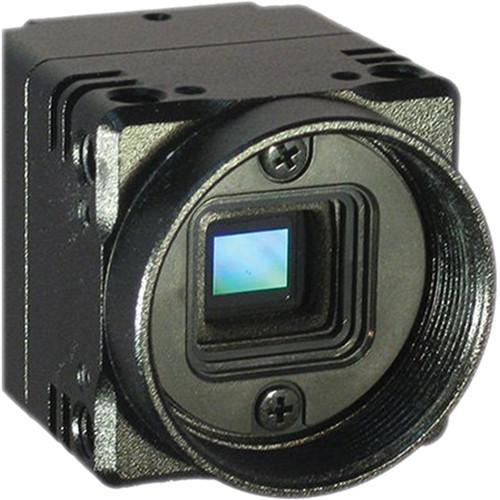

User Manual for Sentech STC-MCA5MUSB3 CS-Mount 5MP Cased Camera with USB 3.0 Interface Click to enlarge the picture
Contents of the user manual for the Sentech STC-MCA5MUSB3 CS-Mount 5MP Cased Camera
- Product category: Industrial & Multi-Purpose Cameras Sentech
- Brand: Sentech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sentech Industrial & Multi-Purpose Cameras
|
User manual for the Sentech STC-MCA5MUSB3 CS-Mount 5MP Cased Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sentech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sentech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sentech product will considerably shorten its lifespan!
|
Product description Housing a 5MP 1/2.5" Aptina sensor, the Sentech STC-MCA5MUSB3 outputs color images at up to 126 fps at VGA (640 x 480) resolution via its USB 3.0 interface. With the ample bandwidth of the USB 3.0 interface, this camera is capable of capturing images at up to QSXGA (2592 x 1944) resolution in either 8-bit RGB, 8/10/12-bit raw, or 8/10/12-bit monochrome formats. The USB interface also carries 5V power back to the camera. 64-pixel blemish compensation can be enabled to correct for pixel artifacts which can accumulate over time. Camera control is provided by a 6-pin Hirose connector on the rear of the chassis. Software and the SDK for the camera are available for free download from the web. In the Box Sentech STC-MCA5MUSB3 CS-Mount 5MP Cased Camera with USB 3.0 Interface (Color) Limited 2-Year Warranty on Camera Parts Limited 1-Year Warranty on Sensor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sentech STC-MCA5MUSB3 CS-Mount 5MP Cased Camera with USB 3.0 Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSentech STC-MCA5MUSB3 Specs | | | Image Sensor | 1/2.5" 5 MP CMOS Sensor; (Aptina: MT9P031/12STM) | | Picture Element | Active (H x V): 2592 x 1944 | | Cell Size | H x V: 2.2 x 2.2 µm | | | | Scanning System | Progressive | | Shutter Type | Rolling shutter | | Scanning Method | Full scanning
Variable AOI (horizontal / vertical) | | Maximum Frame Rate | 14 fps @ QSXGA (2592 x 1944)
21 fps @ QXGA (2048 x 1536)
31 fps @ UXGA (1600 x 1200)
42 fps @ SXGA (1280 x 1024)
63 fps @ XGA (1024 x 768)
90 fps @ SVGA (800 x 600)
123 fps @ VGA (540 x 480) | | Sync System | Internal | | Video Output | RGB: 8-bit
Raw & Monochrome: 8/10/12-bit | | S/N Ratio | ≤4 digit
Gain: 0 dB | | Minimum Illumination | 9 lux at f/1.2 | | Automatic Light Compensation (ALC) | Auto shutter / auto gain (AGC) | | Electronic Shutter | Free-Run & Edge Preset Trigger Mode:
Exposure Time: 32 µsec to 38 sec in full scanning mode
Pulse-Width Trigger Mode:
Exposure Time: 32 µsec to unlimited in full scanning mode | | Gain | Analog: 0 to 26.97 dB
Digital: 0 to 12.04 dB | | Clamp | Digital: 0 to 255 (LSB of 12 bit output) | | Gamma | 0.1 to 4 (settable with 0.1 step) | | Function | AOI
Horizontal: 32 to 2,592 pixels
Vertical: 32 to 1,944 lines
Adjustable Steps: 4 pixels in horizontal direction and 4 lines in vertical direction | | Binning | Horizontal & Vertical: 1/2, 1/4 (Only pixels in the horizontal direction can be added to increase the brightness) | | Skipping | Horizontal: 1/2, 1/3, 1/4, 1/5, 1/6, 1/7
Vertical: 1/2, 1/3, 1/4, 1/5, 1/6, 1/7, 1/8 | | Pixel Blemish Correction | Up to 64 pixels | | White Balance | Auto / Manual / One-shot | | Operation Mode | Free-run
Edge preset / pulse width / start and stop trigger | | Frame Memory | 32 MB | | Input/Output | USB 3.0 Super Speed (USB 3.0 Micro B) | | | | Input Voltage | Typical: 5 V
Conform to USB standard | | Power Consumption | Less than 2 W | | Lens Mount | CS-mount | | Optical Filter | IR-cut filter | | Optical | Accuracy in Horizontal and Vertical Directions
Positional: ±0.5 mm
Rotational: ± 0.35˚ | | Interface Connector | USB: USB3 Micro-B connector
Input / Output Signal: 6-pin connector
2 inputs / 2 outputs
(HR10A-7R-6PB or equivalent) | | | | Temperature | Operational: 32 to 104°F (0 to 40°C)
Storage: -22 to 149°F (-30 to 65°C) | | Vibration | 20 to 200 to 20 Hz (5 minutes/cycle)
Acceleration: 10G, 3 directions 30 minutes each | | Shock | Acceleration: 38G, half amplitude 6 ms, 3 directions 3 times each | | Standard Compliance | EMS: EN61000-6-2, EMI: EN55011 | | | | Dimensions (W x H x D) | 1.1 x 1.1 x 1.3" (28.0 x 28.0 x 33.8 mm) excluding connector | | Weight | Approximately 1.3 oz (38.0 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 6.614 x 6.457 x 4.803" |
