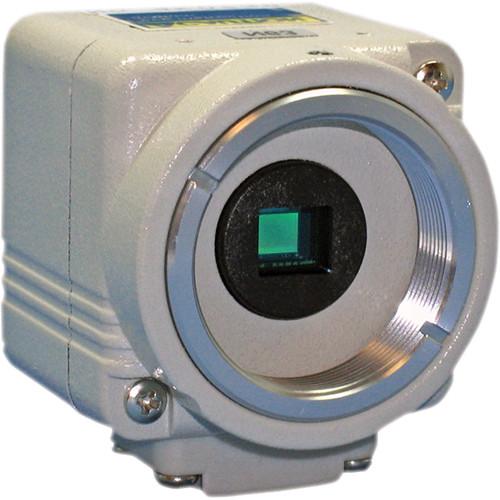

User Manual for Sentech STC-N63BJ Color Cased Camera Click to enlarge the picture
Contents of the user manual for the Sentech STC-N63BJ Color Cased Camera
- Product category: Industrial & Multi-Purpose Cameras Sentech
- Brand: Sentech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sentech Industrial & Multi-Purpose Cameras
|
User manual for the Sentech STC-N63BJ Color Cased Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sentech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sentech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sentech product will considerably shorten its lifespan!
|
Product description In a very compact housing, the Sentech STC-N63BJ Color Cased Camera (480 TVL) employs a high resolution, 1/3” color CCD sensor that produces 480 TVL of horizontal resolution. The camera comes with a BJ back panel & board level. In the Box Sentech STC-N63BJ Color Cased Camera (480 TVL) 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sentech STC-N63BJ Color Cased Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSentech STC-N63BJ Specs | Image Sensor | Color 1/3"
H x V: (NTSC) 768 x 494 IT CCD (ICX408AK), (PAL) 752 x 582 IT CCD (ICX4O9AK) | | Formats | NTSC & PAL | | Scanning System | 2:1 interlace | | Horizontal Frequency | NTSC: 15.734 KHz
PAL: 15.625 KHz | | Vertical Frequency | NTSC: 59.94 KHz
PAL: 50 KHz | | DSP | 10-bit | | Video Output | Composite video or Y/C out | | Gamma | 0.45 | | White Balance | ATW | | Serial Port | RS-232C serial I/O port | | Sync System | Internal | | Gain | On | | Minimum Illumination | Standard: 0.19 lux @ F 1.2, 50 IRE
H Version: 0.14 lux @ F 1.2, 50 IRE | | Electronic Shutter | 1/60 (NTSC) 1/50 (PAL) to 1/100,000 seconds | | Fixed Shutter | 1/60 fixed | | Flicker Reduction | On/off | | Image Reversal Function | Normal/mirror | | Auto Iris | Direct drive control | | Back Light | On/off | | S/N Ratio | >48 dB (AGC off) | | Lenses | CS lens mount (C-mount with an adapter) | | Power Supply | 12 VDC | | Power Consumption | l50 mA | | Operating Temperature | 14 to 113°F ( -10 to 45°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Dimensions (W x H x D) | 1.44 x 1.44 x 1.49" (36 x 36 x 37.35 mm) | | Weight | 229 oz (65 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 2.6 x 2.3 x 1.9" |
